The PC/SC reader unit class. More...

#include <pcscreaderunit.hpp>

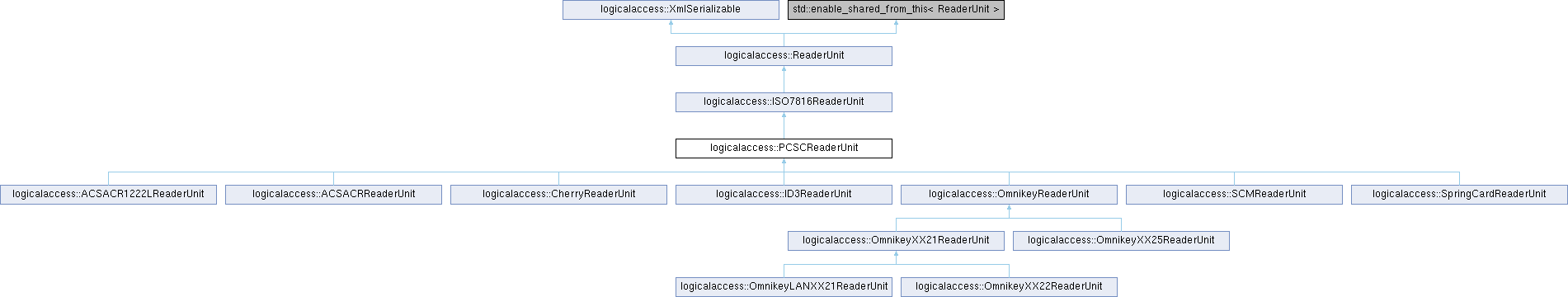

Inheritance diagram for logicalaccess::PCSCReaderUnit:

Public Member Functions
	PCSCReaderUnit (const std::string &name)
	Constructor.

virtual	~PCSCReaderUnit ()
	Destructor.

std::string	getName () const override
	Get the reader unit name.

void	setName (const std::string &name)
	Set the reader unit name.

std::string	getConnectedName () override
	Get the connected reader unit name.

virtual PCSCReaderUnitType	getPCSCType () const
	Get the PC/SC reader unit type.

void	setCardType (std::string cardType) override
	Set the card type.

bool	waitInsertion (unsigned int maxwait) override
	Wait for a card insertion.

bool	waitRemoval (unsigned int maxwait) override
	Wait for a card removal.

bool	connect () override
	Connect to the card.

virtual bool	connect (PCSCShareMode share_mode)
	Connect to the card.

void	disconnect () override
	Disconnect from the card.

bool	isConnected () override
	Check if the handle is associated to a card (aka. "connected").

bool	connectToReader () override
	Connect to the reader. Implicit connection on first command sent.

void	disconnectFromReader () override
	Disconnect from reader.

const SCARDHANDLE &	getHandle () const
	Get the low-level SCARDHANDLE.

unsigned long	getActiveProtocol () const
	Get the active protocol for the connected card.

PCSCShareMode	getShareMode () const
	Get the currently active share mode.

std::shared_ptr< Chip >	createChip (std::string type) override
	Create the chip object from card type.

std::shared_ptr< Chip >	getSingleChip () override
	Get the first and/or most accurate chip found.

std::vector< std::shared_ptr< Chip > >	getChipList () override
	Get chip available in the RFID rang.

virtual ByteVector	getCardSerialNumber ()
	Get the card serial number.

std::string	getReaderSerialNumber () override
	Get a string hexadecimal representation of the reader serial number.

const ByteVector &	getATR () const
	Get the card ATR.

virtual std::shared_ptr< PCSCReaderCardAdapter >	getDefaultPCSCReaderCardAdapter ()
	Get the default PC/SC reader/card adapter.

virtual std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter (std::string type)
	Get the PC/SC reader/card adapter for a card type.

void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

std::shared_ptr< ReaderUnitConfiguration >	getConfiguration () override
	Get the reader unit configuration.

void	setConfiguration (std::shared_ptr< ReaderUnitConfiguration > config) override
	Set the reader unit configuration.

virtual void	changeReaderKey (std::shared_ptr< ReaderMemoryKeyStorage > keystorage, const ByteVector &key)
	Change a key in reader memory.

std::shared_ptr< PCSCReaderUnitConfiguration >	getPCSCConfiguration ()
	Get the PC/SC reader unit configuration.

std::shared_ptr< PCSCReaderProvider >	getPCSCReaderProvider () const

void	makeProxy (std::shared_ptr< PCSCReaderUnit > readerUnit, std::shared_ptr< PCSCReaderUnitConfiguration > readerUnitConfig)
	Make the reader unit as a proxy to another. Use when listening on all PC/SC reader unit.

virtual void	getT_CL_ISOType (bool &isTypeA, bool &isTypeB)
	Get if the inserted card is from ISO 14443-4 A or B.

virtual void	cardConnected ()

std::shared_ptr< PCSCReaderUnit >	getProxyReaderUnit () const

void	setCardTechnologies (const TechnoBitset &bitset) override

TechnoBitset	getCardTechnologies () override

std::shared_ptr< LCDDisplay >	getLCDDisplay () override
	Get the LCD Display for this reader unit.

void	setLCDDisplay (std::shared_ptr< LCDDisplay > d) override
	Get the LCD Display for this reader unit.

std::shared_ptr< LEDBuzzerDisplay >	getLEDBuzzerDisplay () override
	Get the LED/Buzzer Display for this reader unit.

void	setLEDBuzzerDisplay (std::shared_ptr< LEDBuzzerDisplay > lbd) override
	Get the LCD Display for this reader unit.

ReaderServicePtr	getService (const ReaderServiceType &type) override

void	beginTransaction ()

void	endTransaction (DWORD dwDisposition=SCARD_LEAVE_CARD)

void	reset (int action=0)
	Reconnect to the card.

void	setup_pcsc_connection (PCSCShareMode share_mode)

void	teardown_pcsc_connection ()

Public Member Functions inherited from logicalaccess::ISO7816ReaderUnit
	ISO7816ReaderUnit (std::string rpt)

virtual	~ISO7816ReaderUnit ()

bool	waitInsertion (unsigned int) override
	Wait for a card insertion.

bool	waitRemoval (unsigned int) override
	Wait for a card removal.

bool	isConnected () override
	Check if the card is connected.

void	setCardType (std::string) override
	Set the forced card type.

std::shared_ptr< Chip >	getSingleChip () override
	Get the first and/or most accurate chip found.

std::vector< std::shared_ptr< Chip > >	getChipList () override
	Get chip available in the RFID rang.

bool	connect () override
	Connect to the card.

void	disconnect () override
	Disconnect from the card.

virtual void	connectToSAM ()

bool	connectToReader () override
	Connect to the reader. Implicit connection on first command sent.

virtual void	disconnectFromSAM ()

void	disconnectFromReader () override
	Disconnect from reader.

virtual void	reloadReaderConfiguration ()

virtual void	setContext (const std::string &context)
	Set the client context.

virtual std::string	getContext ()
	Get the client context.

std::string	getName () const override
	Get the reader unit name.

std::string	getReaderSerialNumber () override
	Get a string hexadecimal representation of the reader serial number.

std::shared_ptr< CardProbe >	createCardProbe () override

virtual std::shared_ptr< SAMChip >	getSAMChip ()
	Get The SAM Chip.

virtual void	setSAMChip (std::shared_ptr< SAMChip > t)
	Set the SAM Chip.

virtual std::shared_ptr< ISO7816ReaderUnit >	getSAMReaderUnit ()
	Get The SAM ReaderUnit.

virtual void	setSAMReaderUnit (std::shared_ptr< ISO7816ReaderUnit > t)
	Set the SAM ReaderUnit.

Public Member Functions inherited from logicalaccess::ReaderUnit
	ReaderUnit (std::string rpt)
	Constructor.

virtual	~ReaderUnit ()
	Destructor.

std::string	getRPType () const
	Get the reader provider type.

virtual ByteVector	getPingCommand () const
	Get the reader ping command.

virtual bool	waitInsertion (unsigned int maxwait)=0
	Wait for a card insertion.

virtual bool	waitInsertion (const ByteVector &identifier, unsigned int maxwait)
	Wait for a specific card insertion.

virtual bool	waitRemoval (unsigned int maxwait)=0
	Wait for a card removal.

virtual bool	isConnected ()=0
	Check if the card is connected.

std::string	getCardType () const
	Get the forced card type.

virtual void	setCardType (std::string cardType)=0
	Set the forced card type.

virtual std::shared_ptr< Chip >	createChip (std::string type)
	Create the chip object from card type.

virtual std::shared_ptr< Chip >	createChip (std::string type, const ByteVector &identifier)
	Create the chip object from card type with identifier.

virtual ByteVector	getNumber (std::shared_ptr< Chip > chip)
	Get the number from the embedded licensing configuration.

virtual std::shared_ptr< Chip >	getSingleChip ()=0
	Get the first and/or most accurate chip found.

virtual std::vector< std::shared_ptr< Chip > >	getChipList ()=0
	Get chip available in the RFID rang.

virtual ByteVector	getNumber (std::shared_ptr< Chip > chip, std::shared_ptr< CardsFormatComposite > composite)
	Get the number from the reader format composite.

virtual bool	connect ()=0
	Connect to the card.

virtual bool	reconnect (int action=0)
	Reconnect to the card with the currently active share mode on the same reader.

virtual void	disconnect ()=0
	Disconnect from the card.

virtual bool	connectToReader ()=0
	Connect to the reader. Implicit connection on first command sent.

virtual void	disconnectFromReader ()=0
	Disconnect from reader.

virtual std::string	getName () const =0
	Get the reader unit name.

virtual std::string	getConnectedName ()
	Get the connected reader unit name.

virtual std::shared_ptr< ReaderUnitConfiguration >	getConfiguration ()
	Get the reader unit configuration.

virtual void	setConfiguration (std::shared_ptr< ReaderUnitConfiguration > config)
	Set the reader unit configuration.

virtual std::shared_ptr< ReaderCardAdapter >	getDefaultReaderCardAdapter ()
	Get the default reader/card adapter.

virtual void	setDefaultReaderCardAdapter (std::shared_ptr< ReaderCardAdapter > defaultRca)
	Set the default reader/card adapter.

virtual std::shared_ptr< DataTransport >	getDataTransport () const
	Get the data transport layer.

virtual void	setDataTransport (std::shared_ptr< DataTransport > dataTransport)
	Set the data transport layer.

virtual std::string	getReaderSerialNumber ()=0
	Get a string hexadecimal representation of the reader serial number.

std::string	getDefaultXmlNodeName () const override
	Get the default Xml Node name for this object.

void	serialize (boost::property_tree::ptree &node) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode) override
	UnSerialize object from a Xml node.

std::shared_ptr< ReaderProvider >	getReaderProvider () const
	Get the associated reader provider.

void	setReaderProvider (std::weak_ptr< ReaderProvider > provider)
	Set the associated reader provider.

virtual std::shared_ptr< LCDDisplay >	getLCDDisplay ()
	Get the LCD Display for this reader unit.

virtual void	setLCDDisplay (std::shared_ptr< LCDDisplay > d)
	Get the LCD Display for this reader unit.

virtual std::shared_ptr< LEDBuzzerDisplay >	getLEDBuzzerDisplay ()
	Get the LED/Buzzer Display for this reader unit.

virtual void	setLEDBuzzerDisplay (std::shared_ptr< LEDBuzzerDisplay > lbd)
	Get the LCD Display for this reader unit.

virtual void	setCardTechnologies (const TechnoBitset &bitset)

virtual TechnoBitset	getCardTechnologies ()

virtual TechnoBitset	getPossibleCardTechnologies ()

virtual ReaderServicePtr	getService (const ReaderServiceType &type)

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.

virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Static Public Member Functions
static std::shared_ptr< PCSCReaderUnit >	createPCSCReaderUnit (const std::string &readerName)

Static Public Member Functions inherited from logicalaccess::ReaderUnit
static uint64_t	getFormatedNumber (const ByteVector &number, int padding)
	Get the number as decimal a number.

static std::string	getFormatedNumber (const ByteVector &number)
	Get a string hexadecimal representation of the number.

Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.

static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.

Protected Types
using	SPtrStringVector = std::vector< std::shared_ptr< std::string > >

using	ReaderStateVector = std::vector< SCARD_READERSTATE >

Protected Member Functions
bool	reconnect (int action=0) override
	Reconnect to the card with the currently active share mode on the same reader.

std::shared_ptr< Chip >	adjustChip (std::shared_ptr< Chip > c)

std::shared_ptr< ResultChecker >	createDefaultResultChecker () const override

std::shared_ptr< CardProbe >	createCardProbe () override

void	configure_mifareplus_chip (std::shared_ptr< Chip > c, std::shared_ptr< Commands > &commands, std::shared_ptr< ResultChecker > &resultChecker) const

void	detect_mifareplus_security_level (std::shared_ptr< Chip > c)

void	setSingleChip (std::shared_ptr< Chip > chip)
	Set the first and/or most accurate chip found.

std::shared_ptr< SAMChip >	getSAMChip () override
	Get The SAM Chip.

void	setSAMChip (std::shared_ptr< SAMChip > t) override
	Set the SAM Chip.

std::shared_ptr< ISO7816ReaderUnit >	getSAMReaderUnit () override
	Get The SAM ReaderUnit.

void	setSAMReaderUnit (std::shared_ptr< ISO7816ReaderUnit > t) override
	Set the SAM ReaderUnit.

std::tuple< SPtrStringVector, ReaderStateVector >	prepare_poll_parameters ()

void	waitInsertion_create_proxy (const std::string &reader_name)

virtual bool	process_insertion (const std::string &cardType, unsigned int maxwait, const ElapsedTimeCounter &elapsed)

Protected Member Functions inherited from logicalaccess::ISO7816ReaderUnit
std::shared_ptr< ResultChecker >	createDefaultResultChecker () const override

std::shared_ptr< ISO7816ReaderProvider >	getISO7816ReaderProvider () const
	Get the ISO7816 reader provider.

std::shared_ptr< ISO7816ReaderUnitConfiguration >	getISO7816Configuration ()
	Get the ISO7816 reader unit configuration.

bool	reconnect (int action) override
	Reconnect to the card with the currently active share mode on the same reader.

virtual std::shared_ptr< ResultChecker >	createDefaultResultChecker () const

virtual std::shared_ptr< CardProbe >	createCardProbe ()

Protected Attributes
std::string	d_name
	The reader unit name.

std::string	d_connectedName
	The reader unit connected name.

std::unique_ptr< PCSCConnection >	connection_

ByteVector	atr_

std::shared_ptr< PCSCReaderUnit >	d_proxyReaderUnit
	The proxy reader unit.

Protected Attributes inherited from logicalaccess::ISO7816ReaderUnit
std::shared_ptr< SAMChip >	d_sam_chip
	The SAM chip.

std::shared_ptr< ISO7816ReaderUnit >	d_sam_readerunit
	The SAM ReaderUnit used SAM Authentication.

std::string	d_client_context
	The client context.

std::string	d_sam_client_context
	The sam client context.

Protected Attributes inherited from logicalaccess::ReaderUnit
std::string	d_readerProviderType
	The associated reader provider type for the reader unit configuration.

std::string	d_card_type
	The forced card type.

std::weak_ptr< ReaderProvider >	d_readerProvider
	The associated reader provider for the reader unit.

std::shared_ptr< ReaderUnitConfiguration >	d_readerUnitConfig
	The reader unit configuration.

std::shared_ptr< Chip >	d_insertedChip
	The inserted chip.

std::shared_ptr< LCDDisplay >	d_lcdDisplay
	The inserted chip.

std::shared_ptr< LEDBuzzerDisplay >	d_ledBuzzerDisplay
	The inserted chip.

Additional Inherited Members
Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)

Detailed Description

The PC/SC reader unit class.

Member Typedef Documentation

◆ ReaderStateVector

using logicalaccess::PCSCReaderUnit::ReaderStateVector = std::vector<SCARD_READERSTATE>

protected

◆ SPtrStringVector

using logicalaccess::PCSCReaderUnit::SPtrStringVector = std::vector<std::shared_ptr<std::string> >

protected

Constructor & Destructor Documentation

◆ PCSCReaderUnit()

logicalaccess::PCSCReaderUnit::PCSCReaderUnit ( const std::string & name )

explicit

Constructor.

◆ ~PCSCReaderUnit()

logicalaccess::PCSCReaderUnit::~PCSCReaderUnit ( )

virtual

Destructor.

Member Function Documentation

◆ adjustChip()

std::shared_ptr< Chip > logicalaccess::PCSCReaderUnit::adjustChip ( std::shared_ptr< Chip > c )

protected

Perform adjustment regarding a Chip.

For example, if the Chip type is desfire, we check that it is not in fact a desfire ev1. Similarly, we check to see if a desfire has random UID enabled or not.

This function may return a new Chip object, that should be used.

◆ beginTransaction()

void logicalaccess::PCSCReaderUnit::beginTransaction ( )

◆ cardConnected()

virtual void logicalaccess::PCSCReaderUnit::cardConnected ( )

inlinevirtual

This method is used to notify the (proxyfied) implementation that a card was connected

◆ changeReaderKey()

void logicalaccess::PCSCReaderUnit::changeReaderKey	(	std::shared_ptr< ReaderMemoryKeyStorage >	keystorage,
		const ByteVector &	key
	)

virtual

Change a key in reader memory.

Parameters

keystorage	The key storage information.
key	The key value.

Reimplemented in logicalaccess::OmnikeyXX21ReaderUnit.

◆ configure_mifareplus_chip()

void logicalaccess::PCSCReaderUnit::configure_mifareplus_chip	(	std::shared_ptr< Chip >	c,
		std::shared_ptr< Commands > &	commands,
		std::shared_ptr< ResultChecker > &	resultChecker
	)		const

protected

◆ connect() [1/2]

bool logicalaccess::PCSCReaderUnit::connect ( )

overridevirtual

Connect to the card.

Returns: True if the card was connected without error, false otherwise.

If the card handle was already connected, connect() first call disconnect(). If you intend to do a reconnection, call reconnect() instead.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

Reimplemented in logicalaccess::ACSACR1222LReaderUnit, and logicalaccess::ID3ReaderUnit.

◆ connect() [2/2]

bool logicalaccess::PCSCReaderUnit::connect ( PCSCShareMode share_mode )

virtual

Connect to the card.

Parameters

reader	The reader name. If an empty or invalid reader name is specified, connect will fail.
share_mode	The share mode.

Returns: True if the card was connected without error, false otherwise.

If the card handle was already connected, connect() first call disconnect(). If you intend to do a reconnection, call reconnect() instead.

Reimplemented in logicalaccess::ID3ReaderUnit, and logicalaccess::ID3ReaderUnit.

◆ connectToReader()

bool logicalaccess::PCSCReaderUnit::connectToReader ( )

overridevirtual

Connect to the reader. Implicit connection on first command sent.

Returns: True if the connection successed.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

Reimplemented in logicalaccess::ACSACR1222LReaderUnit, and logicalaccess::OmnikeyLANXX21ReaderUnit.

◆ createCardProbe()

std::shared_ptr< CardProbe > logicalaccess::PCSCReaderUnit::createCardProbe ( )

overrideprotectedvirtual

Create a new CardProbe object that works with the current reader.

This is required because the behaviour of reader varies a lot when probing for cards.

The default implementation returns nullptr;

Reimplemented from logicalaccess::ISO7816ReaderUnit.

Reimplemented in logicalaccess::ID3ReaderUnit, and logicalaccess::SpringCardReaderUnit.

◆ createChip()

std::shared_ptr< Chip > logicalaccess::PCSCReaderUnit::createChip ( std::string type )

overridevirtual

Create the chip object from card type.

Parameters

type	The card type.

Returns: The chip.

Reimplemented from logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::OmnikeyXX25ReaderUnit.

◆ createDefaultResultChecker()

std::shared_ptr< ResultChecker > logicalaccess::PCSCReaderUnit::createDefaultResultChecker ( ) const

overrideprotectedvirtual

Create a new ResultChecker object that make sense for the current reader.

It's possible that this ResultChecker won't be used, as more fine-grained check regarding reader/card-type combination happen.

The default implementation returns nullptr.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

Reimplemented in logicalaccess::ACSACR1222LReaderUnit, logicalaccess::ACSACRReaderUnit, and logicalaccess::SpringCardReaderUnit.

◆ createPCSCReaderUnit()

std::shared_ptr< PCSCReaderUnit > logicalaccess::PCSCReaderUnit::createPCSCReaderUnit ( const std::string & readerName )

static

◆ detect_mifareplus_security_level()

void logicalaccess::PCSCReaderUnit::detect_mifareplus_security_level ( std::shared_ptr< Chip > c )

protected

Attempt to detect the security level by sending command to the card once its' been connected.

If we find something, we'll override the commands objects and reconfigure the chip.

◆ disconnect()

void logicalaccess::PCSCReaderUnit::disconnect ( )

overridevirtual

Disconnect from the card.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

Reimplemented in logicalaccess::ID3ReaderUnit.

◆ disconnectFromReader()

void logicalaccess::PCSCReaderUnit::disconnectFromReader ( )

overridevirtual

Disconnect from reader.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

Reimplemented in logicalaccess::ACSACR1222LReaderUnit, and logicalaccess::OmnikeyLANXX21ReaderUnit.

◆ endTransaction()

void logicalaccess::PCSCReaderUnit::endTransaction ( DWORD dwDisposition = SCARD_LEAVE_CARD )

◆ getActiveProtocol()

unsigned long logicalaccess::PCSCReaderUnit::getActiveProtocol ( ) const

Get the active protocol for the connected card.

Returns: The active protocol.

◆ getATR()

const std::vector< uint8_t > & logicalaccess::PCSCReaderUnit::getATR ( ) const

Get the card ATR.

Parameters

atr	The array that will contains the ATR data.
atrLength	The ATR array length.

Returns: The ATR length.

◆ getCardSerialNumber()

ByteVector logicalaccess::PCSCReaderUnit::getCardSerialNumber ( )

virtual

Get the card serial number.

Returns: The card serial number.

If the card handle is not connected to the card, the call fails.

Reimplemented in logicalaccess::OmnikeyXX25ReaderUnit.

◆ getCardTechnologies()

TechnoBitset logicalaccess::PCSCReaderUnit::getCardTechnologies ( )

overridevirtual

Return a bitset describing which cards technology are enabled.

The default implementation returns a bitset with all flags set to false.

Reimplemented from logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::OmnikeyXX21ReaderUnit.

◆ getChipList()

std::vector< std::shared_ptr< Chip > > logicalaccess::PCSCReaderUnit::getChipList ( )

overridevirtual

Get chip available in the RFID rang.

Returns: The chip list.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

Reimplemented in logicalaccess::ID3ReaderUnit.

◆ getConfiguration()

std::shared_ptr< ReaderUnitConfiguration > logicalaccess::PCSCReaderUnit::getConfiguration ( )

overridevirtual

Get the reader unit configuration.

Returns: The reader unit configuration.

Reimplemented from logicalaccess::ReaderUnit.

◆ getConnectedName()

std::string logicalaccess::PCSCReaderUnit::getConnectedName ( )

overridevirtual

Get the connected reader unit name.

Returns: The connected reader unit name.

Reimplemented from logicalaccess::ReaderUnit.

◆ getDefaultPCSCReaderCardAdapter()

std::shared_ptr< PCSCReaderCardAdapter > logicalaccess::PCSCReaderUnit::getDefaultPCSCReaderCardAdapter ( )

virtual

Get the default PC/SC reader/card adapter.

Returns: The default PC/SC reader/card adapter.

◆ getHandle()

const SCARDHANDLE & logicalaccess::PCSCReaderUnit::getHandle ( ) const

Get the low-level SCARDHANDLE.

Returns: The SCARDHANDLE.

◆ getLCDDisplay()

std::shared_ptr< LCDDisplay > logicalaccess::PCSCReaderUnit::getLCDDisplay ( )

overridevirtual

Get the LCD Display for this reader unit.

Returns: The LCD Display.

Reimplemented from logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::ACSACR1222LReaderUnit.

◆ getLEDBuzzerDisplay()

std::shared_ptr< LEDBuzzerDisplay > logicalaccess::PCSCReaderUnit::getLEDBuzzerDisplay ( )

overridevirtual

Get the LED/Buzzer Display for this reader unit.

Returns: The LED/Buzzer Display.

Reimplemented from logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::ACSACR1222LReaderUnit.

◆ getName()

std::string logicalaccess::PCSCReaderUnit::getName ( ) const

overridevirtual

Get the reader unit name.

Returns: The reader unit name.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ getPCSCConfiguration()

std::shared_ptr< PCSCReaderUnitConfiguration > logicalaccess::PCSCReaderUnit::getPCSCConfiguration ( )

inline

Get the PC/SC reader unit configuration.

Returns: The PC/SC reader unit configuration.

◆ getPCSCReaderProvider()

std::shared_ptr< PCSCReaderProvider > logicalaccess::PCSCReaderUnit::getPCSCReaderProvider ( ) const

◆ getPCSCType()

PCSCReaderUnitType logicalaccess::PCSCReaderUnit::getPCSCType ( ) const

virtual

Get the PC/SC reader unit type.

Returns: The PC/SC reader unit type.

Reimplemented in logicalaccess::ACSACR1222LReaderUnit, logicalaccess::ACSACRReaderUnit, logicalaccess::CherryReaderUnit, logicalaccess::ID3ReaderUnit, logicalaccess::OmnikeyLANXX21ReaderUnit, logicalaccess::OmnikeyXX21ReaderUnit, logicalaccess::OmnikeyXX22ReaderUnit, logicalaccess::OmnikeyXX25ReaderUnit, logicalaccess::SCMReaderUnit, and logicalaccess::SpringCardReaderUnit.

◆ getProxyReaderUnit()

std::shared_ptr< PCSCReaderUnit > logicalaccess::PCSCReaderUnit::getProxyReaderUnit ( ) const

Returns the proxy implementation reader unit, or null.

◆ getReaderCardAdapter()

std::shared_ptr< ReaderCardAdapter > logicalaccess::PCSCReaderUnit::getReaderCardAdapter ( std::string type )

virtual

Get the PC/SC reader/card adapter for a card type.

Parameters

type	The card type.

Returns: The PC/SC reader/card adapter.

Reimplemented in logicalaccess::OmnikeyXX21ReaderUnit.

◆ getReaderSerialNumber()

std::string logicalaccess::PCSCReaderUnit::getReaderSerialNumber ( )

overridevirtual

Get a string hexadecimal representation of the reader serial number.

Returns: The reader serial number or an empty string on error.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

Reimplemented in logicalaccess::ACSACR1222LReaderUnit.

◆ getSAMChip()

std::shared_ptr< SAMChip > logicalaccess::PCSCReaderUnit::getSAMChip ( )

overrideprotectedvirtual

Get The SAM Chip.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ getSAMReaderUnit()

std::shared_ptr< ISO7816ReaderUnit > logicalaccess::PCSCReaderUnit::getSAMReaderUnit ( )

overrideprotectedvirtual

Get The SAM ReaderUnit.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ getService()

ReaderServicePtr logicalaccess::PCSCReaderUnit::getService ( const ReaderServiceType & type )

overridevirtual

Request a service object of type type.

The service object will be associated with the current reader.

The default implementation returns nullptr;

Reimplemented from logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::OmnikeyXX21ReaderUnit.

◆ getShareMode()

PCSCShareMode logicalaccess::PCSCReaderUnit::getShareMode ( ) const

Get the currently active share mode.

Returns: The currently active share mode.

If the card is not connected, requesting the share mode value is meaningless.

◆ getSingleChip()

std::shared_ptr< Chip > logicalaccess::PCSCReaderUnit::getSingleChip ( )

overridevirtual

Get the first and/or most accurate chip found.

Returns: The single chip.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ getT_CL_ISOType()

void logicalaccess::PCSCReaderUnit::getT_CL_ISOType	(	bool &	isTypeA,
		bool &	isTypeB
	)

virtual

Get if the inserted card is from ISO 14443-4 A or B.

Parameters

isTypeA	Will be set to true if the card is from ISO 14443-4 A, false if not or unknown.
isTypeB	Will be set to true if the card is from ISO 14443-4 B, false if not or unknown.

Reimplemented in logicalaccess::OmnikeyXX21ReaderUnit.

◆ isConnected()

bool logicalaccess::PCSCReaderUnit::isConnected ( )

overridevirtual

Check if the handle is associated to a card (aka. "connected").

Returns: True if the handle is associated to a card, false otherwise.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ makeProxy()

void logicalaccess::PCSCReaderUnit::makeProxy	(	std::shared_ptr< PCSCReaderUnit >	readerUnit,
		std::shared_ptr< PCSCReaderUnitConfiguration >	readerUnitConfig
	)

Make the reader unit as a proxy to another. Use when listening on all PC/SC reader unit.

Parameters

readerUnit	The referenced reader unit.
readerUnitConfig	The referenced reader unit configuration.

◆ prepare_poll_parameters()

std::tuple< PCSCReaderUnit::SPtrStringVector, PCSCReaderUnit::ReaderStateVector > logicalaccess::PCSCReaderUnit::prepare_poll_parameters ( )

protected

Prepare the parameters for the call to SCardGetStatusChange invoked by waitInsertion()

◆ process_insertion()

bool logicalaccess::PCSCReaderUnit::process_insertion	(	const std::string &	cardType,
		unsigned int	maxwait,
		const ElapsedTimeCounter &	elapsed
	)

protectedvirtual

Give a chance to concrete reader implementation to do something just after a insertion has been detected.

This default implemented MUST be called explicitly if you override this method.

Reimplemented in logicalaccess::ID3ReaderUnit.

◆ reconnect()

bool logicalaccess::PCSCReaderUnit::reconnect ( int action = 0 )

overrideprotectedvirtual

Reconnect to the card with the currently active share mode on the same reader.

Parameters

control the behavior of the reconnect.

Returns: True if the card was reconnected without error, false otherwise.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ reset()

void logicalaccess::PCSCReaderUnit::reset ( int action = 0 )

Reconnect to the card.

Parameters

control the behavior of the reconnect.

◆ serialize()

void logicalaccess::PCSCReaderUnit::serialize ( boost::property_tree::ptree & parentNode )

overridevirtual

Serialize the current object to XML.

Parameters

parentNode The parent node.

Reimplemented from logicalaccess::ReaderUnit.

◆ setCardTechnologies()

void logicalaccess::PCSCReaderUnit::setCardTechnologies ( const TechnoBitset & bitset )

overridevirtual

Request that the reader enable or disable the various card technologies as described in the bitset. The default implementation just does nothing.

Reimplemented from logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::OmnikeyXX21ReaderUnit.

◆ setCardType()

void logicalaccess::PCSCReaderUnit::setCardType ( std::string cardType )

inlineoverridevirtual

Set the card type.

Parameters

cardType The card type.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ setConfiguration()

void logicalaccess::PCSCReaderUnit::setConfiguration ( std::shared_ptr< ReaderUnitConfiguration > config )

overridevirtual

Set the reader unit configuration.

Parameters

config The reader unit configuration.

Reimplemented from logicalaccess::ReaderUnit.

◆ setLCDDisplay()

void logicalaccess::PCSCReaderUnit::setLCDDisplay ( std::shared_ptr< LCDDisplay > d )

overridevirtual

Get the LCD Display for this reader unit.

Returns: The LCD Display.

Reimplemented from logicalaccess::ReaderUnit.

◆ setLEDBuzzerDisplay()

void logicalaccess::PCSCReaderUnit::setLEDBuzzerDisplay ( std::shared_ptr< LEDBuzzerDisplay > lbd )

overridevirtual

Get the LCD Display for this reader unit.

Returns: The LCD Display.

Reimplemented from logicalaccess::ReaderUnit.

◆ setName()

void logicalaccess::PCSCReaderUnit::setName ( const std::string & name )

Set the reader unit name.

Parameters

name	The reader unit name.

◆ setSAMChip()

void logicalaccess::PCSCReaderUnit::setSAMChip ( std::shared_ptr< SAMChip > t )

overrideprotectedvirtual

Set the SAM Chip.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ setSAMReaderUnit()

void logicalaccess::PCSCReaderUnit::setSAMReaderUnit ( std::shared_ptr< ISO7816ReaderUnit > t )

overrideprotectedvirtual

Set the SAM ReaderUnit.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ setSingleChip()

void logicalaccess::PCSCReaderUnit::setSingleChip ( std::shared_ptr< Chip > chip )

protected

Set the first and/or most accurate chip found.

Parameters

chip	The single chip.

◆ setup_pcsc_connection()

void logicalaccess::PCSCReaderUnit::setup_pcsc_connection ( PCSCShareMode share_mode )

Direct means we established without requiring that a card be near the card reader.

◆ teardown_pcsc_connection()

void logicalaccess::PCSCReaderUnit::teardown_pcsc_connection ( )

Terminate the PCSC connection. This is a noop if the connection is already terminated.

◆ unSerialize()

void logicalaccess::PCSCReaderUnit::unSerialize ( boost::property_tree::ptree & node )

overridevirtual

UnSerialize a XML node to the current object.

Parameters

node	The XML node.

Reimplemented from logicalaccess::ReaderUnit.

◆ waitInsertion()

bool logicalaccess::PCSCReaderUnit::waitInsertion ( unsigned int maxwait )

overridevirtual

Wait for a card insertion.

Parameters

maxwait The maximum time to wait for, in milliseconds. If maxwait is zero, then the call never times out.

Returns: True if a card was inserted, false otherwise. If a card was inserted, the name of the reader on which the insertion was detected is accessible with getReader().

Warning: If the card is already connected, then the method always fail.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ waitInsertion_create_proxy()

void logicalaccess::PCSCReaderUnit::waitInsertion_create_proxy ( const std::string & reader_name )

protected

Create the proxy reader based on which reader detected a card during waitInsertion.

◆ waitRemoval()

bool logicalaccess::PCSCReaderUnit::waitRemoval ( unsigned int maxwait )

overridevirtual

Wait for a card removal.

Parameters

maxwait The maximum time to wait for, in milliseconds. If maxwait is zero, then the call never times out.

Returns: True if a card was removed, false otherwise. If a card was removed, the name of the reader on which the removal was detected is accessible with getReader().

Reimplemented from logicalaccess::ISO7816ReaderUnit.

Reimplemented in logicalaccess::ACSACR1222LReaderUnit, logicalaccess::OmnikeyReaderUnit, and logicalaccess::OmnikeyXX21ReaderUnit.

Member Data Documentation

◆ atr_

ByteVector logicalaccess::PCSCReaderUnit::atr_

protected

The current ATR

◆ connection_

std::unique_ptr<PCSCConnection> logicalaccess::PCSCReaderUnit::connection_

protected

A PCSC connection object.

◆ d_connectedName

std::string logicalaccess::PCSCReaderUnit::d_connectedName

protected

The reader unit connected name.

◆ d_name

std::string logicalaccess::PCSCReaderUnit::d_name

protected

The reader unit name.

◆ d_proxyReaderUnit

std::shared_ptr<PCSCReaderUnit> logicalaccess::PCSCReaderUnit::d_proxyReaderUnit

protected

The proxy reader unit.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/pcsc/pcscreaderunit.hpp
C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/pcsc/pcscreaderunit.cpp

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ReaderStateVector

◆ SPtrStringVector

Constructor & Destructor Documentation

◆ PCSCReaderUnit()

◆ ~PCSCReaderUnit()

Member Function Documentation

◆ adjustChip()

◆ beginTransaction()

◆ cardConnected()

◆ changeReaderKey()

◆ configure_mifareplus_chip()

◆ connect() [1/2]

◆ connect() [2/2]

◆ connectToReader()

◆ createCardProbe()

◆ createChip()

◆ createDefaultResultChecker()

◆ createPCSCReaderUnit()

◆ detect_mifareplus_security_level()

◆ disconnect()

◆ disconnectFromReader()

◆ endTransaction()

◆ getActiveProtocol()

◆ getATR()

◆ getCardSerialNumber()

◆ getCardTechnologies()

◆ getChipList()

◆ getConfiguration()

◆ getConnectedName()

◆ getDefaultPCSCReaderCardAdapter()

◆ getHandle()

◆ getLCDDisplay()

◆ getLEDBuzzerDisplay()

◆ getName()

◆ getPCSCConfiguration()

◆ getPCSCReaderProvider()

◆ getPCSCType()

◆ getProxyReaderUnit()

◆ getReaderCardAdapter()

◆ getReaderSerialNumber()

◆ getSAMChip()

◆ getSAMReaderUnit()

◆ getService()

◆ getShareMode()

◆ getSingleChip()

◆ getT_CL_ISOType()

◆ isConnected()

◆ makeProxy()

◆ prepare_poll_parameters()

◆ process_insertion()

◆ reconnect()

◆ reset()

◆ serialize()

◆ setCardTechnologies()

◆ setCardType()

◆ setConfiguration()

◆ setLCDDisplay()

◆ setLEDBuzzerDisplay()

◆ setName()

◆ setSAMChip()

◆ setSAMReaderUnit()

◆ setSingleChip()

◆ setup_pcsc_connection()

◆ teardown_pcsc_connection()

◆ unSerialize()

◆ waitInsertion()

◆ waitInsertion_create_proxy()

◆ waitRemoval()

Member Data Documentation

◆ atr_

◆ connection_

◆ d_connectedName
