logicalaccess::ReaderCardAdapter Class Reference

A reader/card adapter base class. It provide an abstraction layer between the card and the reader to send chip command. More...

#include <readercardadapter.hpp>

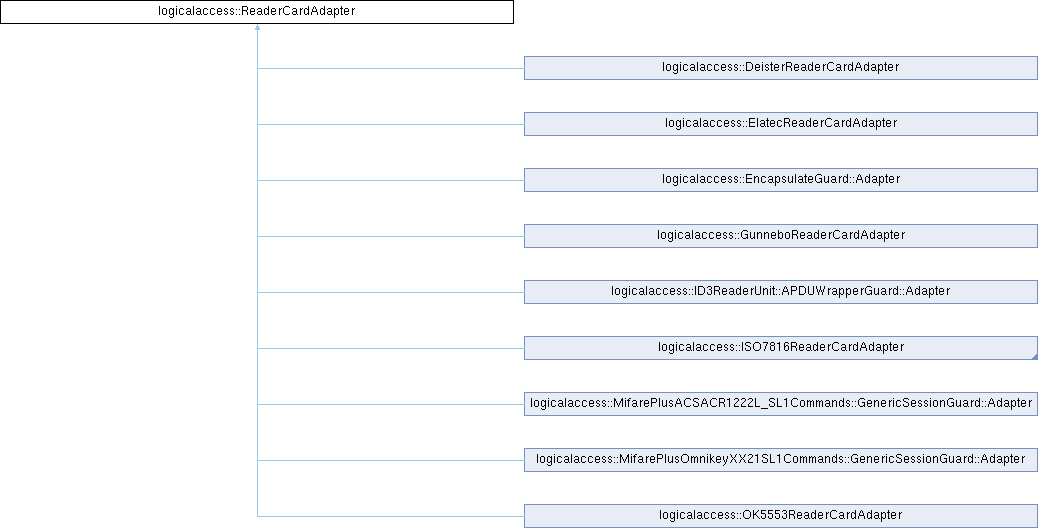

Inheritance diagram for logicalaccess::ReaderCardAdapter:

Public Member Functions
virtual	~ReaderCardAdapter ()
	ReaderCardAdapter ()
virtual ByteVector	adaptCommand (const ByteVector &command)
	Adapt the command to send to the reader.
virtual ByteVector	adaptAnswer (const ByteVector &answer)
	Adapt the answer received from the reader.
std::shared_ptr< DataTransport >	getDataTransport () const
	Get the data transport.
void	setDataTransport (std::shared_ptr< DataTransport > dataTransport)
	Set the data transport.
virtual ByteVector	sendCommand (const ByteVector &command, long timeout=-1)
	Send a command to the reader.
virtual std::shared_ptr< ResultChecker >	getResultChecker () const
	Get the result checker.
virtual void	setResultChecker (std::shared_ptr< ResultChecker > checker)
	Set the result checker.

Protected Attributes
std::shared_ptr< DataTransport >	d_dataTransport
	The data transport.
std::shared_ptr< ResultChecker >	d_ResultChecker
	The result checker.

Detailed Description

A reader/card adapter base class. It provide an abstraction layer between the card and the reader to send chip command.

Constructor & Destructor Documentation

~ReaderCardAdapter()

virtual logicalaccess::ReaderCardAdapter::~ReaderCardAdapter ( )

inlinevirtual

ReaderCardAdapter()

logicalaccess::ReaderCardAdapter::ReaderCardAdapter

(

)

Member Function Documentation

adaptAnswer()

ByteVector logicalaccess::ReaderCardAdapter::adaptAnswer ( const ByteVector &  answer )

virtual

Adapt the answer received from the reader.

Parameters

answer

The answer received.

Returns

The adapted answer received.

Reimplemented in logicalaccess::ISO7816ReaderCardAdapter, logicalaccess::DeisterReaderCardAdapter, logicalaccess::ElatecReaderCardAdapter, logicalaccess::GunneboReaderCardAdapter, logicalaccess::ISO7816OK5553ReaderCardAdapter, logicalaccess::OK5553ReaderCardAdapter, logicalaccess::MifarePlusACSACR1222L_SL1Commands::GenericSessionGuard::Adapter, logicalaccess::MifarePlusOmnikeyXX21SL1Commands::GenericSessionGuard::Adapter, logicalaccess::EncapsulateGuard::Adapter, logicalaccess::ID3ReaderUnit::APDUWrapperGuard::Adapter, and logicalaccess::STidSTRReaderCardAdapter.

adaptCommand()

ByteVector logicalaccess::ReaderCardAdapter::adaptCommand ( const ByteVector &  command )

virtual

Adapt the command to send to the reader.

Parameters

command

The command to send.

Returns

The adapted command to send.

Reimplemented in logicalaccess::ISO7816ReaderCardAdapter, logicalaccess::DeisterReaderCardAdapter, logicalaccess::ElatecReaderCardAdapter, logicalaccess::GunneboReaderCardAdapter, logicalaccess::ISO7816OK5553ReaderCardAdapter, logicalaccess::OK5553ReaderCardAdapter, logicalaccess::MifarePlusACSACR1222L_SL1Commands::GenericSessionGuard::Adapter, logicalaccess::MifarePlusOmnikeyXX21SL1Commands::GenericSessionGuard::Adapter, logicalaccess::EncapsulateGuard::Adapter, logicalaccess::ID3ReaderUnit::APDUWrapperGuard::Adapter, and logicalaccess::STidSTRReaderCardAdapter.

getDataTransport()

std::shared_ptr< DataTransport > logicalaccess::ReaderCardAdapter::getDataTransport ( ) const

inline

Get the data transport.

Returns

The data transport.

getResultChecker()

virtual std::shared_ptr< ResultChecker > logicalaccess::ReaderCardAdapter::getResultChecker ( ) const

inlinevirtual

Get the result checker.

Returns

The result checker.

sendCommand()

ByteVector logicalaccess::ReaderCardAdapter::sendCommand ( const ByteVector &  command, long  timeout = -1  )

virtual

Send a command to the reader.

Parameters

command	The command buffer.
timeout	The command timeout.

Returns

the result of the command.

Reimplemented in logicalaccess::ElatecReaderCardAdapter, logicalaccess::ISO7816FuzzingReaderCardAdapter, logicalaccess::OSDPReaderCardAdapter, and logicalaccess::STidSTRReaderCardAdapter.

setDataTransport()

void logicalaccess::ReaderCardAdapter::setDataTransport ( std::shared_ptr< DataTransport >  dataTransport )

inline

Set the data transport.

Parameters

unit	The data transport.

setResultChecker()

virtual void logicalaccess::ReaderCardAdapter::setResultChecker ( std::shared_ptr< ResultChecker >  checker )

inlinevirtual

Set the result checker.

Parameters

unit	The result checker.

Member Data Documentation

d_dataTransport

std::shared_ptr<DataTransport> logicalaccess::ReaderCardAdapter::d_dataTransport

protected

The data transport.

d_ResultChecker

std::shared_ptr<ResultChecker> logicalaccess::ReaderCardAdapter::d_ResultChecker

protected

The result checker.

---

The documentation for this class was generated from the following files:

• C:/dev/lla/liblogicalaccess/include/logicalaccess/cards/readercardadapter.hpp
• C:/dev/lla/liblogicalaccess/src/cards/readercardadapter.cpp
