A data transport base class. It provide an abstraction layer between the host and readers. More...

#include <datatransport.hpp>

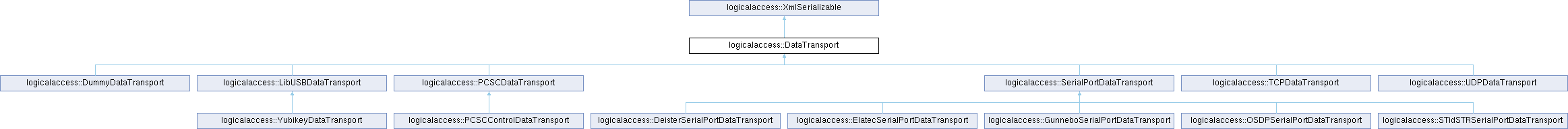

Inheritance diagram for logicalaccess::DataTransport:

Public Member Functions
virtual	~DataTransport ()=default

virtual std::shared_ptr< ReaderUnit >	getReaderUnit () const
	Get the reader unit.

virtual void	setReaderUnit (std::weak_ptr< ReaderUnit > unit)
	Set the reader unit.

virtual std::string	getTransportType () const =0
	Get the transport type of this instance.

virtual bool	connect ()=0
	Connect to the transport layer.

virtual void	disconnect ()=0
	Disconnect from the transport layer.

virtual bool	isConnected ()=0

virtual std::string	getName () const =0
	Get the data transport endpoint name.

virtual ByteVector	sendCommand (const ByteVector &command, long int timeout=-1)
	Send a command to the reader.

virtual ByteVector	getLastCommand ()
	Get the last command.

virtual ByteVector	getLastResult ()
	Get the last command result.

Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.

virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Protected Member Functions
virtual void	send (const ByteVector &data)=0

virtual ByteVector	receive (long int timeout)=0

Protected Attributes
std::weak_ptr< ReaderUnit >	d_ReaderUnit
	The reader unit.

ByteVector	d_lastResult
	The last result.

ByteVector	d_lastCommand
	The last command.

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.

static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.

Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)

Detailed Description

A data transport base class. It provide an abstraction layer between the host and readers.

Constructor & Destructor Documentation

◆ ~DataTransport()

virtual logicalaccess::DataTransport::~DataTransport ( )

virtualdefault

Member Function Documentation

◆ connect()

virtual bool logicalaccess::DataTransport::connect ( )

pure virtual

Connect to the transport layer.

Returns: True on success, false otherwise.

Implemented in logicalaccess::DummyDataTransport, logicalaccess::SerialPortDataTransport, logicalaccess::TCPDataTransport, logicalaccess::UDPDataTransport, logicalaccess::LibUSBDataTransport, and logicalaccess::PCSCDataTransport.

◆ disconnect()

virtual void logicalaccess::DataTransport::disconnect ( )

pure virtual

Disconnect from the transport layer.

Implemented in logicalaccess::DummyDataTransport, logicalaccess::SerialPortDataTransport, logicalaccess::TCPDataTransport, logicalaccess::UDPDataTransport, logicalaccess::LibUSBDataTransport, and logicalaccess::PCSCDataTransport.

◆ getLastCommand()

virtual ByteVector logicalaccess::DataTransport::getLastCommand ( )

inlinevirtual

Get the last command.

Returns: The last command.

◆ getLastResult()

virtual ByteVector logicalaccess::DataTransport::getLastResult ( )

inlinevirtual

Get the last command result.

Returns: The last command result.

◆ getName()

virtual std::string logicalaccess::DataTransport::getName ( ) const

pure virtual

Get the data transport endpoint name.

Returns: The data transport endpoint name.

Implemented in logicalaccess::DummyDataTransport, logicalaccess::SerialPortDataTransport, logicalaccess::TCPDataTransport, logicalaccess::UDPDataTransport, logicalaccess::LibUSBDataTransport, and logicalaccess::PCSCDataTransport.

◆ getReaderUnit()

virtual std::shared_ptr< ReaderUnit > logicalaccess::DataTransport::getReaderUnit ( ) const

inlinevirtual

Get the reader unit.

Returns: The reader unit.

◆ getTransportType()

virtual std::string logicalaccess::DataTransport::getTransportType ( ) const

pure virtual

Get the transport type of this instance.

Returns: The transport type.

◆ isConnected()

virtual bool logicalaccess::DataTransport::isConnected ( )

pure virtual

\briaf Get if connected to the transport layer.

Returns: True if connected, false otherwise.

Implemented in logicalaccess::DummyDataTransport, logicalaccess::SerialPortDataTransport, logicalaccess::TCPDataTransport, logicalaccess::UDPDataTransport, logicalaccess::LibUSBDataTransport, and logicalaccess::PCSCDataTransport.

◆ receive()

virtual ByteVector logicalaccess::DataTransport::receive ( long int timeout )

protectedpure virtual

Implemented in logicalaccess::DummyDataTransport, logicalaccess::SerialPortDataTransport, logicalaccess::TCPDataTransport, logicalaccess::UDPDataTransport, logicalaccess::PCSCDataTransport, logicalaccess::LibUSBDataTransport, and logicalaccess::YubikeyDataTransport.

◆ send()

virtual void logicalaccess::DataTransport::send ( const ByteVector & data )

protectedpure virtual

Implemented in logicalaccess::DummyDataTransport, logicalaccess::SerialPortDataTransport, logicalaccess::TCPDataTransport, logicalaccess::UDPDataTransport, logicalaccess::PCSCControlDataTransport, and logicalaccess::PCSCDataTransport.

◆ sendCommand()

ByteVector logicalaccess::DataTransport::sendCommand	(	const ByteVector &	command,
		long int	timeout = `-1`
	)

virtual

Send a command to the reader.

Parameters

command	The command buffer.
timeout	The command timeout.

Returns: the result of the command.

◆ setReaderUnit()

virtual void logicalaccess::DataTransport::setReaderUnit ( std::weak_ptr< ReaderUnit > unit )

inlinevirtual

Set the reader unit.

Parameters

unit	The reader unit.

Member Data Documentation

◆ d_lastCommand

ByteVector logicalaccess::DataTransport::d_lastCommand

protected

The last command.

◆ d_lastResult

ByteVector logicalaccess::DataTransport::d_lastResult

protected

The last result.

◆ d_ReaderUnit

std::weak_ptr<ReaderUnit> logicalaccess::DataTransport::d_ReaderUnit

protected

The reader unit.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/include/logicalaccess/readerproviders/datatransport.hpp
C:/dev/lla/liblogicalaccess/src/readerproviders/datatransport.cpp
