A serial port data transport class. More...

#include <serialportdatatransport.hpp>

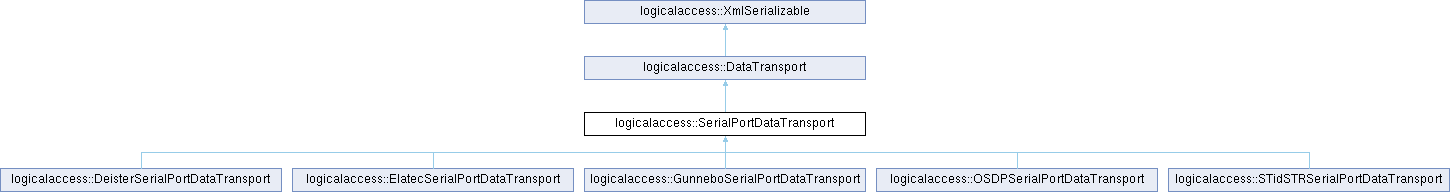

Inheritance diagram for logicalaccess::SerialPortDataTransport:

Public Member Functions
	SerialPortDataTransport (const std::string &portname="")
	Constructor.

virtual	~SerialPortDataTransport ()
	Destructor.

std::string	getTransportType () const override
	Get the transport type of this instance.

void	configure () const
	Configure the current serial port.

void	configure (std::shared_ptr< SerialPortXml > port, bool retryConfiguring) const
	Configure the given serial port.

bool	connect () override

void	disconnect () override

bool	isConnected () override

std::string	getName () const override
	Get the data transport endpoint name.

virtual void	startAutoDetect ()
	Start to auto-detect the first serial port with a reader. Update serial port when found.

void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

std::string	getDefaultXmlNodeName () const override
	Get the default Xml Node name for this object.

unsigned long	getPortBaudRate () const
	Get the serial port baudrate.

void	setPortBaudRate (unsigned long baudRate)
	Set the serial port baudrate.

std::shared_ptr< SerialPortXml >	getSerialPort () const

virtual void	setSerialPort (std::shared_ptr< SerialPortXml > port)

void	send (const ByteVector &data) override

ByteVector	receive (long int timeout) override

Public Member Functions inherited from logicalaccess::DataTransport
virtual	~DataTransport ()=default

virtual std::shared_ptr< ReaderUnit >	getReaderUnit () const
	Get the reader unit.

virtual void	setReaderUnit (std::weak_ptr< ReaderUnit > unit)
	Set the reader unit.

virtual std::string	getTransportType () const =0
	Get the transport type of this instance.

virtual bool	connect ()=0
	Connect to the transport layer.

virtual void	disconnect ()=0
	Disconnect from the transport layer.

virtual bool	isConnected ()=0

virtual std::string	getName () const =0
	Get the data transport endpoint name.

virtual ByteVector	sendCommand (const ByteVector &command, long int timeout=-1)
	Send a command to the reader.

virtual ByteVector	getLastCommand ()
	Get the last command.

virtual ByteVector	getLastResult ()
	Get the last command result.

Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.

virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Protected Attributes
bool	d_isAutoDetected
	The auto-detected status.

std::shared_ptr< SerialPortXml >	d_port
	The serial port.

unsigned long	d_portBaudRate
	The baudrate to use when configuring the serial port.

Protected Attributes inherited from logicalaccess::DataTransport
std::weak_ptr< ReaderUnit >	d_ReaderUnit
	The reader unit.

ByteVector	d_lastResult
	The last result.

ByteVector	d_lastCommand
	The last command.

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.

static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.

virtual void	send (const ByteVector &data)=0

virtual ByteVector	receive (long int timeout)=0

Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)

Detailed Description

A serial port data transport class.

Constructor & Destructor Documentation

◆ SerialPortDataTransport()

logicalaccess::SerialPortDataTransport::SerialPortDataTransport ( const std::string & portname = "" )

explicit

Constructor.

Parameters

portname The serial port name.

◆ ~SerialPortDataTransport()

logicalaccess::SerialPortDataTransport::~SerialPortDataTransport ( )

virtual

Destructor.

Member Function Documentation

◆ configure() [1/2]

void logicalaccess::SerialPortDataTransport::configure ( ) const

Configure the current serial port.

◆ configure() [2/2]

void logicalaccess::SerialPortDataTransport::configure	(	std::shared_ptr< SerialPortXml >	port,
		bool	retryConfiguring
	)		const

Configure the given serial port.

Parameters

port	The COM port to configure.
retryConfiguring	On error, the function wait some milliseconds and retry another time to configure the serial port.

◆ connect()

bool logicalaccess::SerialPortDataTransport::connect ( )

overridevirtual

Parameters

Connect to the transport layer.

Returns: True on success, false otherwise.

Implements logicalaccess::DataTransport.

◆ disconnect()

void logicalaccess::SerialPortDataTransport::disconnect ( )

overridevirtual

Parameters

Disconnect from the transport layer.

Implements logicalaccess::DataTransport.

◆ getDefaultXmlNodeName()

std::string logicalaccess::SerialPortDataTransport::getDefaultXmlNodeName ( ) const

overridevirtual

Get the default Xml Node name for this object.

Returns: The Xml node name.

Implements logicalaccess::XmlSerializable.

Reimplemented in logicalaccess::DeisterSerialPortDataTransport, logicalaccess::ElatecSerialPortDataTransport, logicalaccess::GunneboSerialPortDataTransport, logicalaccess::OSDPSerialPortDataTransport, and logicalaccess::STidSTRSerialPortDataTransport.

◆ getName()

std::string logicalaccess::SerialPortDataTransport::getName ( ) const

overridevirtual

Get the data transport endpoint name.

Returns: The data transport endpoint name.

Implements logicalaccess::DataTransport.

◆ getPortBaudRate()

unsigned long logicalaccess::SerialPortDataTransport::getPortBaudRate ( ) const

inline

Get the serial port baudrate.

Returns: The Baudrate.

◆ getSerialPort()

std::shared_ptr< SerialPortXml > logicalaccess::SerialPortDataTransport::getSerialPort ( ) const

inline

◆ getTransportType()

std::string logicalaccess::SerialPortDataTransport::getTransportType ( ) const

inlineoverridevirtual

Get the transport type of this instance.

Returns: The transport type.

Implements logicalaccess::DataTransport.

Reimplemented in logicalaccess::DeisterSerialPortDataTransport, logicalaccess::ElatecSerialPortDataTransport, logicalaccess::GunneboSerialPortDataTransport, logicalaccess::OSDPSerialPortDataTransport, and logicalaccess::STidSTRSerialPortDataTransport.

◆ isConnected()

bool logicalaccess::SerialPortDataTransport::isConnected ( )

overridevirtual

\briaf Get if connected to the transport layer.

Returns: True if connected, false otherwise.

Implements logicalaccess::DataTransport.

◆ receive()

ByteVector logicalaccess::SerialPortDataTransport::receive ( long int timeout )

overridevirtual

Implements logicalaccess::DataTransport.

◆ send()

void logicalaccess::SerialPortDataTransport::send ( const ByteVector & data )

overridevirtual

Implements logicalaccess::DataTransport.

◆ serialize()

void logicalaccess::SerialPortDataTransport::serialize ( boost::property_tree::ptree & parentNode )

overridevirtual

Serialize the current object to XML.

Parameters

parentNode The parent node.

Implements logicalaccess::XmlSerializable.

Reimplemented in logicalaccess::DeisterSerialPortDataTransport, logicalaccess::ElatecSerialPortDataTransport, logicalaccess::GunneboSerialPortDataTransport, logicalaccess::OSDPSerialPortDataTransport, and logicalaccess::STidSTRSerialPortDataTransport.

◆ setPortBaudRate()

void logicalaccess::SerialPortDataTransport::setPortBaudRate ( unsigned long baudRate )

inline

Set the serial port baudrate.

Parameters

baudRate The Baudrate (9600, 19200, 38400, 57600, 115200).

◆ setSerialPort()

virtual void logicalaccess::SerialPortDataTransport::setSerialPort ( std::shared_ptr< SerialPortXml > port )

inlinevirtual

Reimplemented in logicalaccess::DeisterSerialPortDataTransport, logicalaccess::ElatecSerialPortDataTransport, logicalaccess::GunneboSerialPortDataTransport, logicalaccess::OSDPSerialPortDataTransport, and logicalaccess::STidSTRSerialPortDataTransport.

◆ startAutoDetect()

void logicalaccess::SerialPortDataTransport::startAutoDetect ( )

virtual

Start to auto-detect the first serial port with a reader. Update serial port when found.

◆ unSerialize()

void logicalaccess::SerialPortDataTransport::unSerialize ( boost::property_tree::ptree & node )

overridevirtual

UnSerialize a XML node to the current object.

Parameters

node	The XML node.

Implements logicalaccess::XmlSerializable.

Reimplemented in logicalaccess::DeisterSerialPortDataTransport, logicalaccess::ElatecSerialPortDataTransport, logicalaccess::GunneboSerialPortDataTransport, logicalaccess::OSDPSerialPortDataTransport, and logicalaccess::STidSTRSerialPortDataTransport.

Member Data Documentation

◆ d_isAutoDetected

bool logicalaccess::SerialPortDataTransport::d_isAutoDetected

protected

The auto-detected status.

◆ d_port

std::shared_ptr<SerialPortXml> logicalaccess::SerialPortDataTransport::d_port

protected

The serial port.

◆ d_portBaudRate

unsigned long logicalaccess::SerialPortDataTransport::d_portBaudRate

protected

The baudrate to use when configuring the serial port.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/include/logicalaccess/readerproviders/serialportdatatransport.hpp
C:/dev/lla/liblogicalaccess/src/readerproviders/serialportdatatransport.cpp
