A default ISO7816 reader/card adapter class. More...

#include <iso7816readercardadapter.hpp>

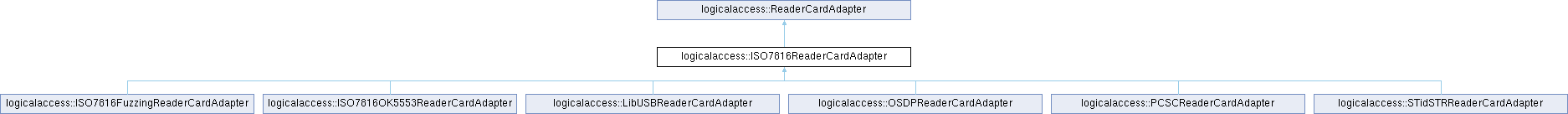

Inheritance diagram for logicalaccess::ISO7816ReaderCardAdapter:

Public Member Functions
virtual ISO7816Response	sendAPDUCommand (const ByteVector &data)
	Send an APDU command to the reader.

virtual ISO7816Response	sendAPDUCommand (unsigned char cla, unsigned char ins, unsigned char p1, unsigned char p2, unsigned char lc, const ByteVector &data, unsigned char le)
	Send an APDU command to the reader.

virtual ISO7816Response	sendAPDUCommand (unsigned char cla, unsigned char ins, unsigned char p1, unsigned char p2, unsigned char lc, const ByteVector &data)
	Send an APDU command to the reader.

virtual ISO7816Response	sendAPDUCommand (unsigned char cla, unsigned char ins, unsigned char p1, unsigned char p2, const ByteVector &data)
	Send an APDU command to the reader.

virtual ISO7816Response	sendAPDUCommand (unsigned char cla, unsigned char ins, unsigned char p1, unsigned char p2, unsigned char lc, unsigned char le)
	Send an APDU command to the reader without data.

virtual ISO7816Response	sendAPDUCommand (unsigned char cla, unsigned char ins, unsigned char p1, unsigned char p2, unsigned char le)
	Send an APDU command to the reader without data.

virtual ISO7816Response	sendAPDUCommand (unsigned char cla, unsigned char ins, unsigned char p1, unsigned char p2)
	Send an APDU command to the reader without data.

virtual ISO7816Response	sendExtendedAPDUCommand (unsigned char cla, unsigned char ins, unsigned char p1, unsigned char p2, unsigned short lc, const ByteVector &data)
	Send an extended APDU command to the reader.

virtual ISO7816Response	sendExtendedAPDUCommand (unsigned char cla, unsigned char ins, unsigned char p1, unsigned char p2, unsigned short lc, const ByteVector &data, unsigned short le)
	Send an extended APDU command to the reader.

ByteVector	adaptCommand (const ByteVector &command) override
	Adapt the command to send to the reader.

ByteVector	adaptAnswer (const ByteVector &answer) override
	Adapt the answer received from the reader.

void	setCrypto (std::shared_ptr< ISO24727Crypto > crypto)

Public Member Functions inherited from logicalaccess::ReaderCardAdapter
virtual	~ReaderCardAdapter ()

	ReaderCardAdapter ()

virtual ByteVector	adaptCommand (const ByteVector &command)
	Adapt the command to send to the reader.

virtual ByteVector	adaptAnswer (const ByteVector &answer)
	Adapt the answer received from the reader.

std::shared_ptr< DataTransport >	getDataTransport () const
	Get the data transport.

void	setDataTransport (std::shared_ptr< DataTransport > dataTransport)
	Set the data transport.

virtual ByteVector	sendCommand (const ByteVector &command, long timeout=-1)
	Send a command to the reader.

virtual std::shared_ptr< ResultChecker >	getResultChecker () const
	Get the result checker.

virtual void	setResultChecker (std::shared_ptr< ResultChecker > checker)
	Set the result checker.

Private Attributes
std::shared_ptr< ISO24727Crypto >	crypto_

Additional Inherited Members
Protected Attributes inherited from logicalaccess::ReaderCardAdapter
std::shared_ptr< DataTransport >	d_dataTransport
	The data transport.

std::shared_ptr< ResultChecker >	d_ResultChecker
	The result checker.

Detailed Description

A default ISO7816 reader/card adapter class.

Member Function Documentation

◆ adaptAnswer()

ByteVector logicalaccess::ISO7816ReaderCardAdapter::adaptAnswer ( const ByteVector & answer )

overridevirtual

Adapt the answer received from the reader.

Parameters

answer The answer received.

Returns: The adapted answer received.

Reimplemented from logicalaccess::ReaderCardAdapter.

Reimplemented in logicalaccess::ISO7816OK5553ReaderCardAdapter, and logicalaccess::STidSTRReaderCardAdapter.

◆ adaptCommand()

ByteVector logicalaccess::ISO7816ReaderCardAdapter::adaptCommand ( const ByteVector & command )

overridevirtual

Adapt the command to send to the reader.

Parameters

command The command to send.

Returns: The adapted command to send.

Reimplemented from logicalaccess::ReaderCardAdapter.

Reimplemented in logicalaccess::ISO7816OK5553ReaderCardAdapter, and logicalaccess::STidSTRReaderCardAdapter.

◆ sendAPDUCommand() [1/7]

ISO7816Response logicalaccess::ISO7816ReaderCardAdapter::sendAPDUCommand ( const ByteVector & data )

virtual

Send an APDU command to the reader.

Reimplemented in logicalaccess::ISO7816OK5553ReaderCardAdapter.

◆ sendAPDUCommand() [2/7]

ISO7816Response logicalaccess::ISO7816ReaderCardAdapter::sendAPDUCommand	(	unsigned char	cla,
		unsigned char	ins,
		unsigned char	p1,
		unsigned char	p2
	)

virtual

Send an APDU command to the reader without data.

Reimplemented in logicalaccess::ISO7816OK5553ReaderCardAdapter, and logicalaccess::ISO7816OK5553ReaderCardAdapter.

◆ sendAPDUCommand() [3/7]

ISO7816Response logicalaccess::ISO7816ReaderCardAdapter::sendAPDUCommand	(	unsigned char	cla,
		unsigned char	ins,
		unsigned char	p1,
		unsigned char	p2,
		const ByteVector &	data
	)

virtual

Send an APDU command to the reader.

Reimplemented in logicalaccess::ISO7816OK5553ReaderCardAdapter.

◆ sendAPDUCommand() [4/7]

ISO7816Response logicalaccess::ISO7816ReaderCardAdapter::sendAPDUCommand	(	unsigned char	cla,
		unsigned char	ins,
		unsigned char	p1,
		unsigned char	p2,
		unsigned char	lc,
		const ByteVector &	data
	)

virtual

Send an APDU command to the reader.

Reimplemented in logicalaccess::ISO7816OK5553ReaderCardAdapter.

◆ sendAPDUCommand() [5/7]

ISO7816Response logicalaccess::ISO7816ReaderCardAdapter::sendAPDUCommand	(	unsigned char	cla,
		unsigned char	ins,
		unsigned char	p1,
		unsigned char	p2,
		unsigned char	lc,
		const ByteVector &	data,
		unsigned char	le
	)

virtual

Send an APDU command to the reader.

Reimplemented in logicalaccess::ISO7816OK5553ReaderCardAdapter.

◆ sendAPDUCommand() [6/7]

ISO7816Response logicalaccess::ISO7816ReaderCardAdapter::sendAPDUCommand	(	unsigned char	cla,
		unsigned char	ins,
		unsigned char	p1,
		unsigned char	p2,
		unsigned char	lc,
		unsigned char	le
	)

virtual

Send an APDU command to the reader without data.

Reimplemented in logicalaccess::ISO7816OK5553ReaderCardAdapter, and logicalaccess::ISO7816OK5553ReaderCardAdapter.

◆ sendAPDUCommand() [7/7]

ISO7816Response logicalaccess::ISO7816ReaderCardAdapter::sendAPDUCommand	(	unsigned char	cla,
		unsigned char	ins,
		unsigned char	p1,
		unsigned char	p2,
		unsigned char	le
	)

virtual

Send an APDU command to the reader without data.

Reimplemented in logicalaccess::ISO7816OK5553ReaderCardAdapter, and logicalaccess::ISO7816OK5553ReaderCardAdapter.

◆ sendExtendedAPDUCommand() [1/2]

ISO7816Response logicalaccess::ISO7816ReaderCardAdapter::sendExtendedAPDUCommand	(	unsigned char	cla,
		unsigned char	ins,
		unsigned char	p1,
		unsigned char	p2,
		unsigned short	lc,
		const ByteVector &	data
	)

virtual

Send an extended APDU command to the reader.

◆ sendExtendedAPDUCommand() [2/2]

ISO7816Response logicalaccess::ISO7816ReaderCardAdapter::sendExtendedAPDUCommand	(	unsigned char	cla,
		unsigned char	ins,
		unsigned char	p1,
		unsigned char	p2,
		unsigned short	lc,
		const ByteVector &	data,
		unsigned short	le
	)

virtual

Send an extended APDU command to the reader.

◆ setCrypto()

void logicalaccess::ISO7816ReaderCardAdapter::setCrypto ( std::shared_ptr< ISO24727Crypto > crypto )

Member Data Documentation

◆ crypto_

std::shared_ptr<ISO24727Crypto> logicalaccess::ISO7816ReaderCardAdapter::crypto_

private

The cryptographic object that maintain the state. It is used to encrypt/decrypt APDUs.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/iso7816/readercardadapters/iso7816readercardadapter.hpp
C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/iso7816/readercardadapters/iso7816readercardadapter.cpp
