A default ISO7816 Fuzzing reader/card adapter class. More...

#include <iso7816fuzzingreadercardadapter.hpp>

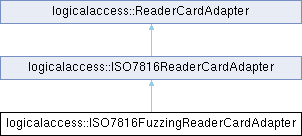

Inheritance diagram for logicalaccess::ISO7816FuzzingReaderCardAdapter:

Public Member Functions
	ISO7816FuzzingReaderCardAdapter ()

ByteVector	sendCommand (const ByteVector &command, long timeout=-1) override
	Send a command to the reader.

Public Member Functions inherited from logicalaccess::ISO7816ReaderCardAdapter
virtual ISO7816Response	sendAPDUCommand (const ByteVector &data)
	Send an APDU command to the reader.

virtual ISO7816Response	sendAPDUCommand (unsigned char cla, unsigned char ins, unsigned char p1, unsigned char p2, unsigned char lc, const ByteVector &data, unsigned char le)
	Send an APDU command to the reader.

virtual ISO7816Response	sendAPDUCommand (unsigned char cla, unsigned char ins, unsigned char p1, unsigned char p2, unsigned char lc, const ByteVector &data)
	Send an APDU command to the reader.

virtual ISO7816Response	sendAPDUCommand (unsigned char cla, unsigned char ins, unsigned char p1, unsigned char p2, const ByteVector &data)
	Send an APDU command to the reader.

virtual ISO7816Response	sendAPDUCommand (unsigned char cla, unsigned char ins, unsigned char p1, unsigned char p2, unsigned char lc, unsigned char le)
	Send an APDU command to the reader without data.

virtual ISO7816Response	sendAPDUCommand (unsigned char cla, unsigned char ins, unsigned char p1, unsigned char p2, unsigned char le)
	Send an APDU command to the reader without data.

virtual ISO7816Response	sendAPDUCommand (unsigned char cla, unsigned char ins, unsigned char p1, unsigned char p2)
	Send an APDU command to the reader without data.

virtual ISO7816Response	sendExtendedAPDUCommand (unsigned char cla, unsigned char ins, unsigned char p1, unsigned char p2, unsigned short lc, const ByteVector &data)
	Send an extended APDU command to the reader.

virtual ISO7816Response	sendExtendedAPDUCommand (unsigned char cla, unsigned char ins, unsigned char p1, unsigned char p2, unsigned short lc, const ByteVector &data, unsigned short le)
	Send an extended APDU command to the reader.

ByteVector	adaptCommand (const ByteVector &command) override
	Adapt the command to send to the reader.

ByteVector	adaptAnswer (const ByteVector &answer) override
	Adapt the answer received from the reader.

void	setCrypto (std::shared_ptr< ISO24727Crypto > crypto)

Public Member Functions inherited from logicalaccess::ReaderCardAdapter
virtual	~ReaderCardAdapter ()

	ReaderCardAdapter ()

virtual ByteVector	adaptCommand (const ByteVector &command)
	Adapt the command to send to the reader.

virtual ByteVector	adaptAnswer (const ByteVector &answer)
	Adapt the answer received from the reader.

std::shared_ptr< DataTransport >	getDataTransport () const
	Get the data transport.

void	setDataTransport (std::shared_ptr< DataTransport > dataTransport)
	Set the data transport.

virtual ByteVector	sendCommand (const ByteVector &command, long timeout=-1)
	Send a command to the reader.

virtual std::shared_ptr< ResultChecker >	getResultChecker () const
	Get the result checker.

virtual void	setResultChecker (std::shared_ptr< ResultChecker > checker)
	Set the result checker.

Private Attributes
int	currentIndex

Static Private Attributes
static int	index = 1

Additional Inherited Members
Protected Attributes inherited from logicalaccess::ReaderCardAdapter
std::shared_ptr< DataTransport >	d_dataTransport
	The data transport.

std::shared_ptr< ResultChecker >	d_ResultChecker
	The result checker.

Detailed Description

A default ISO7816 Fuzzing reader/card adapter class.

Constructor & Destructor Documentation

◆ ISO7816FuzzingReaderCardAdapter()

logicalaccess::ISO7816FuzzingReaderCardAdapter::ISO7816FuzzingReaderCardAdapter ( )

Member Function Documentation

◆ sendCommand()

ByteVector logicalaccess::ISO7816FuzzingReaderCardAdapter::sendCommand	(	const ByteVector &	command,
		long	timeout = `-1`
	)

overridevirtual

Send a command to the reader.

Parameters

command	The command buffer.
timeout	The command timeout.

Returns: the result of the command.

Reimplemented from logicalaccess::ReaderCardAdapter.

Member Data Documentation

◆ currentIndex

int logicalaccess::ISO7816FuzzingReaderCardAdapter::currentIndex

private

◆ index

int logicalaccess::ISO7816FuzzingReaderCardAdapter::index = 1

staticprivate

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/iso7816/readercardadapters/iso7816fuzzingreadercardadapter.hpp
C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/iso7816/readercardadapters/iso7816fuzzingreadercardadapter.cpp
