The ISO7816 reader unit class. More...

#include <iso7816readerunit.hpp>

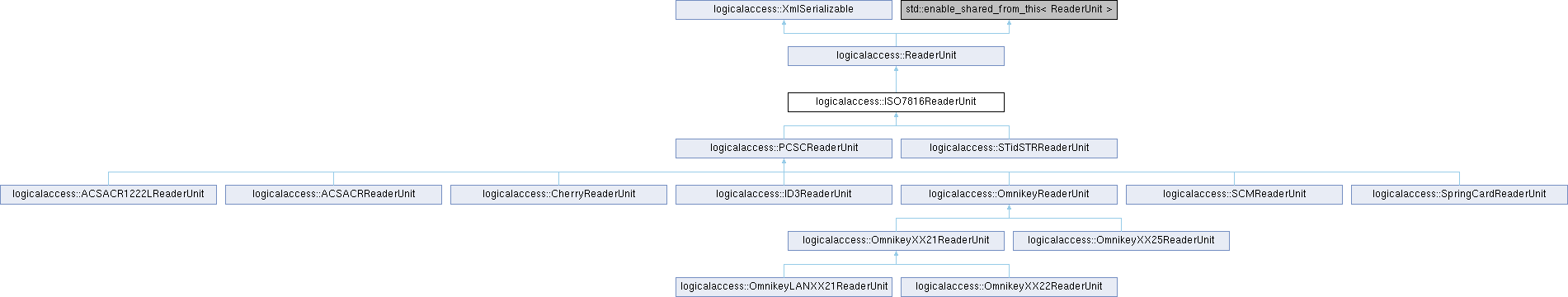

Inheritance diagram for logicalaccess::ISO7816ReaderUnit:

Public Member Functions
	ISO7816ReaderUnit (std::string rpt)

virtual	~ISO7816ReaderUnit ()

bool	waitInsertion (unsigned int) override
	Wait for a card insertion.

bool	waitRemoval (unsigned int) override
	Wait for a card removal.

bool	isConnected () override
	Check if the card is connected.

void	setCardType (std::string) override
	Set the forced card type.

std::shared_ptr< Chip >	getSingleChip () override
	Get the first and/or most accurate chip found.

std::vector< std::shared_ptr< Chip > >	getChipList () override
	Get chip available in the RFID rang.

bool	connect () override
	Connect to the card.

void	disconnect () override
	Disconnect from the card.

virtual void	connectToSAM ()

bool	connectToReader () override
	Connect to the reader. Implicit connection on first command sent.

virtual void	disconnectFromSAM ()

void	disconnectFromReader () override
	Disconnect from reader.

virtual void	reloadReaderConfiguration ()

virtual void	setContext (const std::string &context)
	Set the client context.

virtual std::string	getContext ()
	Get the client context.

std::string	getName () const override
	Get the reader unit name.

std::string	getReaderSerialNumber () override
	Get a string hexadecimal representation of the reader serial number.

std::shared_ptr< CardProbe >	createCardProbe () override

virtual std::shared_ptr< SAMChip >	getSAMChip ()
	Get The SAM Chip.

virtual void	setSAMChip (std::shared_ptr< SAMChip > t)
	Set the SAM Chip.

virtual std::shared_ptr< ISO7816ReaderUnit >	getSAMReaderUnit ()
	Get The SAM ReaderUnit.

virtual void	setSAMReaderUnit (std::shared_ptr< ISO7816ReaderUnit > t)
	Set the SAM ReaderUnit.

Public Member Functions inherited from logicalaccess::ReaderUnit
	ReaderUnit (std::string rpt)
	Constructor.

virtual	~ReaderUnit ()
	Destructor.

std::string	getRPType () const
	Get the reader provider type.

virtual ByteVector	getPingCommand () const
	Get the reader ping command.

virtual bool	waitInsertion (unsigned int maxwait)=0
	Wait for a card insertion.

virtual bool	waitInsertion (const ByteVector &identifier, unsigned int maxwait)
	Wait for a specific card insertion.

virtual bool	waitRemoval (unsigned int maxwait)=0
	Wait for a card removal.

virtual bool	isConnected ()=0
	Check if the card is connected.

std::string	getCardType () const
	Get the forced card type.

virtual void	setCardType (std::string cardType)=0
	Set the forced card type.

virtual std::shared_ptr< Chip >	createChip (std::string type)
	Create the chip object from card type.

virtual std::shared_ptr< Chip >	createChip (std::string type, const ByteVector &identifier)
	Create the chip object from card type with identifier.

virtual ByteVector	getNumber (std::shared_ptr< Chip > chip)
	Get the number from the embedded licensing configuration.

virtual std::shared_ptr< Chip >	getSingleChip ()=0
	Get the first and/or most accurate chip found.

virtual std::vector< std::shared_ptr< Chip > >	getChipList ()=0
	Get chip available in the RFID rang.

virtual ByteVector	getNumber (std::shared_ptr< Chip > chip, std::shared_ptr< CardsFormatComposite > composite)
	Get the number from the reader format composite.

virtual bool	connect ()=0
	Connect to the card.

virtual bool	reconnect (int action=0)
	Reconnect to the card with the currently active share mode on the same reader.

virtual void	disconnect ()=0
	Disconnect from the card.

virtual bool	connectToReader ()=0
	Connect to the reader. Implicit connection on first command sent.

virtual void	disconnectFromReader ()=0
	Disconnect from reader.

virtual std::string	getName () const =0
	Get the reader unit name.

virtual std::string	getConnectedName ()
	Get the connected reader unit name.

virtual std::shared_ptr< ReaderUnitConfiguration >	getConfiguration ()
	Get the reader unit configuration.

virtual void	setConfiguration (std::shared_ptr< ReaderUnitConfiguration > config)
	Set the reader unit configuration.

virtual std::shared_ptr< ReaderCardAdapter >	getDefaultReaderCardAdapter ()
	Get the default reader/card adapter.

virtual void	setDefaultReaderCardAdapter (std::shared_ptr< ReaderCardAdapter > defaultRca)
	Set the default reader/card adapter.

virtual std::shared_ptr< DataTransport >	getDataTransport () const
	Get the data transport layer.

virtual void	setDataTransport (std::shared_ptr< DataTransport > dataTransport)
	Set the data transport layer.

virtual std::string	getReaderSerialNumber ()=0
	Get a string hexadecimal representation of the reader serial number.

std::string	getDefaultXmlNodeName () const override
	Get the default Xml Node name for this object.

void	serialize (boost::property_tree::ptree &node) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode) override
	UnSerialize object from a Xml node.

std::shared_ptr< ReaderProvider >	getReaderProvider () const
	Get the associated reader provider.

void	setReaderProvider (std::weak_ptr< ReaderProvider > provider)
	Set the associated reader provider.

virtual std::shared_ptr< LCDDisplay >	getLCDDisplay ()
	Get the LCD Display for this reader unit.

virtual void	setLCDDisplay (std::shared_ptr< LCDDisplay > d)
	Get the LCD Display for this reader unit.

virtual std::shared_ptr< LEDBuzzerDisplay >	getLEDBuzzerDisplay ()
	Get the LED/Buzzer Display for this reader unit.

virtual void	setLEDBuzzerDisplay (std::shared_ptr< LEDBuzzerDisplay > lbd)
	Get the LCD Display for this reader unit.

virtual void	setCardTechnologies (const TechnoBitset &bitset)

virtual TechnoBitset	getCardTechnologies ()

virtual TechnoBitset	getPossibleCardTechnologies ()

virtual ReaderServicePtr	getService (const ReaderServiceType &type)

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.

virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Protected Member Functions
std::shared_ptr< ResultChecker >	createDefaultResultChecker () const override

std::shared_ptr< ISO7816ReaderProvider >	getISO7816ReaderProvider () const
	Get the ISO7816 reader provider.

std::shared_ptr< ISO7816ReaderUnitConfiguration >	getISO7816Configuration ()
	Get the ISO7816 reader unit configuration.

bool	reconnect (int action) override
	Reconnect to the card with the currently active share mode on the same reader.

virtual std::shared_ptr< ResultChecker >	createDefaultResultChecker () const

virtual std::shared_ptr< CardProbe >	createCardProbe ()

Protected Attributes
std::shared_ptr< SAMChip >	d_sam_chip
	The SAM chip.

std::shared_ptr< ISO7816ReaderUnit >	d_sam_readerunit
	The SAM ReaderUnit used SAM Authentication.

std::string	d_client_context
	The client context.

std::string	d_sam_client_context
	The sam client context.

Protected Attributes inherited from logicalaccess::ReaderUnit
std::string	d_readerProviderType
	The associated reader provider type for the reader unit configuration.

std::string	d_card_type
	The forced card type.

std::weak_ptr< ReaderProvider >	d_readerProvider
	The associated reader provider for the reader unit.

std::shared_ptr< ReaderUnitConfiguration >	d_readerUnitConfig
	The reader unit configuration.

std::shared_ptr< Chip >	d_insertedChip
	The inserted chip.

std::shared_ptr< LCDDisplay >	d_lcdDisplay
	The inserted chip.

std::shared_ptr< LEDBuzzerDisplay >	d_ledBuzzerDisplay
	The inserted chip.

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::ReaderUnit
static uint64_t	getFormatedNumber (const ByteVector &number, int padding)
	Get the number as decimal a number.

static std::string	getFormatedNumber (const ByteVector &number)
	Get a string hexadecimal representation of the number.

Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.

static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.

Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)

Detailed Description

The ISO7816 reader unit class.

Constructor & Destructor Documentation

◆ ISO7816ReaderUnit()

logicalaccess::ISO7816ReaderUnit::ISO7816ReaderUnit ( std::string rpt )

explicit

◆ ~ISO7816ReaderUnit()

logicalaccess::ISO7816ReaderUnit::~ISO7816ReaderUnit ( )

virtual

Member Function Documentation

◆ connect()

bool logicalaccess::ISO7816ReaderUnit::connect ( )

inlineoverridevirtual

Connect to the card.

Returns: True if the card was connected without error, false otherwise.

If the card handle was already connected, connect() first call disconnect(). If you intend to do a reconnection, call reconnect() instead.

Implements logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::PCSCReaderUnit, logicalaccess::ACSACR1222LReaderUnit, logicalaccess::ID3ReaderUnit, and logicalaccess::STidSTRReaderUnit.

◆ connectToReader()

bool logicalaccess::ISO7816ReaderUnit::connectToReader ( )

overridevirtual

Connect to the reader. Implicit connection on first command sent.

Returns: True if the connection succeeded.

Implements logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::PCSCReaderUnit, logicalaccess::ACSACR1222LReaderUnit, logicalaccess::OmnikeyLANXX21ReaderUnit, and logicalaccess::STidSTRReaderUnit.

◆ connectToSAM()

void logicalaccess::ISO7816ReaderUnit::connectToSAM ( )

virtual

◆ createCardProbe()

std::shared_ptr< CardProbe > logicalaccess::ISO7816ReaderUnit::createCardProbe ( )

inlineoverridevirtual

Create a new CardProbe object that works with the current reader.

This is required because the behaviour of reader varies a lot when probing for cards.

The default implementation returns nullptr;

Reimplemented from logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::PCSCReaderUnit, logicalaccess::ID3ReaderUnit, and logicalaccess::SpringCardReaderUnit.

◆ createDefaultResultChecker()

std::shared_ptr< ResultChecker > logicalaccess::ISO7816ReaderUnit::createDefaultResultChecker ( ) const

overrideprotectedvirtual

Create a new ResultChecker object that make sense for the current reader.

It's possible that this ResultChecker won't be used, as more fine-grained check regarding reader/card-type combination happen.

The default implementation returns nullptr.

Reimplemented from logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::PCSCReaderUnit, logicalaccess::ACSACR1222LReaderUnit, logicalaccess::ACSACRReaderUnit, and logicalaccess::SpringCardReaderUnit.

◆ disconnect()

void logicalaccess::ISO7816ReaderUnit::disconnect ( )

inlineoverridevirtual

Disconnect from the card.

Implements logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::PCSCReaderUnit, logicalaccess::ID3ReaderUnit, and logicalaccess::STidSTRReaderUnit.

◆ disconnectFromReader()

void logicalaccess::ISO7816ReaderUnit::disconnectFromReader ( )

overridevirtual

Disconnect from reader.

Implements logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::PCSCReaderUnit, logicalaccess::ACSACR1222LReaderUnit, logicalaccess::OmnikeyLANXX21ReaderUnit, and logicalaccess::STidSTRReaderUnit.

◆ disconnectFromSAM()

void logicalaccess::ISO7816ReaderUnit::disconnectFromSAM ( )

virtual

◆ getChipList()

std::vector< std::shared_ptr< Chip > > logicalaccess::ISO7816ReaderUnit::getChipList ( )

overridevirtual

Get chip available in the RFID rang.

Returns: The chip list.

Implements logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::PCSCReaderUnit, logicalaccess::ID3ReaderUnit, and logicalaccess::STidSTRReaderUnit.

◆ getContext()

std::string logicalaccess::ISO7816ReaderUnit::getContext ( )

virtual

Get the client context.

Returns: The context.

◆ getISO7816Configuration()

std::shared_ptr< ISO7816ReaderUnitConfiguration > logicalaccess::ISO7816ReaderUnit::getISO7816Configuration ( )

inlineprotected

Get the ISO7816 reader unit configuration.

Returns: The ISO7816 reader unit configuration.

◆ getISO7816ReaderProvider()

std::shared_ptr< ISO7816ReaderProvider > logicalaccess::ISO7816ReaderUnit::getISO7816ReaderProvider ( ) const

protected

Get the ISO7816 reader provider.

Returns: The ISO7816 reader provider.

◆ getName()

std::string logicalaccess::ISO7816ReaderUnit::getName ( ) const

inlineoverridevirtual

Get the reader unit name.

Returns: The reader unit name.

Implements logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::PCSCReaderUnit, and logicalaccess::STidSTRReaderUnit.

◆ getReaderSerialNumber()

std::string logicalaccess::ISO7816ReaderUnit::getReaderSerialNumber ( )

inlineoverridevirtual

Get a string hexadecimal representation of the reader serial number.

Returns: The reader serial number or an empty string on error.

Implements logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::PCSCReaderUnit, logicalaccess::ACSACR1222LReaderUnit, and logicalaccess::STidSTRReaderUnit.

◆ getSAMChip()

std::shared_ptr< SAMChip > logicalaccess::ISO7816ReaderUnit::getSAMChip ( )

virtual

Get The SAM Chip.

Reimplemented in logicalaccess::PCSCReaderUnit.

◆ getSAMReaderUnit()

std::shared_ptr< ISO7816ReaderUnit > logicalaccess::ISO7816ReaderUnit::getSAMReaderUnit ( )

virtual

Get The SAM ReaderUnit.

Reimplemented in logicalaccess::PCSCReaderUnit.

◆ getSingleChip()

std::shared_ptr< Chip > logicalaccess::ISO7816ReaderUnit::getSingleChip ( )

overridevirtual

Get the first and/or most accurate chip found.

Returns: The single chip.

Implements logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::PCSCReaderUnit, and logicalaccess::STidSTRReaderUnit.

◆ isConnected()

bool logicalaccess::ISO7816ReaderUnit::isConnected ( )

inlineoverridevirtual

Check if the card is connected.

Returns: True if the card is connected, false otherwise.

Implements logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::PCSCReaderUnit, and logicalaccess::STidSTRReaderUnit.

◆ reconnect()

bool logicalaccess::ISO7816ReaderUnit::reconnect ( int action )

overrideprotectedvirtual

Reconnect to the card with the currently active share mode on the same reader.

Returns: True if the card was reconnected without error, false otherwise.

Reimplemented from logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::PCSCReaderUnit.

◆ reloadReaderConfiguration()

void logicalaccess::ISO7816ReaderUnit::reloadReaderConfiguration ( )

virtual

◆ setCardType()

void logicalaccess::ISO7816ReaderUnit::setCardType ( std::string )

inlineoverridevirtual

Set the forced card type.

Parameters

cardType The forced card type.

Implements logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::PCSCReaderUnit, and logicalaccess::STidSTRReaderUnit.

◆ setContext()

void logicalaccess::ISO7816ReaderUnit::setContext ( const std::string & context )

virtual

Set the client context.

Parameters

context The context.

◆ setSAMChip()

void logicalaccess::ISO7816ReaderUnit::setSAMChip ( std::shared_ptr< SAMChip > t )

virtual

Set the SAM Chip.

Reimplemented in logicalaccess::PCSCReaderUnit.

◆ setSAMReaderUnit()

void logicalaccess::ISO7816ReaderUnit::setSAMReaderUnit ( std::shared_ptr< ISO7816ReaderUnit > t )

virtual

Set the SAM ReaderUnit.

Reimplemented in logicalaccess::PCSCReaderUnit.

◆ waitInsertion()

bool logicalaccess::ISO7816ReaderUnit::waitInsertion ( unsigned int )

inlineoverridevirtual

Wait for a card insertion.

Parameters

maxwait The maximum time to wait for, in milliseconds. If maxwait is zero, then the call never times out.

Returns: True if a card was inserted, false otherwise. If a card was inserted, the name of the reader on which the insertion was detected is accessible with getReader().

Warning: If the card is already connected, then the method always fail.

Implements logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::PCSCReaderUnit, and logicalaccess::STidSTRReaderUnit.

◆ waitRemoval()

bool logicalaccess::ISO7816ReaderUnit::waitRemoval ( unsigned int )

inlineoverridevirtual

Wait for a card removal.

Parameters

maxwait The maximum time to wait for, in milliseconds. If maxwait is zero, then the call never times out.

Returns: True if a card was removed, false otherwise. If a card was removed, the name of the reader on which the removal was detected is accessible with getReader().

Implements logicalaccess::ReaderUnit.

Reimplemented in logicalaccess::PCSCReaderUnit, logicalaccess::ACSACR1222LReaderUnit, logicalaccess::OmnikeyReaderUnit, logicalaccess::OmnikeyXX21ReaderUnit, and logicalaccess::STidSTRReaderUnit.

Member Data Documentation

◆ d_client_context

std::string logicalaccess::ISO7816ReaderUnit::d_client_context

protected

The client context.

◆ d_sam_chip

std::shared_ptr<SAMChip> logicalaccess::ISO7816ReaderUnit::d_sam_chip

protected

The SAM chip.

◆ d_sam_client_context

std::string logicalaccess::ISO7816ReaderUnit::d_sam_client_context

protected

The sam client context.

◆ d_sam_readerunit

std::shared_ptr<ISO7816ReaderUnit> logicalaccess::ISO7816ReaderUnit::d_sam_readerunit

protected

The SAM ReaderUnit used SAM Authentication.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/iso7816/iso7816readerunit.hpp
C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/iso7816/iso7816readerunit.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ISO7816ReaderUnit()

◆ ~ISO7816ReaderUnit()

Member Function Documentation

◆ connect()

◆ connectToReader()

◆ connectToSAM()

◆ createCardProbe()

◆ createDefaultResultChecker()

◆ disconnect()

◆ disconnectFromReader()

◆ disconnectFromSAM()

◆ getChipList()

◆ getContext()

◆ getISO7816Configuration()

◆ getISO7816ReaderProvider()

◆ getName()

◆ getReaderSerialNumber()

◆ getSAMChip()

◆ getSAMReaderUnit()

◆ getSingleChip()

◆ isConnected()

◆ reconnect()

◆ reloadReaderConfiguration()

◆ setCardType()

◆ setContext()

◆ setSAMChip()

◆ setSAMReaderUnit()

◆ waitInsertion()

◆ waitRemoval()

Member Data Documentation

◆ d_client_context

◆ d_sam_chip

◆ d_sam_client_context

◆ d_sam_readerunit
