The STidSTR reader unit class. More...

#include <stidstrreaderunit.hpp>

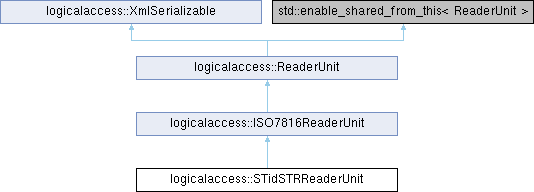

Inheritance diagram for logicalaccess::STidSTRReaderUnit:

Classes
struct	STidSTRInformation
	STidSTR reader information. More...

Public Member Functions
	STidSTRReaderUnit ()
	Constructor.

virtual	~STidSTRReaderUnit ()
	Destructor.

std::string	getName () const override
	Get the reader unit name.

std::string	getConnectedName () override
	Get the connected reader unit name.

void	setCardType (std::string cardType) override
	Set the card type.

bool	waitInsertion (unsigned int maxwait) override
	Wait for a card insertion.

bool	waitRemoval (unsigned int maxwait) override
	Wait for a card removal.

std::shared_ptr< Chip >	createChip (std::string type) override
	Create the chip object from card type.

std::shared_ptr< Chip >	getSingleChip () override
	Get the first and/or most accurate chip found.

std::vector< std::shared_ptr< Chip > >	getChipList () override
	Get chip available in the RFID rang.

virtual std::shared_ptr< STidSTRReaderCardAdapter >	getDefaultSTidSTRReaderCardAdapter ()
	Get the default STidSTR reader/card adapter.

bool	connect () override
	Connect to the card.

void	disconnect () override
	Disconnect from the Deister.

bool	isConnected () override
	Check if the card is connected.

bool	connectToReader () override
	Connect to the reader. Implicit connection on first command sent.

void	disconnectFromReader () override
	Disconnect from reader.

ByteVector	getPingCommand () const override
	Get the reader ping command.

std::string	getReaderSerialNumber () override
	Get a string hexadecimal representation of the reader serial number.

void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

std::shared_ptr< STidSTRReaderUnitConfiguration >	getSTidSTRConfiguration ()

std::shared_ptr< STidSTRReaderProvider >	getSTidSTRReaderProvider () const
	Get the STidSTR reader provider.

std::shared_ptr< Chip >	scan14443A ()
	Scan the RFID field for ISO 14443-A tag detection.

std::shared_ptr< Chip >	scanARaw ()
	Scan the RFID field for ISO 14443-A tag detection.

std::shared_ptr< Chip >	scan14443B ()
	Scan the RFID field for ISO 14443-B tag detection.

ByteVector	authenticateReader1 (bool isHMAC)
	Authenticate the host with the reader and genereate session keys for HMAC and enciphering, 1/2.

ByteVector	authenticateReader2 (const ByteVector &data)
	Authenticate the host with the reader and genereate session keys for HMAC and enciphering, 2/2.

void	ResetAuthenticate ()
	Reset the reader authentication and session keys. Next frames will be transmitted plain.

void	ChangeReaderKeys (const ByteVector &key_hmac, const ByteVector &key_aes)
	Change keys on the reader memory.

void	setBaudRate (STidBaudrate baudrate)
	Set the reader baudrate for serial communication.

void	set485Address (unsigned char address)
	Set the RS485 reader address.

STidSTRInformation	getReaderInformaton ()
	Get the reader information.

void	setAllowedCommModes (bool plainComm, bool signedComm, bool cipheredComm)
	Set the allowed communication modes with the reader.

void	setTamperSwitchSettings (bool useTamperSwitch, STidTamperSwitchBehavior behavior)
	Set the tamper switch settings.

void	getTamperSwitchInfos (bool &useTamperSwitch, STidTamperSwitchBehavior &behavior, bool &swChanged)
	Get the tamper switch settings.

void	loadSKB ()
	Save in EEPROM INDEX table memory the keys from a SKB card.

ByteVector	getSessionKeyHMAC () const
	The the HMAC session key.

ByteVector	getSessionKeyAES () const
	The the AES session key.

Public Member Functions inherited from logicalaccess::ISO7816ReaderUnit
	ISO7816ReaderUnit (std::string rpt)

virtual	~ISO7816ReaderUnit ()

bool	waitInsertion (unsigned int) override
	Wait for a card insertion.

bool	waitRemoval (unsigned int) override
	Wait for a card removal.

bool	isConnected () override
	Check if the card is connected.

void	setCardType (std::string) override
	Set the forced card type.

std::shared_ptr< Chip >	getSingleChip () override
	Get the first and/or most accurate chip found.

std::vector< std::shared_ptr< Chip > >	getChipList () override
	Get chip available in the RFID rang.

bool	connect () override
	Connect to the card.

void	disconnect () override
	Disconnect from the card.

virtual void	connectToSAM ()

bool	connectToReader () override
	Connect to the reader. Implicit connection on first command sent.

virtual void	disconnectFromSAM ()

void	disconnectFromReader () override
	Disconnect from reader.

virtual void	reloadReaderConfiguration ()

virtual void	setContext (const std::string &context)
	Set the client context.

virtual std::string	getContext ()
	Get the client context.

std::string	getName () const override
	Get the reader unit name.

std::string	getReaderSerialNumber () override
	Get a string hexadecimal representation of the reader serial number.

std::shared_ptr< CardProbe >	createCardProbe () override

virtual std::shared_ptr< SAMChip >	getSAMChip ()
	Get The SAM Chip.

virtual void	setSAMChip (std::shared_ptr< SAMChip > t)
	Set the SAM Chip.

virtual std::shared_ptr< ISO7816ReaderUnit >	getSAMReaderUnit ()
	Get The SAM ReaderUnit.

virtual void	setSAMReaderUnit (std::shared_ptr< ISO7816ReaderUnit > t)
	Set the SAM ReaderUnit.

Public Member Functions inherited from logicalaccess::ReaderUnit
	ReaderUnit (std::string rpt)
	Constructor.

virtual	~ReaderUnit ()
	Destructor.

std::string	getRPType () const
	Get the reader provider type.

virtual ByteVector	getPingCommand () const
	Get the reader ping command.

virtual bool	waitInsertion (unsigned int maxwait)=0
	Wait for a card insertion.

virtual bool	waitInsertion (const ByteVector &identifier, unsigned int maxwait)
	Wait for a specific card insertion.

virtual bool	waitRemoval (unsigned int maxwait)=0
	Wait for a card removal.

virtual bool	isConnected ()=0
	Check if the card is connected.

std::string	getCardType () const
	Get the forced card type.

virtual void	setCardType (std::string cardType)=0
	Set the forced card type.

virtual std::shared_ptr< Chip >	createChip (std::string type)
	Create the chip object from card type.

virtual std::shared_ptr< Chip >	createChip (std::string type, const ByteVector &identifier)
	Create the chip object from card type with identifier.

virtual ByteVector	getNumber (std::shared_ptr< Chip > chip)
	Get the number from the embedded licensing configuration.

virtual std::shared_ptr< Chip >	getSingleChip ()=0
	Get the first and/or most accurate chip found.

virtual std::vector< std::shared_ptr< Chip > >	getChipList ()=0
	Get chip available in the RFID rang.

virtual ByteVector	getNumber (std::shared_ptr< Chip > chip, std::shared_ptr< CardsFormatComposite > composite)
	Get the number from the reader format composite.

virtual bool	connect ()=0
	Connect to the card.

virtual bool	reconnect (int action=0)
	Reconnect to the card with the currently active share mode on the same reader.

virtual void	disconnect ()=0
	Disconnect from the card.

virtual bool	connectToReader ()=0
	Connect to the reader. Implicit connection on first command sent.

virtual void	disconnectFromReader ()=0
	Disconnect from reader.

virtual std::string	getName () const =0
	Get the reader unit name.

virtual std::string	getConnectedName ()
	Get the connected reader unit name.

virtual std::shared_ptr< ReaderUnitConfiguration >	getConfiguration ()
	Get the reader unit configuration.

virtual void	setConfiguration (std::shared_ptr< ReaderUnitConfiguration > config)
	Set the reader unit configuration.

virtual std::shared_ptr< ReaderCardAdapter >	getDefaultReaderCardAdapter ()
	Get the default reader/card adapter.

virtual void	setDefaultReaderCardAdapter (std::shared_ptr< ReaderCardAdapter > defaultRca)
	Set the default reader/card adapter.

virtual std::shared_ptr< DataTransport >	getDataTransport () const
	Get the data transport layer.

virtual void	setDataTransport (std::shared_ptr< DataTransport > dataTransport)
	Set the data transport layer.

virtual std::string	getReaderSerialNumber ()=0
	Get a string hexadecimal representation of the reader serial number.

std::string	getDefaultXmlNodeName () const override
	Get the default Xml Node name for this object.

void	serialize (boost::property_tree::ptree &node) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode) override
	UnSerialize object from a Xml node.

std::shared_ptr< ReaderProvider >	getReaderProvider () const
	Get the associated reader provider.

void	setReaderProvider (std::weak_ptr< ReaderProvider > provider)
	Set the associated reader provider.

virtual std::shared_ptr< LCDDisplay >	getLCDDisplay ()
	Get the LCD Display for this reader unit.

virtual void	setLCDDisplay (std::shared_ptr< LCDDisplay > d)
	Get the LCD Display for this reader unit.

virtual std::shared_ptr< LEDBuzzerDisplay >	getLEDBuzzerDisplay ()
	Get the LED/Buzzer Display for this reader unit.

virtual void	setLEDBuzzerDisplay (std::shared_ptr< LEDBuzzerDisplay > lbd)
	Get the LCD Display for this reader unit.

virtual void	setCardTechnologies (const TechnoBitset &bitset)

virtual TechnoBitset	getCardTechnologies ()

virtual TechnoBitset	getPossibleCardTechnologies ()

virtual ReaderServicePtr	getService (const ReaderServiceType &type)

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.

virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Protected Member Functions
void	authenticateHMAC ()
	Authenticate the host and the reader to obtain the HMAC session key.

void	authenticateAES ()
	Authenticate the host and the reader to obtain the AES session key.

Protected Member Functions inherited from logicalaccess::ISO7816ReaderUnit
std::shared_ptr< ResultChecker >	createDefaultResultChecker () const override

std::shared_ptr< ISO7816ReaderProvider >	getISO7816ReaderProvider () const
	Get the ISO7816 reader provider.

std::shared_ptr< ISO7816ReaderUnitConfiguration >	getISO7816Configuration ()
	Get the ISO7816 reader unit configuration.

bool	reconnect (int action) override
	Reconnect to the card with the currently active share mode on the same reader.

virtual std::shared_ptr< ResultChecker >	createDefaultResultChecker () const

virtual std::shared_ptr< CardProbe >	createCardProbe ()

Protected Attributes
ByteVector	d_sessionKey_hmac
	The HMAC session key.

ByteVector	d_sessionKey_aes
	The AES session key.

Protected Attributes inherited from logicalaccess::ISO7816ReaderUnit
std::shared_ptr< SAMChip >	d_sam_chip
	The SAM chip.

std::shared_ptr< ISO7816ReaderUnit >	d_sam_readerunit
	The SAM ReaderUnit used SAM Authentication.

std::string	d_client_context
	The client context.

std::string	d_sam_client_context
	The sam client context.

Protected Attributes inherited from logicalaccess::ReaderUnit
std::string	d_readerProviderType
	The associated reader provider type for the reader unit configuration.

std::string	d_card_type
	The forced card type.

std::weak_ptr< ReaderProvider >	d_readerProvider
	The associated reader provider for the reader unit.

std::shared_ptr< ReaderUnitConfiguration >	d_readerUnitConfig
	The reader unit configuration.

std::shared_ptr< Chip >	d_insertedChip
	The inserted chip.

std::shared_ptr< LCDDisplay >	d_lcdDisplay
	The inserted chip.

std::shared_ptr< LEDBuzzerDisplay >	d_ledBuzzerDisplay
	The inserted chip.

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::ReaderUnit
static uint64_t	getFormatedNumber (const ByteVector &number, int padding)
	Get the number as decimal a number.

static std::string	getFormatedNumber (const ByteVector &number)
	Get a string hexadecimal representation of the number.

Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.

static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.

Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)

Detailed Description

The STidSTR reader unit class.

Constructor & Destructor Documentation

◆ STidSTRReaderUnit()

logicalaccess::STidSTRReaderUnit::STidSTRReaderUnit ( )

Constructor.

◆ ~STidSTRReaderUnit()

logicalaccess::STidSTRReaderUnit::~STidSTRReaderUnit ( )

virtual

Destructor.

Member Function Documentation

◆ authenticateAES()

void logicalaccess::STidSTRReaderUnit::authenticateAES ( )

protected

Authenticate the host and the reader to obtain the AES session key.

◆ authenticateHMAC()

void logicalaccess::STidSTRReaderUnit::authenticateHMAC ( )

protected

Authenticate the host and the reader to obtain the HMAC session key.

◆ authenticateReader1()

ByteVector logicalaccess::STidSTRReaderUnit::authenticateReader1 ( bool isHMAC )

Authenticate the host with the reader and genereate session keys for HMAC and enciphering, 1/2.

Parameters

isHMAC True if the authentication process is for HMAC session key, false for AES session key.

Returns: The reader response.

◆ authenticateReader2()

ByteVector logicalaccess::STidSTRReaderUnit::authenticateReader2 ( const ByteVector & data )

Authenticate the host with the reader and genereate session keys for HMAC and enciphering, 2/2.

Parameters

data	The authentication command data.

Returns: The reader response.

◆ ChangeReaderKeys()

void logicalaccess::STidSTRReaderUnit::ChangeReaderKeys	(	const ByteVector &	key_hmac,
		const ByteVector &	key_aes
	)

Change keys on the reader memory.

Parameters

key_hmac	The new HMAC user key. Empty to keep the current one.
key_hmac	The new AES user key. Empty to keep the current one.

◆ connect()

bool logicalaccess::STidSTRReaderUnit::connect ( )

overridevirtual

Connect to the card.

Returns: True if the card was connected without error, false otherwise.

If the card handle was already connected, connect() first call disconnect(). If you intend to do a reconnection, call reconnect() instead.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ connectToReader()

bool logicalaccess::STidSTRReaderUnit::connectToReader ( )

overridevirtual

Connect to the reader. Implicit connection on first command sent.

Returns: True if the connection successed.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ createChip()

std::shared_ptr< Chip > logicalaccess::STidSTRReaderUnit::createChip ( std::string type )

overridevirtual

Create the chip object from card type.

Parameters

type	The card type.

Returns: The chip.

Reimplemented from logicalaccess::ReaderUnit.

◆ disconnect()

void logicalaccess::STidSTRReaderUnit::disconnect ( )

overridevirtual

Disconnect from the Deister.

See also: connect

Calling this method on a disconnected Deister has no effect.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ disconnectFromReader()

void logicalaccess::STidSTRReaderUnit::disconnectFromReader ( )

overridevirtual

Disconnect from reader.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ getChipList()

std::vector< std::shared_ptr< Chip > > logicalaccess::STidSTRReaderUnit::getChipList ( )

overridevirtual

Get chip available in the RFID rang.

Returns: The chip list.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ getConnectedName()

std::string logicalaccess::STidSTRReaderUnit::getConnectedName ( )

overridevirtual

Get the connected reader unit name.

Returns: The connected reader unit name.

Reimplemented from logicalaccess::ReaderUnit.

◆ getDefaultSTidSTRReaderCardAdapter()

std::shared_ptr< STidSTRReaderCardAdapter > logicalaccess::STidSTRReaderUnit::getDefaultSTidSTRReaderCardAdapter ( )

virtual

Get the default STidSTR reader/card adapter.

Returns: The default STidSTR reader/card adapter.

◆ getName()

std::string logicalaccess::STidSTRReaderUnit::getName ( ) const

overridevirtual

Get the reader unit name.

Returns: The reader unit name.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ getPingCommand()

ByteVector logicalaccess::STidSTRReaderUnit::getPingCommand ( ) const

overridevirtual

Get the reader ping command.

Returns: The ping command.

Reimplemented from logicalaccess::ReaderUnit.

◆ getReaderInformaton()

STidSTRReaderUnit::STidSTRInformation logicalaccess::STidSTRReaderUnit::getReaderInformaton ( )

Get the reader information.

Returns: The reader information.

◆ getReaderSerialNumber()

std::string logicalaccess::STidSTRReaderUnit::getReaderSerialNumber ( )

overridevirtual

Get a string hexadecimal representation of the reader serial number.

Returns: The reader serial number or an empty string on error.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ getSessionKeyAES()

ByteVector logicalaccess::STidSTRReaderUnit::getSessionKeyAES ( ) const

inline

The the AES session key.

Returns: The session key.

◆ getSessionKeyHMAC()

ByteVector logicalaccess::STidSTRReaderUnit::getSessionKeyHMAC ( ) const

inline

The the HMAC session key.

Returns: The session key.

◆ getSingleChip()

std::shared_ptr< Chip > logicalaccess::STidSTRReaderUnit::getSingleChip ( )

overridevirtual

Get the first and/or most accurate chip found.

Returns: The single chip.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ getSTidSTRConfiguration()

std::shared_ptr< STidSTRReaderUnitConfiguration > logicalaccess::STidSTRReaderUnit::getSTidSTRConfiguration ( )

◆ getSTidSTRReaderProvider()

std::shared_ptr< STidSTRReaderProvider > logicalaccess::STidSTRReaderUnit::getSTidSTRReaderProvider ( ) const

Get the STidSTR reader provider.

Returns: The STidSTR reader provider.

◆ getTamperSwitchInfos()

void logicalaccess::STidSTRReaderUnit::getTamperSwitchInfos	(	bool &	useTamperSwitch,
		STidTamperSwitchBehavior &	behavior,
		bool &	swChanged
	)

Get the tamper switch settings.

Parameters

useTamperSwitch	True to use tamper switch action, false to not.
behavior	The behavior when tamper switch is activated.
swChanged	True if the SW state have changed, false otherwise.

◆ isConnected()

bool logicalaccess::STidSTRReaderUnit::isConnected ( )

overridevirtual

Check if the card is connected.

Returns: True if the card is connected, false otherwise.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ loadSKB()

void logicalaccess::STidSTRReaderUnit::loadSKB ( )

Save in EEPROM INDEX table memory the keys from a SKB card.

◆ ResetAuthenticate()

void logicalaccess::STidSTRReaderUnit::ResetAuthenticate ( )

Reset the reader authentication and session keys. Next frames will be transmitted plain.

◆ scan14443A()

std::shared_ptr< Chip > logicalaccess::STidSTRReaderUnit::scan14443A ( )

Scan the RFID field for ISO 14443-A tag detection.

Returns: The chip object if a tag is inserted.

◆ scan14443B()

std::shared_ptr< Chip > logicalaccess::STidSTRReaderUnit::scan14443B ( )

Scan the RFID field for ISO 14443-B tag detection.

Returns: The chip object if a tag is inserted.

◆ scanARaw()

std::shared_ptr< Chip > logicalaccess::STidSTRReaderUnit::scanARaw ( )

Scan the RFID field for ISO 14443-A tag detection.

Returns: The chip object if a tag is inserted.

◆ serialize()

void logicalaccess::STidSTRReaderUnit::serialize ( boost::property_tree::ptree & parentNode )

overridevirtual

Serialize the current object to XML.

Parameters

parentNode The parent node.

Reimplemented from logicalaccess::ReaderUnit.

◆ set485Address()

void logicalaccess::STidSTRReaderUnit::set485Address ( unsigned char address )

Set the RS485 reader address.

Parameters

address The new reader address.

◆ setAllowedCommModes()

void logicalaccess::STidSTRReaderUnit::setAllowedCommModes	(	bool	plainComm,
		bool	signedComm,
		bool	cipheredComm
	)

Set the allowed communication modes with the reader.

Parameters

plainComm	True to be allowed to use plain communication mode, false otherwise.
signedComm	True to be allowed to use signed communication mode without ciphering, false otherwise.
cipheredComm	True to be allowed to use ciphered communication mode without signature, false otherwise.

◆ setBaudRate()

void logicalaccess::STidSTRReaderUnit::setBaudRate ( STidBaudrate baudrate )

Set the reader baudrate for serial communication.

Parameters

baudrate The new baudrate to apply.

◆ setCardType()

void logicalaccess::STidSTRReaderUnit::setCardType ( std::string cardType )

overridevirtual

Set the card type.

Parameters

cardType The card type.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ setTamperSwitchSettings()

void logicalaccess::STidSTRReaderUnit::setTamperSwitchSettings	(	bool	useTamperSwitch,
		STidTamperSwitchBehavior	behavior
	)

Set the tamper switch settings.

Parameters

useTamperSwitch	True to use tamper switch action, false to not.
behavior	The behavior when tamper switch is activated.

◆ unSerialize()

void logicalaccess::STidSTRReaderUnit::unSerialize ( boost::property_tree::ptree & node )

overridevirtual

UnSerialize a XML node to the current object.

Parameters

node	The XML node.

Reimplemented from logicalaccess::ReaderUnit.

◆ waitInsertion()

bool logicalaccess::STidSTRReaderUnit::waitInsertion ( unsigned int maxwait )

overridevirtual

Wait for a card insertion.

Parameters

maxwait The maximum time to wait for, in milliseconds. If maxwait is zero, then the call never times out.

Returns: True if a card was inserted, false otherwise. If a card was inserted, the name of the reader on which the insertion was detected is accessible with getReader().

Warning: If the card is already connected, then the method always fail.

Reimplemented from logicalaccess::ISO7816ReaderUnit.

◆ waitRemoval()

bool logicalaccess::STidSTRReaderUnit::waitRemoval ( unsigned int maxwait )

overridevirtual

Wait for a card removal.

Parameters

maxwait The maximum time to wait for, in milliseconds. If maxwait is zero, then the call never times out.

Returns: True if a card was removed, false otherwise. If a card was removed, the name of the reader on which the removal was detected is accessible with getReader().

Reimplemented from logicalaccess::ISO7816ReaderUnit.

Member Data Documentation

◆ d_sessionKey_aes

ByteVector logicalaccess::STidSTRReaderUnit::d_sessionKey_aes

protected

The AES session key.

◆ d_sessionKey_hmac

ByteVector logicalaccess::STidSTRReaderUnit::d_sessionKey_hmac

protected

The HMAC session key.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/stidstr/stidstrreaderunit.hpp
C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/stidstr/stidstrreaderunit.cpp

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ STidSTRReaderUnit()

◆ ~STidSTRReaderUnit()

Member Function Documentation

◆ authenticateAES()

◆ authenticateHMAC()

◆ authenticateReader1()

◆ authenticateReader2()

◆ ChangeReaderKeys()

◆ connect()

◆ connectToReader()

◆ createChip()

◆ disconnect()

◆ disconnectFromReader()

◆ getChipList()

◆ getConnectedName()

◆ getDefaultSTidSTRReaderCardAdapter()

◆ getName()

◆ getPingCommand()

◆ getReaderInformaton()

◆ getReaderSerialNumber()

◆ getSessionKeyAES()

◆ getSessionKeyHMAC()

◆ getSingleChip()

◆ getSTidSTRConfiguration()

◆ getSTidSTRReaderProvider()

◆ getTamperSwitchInfos()

◆ isConnected()

◆ loadSKB()

◆ ResetAuthenticate()

◆ scan14443A()

◆ scan14443B()

◆ scanARaw()

◆ serialize()

◆ set485Address()

◆ setAllowedCommModes()

◆ setBaudRate()

◆ setCardType()

◆ setTamperSwitchSettings()

◆ unSerialize()

◆ waitInsertion()

◆ waitRemoval()

Member Data Documentation

◆ d_sessionKey_aes

◆ d_sessionKey_hmac
