The reader unit configuration base class. Describe the configuration for a reader unit. More...
#include <readerunitconfiguration.hpp>
Public Member Functions | |
| ReaderUnitConfiguration (std::string rpt) | |
| Constructor. | |
| virtual | ~ReaderUnitConfiguration () |
| Destructor. | |
| std::string | getRPType () const |
| Get the reader provider type. | |
| virtual void | resetConfiguration ()=0 |
| Reset the configuration to the default one. | |
 Public Member Functions inherited from logicalaccess::XmlSerializable | |
| virtual | ~XmlSerializable ()=default |
| virtual std::string | serialize () |
| Serialize object to Xml Node string. | |
| virtual std::string | serializeWithHeaders () |
| Serialize object to Xml Node string, with xml headers. | |
| virtual void | serialize (boost::property_tree::ptree &parentNode)=0 |
| Serialize object to Xml Node. | |
| virtual void | serializeToFile (const std::string &filename) |
| Serialize object to a Xml file. | |
| virtual void | unSerialize (boost::property_tree::ptree &node)=0 |
| UnSerialize object from a Xml Node. | |
| virtual void | unSerialize (const std::string &xmlstring, const std::string &rootNode) |
| UnSerialize object from a Xml Node string. | |
| virtual void | unSerialize (std::istream &is, const std::string &rootNode) |
| UnSerialize object from a Xml node. | |
| virtual void | unSerialize (boost::property_tree::ptree &node, const std::string &rootNode) |
| UnSerialize object from a Xml node. | |
| virtual void | unSerializeFromFile (const std::string &filename) |
| UnSerialize object from a Xml file. | |
| virtual std::string | getDefaultXmlNodeName () const =0 |
| Get the default Xml Node name for this object. | |
Protected Attributes | |
| std::string | d_readerProviderType |
| The associated reader provider type for the reader unit configuration. | |
Additional Inherited Members | |
| Static Public Member Functions inherited from logicalaccess::XmlSerializable | |
| static std::string | removeXmlDeclaration (const std::string &xmlstring) |
| Remove Xml declaration from a xml string. | |
| static ByteVector | formatHexString (std::string hexstr) |
| Format hex string to hex string with space. | |
| Static Protected Member Functions inherited from logicalaccess::XmlSerializable | |
| static unsigned long long | atoull (const std::string &str) |
Detailed Description
The reader unit configuration base class. Describe the configuration for a reader unit.
Constructor & Destructor Documentation
◆ ReaderUnitConfiguration()
|
explicit |
Constructor.
◆ ~ReaderUnitConfiguration()
|
virtual |
Destructor.
Member Function Documentation
◆ getRPType()
| std::string logicalaccess::ReaderUnitConfiguration::getRPType | ( | ) | const |
Get the reader provider type.
- Returns
- The reader provider type.
◆ resetConfiguration()
|
pure virtual |
Reset the configuration to the default one.

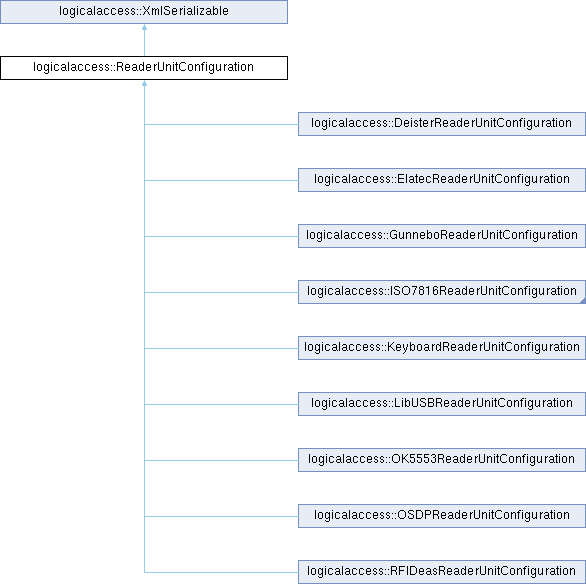

Implemented in logicalaccess::DeisterReaderUnitConfiguration, logicalaccess::ElatecReaderUnitConfiguration, logicalaccess::GunneboReaderUnitConfiguration, logicalaccess::ISO7816ReaderUnitConfiguration, logicalaccess::KeyboardReaderUnitConfiguration, logicalaccess::LibUSBReaderUnitConfiguration, logicalaccess::OK5553ReaderUnitConfiguration, logicalaccess::OSDPReaderUnitConfiguration, logicalaccess::PCSCReaderUnitConfiguration, logicalaccess::ACSACR1222LReaderUnitConfiguration, logicalaccess::Omnikey5427ReaderUnitConfiguration, logicalaccess::OmnikeyXX21ReaderUnitConfiguration, logicalaccess::RFIDeasReaderUnitConfiguration, and logicalaccess::STidSTRReaderUnitConfiguration.
Member Data Documentation
◆ d_readerProviderType
|
protected |
The associated reader provider type for the reader unit configuration.
The documentation for this class was generated from the following files:
- C:/dev/lla/liblogicalaccess/include/logicalaccess/readerproviders/readerunitconfiguration.hpp
- C:/dev/lla/liblogicalaccess/src/readerproviders/readerunitconfiguration.cpp
