logicalaccess::ACSACR1222LReaderUnitConfiguration Class Reference

#include <acsacr1222lreaderunitconfiguration.hpp>

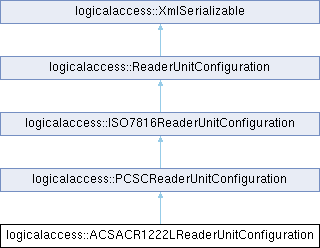

Inheritance diagram for logicalaccess::ACSACR1222LReaderUnitConfiguration:

Public Member Functions
	ACSACR1222LReaderUnitConfiguration ()
void	resetConfiguration () override
	Reset the configuration to default values.
void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.
void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.
PCSCReaderUnitType	getPCSCType () const override
	Get the PC/SC reader unit configuration type.
const std::string &	getUserFeedbackReader () const
void	setUserFeedbackReader (const std::string &)
Public Member Functions inherited from logicalaccess::PCSCReaderUnitConfiguration
	PCSCReaderUnitConfiguration ()
	Constructor.
virtual	~PCSCReaderUnitConfiguration ()
	Destructor.
void	resetConfiguration () override
	Reset the configuration to default values.
void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.
void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.
std::string	getDefaultXmlNodeName () const override
	Get the default Xml Node name for this object.
unsigned int	getTransmissionProtocol () const
	Get the transmission protocol.
void	setTransmissionProtocol (unsigned int protocol)
	Set the transmission protocol.
PCSCShareMode	getShareMode () const
	Get the share mode.
void	setShareMode (PCSCShareMode share_mode)
	Set the share mode.
virtual PCSCReaderUnitType	getPCSCType () const
	Get the PC/SC reader unit configuration type.
Public Member Functions inherited from logicalaccess::ISO7816ReaderUnitConfiguration
	ISO7816ReaderUnitConfiguration ()
	Constructor.
	ISO7816ReaderUnitConfiguration (std::string rpt)
	Constructor.
virtual	~ISO7816ReaderUnitConfiguration ()
	Destructor.
void	resetConfiguration () override
	Reset the configuration to the default one.
void	setSAMType (std::string t)
	Set the SAM type.
std::string	getSAMType () const
	get the SAM type.
void	setSAMReaderName (std::string t)
	Set the SAM reader name.
std::string	getSAMReaderName () const
	get the SAM reader name.
void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.
void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.
std::string	getDefaultXmlNodeName () const override
	Get the default Xml Node name for this object.
void	setSAMUnlockKey (std::shared_ptr< DESFireKey > key, unsigned char keyno)
	Set the SAM Key and Keyno for check if the SAM is the SAM we are waiting and for AV2 enable communication.
std::shared_ptr< DESFireKey >	getSAMUnLockKey () const
	Get SAM Security Check Key.
unsigned char	getSAMUnLockkeyNo () const
	Get SAM Security Check KeyNo.
bool	getCheckSAMReaderIsAvailable () const
void	setCheckSAMReaderIsAvailable (bool check)
bool	getAutoConnectToSAMReader () const
void	setAutoConnectToSAMReader (bool auto_connect)
bool	getSkipCSN () const
void	setSkipCSN (bool skipCSN)
Public Member Functions inherited from logicalaccess::ReaderUnitConfiguration
	ReaderUnitConfiguration (std::string rpt)
	Constructor.
virtual	~ReaderUnitConfiguration ()
	Destructor.
std::string	getRPType () const
	Get the reader provider type.
virtual void	resetConfiguration ()=0
	Reset the configuration to the default one.
Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default
virtual std::string	serialize ()
	Serialize object to Xml Node string.
virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.
virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.
virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.
virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.
virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.
virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.
virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.
virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.
virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Private Attributes
std::string	user_feedback_reader_

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.
static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.
Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)
Protected Attributes inherited from logicalaccess::PCSCReaderUnitConfiguration
unsigned int	d_protocol
	The transmission protocol.
PCSCShareMode	d_share_mode
	The share mode used when connecting to a card.
Protected Attributes inherited from logicalaccess::ISO7816ReaderUnitConfiguration
std::string	d_sam_type
	The SAM type.
std::string	d_sam_reader_name
	The SAM reader name.
std::shared_ptr< DESFireKey >	d_sam_key_unlock
	The SAM Key to see if it is the SAM we are waiting.
unsigned char	d_keyno_unlock
	The SAM Key to see if it is the SAM we are waiting.
bool	d_check_sam_reader_available
	Check associated SAM reader is available before use.
bool	d_auto_connect_sam_reader
	Auto-connect to SAM reader at reader connection.
bool	d_skipCSN
	Skip to get CSN.
Protected Attributes inherited from logicalaccess::ReaderUnitConfiguration
std::string	d_readerProviderType
	The associated reader provider type for the reader unit configuration.

Detailed Description

Configuration class for ACSACR1222L.

Constructor & Destructor Documentation

ACSACR1222LReaderUnitConfiguration()

ACSACR1222LReaderUnitConfiguration::ACSACR1222LReaderUnitConfiguration

(

)

Member Function Documentation

getPCSCType()

PCSCReaderUnitType ACSACR1222LReaderUnitConfiguration::getPCSCType ( ) const

overridevirtual

Get the PC/SC reader unit configuration type.

Returns

The PC/SC reader unit configuration type.

Reimplemented from logicalaccess::PCSCReaderUnitConfiguration.

getUserFeedbackReader()

const std::string & ACSACR1222LReaderUnitConfiguration::getUserFeedbackReader

(

)

const

resetConfiguration()

void ACSACR1222LReaderUnitConfiguration::resetConfiguration ( )

overridevirtual

Reset the configuration to default values.

Reimplemented from logicalaccess::PCSCReaderUnitConfiguration.

serialize()

void ACSACR1222LReaderUnitConfiguration::serialize ( boost::property_tree::ptree &  parentNode )

overridevirtual

Serialize the current object to XML.

Parameters

parentNode

The parent node.

Reimplemented from logicalaccess::PCSCReaderUnitConfiguration.

setUserFeedbackReader()

void ACSACR1222LReaderUnitConfiguration::setUserFeedbackReader

(

const std::string &

name

)

unSerialize()

void ACSACR1222LReaderUnitConfiguration::unSerialize ( boost::property_tree::ptree &  node )

overridevirtual

UnSerialize a XML node to the current object.

Parameters

node	The XML node.

Reimplemented from logicalaccess::PCSCReaderUnitConfiguration.

Member Data Documentation

user_feedback_reader_

std::string logicalaccess::ACSACR1222LReaderUnitConfiguration::user_feedback_reader_

private

Name of the ReaderUnit that we use as a "feedback" reader.

The idea is that the ACSACR1222L as 4 chip: while the main chip will interact with the card, we can connect to one of the 3 chips and use them to drive the LCD display or the LEDs.

---

The documentation for this class was generated from the following files:

• C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/pcsc/readers/acsacr1222lreaderunitconfiguration.hpp
• C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/pcsc/readers/acsacr1222lreaderunitconfiguration.cpp
