A Key base class. The key object is used to describe key chip information used for authentication on secured memory area or for restricted operation. More...

#include <key.hpp>

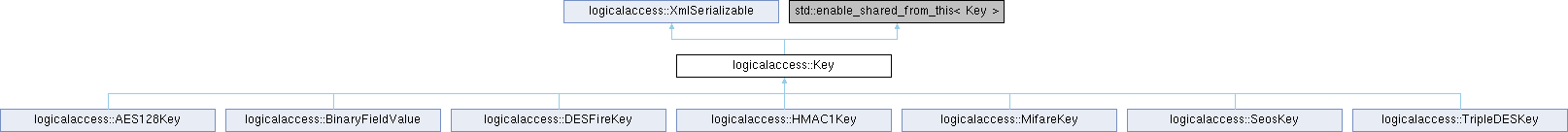

Inheritance diagram for logicalaccess::Key:

Public Member Functions
	Key ()
	Constructor.

virtual	~Key ()=default

virtual void	clear ()
	Set the key to its default (only 0's).

virtual size_t	getLength () const =0
	Get the key length.

virtual const unsigned char *	getData () const =0
	Get the key data.

virtual unsigned char *	getData ()=0
	Get the key data.

virtual void	setData (const unsigned char *data)
	Set the key data.

virtual void	setData (const ByteVector &data, size_t offset=0)
	Set the key data.

std::string	getString (bool withSpace=true) const
	Get the string representation of the key.

bool	isEmpty () const
	Get if key data are empty.

virtual bool	fromString (const std::string &str)
	Set the key from a string representation of it.

void	setKeyStorage (std::shared_ptr< KeyStorage > key_storage)
	Set the key storage used for this key.

std::shared_ptr< KeyStorage >	getKeyStorage () const
	Get the key storage used for this key.

void	serialize (boost::property_tree::ptree &node) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

virtual bool	operator== (const Key &key) const
	Equality operator.

virtual bool	operator!= (const Key &key) const
	Inequality operator.

void	setCipherKey (const std::string &key)
	Set the cipher key.

void	setStoreCipheredData (bool cipher)
	Set if the data is stored ciphered.

bool	getStoreCipheredData () const
	Get if the data is stored ciphered.

void	setKeyDiversification (std::shared_ptr< KeyDiversification > div)

std::shared_ptr< KeyDiversification >	getKeyDiversification () const

ByteVector	getBytes () const

Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.

virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Protected Attributes
bool	d_isEmpty
	Checked if key data are empty.

std::shared_ptr< KeyStorage >	d_key_storage
	The key storage used for this key.

std::shared_ptr< KeyDiversification >	d_key_diversification
	The key storage used for this key.

std::string	d_cipherKey
	The cipher key.

bool	d_storeCipheredData
	The data is stored ciphered or not.

Private Member Functions
void	cipherKeyData (boost::property_tree::ptree &node)
	Cipher a key if store ciphered data is true.

void	uncipherKeyData (boost::property_tree::ptree &node)
	Uncipher a key if store ciphered data is true.

Static Private Attributes
static const std::string	secureAiKey = "Obscurity is not security Julien would say. But..."
	The default 'secure' key for ciphering.

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.

static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.

Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)

Detailed Description

A Key base class. The key object is used to describe key chip information used for authentication on secured memory area or for restricted operation.

Constructor & Destructor Documentation

◆ Key()

logicalaccess::Key::Key ( )

Constructor.

◆ ~Key()

virtual logicalaccess::Key::~Key ( )

virtualdefault

Member Function Documentation

◆ cipherKeyData()

void logicalaccess::Key::cipherKeyData ( boost::property_tree::ptree & node )

private

Cipher a key if store ciphered data is true.

Parameters

xmlwriter The xml node.

◆ clear()

void logicalaccess::Key::clear ( )

virtual

Set the key to its default (only 0's).

Reimplemented in logicalaccess::MifareKey.

◆ fromString()

bool logicalaccess::Key::fromString ( const std::string & str )

virtual

Set the key from a string representation of it.

Parameters

str	The string representation.

Returns: true on success, false otherwise.

Warning: On failure, the content of the key is undefined.

◆ getBytes()

ByteVector logicalaccess::Key::getBytes ( ) const

Retrieve the bytes of the key.

◆ getData() [1/2]

virtual const unsigned char * logicalaccess::Key::getData ( ) const

pure virtual

Get the key data.

Returns: The key data.

Implemented in logicalaccess::AES128Key, logicalaccess::HMAC1Key, logicalaccess::TripleDESKey, logicalaccess::BinaryFieldValue, logicalaccess::DESFireKey, logicalaccess::MifareKey, and logicalaccess::SeosKey.

◆ getData() [2/2]

virtual unsigned char * logicalaccess::Key::getData ( )

pure virtual

Get the key data.

Returns: The key data.

Implemented in logicalaccess::AES128Key, logicalaccess::HMAC1Key, logicalaccess::TripleDESKey, logicalaccess::BinaryFieldValue, logicalaccess::DESFireKey, logicalaccess::MifareKey, and logicalaccess::SeosKey.

◆ getKeyDiversification()

std::shared_ptr< KeyDiversification > logicalaccess::Key::getKeyDiversification ( ) const

◆ getKeyStorage()

std::shared_ptr< KeyStorage > logicalaccess::Key::getKeyStorage ( ) const

Get the key storage used for this key.

Returns: The key storage.

◆ getLength()

virtual size_t logicalaccess::Key::getLength ( ) const

pure virtual

Get the key length.

Returns: The key length.

Implemented in logicalaccess::AES128Key, logicalaccess::HMAC1Key, logicalaccess::TripleDESKey, logicalaccess::BinaryFieldValue, logicalaccess::DESFireKey, logicalaccess::MifareKey, and logicalaccess::SeosKey.

◆ getStoreCipheredData()

bool logicalaccess::Key::getStoreCipheredData ( ) const

Get if the data is stored ciphered.

Returns: True if data is stored ciphered, false otherwise.

◆ getString()

std::string logicalaccess::Key::getString ( bool withSpace = true ) const

Get the string representation of the key.

Returns: The string representation of the key.

◆ isEmpty()

bool logicalaccess::Key::isEmpty ( ) const

inline

Get if key data are empty.

Returns: True if empty, false otherwise.

◆ operator!=()

bool logicalaccess::Key::operator!= ( const Key & key ) const

virtual

Inequality operator.

Parameters

key	Key to compare.

Returns: True if inequals, false otherwise.

◆ operator==()

bool logicalaccess::Key::operator== ( const Key & key ) const

virtual

Equality operator.

Parameters

key	Key to compare.

Returns: True if equals, false otherwise.

◆ serialize()

void logicalaccess::Key::serialize ( boost::property_tree::ptree & node )

overridevirtual

Serialize the current object to XML.

Parameters

npde	The XML node.

Returns: The XML string.

Implements logicalaccess::XmlSerializable.

Reimplemented in logicalaccess::BinaryFieldValue, logicalaccess::DESFireKey, logicalaccess::MifareKey, logicalaccess::SeosKey, logicalaccess::AES128Key, logicalaccess::TripleDESKey, logicalaccess::DESFireKey, logicalaccess::MifareKey, and logicalaccess::SeosKey.

◆ setCipherKey()

void logicalaccess::Key::setCipherKey ( const std::string & key )

Set the cipher key.

Parameters

key The key.

◆ setData() [1/2]

void logicalaccess::Key::setData	(	const ByteVector &	data,
		size_t	offset = `0`
	)

virtual

Set the key data.

Parameters

data	The key data.

◆ setData() [2/2]

void logicalaccess::Key::setData ( const unsigned char * data )

virtual

Set the key data.

Parameters

data	The key data.

◆ setKeyDiversification()

void logicalaccess::Key::setKeyDiversification ( std::shared_ptr< KeyDiversification > div )

◆ setKeyStorage()

void logicalaccess::Key::setKeyStorage ( std::shared_ptr< KeyStorage > key_storage )

Set the key storage used for this key.

Parameters

key_storage The key storage.

◆ setStoreCipheredData()

void logicalaccess::Key::setStoreCipheredData ( bool cipher )

Set if the data is stored ciphered.

Parameters

cipher The data is stored ciphered or not.

◆ uncipherKeyData()

void logicalaccess::Key::uncipherKeyData ( boost::property_tree::ptree & node )

private

Uncipher a key if store ciphered data is true.

Parameters

node	The node containing key data.

◆ unSerialize()

void logicalaccess::Key::unSerialize ( boost::property_tree::ptree & node )

overridevirtual

UnSerialize a XML node to the current object.

Parameters

node	The XML node.

Implements logicalaccess::XmlSerializable.

Reimplemented in logicalaccess::BinaryFieldValue, logicalaccess::DESFireKey, logicalaccess::MifareKey, logicalaccess::SeosKey, logicalaccess::AES128Key, logicalaccess::TripleDESKey, logicalaccess::DESFireKey, logicalaccess::MifareKey, and logicalaccess::SeosKey.

Member Data Documentation

◆ d_cipherKey

std::string logicalaccess::Key::d_cipherKey

protected

The cipher key.

◆ d_isEmpty

bool logicalaccess::Key::d_isEmpty

protected

Checked if key data are empty.

◆ d_key_diversification

std::shared_ptr<KeyDiversification> logicalaccess::Key::d_key_diversification

protected

The key storage used for this key.

◆ d_key_storage

std::shared_ptr<KeyStorage> logicalaccess::Key::d_key_storage

protected

The key storage used for this key.

◆ d_storeCipheredData

bool logicalaccess::Key::d_storeCipheredData

protected

The data is stored ciphered or not.

◆ secureAiKey

const std::string logicalaccess::Key::secureAiKey = "Obscurity is not security Julien would say. But..."

staticprivate

The default 'secure' key for ciphering.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/include/logicalaccess/key.hpp
C:/dev/lla/liblogicalaccess/src/cards/key.cpp
