A Mifare Key class. More...

#include <mifarekey.hpp>

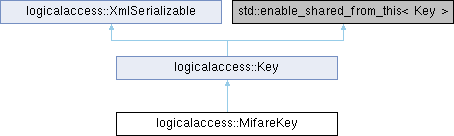

Inheritance diagram for logicalaccess::MifareKey:

Public Member Functions
	MifareKey ()
	Build an empty 6-bytes Mifare key.

	MifareKey (const std::string &str)
	Build a Mifare key given a string representation of it.

	MifareKey (const void *buf, size_t buflen)
	Build a Mifare key given a buffer.

void	clear () override
	Clear the key.

size_t	getLength () const override
	Get the key length.

const unsigned char *	getData () const override
	Get the key data.

unsigned char *	getData () override
	Get the key data.

void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

std::string	getDefaultXmlNodeName () const override
	Get the default Xml Node name for this object.

bool	operator== (MifareKey b)

bool	operator!= (MifareKey b)

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

Public Member Functions inherited from logicalaccess::Key
	Key ()
	Constructor.

virtual	~Key ()=default

virtual void	clear ()
	Set the key to its default (only 0's).

virtual size_t	getLength () const =0
	Get the key length.

virtual const unsigned char *	getData () const =0
	Get the key data.

virtual unsigned char *	getData ()=0
	Get the key data.

virtual void	setData (const unsigned char *data)
	Set the key data.

virtual void	setData (const ByteVector &data, size_t offset=0)
	Set the key data.

std::string	getString (bool withSpace=true) const
	Get the string representation of the key.

bool	isEmpty () const
	Get if key data are empty.

virtual bool	fromString (const std::string &str)
	Set the key from a string representation of it.

void	setKeyStorage (std::shared_ptr< KeyStorage > key_storage)
	Set the key storage used for this key.

std::shared_ptr< KeyStorage >	getKeyStorage () const
	Get the key storage used for this key.

void	serialize (boost::property_tree::ptree &node) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

virtual bool	operator== (const Key &key) const
	Equality operator.

virtual bool	operator!= (const Key &key) const
	Inequality operator.

void	setCipherKey (const std::string &key)
	Set the cipher key.

void	setStoreCipheredData (bool cipher)
	Set if the data is stored ciphered.

bool	getStoreCipheredData () const
	Get if the data is stored ciphered.

void	setKeyDiversification (std::shared_ptr< KeyDiversification > div)

std::shared_ptr< KeyDiversification >	getKeyDiversification () const

ByteVector	getBytes () const

Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.

virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Private Attributes
unsigned char	d_key [MIFARE_KEY_SIZE]
	The key bytes.

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.

static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.

Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)

Protected Attributes inherited from logicalaccess::Key
bool	d_isEmpty
	Checked if key data are empty.

std::shared_ptr< KeyStorage >	d_key_storage
	The key storage used for this key.

std::shared_ptr< KeyDiversification >	d_key_diversification
	The key storage used for this key.

std::string	d_cipherKey
	The cipher key.

bool	d_storeCipheredData
	The data is stored ciphered or not.

Detailed Description

A Mifare Key class.

Constructor & Destructor Documentation

◆ MifareKey() [1/3]

logicalaccess::MifareKey::MifareKey ( )

Build an empty 6-bytes Mifare key.

◆ MifareKey() [2/3]

logicalaccess::MifareKey::MifareKey ( const std::string & str )

explicit

Build a Mifare key given a string representation of it.

Parameters

str	The string representation.

◆ MifareKey() [3/3]

logicalaccess::MifareKey::MifareKey	(	const void *	buf,
		size_t	buflen
	)

Build a Mifare key given a buffer.

Parameters

buf	The buffer.
buflen	The buffer length.

Member Function Documentation

◆ clear()

void logicalaccess::MifareKey::clear ( )

overridevirtual

Clear the key.

Reimplemented from logicalaccess::Key.

◆ getData() [1/2]

const unsigned char * logicalaccess::MifareKey::getData ( ) const

inlineoverridevirtual

Get the key data.

Returns: The key data.

Implements logicalaccess::Key.

◆ getData() [2/2]

unsigned char * logicalaccess::MifareKey::getData ( )

inlineoverridevirtual

Get the key data.

Returns: The key data.

Implements logicalaccess::Key.

◆ getDefaultXmlNodeName()

std::string logicalaccess::MifareKey::getDefaultXmlNodeName ( ) const

overridevirtual

Get the default Xml Node name for this object.

Returns: The Xml node name.

Implements logicalaccess::XmlSerializable.

◆ getLength()

size_t logicalaccess::MifareKey::getLength ( ) const

inlineoverridevirtual

Get the key length.

Returns: The key length.

Implements logicalaccess::Key.

◆ operator!=()

bool logicalaccess::MifareKey::operator!= ( MifareKey b )

inline

◆ operator==()

bool logicalaccess::MifareKey::operator== ( MifareKey b )

inline

◆ serialize() [1/3]

std::string logicalaccess::XmlSerializable::serialize ( )

virtual

Serialize object to Xml Node string.

Returns: The serialized object.

Reimplemented from logicalaccess::XmlSerializable.

◆ serialize() [2/3]

void logicalaccess::MifareKey::serialize ( boost::property_tree::ptree & parentNode )

overridevirtual

Serialize the current object to XML.

Parameters

parentNode The parent node.

Reimplemented from logicalaccess::Key.

◆ serialize() [3/3]

virtual void logicalaccess::XmlSerializable::serialize ( boost::property_tree::ptree & parentNode )

virtual

Serialize object to Xml Node.

Parameters

os	The XML stream.

Reimplemented from logicalaccess::Key.

◆ unSerialize() [1/5]

void logicalaccess::MifareKey::unSerialize ( boost::property_tree::ptree & node )

overridevirtual

UnSerialize a XML node to the current object.

Parameters

node	The XML node.

Reimplemented from logicalaccess::Key.

◆ unSerialize() [2/5]

virtual void logicalaccess::XmlSerializable::unSerialize ( boost::property_tree::ptree & node )

virtual

UnSerialize object from a Xml Node.

Parameters

node	The Xml node.

Reimplemented from logicalaccess::Key.

◆ unSerialize() [3/5]

void logicalaccess::XmlSerializable::unSerialize	(	boost::property_tree::ptree &	node,
		const std::string &	rootNode
	)

virtual

UnSerialize object from a Xml node.

Parameters

node	The Xml node.
rootNode	The root node.

Returns: True on success, false otherwise.

Reimplemented from logicalaccess::XmlSerializable.

◆ unSerialize() [4/5]

void logicalaccess::XmlSerializable::unSerialize	(	const std::string &	xmlstring,
		const std::string &	rootNode
	)

virtual

UnSerialize object from a Xml Node string.

Parameters

xmlstring	The Xml Node string.
rootNode	The root node.

Returns: True on success, false otherwise.

Reimplemented from logicalaccess::XmlSerializable.

◆ unSerialize() [5/5]

void logicalaccess::XmlSerializable::unSerialize	(	std::istream &	is,
		const std::string &	rootNode
	)

virtual

UnSerialize object from a Xml node.

Parameters

is	The Xml stream.
rootNode	The root node.

Returns: True on success, false otherwise.

Reimplemented from logicalaccess::XmlSerializable.

Member Data Documentation

◆ d_key

unsigned char logicalaccess::MifareKey::d_key[MIFARE_KEY_SIZE]

private

The key bytes.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/mifare/mifarekey.hpp
C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/mifare/mifarekey.cpp
