logicalaccess::OmnikeyReaderUnit Class Reference

The Omnikey reader unit base class. More...

#include <omnikeyreaderunit.hpp>

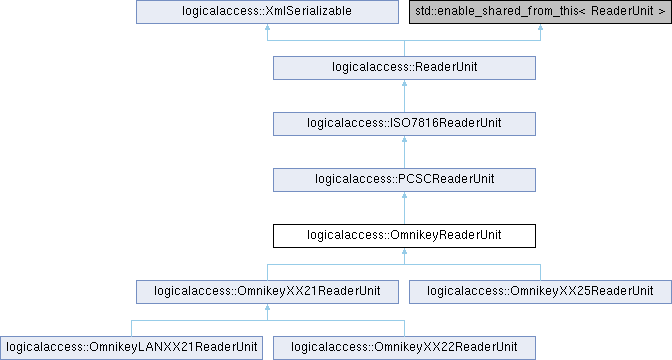

Inheritance diagram for logicalaccess::OmnikeyReaderUnit:
logicalaccess::PCSCReaderUnit logicalaccess::ISO7816ReaderUnit logicalaccess::ReaderUnit logicalaccess::XmlSerializable logicalaccess::OmnikeyXX21ReaderUnit logicalaccess::OmnikeyXX25ReaderUnit logicalaccess::OmnikeyLANXX21ReaderUnit logicalaccess::OmnikeyXX22ReaderUnit

Public Member Functions

 OmnikeyReaderUnit (const std::string &name)
 Constructor.

virtual ~OmnikeyReaderUnit ()
 Destructor.

std::string getInternalReaderSerialNumber ()
 Get a string hexadecimal representation of the reader serial number.

bool waitRemoval (unsigned int maxwait) override
 Wait for a card removal.

- Public Member Functions inherited from logicalaccess::PCSCReaderUnit
 PCSCReaderUnit (const std::string &name)
 Constructor.

virtual ~PCSCReaderUnit ()
 Destructor.

std::string getName () const override
 Get the reader unit name.

void setName (const std::string &name)
 Set the reader unit name.

std::string getConnectedName () override
 Get the connected reader unit name.

virtual PCSCReaderUnitType getPCSCType () const
 Get the PC/SC reader unit type.

void setCardType (std::string cardType) override
 Set the card type.

bool waitInsertion (unsigned int maxwait) override
 Wait for a card insertion.

bool waitRemoval (unsigned int maxwait) override
 Wait for a card removal.

bool connect () override
 Connect to the card.

virtual bool connect (PCSCShareMode share_mode)
 Connect to the card.

void disconnect () override
 Disconnect from the card.

bool isConnected () override
 Check if the handle is associated to a card (aka. "connected").

bool connectToReader () override
 Connect to the reader. Implicit connection on first command sent.

void disconnectFromReader () override
 Disconnect from reader.

const SCARDHANDLE & getHandle () const
 Get the low-level SCARDHANDLE.

unsigned long getActiveProtocol () const
 Get the active protocol for the connected card.

PCSCShareMode getShareMode () const
 Get the currently active share mode.

std::shared_ptr< Chip > createChip (std::string type) override
 Create the chip object from card type.

std::shared_ptr< Chip > getSingleChip () override
 Get the first and/or most accurate chip found.

std::vector< std::shared_ptr< Chip > > getChipList () override
 Get chip available in the RFID rang.

virtual ByteVector getCardSerialNumber ()
 Get the card serial number.

std::string getReaderSerialNumber () override
 Get a string hexadecimal representation of the reader serial number.

const ByteVector & getATR () const
 Get the card ATR.

virtual std::shared_ptr< PCSCReaderCardAdapter > getDefaultPCSCReaderCardAdapter ()
 Get the default PC/SC reader/card adapter.

virtual std::shared_ptr< ReaderCardAdapter > getReaderCardAdapter (std::string type)
 Get the PC/SC reader/card adapter for a card type.

void serialize (boost::property_tree::ptree &parentNode) override
 Serialize the current object to XML.

void unSerialize (boost::property_tree::ptree &node) override
 UnSerialize a XML node to the current object.

std::shared_ptr< ReaderUnitConfiguration > getConfiguration () override
 Get the reader unit configuration.

void setConfiguration (std::shared_ptr< ReaderUnitConfiguration > config) override
 Set the reader unit configuration.

virtual void changeReaderKey (std::shared_ptr< ReaderMemoryKeyStorage > keystorage, const ByteVector &key)
 Change a key in reader memory.

std::shared_ptr< PCSCReaderUnitConfiguration > getPCSCConfiguration ()
 Get the PC/SC reader unit configuration.

std::shared_ptr< PCSCReaderProvider > getPCSCReaderProvider () const

void makeProxy (std::shared_ptr< PCSCReaderUnit > readerUnit, std::shared_ptr< PCSCReaderUnitConfiguration > readerUnitConfig)
 Make the reader unit as a proxy to another. Use when listening on all PC/SC reader unit.

virtual void getT_CL_ISOType (bool &isTypeA, bool &isTypeB)
 Get if the inserted card is from ISO 14443-4 A or B.

virtual void cardConnected ()

std::shared_ptr< PCSCReaderUnit > getProxyReaderUnit () const

void setCardTechnologies (const TechnoBitset &bitset) override

TechnoBitset getCardTechnologies () override

std::shared_ptr< LCDDisplay > getLCDDisplay () override
 Get the LCD Display for this reader unit.

void setLCDDisplay (std::shared_ptr< LCDDisplay > d) override
 Get the LCD Display for this reader unit.

std::shared_ptr< LEDBuzzerDisplay > getLEDBuzzerDisplay () override
 Get the LED/Buzzer Display for this reader unit.

void setLEDBuzzerDisplay (std::shared_ptr< LEDBuzzerDisplay > lbd) override
 Get the LCD Display for this reader unit.

ReaderServicePtr getService (const ReaderServiceType &type) override

void beginTransaction ()

void endTransaction (DWORD dwDisposition=SCARD_LEAVE_CARD)

void reset (int action=0)
 Reconnect to the card.

void setup_pcsc_connection (PCSCShareMode share_mode)

void teardown_pcsc_connection ()

- Public Member Functions inherited from logicalaccess::ISO7816ReaderUnit
 ISO7816ReaderUnit (std::string rpt)

virtual ~ISO7816ReaderUnit ()

bool waitInsertion (unsigned int) override
 Wait for a card insertion.

bool waitRemoval (unsigned int) override
 Wait for a card removal.

bool isConnected () override
 Check if the card is connected.

void setCardType (std::string) override
 Set the forced card type.

std::shared_ptr< Chip > getSingleChip () override
 Get the first and/or most accurate chip found.

std::vector< std::shared_ptr< Chip > > getChipList () override
 Get chip available in the RFID rang.

bool connect () override
 Connect to the card.

void disconnect () override
 Disconnect from the card.

virtual void connectToSAM ()

bool connectToReader () override
 Connect to the reader. Implicit connection on first command sent.

virtual void disconnectFromSAM ()

void disconnectFromReader () override
 Disconnect from reader.

virtual void reloadReaderConfiguration ()

virtual void setContext (const std::string &context)
 Set the client context.

virtual std::string getContext ()
 Get the client context.

std::string getName () const override
 Get the reader unit name.

std::string getReaderSerialNumber () override
 Get a string hexadecimal representation of the reader serial number.

std::shared_ptr< CardProbe > createCardProbe () override

virtual std::shared_ptr< SAMChip > getSAMChip ()
 Get The SAM Chip.

virtual void setSAMChip (std::shared_ptr< SAMChip > t)
 Set the SAM Chip.

virtual std::shared_ptr< ISO7816ReaderUnit > getSAMReaderUnit ()
 Get The SAM ReaderUnit.

virtual void setSAMReaderUnit (std::shared_ptr< ISO7816ReaderUnit > t)
 Set the SAM ReaderUnit.

- Public Member Functions inherited from logicalaccess::ReaderUnit
 ReaderUnit (std::string rpt)
 Constructor.

virtual ~ReaderUnit ()
 Destructor.

std::string getRPType () const
 Get the reader provider type.

virtual ByteVector getPingCommand () const
 Get the reader ping command.

virtual bool waitInsertion (unsigned int maxwait)=0
 Wait for a card insertion.

virtual bool waitInsertion (const ByteVector &identifier, unsigned int maxwait)
 Wait for a specific card insertion.

virtual bool waitRemoval (unsigned int maxwait)=0
 Wait for a card removal.

virtual bool isConnected ()=0
 Check if the card is connected.

std::string getCardType () const
 Get the forced card type.

virtual void setCardType (std::string cardType)=0
 Set the forced card type.

virtual std::shared_ptr< Chip > createChip (std::string type)
 Create the chip object from card type.

virtual std::shared_ptr< Chip > createChip (std::string type, const ByteVector &identifier)
 Create the chip object from card type with identifier.

virtual ByteVector getNumber (std::shared_ptr< Chip > chip)
 Get the number from the embedded licensing configuration.

virtual std::shared_ptr< Chip > getSingleChip ()=0
 Get the first and/or most accurate chip found.

virtual std::vector< std::shared_ptr< Chip > > getChipList ()=0
 Get chip available in the RFID rang.

virtual ByteVector getNumber (std::shared_ptr< Chip > chip, std::shared_ptr< CardsFormatComposite > composite)
 Get the number from the reader format composite.

virtual bool connect ()=0
 Connect to the card.

virtual bool reconnect (int action=0)
 Reconnect to the card with the currently active share mode on the same reader.

virtual void disconnect ()=0
 Disconnect from the card.

virtual bool connectToReader ()=0
 Connect to the reader. Implicit connection on first command sent.

virtual void disconnectFromReader ()=0
 Disconnect from reader.

virtual std::string getName () const =0
 Get the reader unit name.

virtual std::string getConnectedName ()
 Get the connected reader unit name.

virtual std::shared_ptr< ReaderUnitConfiguration > getConfiguration ()
 Get the reader unit configuration.

virtual void setConfiguration (std::shared_ptr< ReaderUnitConfiguration > config)
 Set the reader unit configuration.

virtual std::shared_ptr< ReaderCardAdapter > getDefaultReaderCardAdapter ()
 Get the default reader/card adapter.

virtual void setDefaultReaderCardAdapter (std::shared_ptr< ReaderCardAdapter > defaultRca)
 Set the default reader/card adapter.

virtual std::shared_ptr< DataTransport > getDataTransport () const
 Get the data transport layer.

virtual void setDataTransport (std::shared_ptr< DataTransport > dataTransport)
 Set the data transport layer.

virtual std::string getReaderSerialNumber ()=0
 Get a string hexadecimal representation of the reader serial number.

std::string getDefaultXmlNodeName () const override
 Get the default Xml Node name for this object.

void serialize (boost::property_tree::ptree &node) override
 Serialize the current object to XML.

void unSerialize (boost::property_tree::ptree &node) override
 UnSerialize a XML node to the current object.

void unSerialize (boost::property_tree::ptree &node, const std::string &rootNode) override
 UnSerialize object from a Xml node.

std::shared_ptr< ReaderProvider > getReaderProvider () const
 Get the associated reader provider.

void setReaderProvider (std::weak_ptr< ReaderProvider > provider)
 Set the associated reader provider.

virtual std::shared_ptr< LCDDisplay > getLCDDisplay ()
 Get the LCD Display for this reader unit.

virtual void setLCDDisplay (std::shared_ptr< LCDDisplay > d)
 Get the LCD Display for this reader unit.

virtual std::shared_ptr< LEDBuzzerDisplay > getLEDBuzzerDisplay ()
 Get the LED/Buzzer Display for this reader unit.

virtual void setLEDBuzzerDisplay (std::shared_ptr< LEDBuzzerDisplay > lbd)
 Get the LCD Display for this reader unit.

virtual void setCardTechnologies (const TechnoBitset &bitset)

virtual TechnoBitset getCardTechnologies ()

virtual TechnoBitset getPossibleCardTechnologies ()

virtual ReaderServicePtr getService (const ReaderServiceType &type)

virtual std::string serialize ()
 Serialize object to Xml Node string.

virtual void serialize (boost::property_tree::ptree &parentNode)=0
 Serialize object to Xml Node.

virtual void unSerialize (boost::property_tree::ptree &node)=0
 UnSerialize object from a Xml Node.

virtual void unSerialize (const std::string &xmlstring, const std::string &rootNode)
 UnSerialize object from a Xml Node string.

virtual void unSerialize (std::istream &is, const std::string &rootNode)
 UnSerialize object from a Xml node.

virtual void unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
 UnSerialize object from a Xml node.

- Public Member Functions inherited from logicalaccess::XmlSerializable
virtual ~XmlSerializable ()=default

virtual std::string serialize ()
 Serialize object to Xml Node string.

virtual std::string serializeWithHeaders ()
 Serialize object to Xml Node string, with xml headers.

virtual void serialize (boost::property_tree::ptree &parentNode)=0
 Serialize object to Xml Node.

virtual void serializeToFile (const std::string &filename)
 Serialize object to a Xml file.

virtual void unSerialize (boost::property_tree::ptree &node)=0
 UnSerialize object from a Xml Node.

virtual void unSerialize (const std::string &xmlstring, const std::string &rootNode)
 UnSerialize object from a Xml Node string.

virtual void unSerialize (std::istream &is, const std::string &rootNode)
 UnSerialize object from a Xml node.

virtual void unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
 UnSerialize object from a Xml node.

virtual void unSerializeFromFile (const std::string &filename)
 UnSerialize object from a Xml file.

virtual std::string getDefaultXmlNodeName () const =0
 Get the default Xml Node name for this object.


Additional Inherited Members

- Static Public Member Functions inherited from logicalaccess::PCSCReaderUnit
static std::shared_ptr< PCSCReaderUnit > createPCSCReaderUnit (const std::string &readerName)

- Static Public Member Functions inherited from logicalaccess::ReaderUnit
static uint64_t getFormatedNumber (const ByteVector &number, int padding)
 Get the number as decimal a number.

static std::string getFormatedNumber (const ByteVector &number)
 Get a string hexadecimal representation of the number.

- Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string removeXmlDeclaration (const std::string &xmlstring)
 Remove Xml declaration from a xml string.

static ByteVector formatHexString (std::string hexstr)
 Format hex string to hex string with space.

- Protected Types inherited from logicalaccess::PCSCReaderUnit
using SPtrStringVector = std::vector< std::shared_ptr< std::string > >

using ReaderStateVector = std::vector< SCARD_READERSTATE >

- Protected Member Functions inherited from logicalaccess::PCSCReaderUnit
bool reconnect (int action=0) override
 Reconnect to the card with the currently active share mode on the same reader.

std::shared_ptr< Chip > adjustChip (std::shared_ptr< Chip > c)

std::shared_ptr< ResultChecker > createDefaultResultChecker () const override

std::shared_ptr< CardProbe > createCardProbe () override

void configure_mifareplus_chip (std::shared_ptr< Chip > c, std::shared_ptr< Commands > &commands, std::shared_ptr< ResultChecker > &resultChecker) const

void detect_mifareplus_security_level (std::shared_ptr< Chip > c)

void setSingleChip (std::shared_ptr< Chip > chip)
 Set the first and/or most accurate chip found.

std::shared_ptr< SAMChip > getSAMChip () override
 Get The SAM Chip.

void setSAMChip (std::shared_ptr< SAMChip > t) override
 Set the SAM Chip.

std::shared_ptr< ISO7816ReaderUnit > getSAMReaderUnit () override
 Get The SAM ReaderUnit.

void setSAMReaderUnit (std::shared_ptr< ISO7816ReaderUnit > t) override
 Set the SAM ReaderUnit.

std::tuple< SPtrStringVector, ReaderStateVector > prepare_poll_parameters ()

void waitInsertion_create_proxy (const std::string &reader_name)

virtual bool process_insertion (const std::string &cardType, unsigned int maxwait, const ElapsedTimeCounter &elapsed)

- Protected Member Functions inherited from logicalaccess::ISO7816ReaderUnit
std::shared_ptr< ResultChecker > createDefaultResultChecker () const override

std::shared_ptr< ISO7816ReaderProvider > getISO7816ReaderProvider () const
 Get the ISO7816 reader provider.

std::shared_ptr< ISO7816ReaderUnitConfiguration > getISO7816Configuration ()
 Get the ISO7816 reader unit configuration.

bool reconnect (int action) override
 Reconnect to the card with the currently active share mode on the same reader.

virtual std::shared_ptr< ResultChecker > createDefaultResultChecker () const

virtual std::shared_ptr< CardProbe > createCardProbe ()

- Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long atoull (const std::string &str)

- Protected Attributes inherited from logicalaccess::PCSCReaderUnit
std::string d_name
 The reader unit name.

std::string d_connectedName
 The reader unit connected name.

std::unique_ptr< PCSCConnection > connection_

ByteVector atr_

std::shared_ptr< PCSCReaderUnit > d_proxyReaderUnit
 The proxy reader unit.

- Protected Attributes inherited from logicalaccess::ISO7816ReaderUnit
std::shared_ptr< SAMChip > d_sam_chip
 The SAM chip.

std::shared_ptr< ISO7816ReaderUnit > d_sam_readerunit
 The SAM ReaderUnit used SAM Authentication.

std::string d_client_context
 The client context.

std::string d_sam_client_context
 The sam client context.

- Protected Attributes inherited from logicalaccess::ReaderUnit
std::string d_readerProviderType
 The associated reader provider type for the reader unit configuration.

std::string d_card_type
 The forced card type.

std::weak_ptr< ReaderProvider > d_readerProvider
 The associated reader provider for the reader unit.

std::shared_ptr< ReaderUnitConfiguration > d_readerUnitConfig
 The reader unit configuration.

std::shared_ptr< Chip > d_insertedChip
 The inserted chip.

std::shared_ptr< LCDDisplay > d_lcdDisplay
 The inserted chip.

std::shared_ptr< LEDBuzzerDisplay > d_ledBuzzerDisplay
 The inserted chip.


Detailed Description

The Omnikey reader unit base class.

Constructor & Destructor Documentation

◆ OmnikeyReaderUnit()

logicalaccess::OmnikeyReaderUnit::OmnikeyReaderUnit ( const std::string &  name)
explicit

Constructor.

◆ ~OmnikeyReaderUnit()

logicalaccess::OmnikeyReaderUnit::~OmnikeyReaderUnit ( )
virtual

Destructor.

Member Function Documentation

◆ getInternalReaderSerialNumber()

std::string logicalaccess::OmnikeyReaderUnit::getInternalReaderSerialNumber ( )

Get a string hexadecimal representation of the reader serial number.

Returns
The reader serial number or an empty string on error.

◆ waitRemoval()

bool logicalaccess::OmnikeyReaderUnit::waitRemoval ( unsigned int  maxwait)
overridevirtual

Wait for a card removal.

Parameters
maxwaitThe maximum time to wait for, in milliseconds. If maxwait is zero, then the call never times out.
Returns
True if a card was removed, false otherwise. If a card was removed, the name of the reader on which the removal was detected is accessible with getReader().

Reimplemented from logicalaccess::PCSCReaderUnit.

Reimplemented in logicalaccess::OmnikeyXX21ReaderUnit.

The documentation for this class was generated from the following files:
Generated on Wed Mar 29 2023 13:50:47 for LibLogicalAccess by   doxygen 1.9.6
