logicalaccess::ReaderMemoryKeyStorage Class Reference

A reader memory key storage class. More...

#include <readermemorykeystorage.hpp>

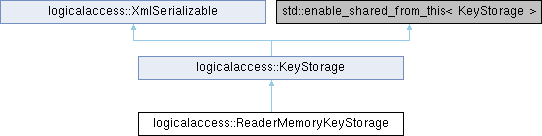

Inheritance diagram for logicalaccess::ReaderMemoryKeyStorage:

Public Member Functions
	ReaderMemoryKeyStorage ()
	Constructor.
virtual	~ReaderMemoryKeyStorage ()=default
KeyStorageType	getType () const override
	Get the key storage type.
void	setKeySlot (unsigned char key_slot)
	Set the key slot.
unsigned char	getKeySlot () const
	Get the key slot.
void	setVolatile (bool vol)
	Set if the key is stored volatile.
bool	getVolatile () const
	Set if the key is stored volatile.
void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.
void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.
std::string	getDefaultXmlNodeName () const override
	Get the default Xml Node name for this object.
Public Member Functions inherited from logicalaccess::KeyStorage
virtual	~KeyStorage ()=default
virtual KeyStorageType	getType () const =0
	Get the key storage type.
void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize object to Xml Node.
void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize object from a Xml Node.
std::string	getMetadata (const std::string &key)
bool	hasMetadata (const std::string &key) const
void	addMetadata (const std::string &key, const std::string &value)
virtual std::string	serialize ()
	Serialize object to Xml Node string.
virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.
virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.
virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.
virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.
virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.
Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default
virtual std::string	serialize ()
	Serialize object to Xml Node string.
virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.
virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.
virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.
virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.
virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.
virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.
virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.
virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.
virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Protected Attributes
unsigned char	d_key_slot
	The key slot.
bool	d_volatile
	True if the key is stored volatile, false otherwise.
Protected Attributes inherited from logicalaccess::KeyStorage
std::map< std::string, std::string >	metadata_

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::KeyStorage
static std::shared_ptr< KeyStorage >	getKeyStorageFromType (KeyStorageType kst)
	Get the key storage instance from a key storage type.
Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.
static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.
Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)

Detailed Description

A reader memory key storage class.

Constructor & Destructor Documentation

ReaderMemoryKeyStorage()

logicalaccess::ReaderMemoryKeyStorage::ReaderMemoryKeyStorage

(

)

Constructor.

~ReaderMemoryKeyStorage()

virtual logicalaccess::ReaderMemoryKeyStorage::~ReaderMemoryKeyStorage ( )

virtualdefault

Member Function Documentation

getDefaultXmlNodeName()

std::string logicalaccess::ReaderMemoryKeyStorage::getDefaultXmlNodeName ( ) const

overridevirtual

Get the default Xml Node name for this object.

Returns

The Xml node name.

Implements logicalaccess::XmlSerializable.

getKeySlot()

unsigned char logicalaccess::ReaderMemoryKeyStorage::getKeySlot

(

)

const

Get the key slot.

Returns

The key slot.

getType()

KeyStorageType logicalaccess::ReaderMemoryKeyStorage::getType ( ) const

overridevirtual

Get the key storage type.

Returns

The key storage type.

Implements logicalaccess::KeyStorage.

getVolatile()

bool logicalaccess::ReaderMemoryKeyStorage::getVolatile

(

)

const

Set if the key is stored volatile.

Returns

True if the key is stored volatile, false otherwise.

serialize()

void logicalaccess::ReaderMemoryKeyStorage::serialize ( boost::property_tree::ptree &  parentNode )

overridevirtual

Serialize the current object to XML.

Parameters

parentNode

The parent node.

Returns

The XML string.

Reimplemented from logicalaccess::KeyStorage.

setKeySlot()

void logicalaccess::ReaderMemoryKeyStorage::setKeySlot

(

unsigned char

key_slot

)

Set the key slot.

Parameters

key_slot

The key slot.

setVolatile()

void logicalaccess::ReaderMemoryKeyStorage::setVolatile

(

bool

vol

)

Set if the key is stored volatile.

Parameters

vol	True if the key is stored volatile, false otherwise.

unSerialize()

void logicalaccess::ReaderMemoryKeyStorage::unSerialize ( boost::property_tree::ptree &  node )

overridevirtual

UnSerialize a XML node to the current object.

Parameters

node	The XML node.

Reimplemented from logicalaccess::KeyStorage.

Member Data Documentation

d_key_slot

unsigned char logicalaccess::ReaderMemoryKeyStorage::d_key_slot

protected

The key slot.

d_volatile

bool logicalaccess::ReaderMemoryKeyStorage::d_volatile

protected

True if the key is stored volatile, false otherwise.

---

The documentation for this class was generated from the following files:

• C:/dev/lla/liblogicalaccess/include/logicalaccess/cards/readermemorykeystorage.hpp
• C:/dev/lla/liblogicalaccess/src/cards/readermemorykeystorage.cpp
