The Omnikey XX25 reader unit class. More...

#include <omnikeyxx25readerunit.hpp>

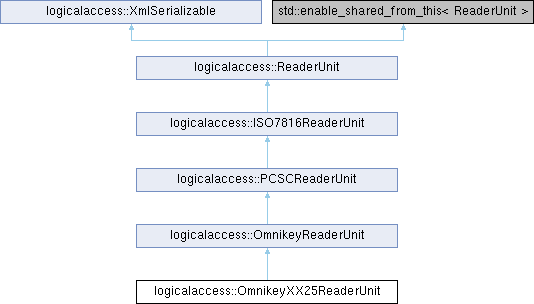

Inheritance diagram for logicalaccess::OmnikeyXX25ReaderUnit:

Public Member Functions
	OmnikeyXX25ReaderUnit (const std::string &name)
	Constructor.

virtual	~OmnikeyXX25ReaderUnit ()
	Destructor.

PCSCReaderUnitType	getPCSCType () const override
	Get the PC/SC reader unit type.

ByteVector	getCardSerialNumber () override
	Get the card serial number.

std::shared_ptr< Chip >	createChip (std::string type) override
	Create the chip object from card type.

Public Member Functions inherited from logicalaccess::OmnikeyReaderUnit
	OmnikeyReaderUnit (const std::string &name)
	Constructor.

virtual	~OmnikeyReaderUnit ()
	Destructor.

std::string	getInternalReaderSerialNumber ()
	Get a string hexadecimal representation of the reader serial number.

bool	waitRemoval (unsigned int maxwait) override
	Wait for a card removal.

Public Member Functions inherited from logicalaccess::PCSCReaderUnit
	PCSCReaderUnit (const std::string &name)
	Constructor.

virtual	~PCSCReaderUnit ()
	Destructor.

std::string	getName () const override
	Get the reader unit name.

void	setName (const std::string &name)
	Set the reader unit name.

std::string	getConnectedName () override
	Get the connected reader unit name.

virtual PCSCReaderUnitType	getPCSCType () const
	Get the PC/SC reader unit type.

void	setCardType (std::string cardType) override
	Set the card type.

bool	waitInsertion (unsigned int maxwait) override
	Wait for a card insertion.

bool	waitRemoval (unsigned int maxwait) override
	Wait for a card removal.

bool	connect () override
	Connect to the card.

virtual bool	connect (PCSCShareMode share_mode)
	Connect to the card.

void	disconnect () override
	Disconnect from the card.

bool	isConnected () override
	Check if the handle is associated to a card (aka. "connected").

bool	connectToReader () override
	Connect to the reader. Implicit connection on first command sent.

void	disconnectFromReader () override
	Disconnect from reader.

const SCARDHANDLE &	getHandle () const
	Get the low-level SCARDHANDLE.

unsigned long	getActiveProtocol () const
	Get the active protocol for the connected card.

PCSCShareMode	getShareMode () const
	Get the currently active share mode.

std::shared_ptr< Chip >	createChip (std::string type) override
	Create the chip object from card type.

std::shared_ptr< Chip >	getSingleChip () override
	Get the first and/or most accurate chip found.

std::vector< std::shared_ptr< Chip > >	getChipList () override
	Get chip available in the RFID rang.

virtual ByteVector	getCardSerialNumber ()
	Get the card serial number.

std::string	getReaderSerialNumber () override
	Get a string hexadecimal representation of the reader serial number.

const ByteVector &	getATR () const
	Get the card ATR.

virtual std::shared_ptr< PCSCReaderCardAdapter >	getDefaultPCSCReaderCardAdapter ()
	Get the default PC/SC reader/card adapter.

virtual std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter (std::string type)
	Get the PC/SC reader/card adapter for a card type.

void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

std::shared_ptr< ReaderUnitConfiguration >	getConfiguration () override
	Get the reader unit configuration.

void	setConfiguration (std::shared_ptr< ReaderUnitConfiguration > config) override
	Set the reader unit configuration.

virtual void	changeReaderKey (std::shared_ptr< ReaderMemoryKeyStorage > keystorage, const ByteVector &key)
	Change a key in reader memory.

std::shared_ptr< PCSCReaderUnitConfiguration >	getPCSCConfiguration ()
	Get the PC/SC reader unit configuration.

std::shared_ptr< PCSCReaderProvider >	getPCSCReaderProvider () const

void	makeProxy (std::shared_ptr< PCSCReaderUnit > readerUnit, std::shared_ptr< PCSCReaderUnitConfiguration > readerUnitConfig)
	Make the reader unit as a proxy to another. Use when listening on all PC/SC reader unit.

virtual void	getT_CL_ISOType (bool &isTypeA, bool &isTypeB)
	Get if the inserted card is from ISO 14443-4 A or B.

virtual void	cardConnected ()

std::shared_ptr< PCSCReaderUnit >	getProxyReaderUnit () const

void	setCardTechnologies (const TechnoBitset &bitset) override

TechnoBitset	getCardTechnologies () override

std::shared_ptr< LCDDisplay >	getLCDDisplay () override
	Get the LCD Display for this reader unit.

void	setLCDDisplay (std::shared_ptr< LCDDisplay > d) override
	Get the LCD Display for this reader unit.

std::shared_ptr< LEDBuzzerDisplay >	getLEDBuzzerDisplay () override
	Get the LED/Buzzer Display for this reader unit.

void	setLEDBuzzerDisplay (std::shared_ptr< LEDBuzzerDisplay > lbd) override
	Get the LCD Display for this reader unit.

ReaderServicePtr	getService (const ReaderServiceType &type) override

void	beginTransaction ()

void	endTransaction (DWORD dwDisposition=SCARD_LEAVE_CARD)

void	reset (int action=0)
	Reconnect to the card.

void	setup_pcsc_connection (PCSCShareMode share_mode)

void	teardown_pcsc_connection ()

Public Member Functions inherited from logicalaccess::ISO7816ReaderUnit
	ISO7816ReaderUnit (std::string rpt)

virtual	~ISO7816ReaderUnit ()

bool	waitInsertion (unsigned int) override
	Wait for a card insertion.

bool	waitRemoval (unsigned int) override
	Wait for a card removal.

bool	isConnected () override
	Check if the card is connected.

void	setCardType (std::string) override
	Set the forced card type.

std::shared_ptr< Chip >	getSingleChip () override
	Get the first and/or most accurate chip found.

std::vector< std::shared_ptr< Chip > >	getChipList () override
	Get chip available in the RFID rang.

bool	connect () override
	Connect to the card.

void	disconnect () override
	Disconnect from the card.

virtual void	connectToSAM ()

bool	connectToReader () override
	Connect to the reader. Implicit connection on first command sent.

virtual void	disconnectFromSAM ()

void	disconnectFromReader () override
	Disconnect from reader.

virtual void	reloadReaderConfiguration ()

virtual void	setContext (const std::string &context)
	Set the client context.

virtual std::string	getContext ()
	Get the client context.

std::string	getName () const override
	Get the reader unit name.

std::string	getReaderSerialNumber () override
	Get a string hexadecimal representation of the reader serial number.

std::shared_ptr< CardProbe >	createCardProbe () override

virtual std::shared_ptr< SAMChip >	getSAMChip ()
	Get The SAM Chip.

virtual void	setSAMChip (std::shared_ptr< SAMChip > t)
	Set the SAM Chip.

virtual std::shared_ptr< ISO7816ReaderUnit >	getSAMReaderUnit ()
	Get The SAM ReaderUnit.

virtual void	setSAMReaderUnit (std::shared_ptr< ISO7816ReaderUnit > t)
	Set the SAM ReaderUnit.

Public Member Functions inherited from logicalaccess::ReaderUnit
	ReaderUnit (std::string rpt)
	Constructor.

virtual	~ReaderUnit ()
	Destructor.

std::string	getRPType () const
	Get the reader provider type.

virtual ByteVector	getPingCommand () const
	Get the reader ping command.

virtual bool	waitInsertion (unsigned int maxwait)=0
	Wait for a card insertion.

virtual bool	waitInsertion (const ByteVector &identifier, unsigned int maxwait)
	Wait for a specific card insertion.

virtual bool	waitRemoval (unsigned int maxwait)=0
	Wait for a card removal.

virtual bool	isConnected ()=0
	Check if the card is connected.

std::string	getCardType () const
	Get the forced card type.

virtual void	setCardType (std::string cardType)=0
	Set the forced card type.

virtual std::shared_ptr< Chip >	createChip (std::string type)
	Create the chip object from card type.

virtual std::shared_ptr< Chip >	createChip (std::string type, const ByteVector &identifier)
	Create the chip object from card type with identifier.

virtual ByteVector	getNumber (std::shared_ptr< Chip > chip)
	Get the number from the embedded licensing configuration.

virtual std::shared_ptr< Chip >	getSingleChip ()=0
	Get the first and/or most accurate chip found.

virtual std::vector< std::shared_ptr< Chip > >	getChipList ()=0
	Get chip available in the RFID rang.

virtual ByteVector	getNumber (std::shared_ptr< Chip > chip, std::shared_ptr< CardsFormatComposite > composite)
	Get the number from the reader format composite.

virtual bool	connect ()=0
	Connect to the card.

virtual bool	reconnect (int action=0)
	Reconnect to the card with the currently active share mode on the same reader.

virtual void	disconnect ()=0
	Disconnect from the card.

virtual bool	connectToReader ()=0
	Connect to the reader. Implicit connection on first command sent.

virtual void	disconnectFromReader ()=0
	Disconnect from reader.

virtual std::string	getName () const =0
	Get the reader unit name.

virtual std::string	getConnectedName ()
	Get the connected reader unit name.

virtual std::shared_ptr< ReaderUnitConfiguration >	getConfiguration ()
	Get the reader unit configuration.

virtual void	setConfiguration (std::shared_ptr< ReaderUnitConfiguration > config)
	Set the reader unit configuration.

virtual std::shared_ptr< ReaderCardAdapter >	getDefaultReaderCardAdapter ()
	Get the default reader/card adapter.

virtual void	setDefaultReaderCardAdapter (std::shared_ptr< ReaderCardAdapter > defaultRca)
	Set the default reader/card adapter.

virtual std::shared_ptr< DataTransport >	getDataTransport () const
	Get the data transport layer.

virtual void	setDataTransport (std::shared_ptr< DataTransport > dataTransport)
	Set the data transport layer.

virtual std::string	getReaderSerialNumber ()=0
	Get a string hexadecimal representation of the reader serial number.

std::string	getDefaultXmlNodeName () const override
	Get the default Xml Node name for this object.

void	serialize (boost::property_tree::ptree &node) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode) override
	UnSerialize object from a Xml node.

std::shared_ptr< ReaderProvider >	getReaderProvider () const
	Get the associated reader provider.

void	setReaderProvider (std::weak_ptr< ReaderProvider > provider)
	Set the associated reader provider.

virtual std::shared_ptr< LCDDisplay >	getLCDDisplay ()
	Get the LCD Display for this reader unit.

virtual void	setLCDDisplay (std::shared_ptr< LCDDisplay > d)
	Get the LCD Display for this reader unit.

virtual std::shared_ptr< LEDBuzzerDisplay >	getLEDBuzzerDisplay ()
	Get the LED/Buzzer Display for this reader unit.

virtual void	setLEDBuzzerDisplay (std::shared_ptr< LEDBuzzerDisplay > lbd)
	Get the LCD Display for this reader unit.

virtual void	setCardTechnologies (const TechnoBitset &bitset)

virtual TechnoBitset	getCardTechnologies ()

virtual TechnoBitset	getPossibleCardTechnologies ()

virtual ReaderServicePtr	getService (const ReaderServiceType &type)

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.

virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::PCSCReaderUnit
static std::shared_ptr< PCSCReaderUnit >	createPCSCReaderUnit (const std::string &readerName)

Static Public Member Functions inherited from logicalaccess::ReaderUnit
static uint64_t	getFormatedNumber (const ByteVector &number, int padding)
	Get the number as decimal a number.

static std::string	getFormatedNumber (const ByteVector &number)
	Get a string hexadecimal representation of the number.

Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.

static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.

Protected Types inherited from logicalaccess::PCSCReaderUnit
using	SPtrStringVector = std::vector< std::shared_ptr< std::string > >

using	ReaderStateVector = std::vector< SCARD_READERSTATE >

Protected Member Functions inherited from logicalaccess::PCSCReaderUnit
bool	reconnect (int action=0) override
	Reconnect to the card with the currently active share mode on the same reader.

std::shared_ptr< Chip >	adjustChip (std::shared_ptr< Chip > c)

std::shared_ptr< ResultChecker >	createDefaultResultChecker () const override

std::shared_ptr< CardProbe >	createCardProbe () override

void	configure_mifareplus_chip (std::shared_ptr< Chip > c, std::shared_ptr< Commands > &commands, std::shared_ptr< ResultChecker > &resultChecker) const

void	detect_mifareplus_security_level (std::shared_ptr< Chip > c)

void	setSingleChip (std::shared_ptr< Chip > chip)
	Set the first and/or most accurate chip found.

std::shared_ptr< SAMChip >	getSAMChip () override
	Get The SAM Chip.

void	setSAMChip (std::shared_ptr< SAMChip > t) override
	Set the SAM Chip.

std::shared_ptr< ISO7816ReaderUnit >	getSAMReaderUnit () override
	Get The SAM ReaderUnit.

void	setSAMReaderUnit (std::shared_ptr< ISO7816ReaderUnit > t) override
	Set the SAM ReaderUnit.

std::tuple< SPtrStringVector, ReaderStateVector >	prepare_poll_parameters ()

void	waitInsertion_create_proxy (const std::string &reader_name)

virtual bool	process_insertion (const std::string &cardType, unsigned int maxwait, const ElapsedTimeCounter &elapsed)

Protected Member Functions inherited from logicalaccess::ISO7816ReaderUnit
std::shared_ptr< ResultChecker >	createDefaultResultChecker () const override

std::shared_ptr< ISO7816ReaderProvider >	getISO7816ReaderProvider () const
	Get the ISO7816 reader provider.

std::shared_ptr< ISO7816ReaderUnitConfiguration >	getISO7816Configuration ()
	Get the ISO7816 reader unit configuration.

bool	reconnect (int action) override
	Reconnect to the card with the currently active share mode on the same reader.

virtual std::shared_ptr< ResultChecker >	createDefaultResultChecker () const

virtual std::shared_ptr< CardProbe >	createCardProbe ()

Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)

Protected Attributes inherited from logicalaccess::PCSCReaderUnit
std::string	d_name
	The reader unit name.

std::string	d_connectedName
	The reader unit connected name.

std::unique_ptr< PCSCConnection >	connection_

ByteVector	atr_

std::shared_ptr< PCSCReaderUnit >	d_proxyReaderUnit
	The proxy reader unit.

Protected Attributes inherited from logicalaccess::ISO7816ReaderUnit
std::shared_ptr< SAMChip >	d_sam_chip
	The SAM chip.

std::shared_ptr< ISO7816ReaderUnit >	d_sam_readerunit
	The SAM ReaderUnit used SAM Authentication.

std::string	d_client_context
	The client context.

std::string	d_sam_client_context
	The sam client context.

Protected Attributes inherited from logicalaccess::ReaderUnit
std::string	d_readerProviderType
	The associated reader provider type for the reader unit configuration.

std::string	d_card_type
	The forced card type.

std::weak_ptr< ReaderProvider >	d_readerProvider
	The associated reader provider for the reader unit.

std::shared_ptr< ReaderUnitConfiguration >	d_readerUnitConfig
	The reader unit configuration.

std::shared_ptr< Chip >	d_insertedChip
	The inserted chip.

std::shared_ptr< LCDDisplay >	d_lcdDisplay
	The inserted chip.

std::shared_ptr< LEDBuzzerDisplay >	d_ledBuzzerDisplay
	The inserted chip.

Detailed Description

The Omnikey XX25 reader unit class.

Constructor & Destructor Documentation

◆ OmnikeyXX25ReaderUnit()

logicalaccess::OmnikeyXX25ReaderUnit::OmnikeyXX25ReaderUnit ( const std::string & name )

explicit

Constructor.

◆ ~OmnikeyXX25ReaderUnit()

logicalaccess::OmnikeyXX25ReaderUnit::~OmnikeyXX25ReaderUnit ( )

virtual

Destructor.

Member Function Documentation

◆ createChip()

std::shared_ptr< Chip > logicalaccess::OmnikeyXX25ReaderUnit::createChip ( std::string type )

overridevirtual

Create the chip object from card type.

Parameters

type	The card type.

Returns: The chip.

Reimplemented from logicalaccess::PCSCReaderUnit.

◆ getCardSerialNumber()

ByteVector logicalaccess::OmnikeyXX25ReaderUnit::getCardSerialNumber ( )

overridevirtual

Get the card serial number.

Returns: The card serial number.

If the card handle is not connected to the card, the call fails.

Reimplemented from logicalaccess::PCSCReaderUnit.

◆ getPCSCType()

PCSCReaderUnitType logicalaccess::OmnikeyXX25ReaderUnit::getPCSCType ( ) const

overridevirtual

Get the PC/SC reader unit type.

Returns: The PC/SC reader unit type.

Reimplemented from logicalaccess::PCSCReaderUnit.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/pcsc/readers/omnikeyxx25readerunit.hpp
C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/pcsc/readers/omnikeyxx25readerunit.cpp

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ OmnikeyXX25ReaderUnit()

◆ ~OmnikeyXX25ReaderUnit()

Member Function Documentation

◆ createChip()

◆ getCardSerialNumber()

◆ getPCSCType()
