#include <mifareplus_acsacr1222l_sl1.hpp>

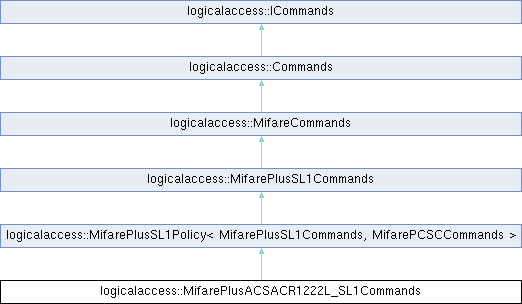

Inheritance diagram for logicalaccess::MifarePlusACSACR1222L_SL1Commands:

Classes
class	GenericSessionGuard

Public Member Functions
bool	AESAuthenticate (std::shared_ptr< AES128Key > ptr, uint16_t keyslot) override

Public Member Functions inherited from logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >
	MifarePlusSL1Policy ()

void	fixup ()

bool	AESAuthenticateSL1 (std::shared_ptr< AES128Key > key) override

void	authenticate (unsigned char blockno, unsigned char keyno, MifareKeyType keytype) override
	Authenticate a block, given a key number.

ByteVector	readBinary (unsigned char blockno, size_t len) override
	Read bytes from the card.

void	updateBinary (unsigned char blockno, const ByteVector &buf) override
	Write bytes to the card.

bool	loadKey (unsigned char keyno, MifareKeyType keytype, std::shared_ptr< MifareKey > key, bool vol) override
	Load a key to the reader.

void	loadKey (std::shared_ptr< Location > location, MifareKeyType keytype, std::shared_ptr< MifareKey > key) override
	Load a key on a given location.

void	authenticate (unsigned char blockno, std::shared_ptr< KeyStorage > key_storage, MifareKeyType keytype) override
	Authenticate a block, given a key number.

void	increment (uint8_t blockno, uint32_t value) override

void	decrement (uint8_t blockno, uint32_t value) override

Public Member Functions inherited from logicalaccess::MifarePlusSL1Commands
	MifarePlusSL1Commands ()

	MifarePlusSL1Commands (std::string ct)

virtual bool	AESAuthenticate (std::shared_ptr< AES128Key > key, uint16_t keyslot)

virtual bool	AESAuthenticateSL1 (std::shared_ptr< AES128Key > key)

virtual bool	switchLevel2 (std::shared_ptr< AES128Key > key)

virtual bool	switchLevel3 (std::shared_ptr< AES128Key > key)

ByteVector	readBinary (unsigned char blockno, size_t len) override
	Read bytes from the card.

void	updateBinary (unsigned char blockno, const ByteVector &buf) override
	Write bytes to the card.

bool	loadKey (unsigned char keyno, MifareKeyType keytype, std::shared_ptr< MifareKey > key, bool vol) override
	Load a key to the reader.

void	loadKey (std::shared_ptr< Location > location, MifareKeyType keytype, std::shared_ptr< MifareKey > key) override
	Load a key on a given location.

void	authenticate (unsigned char blockno, unsigned char keyno, MifareKeyType keytype) override
	Authenticate a block, given a key number.

void	authenticate (unsigned char blockno, std::shared_ptr< KeyStorage > key_storage, MifareKeyType keytype) override
	Authenticate a block, given a key number.

void	increment (uint8_t blockno, uint32_t value) override

void	decrement (uint8_t blockno, uint32_t value) override

Public Member Functions inherited from logicalaccess::MifareCommands
	MifareCommands ()

	MifareCommands (std::string ct)

virtual ByteVector	readSector (int sector, int start_block, std::shared_ptr< MifareKey > keyA, std::shared_ptr< MifareKey > keyB, const MifareAccessInfo::SectorAccessBits &sab, bool readtrailer=false) final

virtual void	writeSector (int sector, int start_block, const ByteVector &buf, std::shared_ptr< MifareKey > keyA, std::shared_ptr< MifareKey > keyB, const MifareAccessInfo::SectorAccessBits &sab, unsigned char userbyte=0x00, MifareAccessInfo::SectorAccessBits *newsab=nullptr, std::shared_ptr< MifareKey > newkeyA=std::shared_ptr< MifareKey >(), std::shared_ptr< MifareKey > newkeyB=std::shared_ptr< MifareKey >()) final

virtual ByteVector	readSectors (int start_sector, int stop_sector, int start_block, std::shared_ptr< MifareKey > keyA, std::shared_ptr< MifareKey > keyB, const MifareAccessInfo::SectorAccessBits &sab) final

virtual void	writeSectors (int start_sector, int stop_sector, int start_block, const ByteVector &buf, std::shared_ptr< MifareKey > keyA, std::shared_ptr< MifareKey > keyB, const MifareAccessInfo::SectorAccessBits &sab, unsigned char userbyte=0x00, MifareAccessInfo::SectorAccessBits *newsab=nullptr, std::shared_ptr< MifareKey > newkeyA=std::shared_ptr< MifareKey >(), std::shared_ptr< MifareKey > newkeyB=std::shared_ptr< MifareKey >()) final

unsigned int	getSectorFromMAD (long aid, std::shared_ptr< MifareKey > madKeyA)
	Get the sector referenced by the AID from the MAD.

void	setSectorToMAD (long aid, unsigned int sector, std::shared_ptr< MifareKey > madKeyA, std::shared_ptr< MifareKey > madKeyB)
	Set the sector referenced by the AID to the MAD.

void	authenticate (std::shared_ptr< Location > location, std::shared_ptr< AccessInfo > ai, bool write=false)
	Authenticate on a given location.

void	changeKeys (MifareKeyType keytype, std::shared_ptr< MifareKey > key, std::shared_ptr< MifareKey > newkeyA, std::shared_ptr< MifareKey > newkeyB, unsigned int sector, MifareAccessInfo::SectorAccessBits *newsab, unsigned char userbyte=0x00)

void	changeKeys (std::shared_ptr< MifareKey > newkeyA, std::shared_ptr< MifareKey > newkeyB, unsigned int sector, MifareAccessInfo::SectorAccessBits *newsab, unsigned char userbyte=0x00)

void	authenticate (MifareKeyType keyType, std::shared_ptr< MifareKey > key, int sector, int block, bool write)
	Authenticate for a targeted block.

virtual ByteVector	readBinary (unsigned char blockno, size_t len)=0
	Read bytes from the card.

virtual void	updateBinary (unsigned char blockno, const ByteVector &buf)=0
	Write bytes to the card.

virtual bool	loadKey (unsigned char keyno, MifareKeyType keytype, std::shared_ptr< MifareKey > key, bool vol=false)=0
	Load a key to the reader.

virtual void	loadKey (std::shared_ptr< Location > location, MifareKeyType keytype, std::shared_ptr< MifareKey > key)=0
	Load a key on a given location.

virtual void	authenticate (unsigned char blockno, unsigned char keyno, MifareKeyType keytype)=0
	Authenticate a block, given a key number.

virtual void	authenticate (unsigned char blockno, std::shared_ptr< KeyStorage > key_storage, MifareKeyType keytype)=0
	Authenticate a block, given a key number.

virtual void	increment (uint8_t blockno, uint32_t value)=0

virtual void	decrement (uint8_t blockno, uint32_t value)=0

bool	writeValueBlock (uint8_t blockno, int32_t value, uint8_t backup_blockno)

bool	readValueBlock (uint8_t blockno, int32_t &value, uint8_t &backup_block)

Public Member Functions inherited from logicalaccess::Commands
	Commands ()=delete
	Constructor.

virtual	~Commands ()

std::shared_ptr< Chip >	getChip () const override
	Get the chip.

virtual void	setChip (std::shared_ptr< Chip > chip)
	Set the chip.

std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const override
	Get the reader/card adapter.

virtual void	setReaderCardAdapter (std::shared_ptr< ReaderCardAdapter > adapter)
	Set the reader/card adapter.

virtual const std::string &	getCmdType () const
	Get the cmd name.

virtual void	setCmdType (const std::string &command_type)
	Set the cmd name.

Public Member Functions inherited from logicalaccess::ICommands
virtual	~ICommands ()=default

virtual std::shared_ptr< Chip >	getChip () const =0
	Get the chip.

virtual std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const =0
	Get the reader/card adapter.

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::MifareCommands
static unsigned char	calculateMADCrc (const unsigned char *madbuf, size_t madbuflen)
	Calculate the MAD crc.

static unsigned int	findReferencedSector (long aid, unsigned char *madbuf, size_t madbuflen)
	Find the referenced sector in the MAD.

static MifareKeyType	getKeyType (const MifareAccessInfo::SectorAccessBits &sab, int sector, int block, bool write)

static unsigned char	getNbBlocks (int sector)
	Get number of data blocks for a sector.

static unsigned char	getSectorStartBlock (int sector)
	Get the sector start block.

Public Attributes inherited from logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >
MifareSL1Impl	sl1_impl_

MifareClassicImpl	classic_impl

Protected Member Functions inherited from logicalaccess::MifareCommands
std::shared_ptr< MifareChip >	getMifareChip () const

Protected Member Functions inherited from logicalaccess::Commands
	Commands (std::string commandtype)
	Constructor.

Protected Attributes inherited from logicalaccess::Commands
std::shared_ptr< ReaderCardAdapter >	d_readerCardAdapter
	The reader/card adapter.

std::weak_ptr< Chip >	d_chip
	The chip.

std::string	d_commandtype
	The command type.

Member Function Documentation

◆ AESAuthenticate()

bool MifarePlusACSACR1222L_SL1Commands::AESAuthenticate	(	std::shared_ptr< AES128Key >	key,
		uint16_t	keyslot
	)

overridevirtual

Perform AES Key authentication against the card.

Note: The keyslot allows us to reuse this code for SL1 AES authentication and security-level switching (to level2).

Parameters

key	The key to use
keyslot	where the key is located on the card.

New implementation

Reimplemented from logicalaccess::MifarePlusSL1Commands.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/pcsc/commands/mifareplus_acsacr1222l_sl1.hpp
C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/pcsc/commands/mifareplus_acsacr1222l_sl1.cpp
