The Mifare base chip class. More...

#include <mifarechip.hpp>

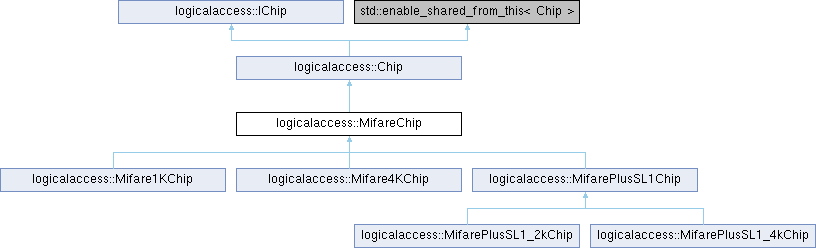

Inheritance diagram for logicalaccess::MifareChip:

Public Member Functions
	MifareChip ()
	Constructor for generic Mifare.

	MifareChip (std::string cardtype)
	Constructor for generic Mifare.

virtual	~MifareChip ()
	Destructor.

std::string	getGenericCardType () const override
	Get the generic card type.

std::shared_ptr< LocationNode >	getRootLocationNode () override
	Get the root location node.

unsigned int	getNbSectors () const
	Get number of sectors.

std::shared_ptr< CardService >	getService (CardServiceType serviceType) override
	Get a card service for this card provider.

std::shared_ptr< AccessInfo >	createAccessInfo () const override
	Create default Mifare access informations.

std::shared_ptr< Location >	createLocation () const override
	Create default Mifare location.

std::shared_ptr< MifareCommands >	getMifareCommands () const
	Get the Mifare commands.

Public Member Functions inherited from logicalaccess::Chip
	Chip ()
	Constructor.

	Chip (std::string cardtype)
	Constructor.

virtual	~Chip ()
	Destructor.

const std::string &	getCardType () const override
	Get the card type of the chip.

std::string	getGenericCardType () const override
	Get the generic card type.

virtual std::shared_ptr< LocationNode >	getRootLocationNode ()
	Get the root location node.

std::shared_ptr< Commands >	getCommands () const override
	Get the commands.

void	setCommands (std::shared_ptr< Commands > commands)
	Set commands.

ByteVector	getChipIdentifier () const override
	Get the chip identifier.

virtual void	setChipIdentifier (ByteVector identifier)
	Set the chip identifier.

ChipPowerStatus	getPowerStatus () const
	Get the chip power status.

void	setPowerStatus (ChipPowerStatus powerStatus)
	Set the chip power status.

unsigned char	getReceptionLevel () const
	Get the chip reception level.

void	setReceptionLevel (unsigned char receptionLevel)
	Set the chip reception level.

virtual std::shared_ptr< AccessInfo >	createAccessInfo () const
	Create default access informations.

virtual std::shared_ptr< Location >	createLocation () const
	Create default location.

std::shared_ptr< CardService >	getService (CardServiceType serviceType) override
	Get a card service for this chip.

template<typename T >
std::shared_ptr< T >	getService ()

bool	operator< (const Chip &chip) const

Public Member Functions inherited from logicalaccess::IChip
virtual	~IChip ()=default

virtual const std::string &	getCardType () const =0
	Get the card type of the chip.

virtual std::string	getGenericCardType () const =0
	Get the generic card type.

virtual std::shared_ptr< Commands >	getCommands () const =0
	Get the commands.

virtual ByteVector	getChipIdentifier () const =0
	Get the chip identifier.

virtual std::shared_ptr< CardService >	getService (CardServiceType serviceType)=0
	Get a card service for this chip.

Static Public Member Functions
static void	addSectorNode (std::shared_ptr< LocationNode > rootNode, int sector)
	Add a sector node to a root node.

static void	addBlockNode (std::shared_ptr< LocationNode > rootNode, int sector, unsigned char block)
	Add a block node to a root node.

Protected Member Functions
	MifareChip (std::string cardtype, unsigned int nbSectors)
	Constructor.

Protected Attributes
unsigned int	d_nbSectors
	The number of sectors in the Mifare card.

Protected Attributes inherited from logicalaccess::Chip
std::string	d_cardtype
	The card type of the profile.

ByteVector	d_chipIdentifier
	The chip identifier.

ChipPowerStatus	d_powerStatus
	The chip power status. Most chip doesn't have his own power supply.

std::shared_ptr< Commands >	d_commands
	Commands object.

unsigned char	d_receptionLevel
	The chip reception level.

Detailed Description

The Mifare base chip class.

Constructor & Destructor Documentation

◆ MifareChip() [1/3]

logicalaccess::MifareChip::MifareChip ( )

Constructor for generic Mifare.

◆ MifareChip() [2/3]

logicalaccess::MifareChip::MifareChip ( std::string cardtype )

explicit

Constructor for generic Mifare.

◆ ~MifareChip()

logicalaccess::MifareChip::~MifareChip ( )

virtual

Destructor.

◆ MifareChip() [3/3]

logicalaccess::MifareChip::MifareChip	(	std::string	cardtype,
		unsigned int	nbSectors
	)

protected

Constructor.

Parameters

cardtype	The card type (Mifare 1K, Mifare 4K, ...).
nbSectors	The number of sectors in the card.

Member Function Documentation

◆ addBlockNode()

void logicalaccess::MifareChip::addBlockNode	(	std::shared_ptr< LocationNode >	rootNode,
		int	sector,
		unsigned char	block
	)

static

Add a block node to a root node.

Parameters

rootNode	The root node.
sector	The sector.
block	The block.

◆ addSectorNode()

void logicalaccess::MifareChip::addSectorNode	(	std::shared_ptr< LocationNode >	rootNode,
		int	sector
	)

static

Add a sector node to a root node.

Parameters

rootNode	The root node.
sector	The sector.

◆ createAccessInfo()

std::shared_ptr< AccessInfo > logicalaccess::MifareChip::createAccessInfo ( ) const

overridevirtual

Create default Mifare access informations.

Returns: Default Mifare access informations.

Reimplemented from logicalaccess::Chip.

Reimplemented in logicalaccess::MifarePlusSL1Chip.

◆ createLocation()

std::shared_ptr< Location > logicalaccess::MifareChip::createLocation ( ) const

overridevirtual

Create default Mifare location.

Returns: Default Mifare location.

Reimplemented from logicalaccess::Chip.

◆ getGenericCardType()

std::string logicalaccess::MifareChip::getGenericCardType ( ) const

inlineoverridevirtual

Get the generic card type.

Returns: The generic card type.

Reimplemented from logicalaccess::Chip.

Reimplemented in logicalaccess::MifarePlusSL1Chip.

◆ getMifareCommands()

std::shared_ptr< MifareCommands > logicalaccess::MifareChip::getMifareCommands ( ) const

inline

Get the Mifare commands.

Returns: The Mifare commands.

◆ getNbSectors()

unsigned int logicalaccess::MifareChip::getNbSectors ( ) const

Get number of sectors.

◆ getRootLocationNode()

std::shared_ptr< LocationNode > logicalaccess::MifareChip::getRootLocationNode ( )

overridevirtual

Get the root location node.

Returns: The root location node.

Reimplemented from logicalaccess::Chip.

Reimplemented in logicalaccess::MifarePlusSL1_4kChip.

◆ getService()

std::shared_ptr< CardService > logicalaccess::MifareChip::getService ( CardServiceType serviceType )

overridevirtual

Get a card service for this card provider.

Parameters

serviceType The card service type.

Returns: The card service.

Reimplemented from logicalaccess::Chip.

Reimplemented in logicalaccess::MifarePlusSL1Chip.

Member Data Documentation

◆ d_nbSectors

unsigned int logicalaccess::MifareChip::d_nbSectors

protected

The number of sectors in the Mifare card.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/mifare/mifarechip.hpp
C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/mifare/mifarechip.cpp
