#include <MifarePlusSL1Chip.hpp>

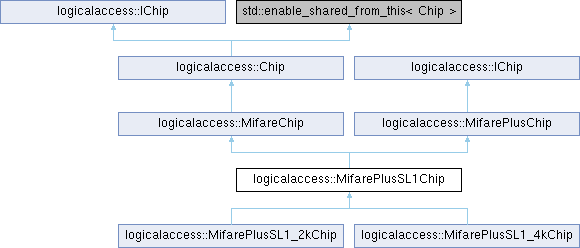

Inheritance diagram for logicalaccess::MifarePlusSL1Chip:

Public Member Functions
	MifarePlusSL1Chip (const std::string &cardType, int nb_sectors)

int	getSecurityLevel () const override

std::shared_ptr< AccessInfo >	createAccessInfo () const override
	Create default Mifare access informations.

const std::string &	getCardType () const override
	Get the card type of the chip.

std::string	getGenericCardType () const override
	Get the generic card type.

std::shared_ptr< Commands >	getCommands () const override
	Get the commands.

ByteVector	getChipIdentifier () const override
	Get the chip identifier.

std::shared_ptr< CardService >	getService (CardServiceType serviceType) override
	Get a card service for this card provider.

Public Member Functions inherited from logicalaccess::MifareChip
	MifareChip ()
	Constructor for generic Mifare.

	MifareChip (std::string cardtype)
	Constructor for generic Mifare.

virtual	~MifareChip ()
	Destructor.

std::string	getGenericCardType () const override
	Get the generic card type.

std::shared_ptr< LocationNode >	getRootLocationNode () override
	Get the root location node.

unsigned int	getNbSectors () const
	Get number of sectors.

std::shared_ptr< CardService >	getService (CardServiceType serviceType) override
	Get a card service for this card provider.

std::shared_ptr< AccessInfo >	createAccessInfo () const override
	Create default Mifare access informations.

std::shared_ptr< Location >	createLocation () const override
	Create default Mifare location.

std::shared_ptr< MifareCommands >	getMifareCommands () const
	Get the Mifare commands.

Public Member Functions inherited from logicalaccess::Chip
	Chip ()
	Constructor.

	Chip (std::string cardtype)
	Constructor.

virtual	~Chip ()
	Destructor.

const std::string &	getCardType () const override
	Get the card type of the chip.

std::string	getGenericCardType () const override
	Get the generic card type.

virtual std::shared_ptr< LocationNode >	getRootLocationNode ()
	Get the root location node.

std::shared_ptr< Commands >	getCommands () const override
	Get the commands.

void	setCommands (std::shared_ptr< Commands > commands)
	Set commands.

ByteVector	getChipIdentifier () const override
	Get the chip identifier.

virtual void	setChipIdentifier (ByteVector identifier)
	Set the chip identifier.

ChipPowerStatus	getPowerStatus () const
	Get the chip power status.

void	setPowerStatus (ChipPowerStatus powerStatus)
	Set the chip power status.

unsigned char	getReceptionLevel () const
	Get the chip reception level.

void	setReceptionLevel (unsigned char receptionLevel)
	Set the chip reception level.

virtual std::shared_ptr< AccessInfo >	createAccessInfo () const
	Create default access informations.

virtual std::shared_ptr< Location >	createLocation () const
	Create default location.

std::shared_ptr< CardService >	getService (CardServiceType serviceType) override
	Get a card service for this chip.

template<typename T >
std::shared_ptr< T >	getService ()

bool	operator< (const Chip &chip) const

Public Member Functions inherited from logicalaccess::IChip
virtual	~IChip ()=default

virtual const std::string &	getCardType () const =0
	Get the card type of the chip.

virtual std::string	getGenericCardType () const =0
	Get the generic card type.

virtual std::shared_ptr< Commands >	getCommands () const =0
	Get the commands.

virtual ByteVector	getChipIdentifier () const =0
	Get the chip identifier.

virtual std::shared_ptr< CardService >	getService (CardServiceType serviceType)=0
	Get a card service for this chip.

Public Member Functions inherited from logicalaccess::MifarePlusChip
virtual	~MifarePlusChip ()=default

	MifarePlusChip ()

virtual int	getSecurityLevel () const

std::string	getGenericCardType () const override
	Get the generic card type.

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::MifareChip
static void	addSectorNode (std::shared_ptr< LocationNode > rootNode, int sector)
	Add a sector node to a root node.

static void	addBlockNode (std::shared_ptr< LocationNode > rootNode, int sector, unsigned char block)
	Add a block node to a root node.

Static Public Member Functions inherited from logicalaccess::MifarePlusChip
static uint16_t	key_number_from_sector (int sector, MifareKeyType type)

Protected Member Functions inherited from logicalaccess::MifareChip
	MifareChip (std::string cardtype, unsigned int nbSectors)
	Constructor.

Protected Attributes inherited from logicalaccess::MifareChip
unsigned int	d_nbSectors
	The number of sectors in the Mifare card.

Protected Attributes inherited from logicalaccess::Chip
std::string	d_cardtype
	The card type of the profile.

ByteVector	d_chipIdentifier
	The chip identifier.

ChipPowerStatus	d_powerStatus
	The chip power status. Most chip doesn't have his own power supply.

std::shared_ptr< Commands >	d_commands
	Commands object.

unsigned char	d_receptionLevel
	The chip reception level.

Detailed Description

A base class for MifarePlus in SecurityLevel 1.

This mostly acts as a tag, because the chip has no additional functions.

Constructor & Destructor Documentation

◆ MifarePlusSL1Chip()

MifarePlusSL1Chip::MifarePlusSL1Chip	(	const std::string &	cardType,
		int	nb_sectors
	)

Member Function Documentation

◆ createAccessInfo()

std::shared_ptr< AccessInfo > MifarePlusSL1Chip::createAccessInfo ( ) const

overridevirtual

Create default Mifare access informations.

Returns: Default Mifare access informations.

Reimplemented from logicalaccess::MifareChip.

◆ getCardType()

const std::string & logicalaccess::MifarePlusSL1Chip::getCardType ( ) const

inlineoverridevirtual

Get the card type of the chip.

Returns: The chip's card type.

Reimplemented from logicalaccess::Chip.

◆ getChipIdentifier()

ByteVector logicalaccess::MifarePlusSL1Chip::getChipIdentifier ( ) const

inlineoverridevirtual

Get the chip identifier.

Returns: The chip identifier.

Reimplemented from logicalaccess::Chip.

◆ getCommands()

std::shared_ptr< Commands > logicalaccess::MifarePlusSL1Chip::getCommands ( ) const

inlineoverridevirtual

Get the commands.

Returns: The commands.

Reimplemented from logicalaccess::Chip.

◆ getGenericCardType()

std::string logicalaccess::MifarePlusSL1Chip::getGenericCardType ( ) const

inlineoverridevirtual

Get the generic card type.

Returns: The generic card type.

Reimplemented from logicalaccess::MifareChip.

◆ getSecurityLevel()

int MifarePlusSL1Chip::getSecurityLevel ( ) const

overridevirtual

Reimplemented from logicalaccess::MifarePlusChip.

◆ getService()

std::shared_ptr< CardService > MifarePlusSL1Chip::getService ( CardServiceType serviceType )

overridevirtual

Get a card service for this card provider.

Parameters

serviceType The card service type.

Returns: The card service.

Reimplemented from logicalaccess::MifareChip.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/mifareplus/MifarePlusSL1Chip.hpp
C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/mifareplus/MifarePlusSL1Chip.cpp
