The Mifare commands class. More...

#include <mifarecommands.hpp>

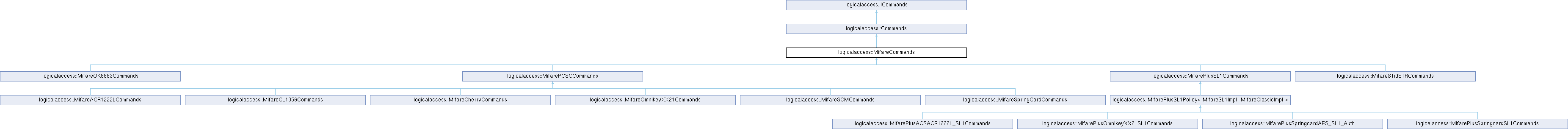

Inheritance diagram for logicalaccess::MifareCommands:

Public Member Functions
	MifareCommands ()

	MifareCommands (std::string ct)

virtual ByteVector	readSector (int sector, int start_block, std::shared_ptr< MifareKey > keyA, std::shared_ptr< MifareKey > keyB, const MifareAccessInfo::SectorAccessBits &sab, bool readtrailer=false) final

virtual void	writeSector (int sector, int start_block, const ByteVector &buf, std::shared_ptr< MifareKey > keyA, std::shared_ptr< MifareKey > keyB, const MifareAccessInfo::SectorAccessBits &sab, unsigned char userbyte=0x00, MifareAccessInfo::SectorAccessBits *newsab=nullptr, std::shared_ptr< MifareKey > newkeyA=std::shared_ptr< MifareKey >(), std::shared_ptr< MifareKey > newkeyB=std::shared_ptr< MifareKey >()) final

virtual ByteVector	readSectors (int start_sector, int stop_sector, int start_block, std::shared_ptr< MifareKey > keyA, std::shared_ptr< MifareKey > keyB, const MifareAccessInfo::SectorAccessBits &sab) final

virtual void	writeSectors (int start_sector, int stop_sector, int start_block, const ByteVector &buf, std::shared_ptr< MifareKey > keyA, std::shared_ptr< MifareKey > keyB, const MifareAccessInfo::SectorAccessBits &sab, unsigned char userbyte=0x00, MifareAccessInfo::SectorAccessBits *newsab=nullptr, std::shared_ptr< MifareKey > newkeyA=std::shared_ptr< MifareKey >(), std::shared_ptr< MifareKey > newkeyB=std::shared_ptr< MifareKey >()) final

unsigned int	getSectorFromMAD (long aid, std::shared_ptr< MifareKey > madKeyA)
	Get the sector referenced by the AID from the MAD.

void	setSectorToMAD (long aid, unsigned int sector, std::shared_ptr< MifareKey > madKeyA, std::shared_ptr< MifareKey > madKeyB)
	Set the sector referenced by the AID to the MAD.

void	authenticate (std::shared_ptr< Location > location, std::shared_ptr< AccessInfo > ai, bool write=false)
	Authenticate on a given location.

void	changeKeys (MifareKeyType keytype, std::shared_ptr< MifareKey > key, std::shared_ptr< MifareKey > newkeyA, std::shared_ptr< MifareKey > newkeyB, unsigned int sector, MifareAccessInfo::SectorAccessBits *newsab, unsigned char userbyte=0x00)

void	changeKeys (std::shared_ptr< MifareKey > newkeyA, std::shared_ptr< MifareKey > newkeyB, unsigned int sector, MifareAccessInfo::SectorAccessBits *newsab, unsigned char userbyte=0x00)

void	authenticate (MifareKeyType keyType, std::shared_ptr< MifareKey > key, int sector, int block, bool write)
	Authenticate for a targeted block.

virtual ByteVector	readBinary (unsigned char blockno, size_t len)=0
	Read bytes from the card.

virtual void	updateBinary (unsigned char blockno, const ByteVector &buf)=0
	Write bytes to the card.

virtual bool	loadKey (unsigned char keyno, MifareKeyType keytype, std::shared_ptr< MifareKey > key, bool vol=false)=0
	Load a key to the reader.

virtual void	loadKey (std::shared_ptr< Location > location, MifareKeyType keytype, std::shared_ptr< MifareKey > key)=0
	Load a key on a given location.

virtual void	authenticate (unsigned char blockno, unsigned char keyno, MifareKeyType keytype)=0
	Authenticate a block, given a key number.

virtual void	authenticate (unsigned char blockno, std::shared_ptr< KeyStorage > key_storage, MifareKeyType keytype)=0
	Authenticate a block, given a key number.

virtual void	increment (uint8_t blockno, uint32_t value)=0

virtual void	decrement (uint8_t blockno, uint32_t value)=0

bool	writeValueBlock (uint8_t blockno, int32_t value, uint8_t backup_blockno)

bool	readValueBlock (uint8_t blockno, int32_t &value, uint8_t &backup_block)

Public Member Functions inherited from logicalaccess::Commands
	Commands ()=delete
	Constructor.

virtual	~Commands ()

std::shared_ptr< Chip >	getChip () const override
	Get the chip.

virtual void	setChip (std::shared_ptr< Chip > chip)
	Set the chip.

std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const override
	Get the reader/card adapter.

virtual void	setReaderCardAdapter (std::shared_ptr< ReaderCardAdapter > adapter)
	Set the reader/card adapter.

virtual const std::string &	getCmdType () const
	Get the cmd name.

virtual void	setCmdType (const std::string &command_type)
	Set the cmd name.

Public Member Functions inherited from logicalaccess::ICommands
virtual	~ICommands ()=default

virtual std::shared_ptr< Chip >	getChip () const =0
	Get the chip.

virtual std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const =0
	Get the reader/card adapter.

Static Public Member Functions
static unsigned char	calculateMADCrc (const unsigned char *madbuf, size_t madbuflen)
	Calculate the MAD crc.

static unsigned int	findReferencedSector (long aid, unsigned char *madbuf, size_t madbuflen)
	Find the referenced sector in the MAD.

static MifareKeyType	getKeyType (const MifareAccessInfo::SectorAccessBits &sab, int sector, int block, bool write)

static unsigned char	getNbBlocks (int sector)
	Get number of data blocks for a sector.

static unsigned char	getSectorStartBlock (int sector)
	Get the sector start block.

Protected Member Functions
std::shared_ptr< MifareChip >	getMifareChip () const

Protected Member Functions inherited from logicalaccess::Commands
	Commands (std::string commandtype)
	Constructor.

Additional Inherited Members
Protected Attributes inherited from logicalaccess::Commands
std::shared_ptr< ReaderCardAdapter >	d_readerCardAdapter
	The reader/card adapter.

std::weak_ptr< Chip >	d_chip
	The chip.

std::string	d_commandtype
	The command type.

Detailed Description

The Mifare commands class.

Constructor & Destructor Documentation

◆ MifareCommands() [1/2]

logicalaccess::MifareCommands::MifareCommands ( )

inline

◆ MifareCommands() [2/2]

logicalaccess::MifareCommands::MifareCommands ( std::string ct )

inlineexplicit

Member Function Documentation

◆ authenticate() [1/4]

void logicalaccess::MifareCommands::authenticate	(	MifareKeyType	keyType,
		std::shared_ptr< MifareKey >	key,
		int	sector,
		int	block,
		bool	write
	)

Authenticate for a targeted block.

Parameters

keyType	The key type.
key	The authentication key.
sector	The sector.
block	The block.
write	Write access.

◆ authenticate() [2/4]

void logicalaccess::MifareCommands::authenticate	(	std::shared_ptr< Location >	location,
		std::shared_ptr< AccessInfo >	ai,
		bool	write = `false`
	)

Authenticate on a given location.

Parameters

location	The location.
ai	The access infos.

◆ authenticate() [3/4]

virtual void logicalaccess::MifareCommands::authenticate	(	unsigned char	blockno,
		std::shared_ptr< KeyStorage >	key_storage,
		MifareKeyType	keytype
	)

pure virtual

Authenticate a block, given a key number.

Parameters

blockno	The block number.
key_storage	The key storage used for authentication.
keytype	The key type.

Implemented in logicalaccess::MifarePlusSL1Commands, logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >, logicalaccess::MifareOK5553Commands, logicalaccess::MifarePCSCCommands, logicalaccess::MifareSpringCardCommands, and logicalaccess::MifareSTidSTRCommands.

◆ authenticate() [4/4]

virtual void logicalaccess::MifareCommands::authenticate	(	unsigned char	blockno,
		unsigned char	keyno,
		MifareKeyType	keytype
	)

pure virtual

Authenticate a block, given a key number.

Parameters

blockno	The block number.
keyno	The key number, previously loaded with Mifare::loadKey().
keytype	The key type.

Implemented in logicalaccess::MifarePlusSL1Commands, logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >, logicalaccess::MifareOK5553Commands, logicalaccess::MifareCherryCommands, logicalaccess::MifarePCSCCommands, logicalaccess::MifarePlusSpringcardSL1Commands, logicalaccess::MifareSpringCardCommands, logicalaccess::MifareSpringCardCommands, and logicalaccess::MifareSTidSTRCommands.

◆ calculateMADCrc()

unsigned char logicalaccess::MifareCommands::calculateMADCrc	(	const unsigned char *	madbuf,
		size_t	madbuflen
	)

static

Calculate the MAD crc.

Parameters

madbuf	The MAD buffer.
madbuflen	The MAD buffer length.

Returns: The CRC.

◆ changeKeys() [1/2]

void logicalaccess::MifareCommands::changeKeys	(	MifareKeyType	keytype,
		std::shared_ptr< MifareKey >	key,
		std::shared_ptr< MifareKey >	newkeyA,
		std::shared_ptr< MifareKey >	newkeyB,
		unsigned int	sector,
		MifareAccessInfo::SectorAccessBits *	newsab,
		unsigned char	userbyte = `0x00`
	)

◆ changeKeys() [2/2]

void logicalaccess::MifareCommands::changeKeys	(	std::shared_ptr< MifareKey >	newkeyA,
		std::shared_ptr< MifareKey >	newkeyB,
		unsigned int	sector,
		MifareAccessInfo::SectorAccessBits *	newsab,
		unsigned char	userbyte = `0x00`
	)

◆ decrement()

virtual void logicalaccess::MifareCommands::decrement	(	uint8_t	blockno,
		uint32_t	value
	)

pure virtual

Decrement (inplace) the value block at address blockno by value unit.

This means that this is the equivalent of also calling transfer.

Warning: While the parameter is unsigned (because negative value causes errors), value superior to 2^31-1 are also rejected.

Implemented in logicalaccess::MifarePlusSL1Commands, logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >, logicalaccess::MifareACR1222LCommands, logicalaccess::MifareCL1356Commands, logicalaccess::MifareOmnikeyXX21Commands, and logicalaccess::MifarePCSCCommands.

◆ findReferencedSector()

unsigned int logicalaccess::MifareCommands::findReferencedSector	(	long	aid,
		unsigned char *	madbuf,
		size_t	madbuflen
	)

static

Find the referenced sector in the MAD.

Parameters

aid	The application ID.
madbuf	The MAD buffer.
madbuflen	The MAD buffer length.

◆ getKeyType()

MifareKeyType logicalaccess::MifareCommands::getKeyType	(	const MifareAccessInfo::SectorAccessBits &	sab,
		int	sector,
		int	block,
		bool	write
	)

static

◆ getMifareChip()

std::shared_ptr< MifareChip > logicalaccess::MifareCommands::getMifareChip ( ) const

protected

◆ getNbBlocks()

unsigned char logicalaccess::MifareCommands::getNbBlocks ( int sector )

static

Get number of data blocks for a sector.

Parameters

sector The sector.

Returns: The number of blocks.

◆ getSectorFromMAD()

unsigned int logicalaccess::MifareCommands::getSectorFromMAD	(	long	aid,
		std::shared_ptr< MifareKey >	madKeyA
	)

Get the sector referenced by the AID from the MAD.

Parameters

aid	The application ID.
madKeyA	The MAD key A for read access.

Returns: The sector.

◆ getSectorStartBlock()

unsigned char logicalaccess::MifareCommands::getSectorStartBlock ( int sector )

static

Get the sector start block.

Parameters

sector The sector.

Returns: The first block for this sector.

◆ increment()

virtual void logicalaccess::MifareCommands::increment	(	uint8_t	blockno,
		uint32_t	value
	)

pure virtual

Increment (inplace) the value block at address blockno.

This means that this is the equivalent of also calling transfer.

Warning: While the parameter is unsigned (because negative value causes errors), value superior to 2^31-1 are also rejected.

Implemented in logicalaccess::MifarePlusSL1Commands, logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >, logicalaccess::MifareACR1222LCommands, logicalaccess::MifareCL1356Commands, logicalaccess::MifareOmnikeyXX21Commands, and logicalaccess::MifarePCSCCommands.

◆ loadKey() [1/2]

virtual void logicalaccess::MifareCommands::loadKey	(	std::shared_ptr< Location >	location,
		MifareKeyType	keytype,
		std::shared_ptr< MifareKey >	key
	)

pure virtual

Load a key on a given location.

Parameters

location	The location.
keytype	The mifare key type.
key	The key.

Implemented in logicalaccess::MifarePlusSL1Commands, logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >, logicalaccess::MifareOK5553Commands, logicalaccess::MifarePCSCCommands, logicalaccess::MifareSpringCardCommands, and logicalaccess::MifareSTidSTRCommands.

◆ loadKey() [2/2]

virtual bool logicalaccess::MifareCommands::loadKey	(	unsigned char	keyno,
		MifareKeyType	keytype,
		std::shared_ptr< MifareKey >	key,
		bool	vol = `false`
	)

pure virtual

Load a key to the reader.

Parameters

keyno	The reader key slot number. Can be anything from 0x00 to 0x1F.
keytype	The key type.
key	The key.
vol	Use volatile memory.

Returns: true on success, false otherwise.

Implemented in logicalaccess::MifarePlusSL1Commands, logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >, logicalaccess::MifareOK5553Commands, logicalaccess::MifareCherryCommands, logicalaccess::MifarePCSCCommands, logicalaccess::MifareSCMCommands, logicalaccess::MifareSpringCardCommands, logicalaccess::MifareSpringCardCommands, and logicalaccess::MifareSTidSTRCommands.

◆ readBinary()

virtual ByteVector logicalaccess::MifareCommands::readBinary	(	unsigned char	blockno,
		size_t	len
	)

pure virtual

Read bytes from the card.

Parameters

blockno	The block number.
len	The count of bytes to read. (0 <= len < 16)

Returns: The count of bytes red.

Implemented in logicalaccess::MifarePlusSL1Commands, logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >, logicalaccess::MifareOK5553Commands, logicalaccess::MifarePCSCCommands, and logicalaccess::MifareSTidSTRCommands.

◆ readSector()

ByteVector logicalaccess::MifareCommands::readSector	(	int	sector,
		int	start_block,
		std::shared_ptr< MifareKey >	keyA,
		std::shared_ptr< MifareKey >	keyB,
		const MifareAccessInfo::SectorAccessBits &	sab,
		bool	readtrailer = `false`
	)

finalvirtual

◆ readSectors()

ByteVector logicalaccess::MifareCommands::readSectors	(	int	start_sector,
		int	stop_sector,
		int	start_block,
		std::shared_ptr< MifareKey >	keyA,
		std::shared_ptr< MifareKey >	keyB,
		const MifareAccessInfo::SectorAccessBits &	sab
	)

finalvirtual

◆ readValueBlock()

bool logicalaccess::MifareCommands::readValueBlock	(	uint8_t	blockno,
		int32_t &	value,
		uint8_t &	backup_block
	)

Read the value and the address of the backup block from a value-block.

If the block is not a valid value block, return false.

◆ setSectorToMAD()

void logicalaccess::MifareCommands::setSectorToMAD	(	long	aid,
		unsigned int	sector,
		std::shared_ptr< MifareKey >	madKeyA,
		std::shared_ptr< MifareKey >	madKeyB
	)

Set the sector referenced by the AID to the MAD.

Parameters

aid	The application ID.
sector	The sector.
madKeyA	The MAD key A for read access.
madKeyB	The MAD key B for write access.

◆ updateBinary()

virtual void logicalaccess::MifareCommands::updateBinary	(	unsigned char	blockno,
		const ByteVector &	buf
	)

pure virtual

Write bytes to the card.

Parameters

blockno	The block number.
buf	The buffer containing the data.
buflen	The length of buffer.

Returns: The count of bytes written.

Implemented in logicalaccess::MifarePlusSL1Commands, logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >, logicalaccess::MifareOK5553Commands, logicalaccess::MifarePCSCCommands, and logicalaccess::MifareSTidSTRCommands.

◆ writeSector()

void logicalaccess::MifareCommands::writeSector	(	int	sector,
		int	start_block,
		const ByteVector &	buf,
		std::shared_ptr< MifareKey >	keyA,
		std::shared_ptr< MifareKey >	keyB,
		const MifareAccessInfo::SectorAccessBits &	sab,
		unsigned char	userbyte = `0x00`,
		MifareAccessInfo::SectorAccessBits *	newsab = `nullptr`,
		std::shared_ptr< MifareKey >	newkeyA = `std::shared_ptr<MifareKey>()`,
		std::shared_ptr< MifareKey >	newkeyB = `std::shared_ptr<MifareKey>()`
	)

finalvirtual

◆ writeSectors()

void logicalaccess::MifareCommands::writeSectors	(	int	start_sector,
		int	stop_sector,
		int	start_block,
		const ByteVector &	buf,
		std::shared_ptr< MifareKey >	keyA,
		std::shared_ptr< MifareKey >	keyB,
		const MifareAccessInfo::SectorAccessBits &	sab,
		unsigned char	userbyte = `0x00`,
		MifareAccessInfo::SectorAccessBits *	newsab = `nullptr`,
		std::shared_ptr< MifareKey >	newkeyA = `std::shared_ptr<MifareKey>()`,
		std::shared_ptr< MifareKey >	newkeyB = `std::shared_ptr<MifareKey>()`
	)

finalvirtual

◆ writeValueBlock()

bool logicalaccess::MifareCommands::writeValueBlock	(	uint8_t	blockno,
		int32_t	value,
		uint8_t	backup_blockno
	)

Write a value block, using value as the numerical value to be written and backup_blockno as the address of the backup block.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/mifare/mifarecommands.hpp
C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/mifare/mifarecommands.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MifareCommands() [1/2]

◆ MifareCommands() [2/2]

Member Function Documentation

◆ authenticate() [1/4]

◆ authenticate() [2/4]

◆ authenticate() [3/4]

◆ authenticate() [4/4]

◆ calculateMADCrc()

◆ changeKeys() [1/2]

◆ changeKeys() [2/2]

◆ decrement()

◆ findReferencedSector()

◆ getKeyType()

◆ getMifareChip()

◆ getNbBlocks()

◆ getSectorFromMAD()

◆ getSectorStartBlock()

◆ increment()

◆ loadKey() [1/2]

◆ loadKey() [2/2]

◆ readBinary()

◆ readSector()

◆ readSectors()

◆ readValueBlock()

◆ setSectorToMAD()

◆ updateBinary()

◆ writeSector()

◆ writeSectors()

◆ writeValueBlock()
