The Mifare card provider class for PCSC reader. More...

#include <mifarepcsccommands.hpp>

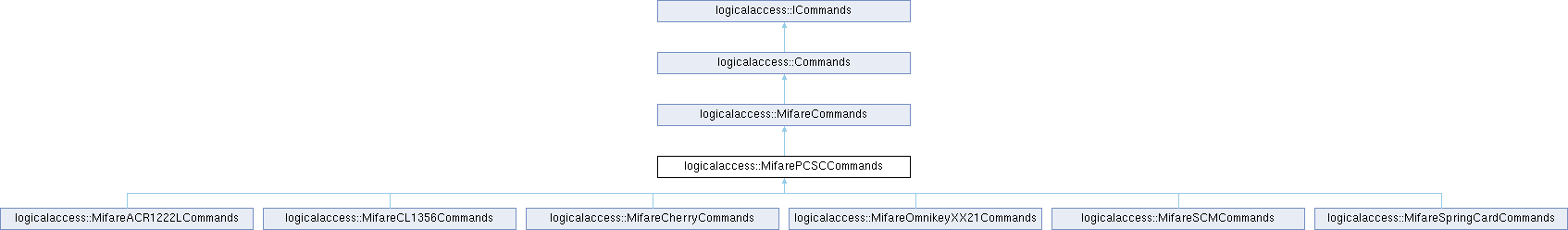

Inheritance diagram for logicalaccess::MifarePCSCCommands:

Public Member Functions
	MifarePCSCCommands ()
	Constructor.

	MifarePCSCCommands (std::string)

virtual	~MifarePCSCCommands ()
	Destructor.

std::shared_ptr< PCSCReaderCardAdapter >	getPCSCReaderCardAdapter () const
	Get the PC/SC reader/card adapter.

ByteVector	readBinary (unsigned char blockno, size_t len) override
	Read bytes from the card.

void	updateBinary (unsigned char blockno, const ByteVector &buf) override
	Write bytes to the card.

void	increment (uint8_t blockno, uint32_t value) override

void	decrement (uint8_t blockno, uint32_t value) override

Public Member Functions inherited from logicalaccess::MifareCommands
	MifareCommands ()

	MifareCommands (std::string ct)

virtual ByteVector	readSector (int sector, int start_block, std::shared_ptr< MifareKey > keyA, std::shared_ptr< MifareKey > keyB, const MifareAccessInfo::SectorAccessBits &sab, bool readtrailer=false) final

virtual void	writeSector (int sector, int start_block, const ByteVector &buf, std::shared_ptr< MifareKey > keyA, std::shared_ptr< MifareKey > keyB, const MifareAccessInfo::SectorAccessBits &sab, unsigned char userbyte=0x00, MifareAccessInfo::SectorAccessBits *newsab=nullptr, std::shared_ptr< MifareKey > newkeyA=std::shared_ptr< MifareKey >(), std::shared_ptr< MifareKey > newkeyB=std::shared_ptr< MifareKey >()) final

virtual ByteVector	readSectors (int start_sector, int stop_sector, int start_block, std::shared_ptr< MifareKey > keyA, std::shared_ptr< MifareKey > keyB, const MifareAccessInfo::SectorAccessBits &sab) final

virtual void	writeSectors (int start_sector, int stop_sector, int start_block, const ByteVector &buf, std::shared_ptr< MifareKey > keyA, std::shared_ptr< MifareKey > keyB, const MifareAccessInfo::SectorAccessBits &sab, unsigned char userbyte=0x00, MifareAccessInfo::SectorAccessBits *newsab=nullptr, std::shared_ptr< MifareKey > newkeyA=std::shared_ptr< MifareKey >(), std::shared_ptr< MifareKey > newkeyB=std::shared_ptr< MifareKey >()) final

unsigned int	getSectorFromMAD (long aid, std::shared_ptr< MifareKey > madKeyA)
	Get the sector referenced by the AID from the MAD.

void	setSectorToMAD (long aid, unsigned int sector, std::shared_ptr< MifareKey > madKeyA, std::shared_ptr< MifareKey > madKeyB)
	Set the sector referenced by the AID to the MAD.

void	authenticate (std::shared_ptr< Location > location, std::shared_ptr< AccessInfo > ai, bool write=false)
	Authenticate on a given location.

void	changeKeys (MifareKeyType keytype, std::shared_ptr< MifareKey > key, std::shared_ptr< MifareKey > newkeyA, std::shared_ptr< MifareKey > newkeyB, unsigned int sector, MifareAccessInfo::SectorAccessBits *newsab, unsigned char userbyte=0x00)

void	changeKeys (std::shared_ptr< MifareKey > newkeyA, std::shared_ptr< MifareKey > newkeyB, unsigned int sector, MifareAccessInfo::SectorAccessBits *newsab, unsigned char userbyte=0x00)

void	authenticate (MifareKeyType keyType, std::shared_ptr< MifareKey > key, int sector, int block, bool write)
	Authenticate for a targeted block.

virtual ByteVector	readBinary (unsigned char blockno, size_t len)=0
	Read bytes from the card.

virtual void	updateBinary (unsigned char blockno, const ByteVector &buf)=0
	Write bytes to the card.

virtual bool	loadKey (unsigned char keyno, MifareKeyType keytype, std::shared_ptr< MifareKey > key, bool vol=false)=0
	Load a key to the reader.

virtual void	loadKey (std::shared_ptr< Location > location, MifareKeyType keytype, std::shared_ptr< MifareKey > key)=0
	Load a key on a given location.

virtual void	authenticate (unsigned char blockno, unsigned char keyno, MifareKeyType keytype)=0
	Authenticate a block, given a key number.

virtual void	authenticate (unsigned char blockno, std::shared_ptr< KeyStorage > key_storage, MifareKeyType keytype)=0
	Authenticate a block, given a key number.

virtual void	increment (uint8_t blockno, uint32_t value)=0

virtual void	decrement (uint8_t blockno, uint32_t value)=0

bool	writeValueBlock (uint8_t blockno, int32_t value, uint8_t backup_blockno)

bool	readValueBlock (uint8_t blockno, int32_t &value, uint8_t &backup_block)

Public Member Functions inherited from logicalaccess::Commands
	Commands ()=delete
	Constructor.

virtual	~Commands ()

std::shared_ptr< Chip >	getChip () const override
	Get the chip.

virtual void	setChip (std::shared_ptr< Chip > chip)
	Set the chip.

std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const override
	Get the reader/card adapter.

virtual void	setReaderCardAdapter (std::shared_ptr< ReaderCardAdapter > adapter)
	Set the reader/card adapter.

virtual const std::string &	getCmdType () const
	Get the cmd name.

virtual void	setCmdType (const std::string &command_type)
	Set the cmd name.

Public Member Functions inherited from logicalaccess::ICommands
virtual	~ICommands ()=default

virtual std::shared_ptr< Chip >	getChip () const =0
	Get the chip.

virtual std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const =0
	Get the reader/card adapter.

Protected Member Functions
bool	loadKey (unsigned char keyno, MifareKeyType keytype, std::shared_ptr< MifareKey > key, bool vol=false) override
	Load a key to the reader.

void	loadKey (std::shared_ptr< Location > location, MifareKeyType keytype, std::shared_ptr< MifareKey > key) override
	Load a key on a given location.

void	authenticate (unsigned char blockno, std::shared_ptr< KeyStorage > key_storage, MifareKeyType keytype) override
	Authenticate a block, given a key number.

void	authenticate (unsigned char blockno, unsigned char keyno, MifareKeyType keytype) override
	Authenticate a block, given a key number.

Protected Member Functions inherited from logicalaccess::MifareCommands
std::shared_ptr< MifareChip >	getMifareChip () const

Protected Member Functions inherited from logicalaccess::Commands
	Commands (std::string commandtype)
	Constructor.

Friends
template<typename T , typename T2 >
class	MifarePlusSL1Policy

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::MifareCommands
static unsigned char	calculateMADCrc (const unsigned char *madbuf, size_t madbuflen)
	Calculate the MAD crc.

static unsigned int	findReferencedSector (long aid, unsigned char *madbuf, size_t madbuflen)
	Find the referenced sector in the MAD.

static MifareKeyType	getKeyType (const MifareAccessInfo::SectorAccessBits &sab, int sector, int block, bool write)

static unsigned char	getNbBlocks (int sector)
	Get number of data blocks for a sector.

static unsigned char	getSectorStartBlock (int sector)
	Get the sector start block.

Protected Attributes inherited from logicalaccess::Commands
std::shared_ptr< ReaderCardAdapter >	d_readerCardAdapter
	The reader/card adapter.

std::weak_ptr< Chip >	d_chip
	The chip.

std::string	d_commandtype
	The command type.

Detailed Description

The Mifare card provider class for PCSC reader.

Constructor & Destructor Documentation

◆ MifarePCSCCommands() [1/2]

logicalaccess::MifarePCSCCommands::MifarePCSCCommands ( )

Constructor.

◆ MifarePCSCCommands() [2/2]

logicalaccess::MifarePCSCCommands::MifarePCSCCommands ( std::string ct )

explicit

◆ ~MifarePCSCCommands()

logicalaccess::MifarePCSCCommands::~MifarePCSCCommands ( )

virtual

Destructor.

Member Function Documentation

◆ authenticate() [1/2]

void logicalaccess::MifarePCSCCommands::authenticate	(	unsigned char	blockno,
		std::shared_ptr< KeyStorage >	key_storage,
		MifareKeyType	keytype
	)

overrideprotectedvirtual

Authenticate a block, given a key number.

Parameters

blockno	The block number.
key_storage	The key storage used for authentication.
keytype	The key type.

Implements logicalaccess::MifareCommands.

Reimplemented in logicalaccess::MifareSpringCardCommands.

◆ authenticate() [2/2]

void logicalaccess::MifarePCSCCommands::authenticate	(	unsigned char	blockno,
		unsigned char	keyno,
		MifareKeyType	keytype
	)

overrideprotectedvirtual

Authenticate a block, given a key number.

Parameters

blockno	The block number.
keyno	The key number, previously loaded with Mifare::loadKey().
keytype	The key type.

Implements logicalaccess::MifareCommands.

Reimplemented in logicalaccess::MifareSpringCardCommands, and logicalaccess::MifareSpringCardCommands.

◆ decrement()

void logicalaccess::MifarePCSCCommands::decrement	(	uint8_t	blockno,
		uint32_t	value
	)

overridevirtual

Decrement (inplace) the value block at address blockno by value unit.

This means that this is the equivalent of also calling transfer.

Warning: While the parameter is unsigned (because negative value causes errors), value superior to 2^31-1 are also rejected.

Implements logicalaccess::MifareCommands.

◆ getPCSCReaderCardAdapter()

std::shared_ptr< PCSCReaderCardAdapter > logicalaccess::MifarePCSCCommands::getPCSCReaderCardAdapter ( ) const

inline

Get the PC/SC reader/card adapter.

Returns: The PC/SC reader/card adapter.

◆ increment()

void logicalaccess::MifarePCSCCommands::increment	(	uint8_t	blockno,
		uint32_t	value
	)

overridevirtual

Increment (inplace) the value block at address blockno.

This means that this is the equivalent of also calling transfer.

Warning: While the parameter is unsigned (because negative value causes errors), value superior to 2^31-1 are also rejected.

Implements logicalaccess::MifareCommands.

◆ loadKey() [1/2]

void logicalaccess::MifarePCSCCommands::loadKey	(	std::shared_ptr< Location >	location,
		MifareKeyType	keytype,
		std::shared_ptr< MifareKey >	key
	)

overrideprotectedvirtual

Load a key on a given location.

Parameters

location	The location.
key	The key.
keytype	The mifare key type.

Implements logicalaccess::MifareCommands.

Reimplemented in logicalaccess::MifareSpringCardCommands.

◆ loadKey() [2/2]

bool logicalaccess::MifarePCSCCommands::loadKey	(	unsigned char	keyno,
		MifareKeyType	keytype,
		std::shared_ptr< MifareKey >	key,
		bool	vol = `false`
	)

overrideprotectedvirtual

Load a key to the reader.

Parameters

keyno	The key number.
keytype	The mifare key type.
key	The key.
vol	Use volatile memory.

Returns: true on success, false otherwise.

Implements logicalaccess::MifareCommands.

Reimplemented in logicalaccess::MifareSCMCommands, logicalaccess::MifareSpringCardCommands, and logicalaccess::MifareSpringCardCommands.

◆ readBinary()

ByteVector logicalaccess::MifarePCSCCommands::readBinary	(	unsigned char	blockno,
		size_t	len
	)

overridevirtual

Read bytes from the card.

Parameters

blockno	The block number.
len	The count of bytes to read. (0 <= len < 16)
buf	The buffer in which to place the data.
buflen	The length of buffer.

Returns: The count of bytes red.

Implements logicalaccess::MifareCommands.

◆ updateBinary()

void logicalaccess::MifarePCSCCommands::updateBinary	(	unsigned char	blockno,
		const ByteVector &	buf
	)

overridevirtual

Write bytes to the card.

Parameters

blockno	The block number.
buf	The buffer containing the data.
buflen	The length of buffer.

Returns: The count of bytes written.

Implements logicalaccess::MifareCommands.

Friends And Related Function Documentation

◆ MifarePlusSL1Policy

template<typename T , typename T2 >

friend class MifarePlusSL1Policy

friend

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/pcsc/commands/mifarepcsccommands.hpp
C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/pcsc/commands/mifarepcsccommands.cpp
