#include <mifareplussl1commands.hpp>

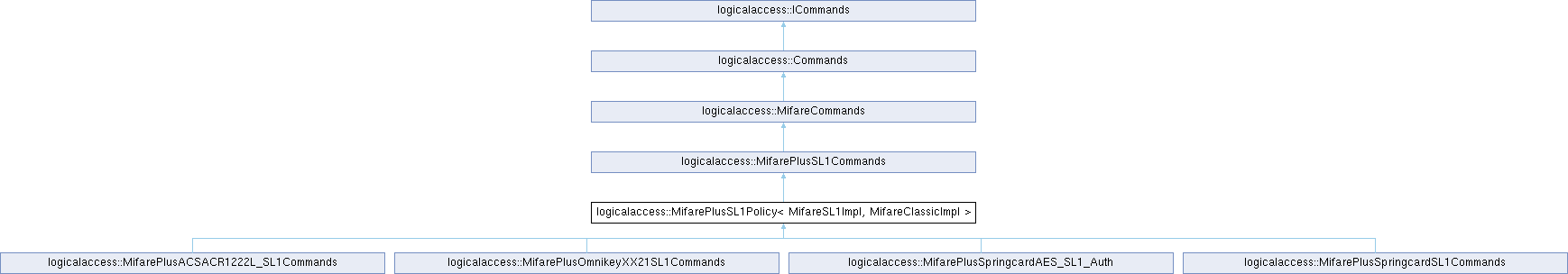

Inheritance diagram for logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >:

Public Member Functions
	MifarePlusSL1Policy ()

void	fixup ()

bool	AESAuthenticateSL1 (std::shared_ptr< AES128Key > key) override

void	authenticate (unsigned char blockno, unsigned char keyno, MifareKeyType keytype) override
	Authenticate a block, given a key number.

ByteVector	readBinary (unsigned char blockno, size_t len) override
	Read bytes from the card.

void	updateBinary (unsigned char blockno, const ByteVector &buf) override
	Write bytes to the card.

bool	loadKey (unsigned char keyno, MifareKeyType keytype, std::shared_ptr< MifareKey > key, bool vol) override
	Load a key to the reader.

void	loadKey (std::shared_ptr< Location > location, MifareKeyType keytype, std::shared_ptr< MifareKey > key) override
	Load a key on a given location.

void	authenticate (unsigned char blockno, std::shared_ptr< KeyStorage > key_storage, MifareKeyType keytype) override
	Authenticate a block, given a key number.

void	increment (uint8_t blockno, uint32_t value) override

void	decrement (uint8_t blockno, uint32_t value) override

Public Member Functions inherited from logicalaccess::MifarePlusSL1Commands
	MifarePlusSL1Commands ()

	MifarePlusSL1Commands (std::string ct)

virtual bool	AESAuthenticate (std::shared_ptr< AES128Key > key, uint16_t keyslot)

virtual bool	AESAuthenticateSL1 (std::shared_ptr< AES128Key > key)

virtual bool	switchLevel2 (std::shared_ptr< AES128Key > key)

virtual bool	switchLevel3 (std::shared_ptr< AES128Key > key)

ByteVector	readBinary (unsigned char blockno, size_t len) override
	Read bytes from the card.

void	updateBinary (unsigned char blockno, const ByteVector &buf) override
	Write bytes to the card.

bool	loadKey (unsigned char keyno, MifareKeyType keytype, std::shared_ptr< MifareKey > key, bool vol) override
	Load a key to the reader.

void	loadKey (std::shared_ptr< Location > location, MifareKeyType keytype, std::shared_ptr< MifareKey > key) override
	Load a key on a given location.

void	authenticate (unsigned char blockno, unsigned char keyno, MifareKeyType keytype) override
	Authenticate a block, given a key number.

void	authenticate (unsigned char blockno, std::shared_ptr< KeyStorage > key_storage, MifareKeyType keytype) override
	Authenticate a block, given a key number.

void	increment (uint8_t blockno, uint32_t value) override

void	decrement (uint8_t blockno, uint32_t value) override

Public Member Functions inherited from logicalaccess::MifareCommands
	MifareCommands ()

	MifareCommands (std::string ct)

virtual ByteVector	readSector (int sector, int start_block, std::shared_ptr< MifareKey > keyA, std::shared_ptr< MifareKey > keyB, const MifareAccessInfo::SectorAccessBits &sab, bool readtrailer=false) final

virtual void	writeSector (int sector, int start_block, const ByteVector &buf, std::shared_ptr< MifareKey > keyA, std::shared_ptr< MifareKey > keyB, const MifareAccessInfo::SectorAccessBits &sab, unsigned char userbyte=0x00, MifareAccessInfo::SectorAccessBits *newsab=nullptr, std::shared_ptr< MifareKey > newkeyA=std::shared_ptr< MifareKey >(), std::shared_ptr< MifareKey > newkeyB=std::shared_ptr< MifareKey >()) final

virtual ByteVector	readSectors (int start_sector, int stop_sector, int start_block, std::shared_ptr< MifareKey > keyA, std::shared_ptr< MifareKey > keyB, const MifareAccessInfo::SectorAccessBits &sab) final

virtual void	writeSectors (int start_sector, int stop_sector, int start_block, const ByteVector &buf, std::shared_ptr< MifareKey > keyA, std::shared_ptr< MifareKey > keyB, const MifareAccessInfo::SectorAccessBits &sab, unsigned char userbyte=0x00, MifareAccessInfo::SectorAccessBits *newsab=nullptr, std::shared_ptr< MifareKey > newkeyA=std::shared_ptr< MifareKey >(), std::shared_ptr< MifareKey > newkeyB=std::shared_ptr< MifareKey >()) final

unsigned int	getSectorFromMAD (long aid, std::shared_ptr< MifareKey > madKeyA)
	Get the sector referenced by the AID from the MAD.

void	setSectorToMAD (long aid, unsigned int sector, std::shared_ptr< MifareKey > madKeyA, std::shared_ptr< MifareKey > madKeyB)
	Set the sector referenced by the AID to the MAD.

void	authenticate (std::shared_ptr< Location > location, std::shared_ptr< AccessInfo > ai, bool write=false)
	Authenticate on a given location.

void	changeKeys (MifareKeyType keytype, std::shared_ptr< MifareKey > key, std::shared_ptr< MifareKey > newkeyA, std::shared_ptr< MifareKey > newkeyB, unsigned int sector, MifareAccessInfo::SectorAccessBits *newsab, unsigned char userbyte=0x00)

void	changeKeys (std::shared_ptr< MifareKey > newkeyA, std::shared_ptr< MifareKey > newkeyB, unsigned int sector, MifareAccessInfo::SectorAccessBits *newsab, unsigned char userbyte=0x00)

void	authenticate (MifareKeyType keyType, std::shared_ptr< MifareKey > key, int sector, int block, bool write)
	Authenticate for a targeted block.

virtual ByteVector	readBinary (unsigned char blockno, size_t len)=0
	Read bytes from the card.

virtual void	updateBinary (unsigned char blockno, const ByteVector &buf)=0
	Write bytes to the card.

virtual bool	loadKey (unsigned char keyno, MifareKeyType keytype, std::shared_ptr< MifareKey > key, bool vol=false)=0
	Load a key to the reader.

virtual void	loadKey (std::shared_ptr< Location > location, MifareKeyType keytype, std::shared_ptr< MifareKey > key)=0
	Load a key on a given location.

virtual void	authenticate (unsigned char blockno, unsigned char keyno, MifareKeyType keytype)=0
	Authenticate a block, given a key number.

virtual void	authenticate (unsigned char blockno, std::shared_ptr< KeyStorage > key_storage, MifareKeyType keytype)=0
	Authenticate a block, given a key number.

virtual void	increment (uint8_t blockno, uint32_t value)=0

virtual void	decrement (uint8_t blockno, uint32_t value)=0

bool	writeValueBlock (uint8_t blockno, int32_t value, uint8_t backup_blockno)

bool	readValueBlock (uint8_t blockno, int32_t &value, uint8_t &backup_block)

Public Member Functions inherited from logicalaccess::Commands
	Commands ()=delete
	Constructor.

virtual	~Commands ()

std::shared_ptr< Chip >	getChip () const override
	Get the chip.

virtual void	setChip (std::shared_ptr< Chip > chip)
	Set the chip.

std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const override
	Get the reader/card adapter.

virtual void	setReaderCardAdapter (std::shared_ptr< ReaderCardAdapter > adapter)
	Set the reader/card adapter.

virtual const std::string &	getCmdType () const
	Get the cmd name.

virtual void	setCmdType (const std::string &command_type)
	Set the cmd name.

Public Member Functions inherited from logicalaccess::ICommands
virtual	~ICommands ()=default

virtual std::shared_ptr< Chip >	getChip () const =0
	Get the chip.

virtual std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const =0
	Get the reader/card adapter.

Public Attributes
MifareSL1Impl	sl1_impl_

MifareClassicImpl	classic_impl

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::MifareCommands
static unsigned char	calculateMADCrc (const unsigned char *madbuf, size_t madbuflen)
	Calculate the MAD crc.

static unsigned int	findReferencedSector (long aid, unsigned char *madbuf, size_t madbuflen)
	Find the referenced sector in the MAD.

static MifareKeyType	getKeyType (const MifareAccessInfo::SectorAccessBits &sab, int sector, int block, bool write)

static unsigned char	getNbBlocks (int sector)
	Get number of data blocks for a sector.

static unsigned char	getSectorStartBlock (int sector)
	Get the sector start block.

Protected Member Functions inherited from logicalaccess::MifareCommands
std::shared_ptr< MifareChip >	getMifareChip () const

Protected Member Functions inherited from logicalaccess::Commands
	Commands (std::string commandtype)
	Constructor.

Protected Attributes inherited from logicalaccess::Commands
std::shared_ptr< ReaderCardAdapter >	d_readerCardAdapter
	The reader/card adapter.

std::weak_ptr< Chip >	d_chip
	The chip.

std::string	d_commandtype
	The command type.

Detailed Description

template<typename MifareSL1Impl, typename MifareClassicImpl>
class logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >

MifareSL1Impl is a class that implements the additional SL1 commands. MifareClassicImpl is a class that provide support for the MifareClassic command set.

The MifarePlusSL1Policy is templated with the concrete implementation class for commands.

Constructor & Destructor Documentation

◆ MifarePlusSL1Policy()

template<typename MifareSL1Impl , typename MifareClassicImpl >

logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >::MifarePlusSL1Policy ( )

inline

Member Function Documentation

◆ AESAuthenticateSL1()

template<typename MifareSL1Impl , typename MifareClassicImpl >

bool logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >::AESAuthenticateSL1 ( std::shared_ptr< AES128Key > key )

inlineoverridevirtual

Reimplemented from logicalaccess::MifarePlusSL1Commands.

Reimplemented in logicalaccess::MifarePlusSpringcardAES_SL1_Auth, and logicalaccess::MifarePlusSpringcardSL1Commands.

◆ authenticate() [1/2]

template<typename MifareSL1Impl , typename MifareClassicImpl >

void logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >::authenticate	(	unsigned char	blockno,
		std::shared_ptr< KeyStorage >	key_storage,
		MifareKeyType	keytype
	)

inlineoverridevirtual

Authenticate a block, given a key number.

Parameters

blockno	The block number.
key_storage	The key storage used for authentication.
keytype	The key type.

Reimplemented from logicalaccess::MifarePlusSL1Commands.

◆ authenticate() [2/2]

template<typename MifareSL1Impl , typename MifareClassicImpl >

void logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >::authenticate	(	unsigned char	blockno,
		unsigned char	keyno,
		MifareKeyType	keytype
	)

inlineoverridevirtual

Authenticate a block, given a key number.

Parameters

blockno	The block number.
keyno	The key number, previously loaded with Mifare::loadKey().
keytype	The key type.

Reimplemented from logicalaccess::MifarePlusSL1Commands.

Reimplemented in logicalaccess::MifarePlusSpringcardSL1Commands.

◆ decrement()

template<typename MifareSL1Impl , typename MifareClassicImpl >

void logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >::decrement	(	uint8_t	blockno,
		uint32_t	value
	)

inlineoverridevirtual

Decrement (inplace) the value block at address blockno by value unit.

This means that this is the equivalent of also calling transfer.

Warning: While the parameter is unsigned (because negative value causes errors), value superior to 2^31-1 are also rejected.

Reimplemented from logicalaccess::MifarePlusSL1Commands.

◆ fixup()

template<typename MifareSL1Impl , typename MifareClassicImpl >

void logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >::fixup ( )

inline

◆ increment()

template<typename MifareSL1Impl , typename MifareClassicImpl >

void logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >::increment	(	uint8_t	blockno,
		uint32_t	value
	)

inlineoverridevirtual

Increment (inplace) the value block at address blockno.

This means that this is the equivalent of also calling transfer.

Warning: While the parameter is unsigned (because negative value causes errors), value superior to 2^31-1 are also rejected.

Reimplemented from logicalaccess::MifarePlusSL1Commands.

◆ loadKey() [1/2]

template<typename MifareSL1Impl , typename MifareClassicImpl >

void logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >::loadKey	(	std::shared_ptr< Location >	location,
		MifareKeyType	keytype,
		std::shared_ptr< MifareKey >	key
	)

inlineoverridevirtual

Load a key on a given location.

Parameters

location	The location.
keytype	The mifare key type.
key	The key.

Reimplemented from logicalaccess::MifarePlusSL1Commands.

◆ loadKey() [2/2]

template<typename MifareSL1Impl , typename MifareClassicImpl >

bool logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >::loadKey	(	unsigned char	keyno,
		MifareKeyType	keytype,
		std::shared_ptr< MifareKey >	key,
		bool	vol
	)

inlineoverridevirtual

Load a key to the reader.

Parameters

keyno	The reader key slot number. Can be anything from 0x00 to 0x1F.
keytype	The key type.
key	The key.
vol	Use volatile memory.

Returns: true on success, false otherwise.

Reimplemented from logicalaccess::MifarePlusSL1Commands.

◆ readBinary()

template<typename MifareSL1Impl , typename MifareClassicImpl >

ByteVector logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >::readBinary	(	unsigned char	blockno,
		size_t	len
	)

inlineoverridevirtual

Read bytes from the card.

Parameters

blockno	The block number.
len	The count of bytes to read. (0 <= len < 16)

Returns: The count of bytes red.

Reimplemented from logicalaccess::MifarePlusSL1Commands.

◆ updateBinary()

template<typename MifareSL1Impl , typename MifareClassicImpl >

void logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >::updateBinary	(	unsigned char	blockno,
		const ByteVector &	buf
	)

inlineoverridevirtual

Write bytes to the card.

Parameters

blockno	The block number.
buf	The buffer containing the data.
buflen	The length of buffer.

Returns: The count of bytes written.

Reimplemented from logicalaccess::MifarePlusSL1Commands.

Member Data Documentation

◆ classic_impl

template<typename MifareSL1Impl , typename MifareClassicImpl >

MifareClassicImpl logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >::classic_impl

◆ sl1_impl_

template<typename MifareSL1Impl , typename MifareClassicImpl >

MifareSL1Impl logicalaccess::MifarePlusSL1Policy< MifareSL1Impl, MifareClassicImpl >::sl1_impl_

The documentation for this class was generated from the following file:

C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/mifareplus/mifareplussl1commands.hpp

Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MifarePlusSL1Policy()

Member Function Documentation

◆ AESAuthenticateSL1()

◆ authenticate() [1/2]

◆ authenticate() [2/2]

◆ decrement()

◆ fixup()

◆ increment()

◆ loadKey() [1/2]

◆ loadKey() [2/2]

◆ readBinary()

◆ updateBinary()

Member Data Documentation

◆ classic_impl

◆ sl1_impl_
