logicalaccess::MifareUltralightCPCSCCommands Class Reference

The Mifare Ultralight C commands class for PCSC reader. More...

#include <mifareultralightcpcsccommands.hpp>

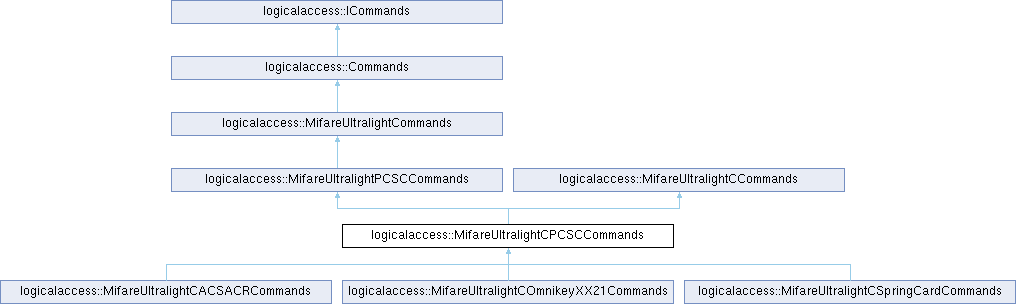

Inheritance diagram for logicalaccess::MifareUltralightCPCSCCommands:

Public Member Functions
	MifareUltralightCPCSCCommands ()
	Constructor.
	MifareUltralightCPCSCCommands (std::string)
virtual	~MifareUltralightCPCSCCommands ()
	Destructor.
void	authenticate (std::shared_ptr< TripleDESKey > authkey) override
	Authenticate to the chip.
Public Member Functions inherited from logicalaccess::MifareUltralightPCSCCommands
	MifareUltralightPCSCCommands ()
	Constructor.
	MifareUltralightPCSCCommands (std::string)
virtual	~MifareUltralightPCSCCommands ()
	Destructor.
std::shared_ptr< PCSCReaderCardAdapter >	getPCSCReaderCardAdapter () const
	Get the PC/SC reader/card adapter.
ByteVector	readPage (int page) override
	Read a whole page.
void	writePage (int page, const ByteVector &buf) override
	Write a whole page.
Public Member Functions inherited from logicalaccess::MifareUltralightCommands
	MifareUltralightCommands ()
	MifareUltralightCommands (std::string ct)
virtual ByteVector	readPages (int start_page, int stop_page)
	Read several pages.
virtual void	writePages (int start_page, int stop_page, const ByteVector &buf)
	Write several pages.
virtual void	lockPage (int page)
	Set a page as read-only.
virtual ByteVector	readPage (int page)=0
	Read a whole page.
virtual void	writePage (int page, const ByteVector &buf)=0
	Write a whole page.
Public Member Functions inherited from logicalaccess::Commands
	Commands ()=delete
	Constructor.
virtual	~Commands ()
std::shared_ptr< Chip >	getChip () const override
	Get the chip.
virtual void	setChip (std::shared_ptr< Chip > chip)
	Set the chip.
std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const override
	Get the reader/card adapter.
virtual void	setReaderCardAdapter (std::shared_ptr< ReaderCardAdapter > adapter)
	Set the reader/card adapter.
virtual const std::string &	getCmdType () const
	Get the cmd name.
virtual void	setCmdType (const std::string &command_type)
	Set the cmd name.
Public Member Functions inherited from logicalaccess::ICommands
virtual	~ICommands ()=default
virtual std::shared_ptr< Chip >	getChip () const =0
	Get the chip.
virtual std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const =0
	Get the reader/card adapter.
Public Member Functions inherited from logicalaccess::MifareUltralightCCommands
virtual	~MifareUltralightCCommands ()=default
void	authenticate (std::shared_ptr< AccessInfo > aiToUse)
	Authenticate to the chip.
void	changeKey (std::shared_ptr< AccessInfo > aiToWrite)
	Change the chip authentication key.
virtual void	changeKey (std::shared_ptr< TripleDESKey > key)
	Change the chip authentication key.
virtual void	lockPage (int page)
	Set a page as read-only.
virtual void	authenticate (std::shared_ptr< TripleDESKey > authkey)=0
	Authenticate to the chip.
virtual void	writePage (int page, const ByteVector &buf)=0

Protected Member Functions
virtual void	startGenericSession ()
virtual void	stopGenericSession ()
std::shared_ptr< MifareUltralightChip >	getMifareUltralightChip () override
void	writePage (int page, const ByteVector &buf) override
virtual ISO7816Response	sendGenericCommand (const ByteVector &data)
virtual ByteVector	authenticate_PICC1 ()
virtual ByteVector	authenticate_PICC2 (const ByteVector &encRndAB)
virtual std::shared_ptr< MifareUltralightChip >	getMifareUltralightChip ()
Protected Member Functions inherited from logicalaccess::Commands
	Commands (std::string commandtype)
	Constructor.
Protected Member Functions inherited from logicalaccess::MifareUltralightCCommands
std::shared_ptr< MifareUltralightCChip >	getMifareUltralightCChip ()
virtual std::shared_ptr< MifareUltralightChip >	getMifareUltralightChip ()=0

Additional Inherited Members
Protected Attributes inherited from logicalaccess::Commands
std::shared_ptr< ReaderCardAdapter >	d_readerCardAdapter
	The reader/card adapter.
std::weak_ptr< Chip >	d_chip
	The chip.
std::string	d_commandtype
	The command type.

Detailed Description

The Mifare Ultralight C commands class for PCSC reader.

Constructor & Destructor Documentation

MifareUltralightCPCSCCommands() [1/2]

logicalaccess::MifareUltralightCPCSCCommands::MifareUltralightCPCSCCommands

(

)

Constructor.

MifareUltralightCPCSCCommands() [2/2]

logicalaccess::MifareUltralightCPCSCCommands::MifareUltralightCPCSCCommands ( std::string  ct )

explicit

~MifareUltralightCPCSCCommands()

logicalaccess::MifareUltralightCPCSCCommands::~MifareUltralightCPCSCCommands ( )

virtual

Destructor.

Member Function Documentation

authenticate()

void logicalaccess::MifareUltralightCPCSCCommands::authenticate ( std::shared_ptr< TripleDESKey >  authkey )

overridevirtual

Authenticate to the chip.

Parameters

authkey

The authentication key.

Implements logicalaccess::MifareUltralightCCommands.

authenticate_PICC1()

ByteVector logicalaccess::MifareUltralightCPCSCCommands::authenticate_PICC1 ( )

protectedvirtual

authenticate_PICC2()

ByteVector logicalaccess::MifareUltralightCPCSCCommands::authenticate_PICC2 ( const ByteVector &  encRndAB )

protectedvirtual

getMifareUltralightChip()

std::shared_ptr< MifareUltralightChip > logicalaccess::MifareUltralightCPCSCCommands::getMifareUltralightChip ( )

overrideprotectedvirtual

Implements logicalaccess::MifareUltralightCCommands.

sendGenericCommand()

ISO7816Response logicalaccess::MifareUltralightCPCSCCommands::sendGenericCommand ( const ByteVector &  data )

protectedvirtual

Reimplemented in logicalaccess::MifareUltralightCACSACRCommands, logicalaccess::MifareUltralightCOmnikeyXX21Commands, and logicalaccess::MifareUltralightCSpringCardCommands.

startGenericSession()

void logicalaccess::MifareUltralightCPCSCCommands::startGenericSession ( )

protectedvirtual

Reimplemented in logicalaccess::MifareUltralightCOmnikeyXX21Commands, and logicalaccess::MifareUltralightCSpringCardCommands.

stopGenericSession()

void logicalaccess::MifareUltralightCPCSCCommands::stopGenericSession ( )

protectedvirtual

Reimplemented in logicalaccess::MifareUltralightCOmnikeyXX21Commands, and logicalaccess::MifareUltralightCSpringCardCommands.

writePage()

void logicalaccess::MifareUltralightCPCSCCommands::writePage ( int  page, const ByteVector &  buf  )

overrideprotectedvirtual

Implements logicalaccess::MifareUltralightCCommands.

---

The documentation for this class was generated from the following files:

• C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/pcsc/commands/mifareultralightcpcsccommands.hpp
• C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/pcsc/commands/mifareultralightcpcsccommands.cpp
