logicalaccess::MifareUltralightCChip Class Reference

The Mifare Ultralight C base chip class. More...

#include <mifareultralightcchip.hpp>

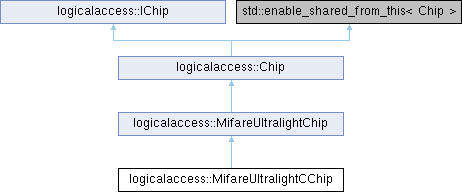

Inheritance diagram for logicalaccess::MifareUltralightCChip:

Public Member Functions
	MifareUltralightCChip ()
	Constructor.
virtual	~MifareUltralightCChip ()
	Destructor.
std::shared_ptr< LocationNode >	getRootLocationNode () override
	Get the root location node.
std::shared_ptr< CardService >	getService (CardServiceType serviceType) override
	Get a card service for this chip.
std::shared_ptr< AccessInfo >	createAccessInfo () const override
	Create default access informations.
std::shared_ptr< TripleDESKey >	getDefaultKey () const
std::shared_ptr< MifareUltralightCCommands >	getMifareUltralightCCommands () const
	Get the Mifare Ultralight C card provider for I/O access.
Public Member Functions inherited from logicalaccess::MifareUltralightChip
	MifareUltralightChip ()
	Constructor.
	MifareUltralightChip (std::string ct)
	Constructor.
virtual	~MifareUltralightChip ()
	Destructor.
std::string	getGenericCardType () const override
	Get the generic card type.
std::shared_ptr< LocationNode >	getRootLocationNode () override
	Get the root location node.
std::shared_ptr< CardService >	getService (CardServiceType serviceType) override
	Get a card service for this chip.
virtual unsigned short	getNbBlocks (bool checkOnCard=false)
	Get the number of blocks.
std::shared_ptr< AccessInfo >	createAccessInfo () const override
	Create default access informations.
std::shared_ptr< Location >	createLocation () const override
	Create default location.
std::shared_ptr< MifareUltralightCommands >	getMifareUltralightCommands () const
	Get the Mifare Ultralight commands.
Public Member Functions inherited from logicalaccess::Chip
	Chip ()
	Constructor.
	Chip (std::string cardtype)
	Constructor.
virtual	~Chip ()
	Destructor.
const std::string &	getCardType () const override
	Get the card type of the chip.
std::string	getGenericCardType () const override
	Get the generic card type.
virtual std::shared_ptr< LocationNode >	getRootLocationNode ()
	Get the root location node.
std::shared_ptr< Commands >	getCommands () const override
	Get the commands.
void	setCommands (std::shared_ptr< Commands > commands)
	Set commands.
ByteVector	getChipIdentifier () const override
	Get the chip identifier.
virtual void	setChipIdentifier (ByteVector identifier)
	Set the chip identifier.
ChipPowerStatus	getPowerStatus () const
	Get the chip power status.
void	setPowerStatus (ChipPowerStatus powerStatus)
	Set the chip power status.
unsigned char	getReceptionLevel () const
	Get the chip reception level.
void	setReceptionLevel (unsigned char receptionLevel)
	Set the chip reception level.
virtual std::shared_ptr< AccessInfo >	createAccessInfo () const
	Create default access informations.
virtual std::shared_ptr< Location >	createLocation () const
	Create default location.
std::shared_ptr< CardService >	getService (CardServiceType serviceType) override
	Get a card service for this chip.
template<typename T >
std::shared_ptr< T >	getService ()
bool	operator< (const Chip &chip) const
Public Member Functions inherited from logicalaccess::IChip
virtual	~IChip ()=default
virtual const std::string &	getCardType () const =0
	Get the card type of the chip.
virtual std::string	getGenericCardType () const =0
	Get the generic card type.
virtual std::shared_ptr< Commands >	getCommands () const =0
	Get the commands.
virtual ByteVector	getChipIdentifier () const =0
	Get the chip identifier.
virtual std::shared_ptr< CardService >	getService (CardServiceType serviceType)=0
	Get a card service for this chip.

Additional Inherited Members
Protected Member Functions inherited from logicalaccess::MifareUltralightChip
void	checkRootLocationNodeName (std::shared_ptr< LocationNode > rootNode)
Static Protected Member Functions inherited from logicalaccess::MifareUltralightChip
static void	addBlockNode (std::shared_ptr< LocationNode > rootNode, int block)
Protected Attributes inherited from logicalaccess::MifareUltralightChip
unsigned short	d_nbblocks
Protected Attributes inherited from logicalaccess::Chip
std::string	d_cardtype
	The card type of the profile.
ByteVector	d_chipIdentifier
	The chip identifier.
ChipPowerStatus	d_powerStatus
	The chip power status. Most chip doesn't have his own power supply.
std::shared_ptr< Commands >	d_commands
	Commands object.
unsigned char	d_receptionLevel
	The chip reception level.

Detailed Description

The Mifare Ultralight C base chip class.

Constructor & Destructor Documentation

MifareUltralightCChip()

logicalaccess::MifareUltralightCChip::MifareUltralightCChip

(

)

Constructor.

~MifareUltralightCChip()

logicalaccess::MifareUltralightCChip::~MifareUltralightCChip ( )

virtual

Destructor.

Member Function Documentation

createAccessInfo()

std::shared_ptr< AccessInfo > logicalaccess::MifareUltralightCChip::createAccessInfo ( ) const

overridevirtual

Create default access informations.

Returns

Default access informations. Always null.

Reimplemented from logicalaccess::Chip.

getDefaultKey()

std::shared_ptr< TripleDESKey > logicalaccess::MifareUltralightCChip::getDefaultKey

(

)

const

getMifareUltralightCCommands()

std::shared_ptr< MifareUltralightCCommands > logicalaccess::MifareUltralightCChip::getMifareUltralightCCommands ( ) const

inline

Get the Mifare Ultralight C card provider for I/O access.

Returns

The Mifare Ultralight C card provider.

getRootLocationNode()

std::shared_ptr< LocationNode > logicalaccess::MifareUltralightCChip::getRootLocationNode ( )

overridevirtual

Get the root location node.

Returns

The root location node.

Reimplemented from logicalaccess::Chip.

getService()

std::shared_ptr< CardService > logicalaccess::MifareUltralightCChip::getService ( CardServiceType  serviceType )

overridevirtual

Get a card service for this chip.

Parameters

serviceType

The card service type.

Returns

The card service.

Reimplemented from logicalaccess::Chip.

---

The documentation for this class was generated from the following files:

• C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/mifareultralight/mifareultralightcchip.hpp
• C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/mifareultralight/mifareultralightcchip.cpp
