logicalaccess::MifareUltralightCCommands Class Reference

The Mifare Ultralight C commands class. More...

#include <mifareultralightccommands.hpp>

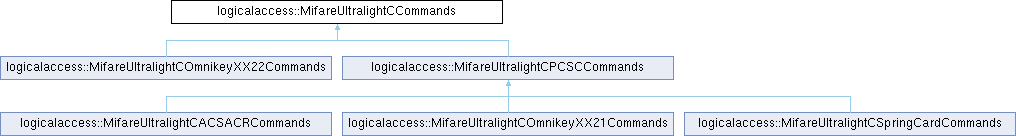

Inheritance diagram for logicalaccess::MifareUltralightCCommands:

Public Member Functions
virtual	~MifareUltralightCCommands ()=default
void	authenticate (std::shared_ptr< AccessInfo > aiToUse)
	Authenticate to the chip.
void	changeKey (std::shared_ptr< AccessInfo > aiToWrite)
	Change the chip authentication key.
virtual void	changeKey (std::shared_ptr< TripleDESKey > key)
	Change the chip authentication key.
virtual void	lockPage (int page)
	Set a page as read-only.
virtual void	authenticate (std::shared_ptr< TripleDESKey > authkey)=0
	Authenticate to the chip.
virtual void	writePage (int page, const ByteVector &buf)=0

Protected Member Functions
std::shared_ptr< MifareUltralightCChip >	getMifareUltralightCChip ()
virtual std::shared_ptr< MifareUltralightChip >	getMifareUltralightChip ()=0

Detailed Description

The Mifare Ultralight C commands class.

Constructor & Destructor Documentation

~MifareUltralightCCommands()

virtual logicalaccess::MifareUltralightCCommands::~MifareUltralightCCommands ( )

virtualdefault

Member Function Documentation

authenticate() [1/2]

void logicalaccess::MifareUltralightCCommands::authenticate

(

std::shared_ptr< AccessInfo >

aiToUse

)

Authenticate to the chip.

Parameters

aiToUse

The access information to use for authentication.

authenticate() [2/2]

virtual void logicalaccess::MifareUltralightCCommands::authenticate ( std::shared_ptr< TripleDESKey >  authkey )

pure virtual

Authenticate to the chip.

Parameters

authkey

The authentication key.

Implemented in logicalaccess::MifareUltralightCOmnikeyXX22Commands, and logicalaccess::MifareUltralightCPCSCCommands.

changeKey() [1/2]

void logicalaccess::MifareUltralightCCommands::changeKey

(

std::shared_ptr< AccessInfo >

aiToWrite

)

Change the chip authentication key.

Parameters

aiToWrite

The access information to write.

changeKey() [2/2]

void logicalaccess::MifareUltralightCCommands::changeKey ( std::shared_ptr< TripleDESKey >  key )

virtual

Change the chip authentication key.

Parameters

key	The new key.

getMifareUltralightCChip()

std::shared_ptr< MifareUltralightCChip > logicalaccess::MifareUltralightCCommands::getMifareUltralightCChip ( )

protected

getMifareUltralightChip()

virtual std::shared_ptr< MifareUltralightChip > logicalaccess::MifareUltralightCCommands::getMifareUltralightChip ( )

protectedpure virtual

Implemented in logicalaccess::MifareUltralightCOmnikeyXX22Commands, and logicalaccess::MifareUltralightCPCSCCommands.

lockPage()

void logicalaccess::MifareUltralightCCommands::lockPage ( int  page )

virtual

Set a page as read-only.

Parameters

page	The page to lock.

writePage()

virtual void logicalaccess::MifareUltralightCCommands::writePage ( int  page, const ByteVector &  buf  )

pure virtual

Implemented in logicalaccess::MifareUltralightCOmnikeyXX22Commands, and logicalaccess::MifareUltralightCPCSCCommands.

---

The documentation for this class was generated from the following files:

• C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/mifareultralight/mifareultralightccommands.hpp
• C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/mifareultralight/mifareultralightccommands.cpp
