The Mifare Ultralight commands class. More...

#include <mifareultralightcommands.hpp>

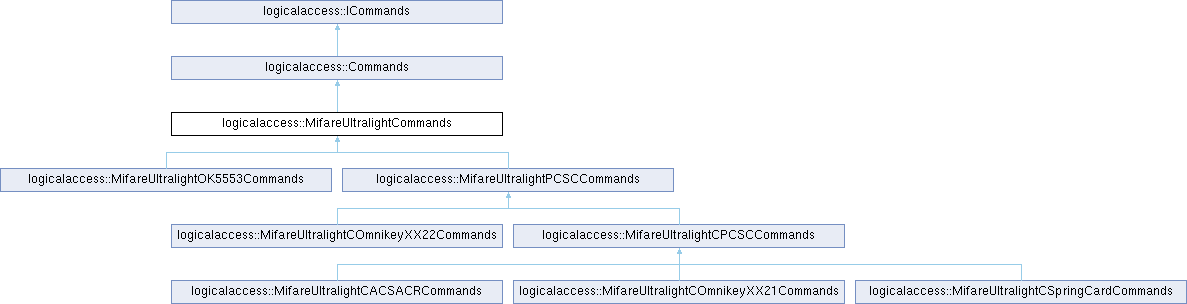

Inheritance diagram for logicalaccess::MifareUltralightCommands:

Public Member Functions
	MifareUltralightCommands ()

	MifareUltralightCommands (std::string ct)

virtual ByteVector	readPages (int start_page, int stop_page)
	Read several pages.

virtual void	writePages (int start_page, int stop_page, const ByteVector &buf)
	Write several pages.

virtual void	lockPage (int page)
	Set a page as read-only.

virtual ByteVector	readPage (int page)=0
	Read a whole page.

virtual void	writePage (int page, const ByteVector &buf)=0
	Write a whole page.

Public Member Functions inherited from logicalaccess::Commands
	Commands ()=delete
	Constructor.

virtual	~Commands ()

std::shared_ptr< Chip >	getChip () const override
	Get the chip.

virtual void	setChip (std::shared_ptr< Chip > chip)
	Set the chip.

std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const override
	Get the reader/card adapter.

virtual void	setReaderCardAdapter (std::shared_ptr< ReaderCardAdapter > adapter)
	Set the reader/card adapter.

virtual const std::string &	getCmdType () const
	Get the cmd name.

virtual void	setCmdType (const std::string &command_type)
	Set the cmd name.

Public Member Functions inherited from logicalaccess::ICommands
virtual	~ICommands ()=default

virtual std::shared_ptr< Chip >	getChip () const =0
	Get the chip.

virtual std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const =0
	Get the reader/card adapter.

Protected Member Functions
virtual std::shared_ptr< MifareUltralightChip >	getMifareUltralightChip ()

Protected Member Functions inherited from logicalaccess::Commands
	Commands (std::string commandtype)
	Constructor.

Additional Inherited Members
Protected Attributes inherited from logicalaccess::Commands
std::shared_ptr< ReaderCardAdapter >	d_readerCardAdapter
	The reader/card adapter.

std::weak_ptr< Chip >	d_chip
	The chip.

std::string	d_commandtype
	The command type.

Detailed Description

The Mifare Ultralight commands class.

Constructor & Destructor Documentation

◆ MifareUltralightCommands() [1/2]

logicalaccess::MifareUltralightCommands::MifareUltralightCommands ( )

inline

◆ MifareUltralightCommands() [2/2]

logicalaccess::MifareUltralightCommands::MifareUltralightCommands ( std::string ct )

inlineexplicit

Member Function Documentation

◆ getMifareUltralightChip()

std::shared_ptr< MifareUltralightChip > logicalaccess::MifareUltralightCommands::getMifareUltralightChip ( )

protectedvirtual

Reimplemented in logicalaccess::MifareUltralightCOmnikeyXX22Commands, and logicalaccess::MifareUltralightCPCSCCommands.

◆ lockPage()

void logicalaccess::MifareUltralightCommands::lockPage ( int page )

virtual

Set a page as read-only.

Parameters

page	The page to lock.

◆ readPage()

virtual ByteVector logicalaccess::MifareUltralightCommands::readPage ( int page )

pure virtual

Read a whole page.

Parameters

sector	The page number, from 0 to 15.
buf	A buffer to fill with the data of the page.
buflen	The length of buffer. Must be at least 4 bytes long or the call will fail.

Returns: The number of bytes red, or a negative value on error.

Implemented in logicalaccess::MifareUltralightOK5553Commands, and logicalaccess::MifareUltralightPCSCCommands.

◆ readPages()

ByteVector logicalaccess::MifareUltralightCommands::readPages	(	int	start_page,
		int	stop_page
	)

virtual

Read several pages.

Parameters

start_page	The start page number, from 0 to stop_page.
stop_page	The stop page number, from start_page to 15.
buf	The buffer to fill with the data.
buflen	The length of buf. Must be at least (stop_page - start_page + 1) * 4 bytes long.

Returns: The number of bytes red, or a negative value on error.

◆ writePage()

virtual void logicalaccess::MifareUltralightCommands::writePage	(	int	page,
		const ByteVector &	buf
	)

pure virtual

Write a whole page.

Parameters

sector	The page number, from 0 to 15.
buf	A buffer to from which to copy the data.
buflen	The length of buffer. Must be at least 4 bytes long or the call will fail.

Returns: The number of bytes written, or a negative value on error.

Implemented in logicalaccess::MifareUltralightOK5553Commands, logicalaccess::MifareUltralightCOmnikeyXX22Commands, logicalaccess::MifareUltralightCPCSCCommands, and logicalaccess::MifareUltralightPCSCCommands.

◆ writePages()

void logicalaccess::MifareUltralightCommands::writePages	(	int	start_page,
		int	stop_page,
		const ByteVector &	buf
	)

virtual

Write several pages.

Parameters

start_page	The start page number, from 0 to stop_page.
stop_page	The stop page number, from start_page to 15.
buf	The buffer to fill with the data.
buflen	The length of buf. Must be at least (stop_page - start_page + 1) * 4 bytes long.

Returns: The number of bytes red, or a negative value on error.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/mifareultralight/mifareultralightcommands.hpp
C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/mifareultralight/mifareultralightcommands.cpp
