The Mifare Ultralight commands class for PCSC reader. More...

#include <mifareultralightpcsccommands.hpp>

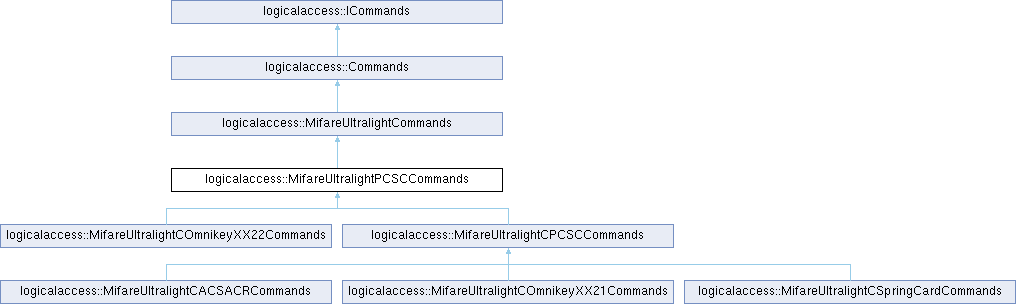

Inheritance diagram for logicalaccess::MifareUltralightPCSCCommands:

Public Member Functions
	MifareUltralightPCSCCommands ()
	Constructor.

	MifareUltralightPCSCCommands (std::string)

virtual	~MifareUltralightPCSCCommands ()
	Destructor.

std::shared_ptr< PCSCReaderCardAdapter >	getPCSCReaderCardAdapter () const
	Get the PC/SC reader/card adapter.

ByteVector	readPage (int page) override
	Read a whole page.

void	writePage (int page, const ByteVector &buf) override
	Write a whole page.

Public Member Functions inherited from logicalaccess::MifareUltralightCommands
	MifareUltralightCommands ()

	MifareUltralightCommands (std::string ct)

virtual ByteVector	readPages (int start_page, int stop_page)
	Read several pages.

virtual void	writePages (int start_page, int stop_page, const ByteVector &buf)
	Write several pages.

virtual void	lockPage (int page)
	Set a page as read-only.

virtual ByteVector	readPage (int page)=0
	Read a whole page.

virtual void	writePage (int page, const ByteVector &buf)=0
	Write a whole page.

Public Member Functions inherited from logicalaccess::Commands
	Commands ()=delete
	Constructor.

virtual	~Commands ()

std::shared_ptr< Chip >	getChip () const override
	Get the chip.

virtual void	setChip (std::shared_ptr< Chip > chip)
	Set the chip.

std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const override
	Get the reader/card adapter.

virtual void	setReaderCardAdapter (std::shared_ptr< ReaderCardAdapter > adapter)
	Set the reader/card adapter.

virtual const std::string &	getCmdType () const
	Get the cmd name.

virtual void	setCmdType (const std::string &command_type)
	Set the cmd name.

Public Member Functions inherited from logicalaccess::ICommands
virtual	~ICommands ()=default

virtual std::shared_ptr< Chip >	getChip () const =0
	Get the chip.

virtual std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const =0
	Get the reader/card adapter.

Additional Inherited Members
Protected Member Functions inherited from logicalaccess::MifareUltralightCommands
virtual std::shared_ptr< MifareUltralightChip >	getMifareUltralightChip ()

Protected Member Functions inherited from logicalaccess::Commands
	Commands (std::string commandtype)
	Constructor.

Protected Attributes inherited from logicalaccess::Commands
std::shared_ptr< ReaderCardAdapter >	d_readerCardAdapter
	The reader/card adapter.

std::weak_ptr< Chip >	d_chip
	The chip.

std::string	d_commandtype
	The command type.

Detailed Description

The Mifare Ultralight commands class for PCSC reader.

Constructor & Destructor Documentation

◆ MifareUltralightPCSCCommands() [1/2]

logicalaccess::MifareUltralightPCSCCommands::MifareUltralightPCSCCommands ( )

Constructor.

◆ MifareUltralightPCSCCommands() [2/2]

logicalaccess::MifareUltralightPCSCCommands::MifareUltralightPCSCCommands ( std::string ct )

explicit

◆ ~MifareUltralightPCSCCommands()

logicalaccess::MifareUltralightPCSCCommands::~MifareUltralightPCSCCommands ( )

virtual

Destructor.

Member Function Documentation

◆ getPCSCReaderCardAdapter()

std::shared_ptr< PCSCReaderCardAdapter > logicalaccess::MifareUltralightPCSCCommands::getPCSCReaderCardAdapter ( ) const

inline

Get the PC/SC reader/card adapter.

Returns: The PC/SC reader/card adapter.

◆ readPage()

ByteVector logicalaccess::MifareUltralightPCSCCommands::readPage ( int page )

overridevirtual

Read a whole page.

Parameters

sector	The page number, from 0 to 15.
buf	A buffer to fill with the data of the page.
buflen	The length of buffer. Must be at least 4 bytes long or the call will fail.

Returns: The number of bytes red, or a negative value on error.

Implements logicalaccess::MifareUltralightCommands.

◆ writePage()

void logicalaccess::MifareUltralightPCSCCommands::writePage	(	int	page,
		const ByteVector &	buf
	)
