A TLV data field. More...

#include <tlvdatafield.hpp>

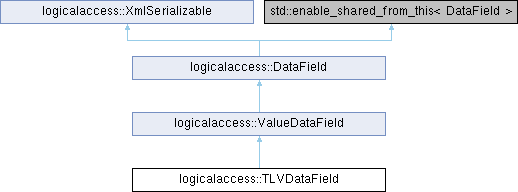

Inheritance diagram for logicalaccess::TLVDataField:

Public Member Functions
	TLVDataField ()
	Constructor.

	TLVDataField (unsigned char tag)
	Constructor.

virtual	~TLVDataField ()
	Destructor.

DataFieldType	getDFType () const override
	Get the field type.

virtual void	setPosition (unsigned int position) override
	Set the field position in bits.

void	setValue (const std::string &value)
	Set the field value.

std::string	getValue () const
	Get the field value.

void	setTag (unsigned char tag)

unsigned char	getTag () const

void	setRawValue (const std::vector< unsigned char > &value)
	Set the field value.

std::vector< unsigned char >	getRawValue () const
	Get the field value.

virtual BitsetStream	getLinearData (const BitsetStream &data) const override
	Get linear data.

virtual void	setLinearData (const ByteVector &data) override
	Set linear data.

virtual bool	checkSkeleton (std::shared_ptr< DataField > field) const override
	Check the current field skeleton with another field.

virtual void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.

virtual void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

std::string	getDefaultXmlNodeName () const override
	Get the default Xml Node name for this object.

Public Member Functions inherited from logicalaccess::ValueDataField
	ValueDataField ()
	Constructor.

virtual	~ValueDataField ()
	Destructor.

DataFieldType	getDFType () const override
	Get the field type.

virtual void	setDataLength (unsigned int length)
	Set data length in bits.

std::shared_ptr< DataRepresentation >	getDataRepresentation () const
	Get the Data Representation for the field.

void	setDataRepresentation (std::shared_ptr< DataRepresentation > &encoding)
	Set the Data Representation for the field.

std::shared_ptr< DataType >	getDataType () const
	Get the Data Type for the field.

void	setDataType (const std::shared_ptr< DataType > &encoding)
	Set the Data Type for the field.

void	setIsFixedField (bool isFixed)
	Set if the field is a fixed field.

bool	getIsFixedField () const
	Get if the field is a fixed field.

void	setIsIdentifier (bool isIdentifier)
	Set if the field is used as identifier.

bool	getIsIdentifier () const
	Get if the field is used as identifier.

void	convertNumericData (BitsetStream &data, unsigned long long field, unsigned int fieldlen) const
	Convert a numeric data into the configured DataRepresentation and DataType.

void	convertBinaryData (const BitsetStream &data, unsigned int fieldlen, BitsetStream &convertedData) const
	Convert a binary data into the configured DataRepresentation.

unsigned long long	revertNumericData (const BitsetStream &data, unsigned int pos, unsigned int fieldlen) const
	Revert a numeric data using the configured DataRepresentation and DataType.

BitsetStream	revertBinaryData (const BitsetStream &data, unsigned int pos, unsigned int fieldlen) const
	Revert a binary data using the configured DataRepresentation.

void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

Public Member Functions inherited from logicalaccess::DataField
	DataField ()
	Constructor.

virtual	~DataField ()
	Destructor.

virtual unsigned int	getDataLength () const
	Get data length in bits.

virtual void	setPosition (unsigned int position)
	Set the field position in bits.

unsigned int	getPosition () const
	Get the field position in bits.

virtual DataFieldType	getDFType () const =0
	Get the field type.

void	setName (const std::string &name)
	Set the field name.

std::string	getName () const
	Get the field name.

virtual BitsetStream	getLinearData (const BitsetStream &data) const =0
	Get linear data.

virtual void	setLinearData (const ByteVector &data)=0
	Set linear data.

virtual bool	checkSkeleton (std::shared_ptr< DataField > field) const =0
	Check the current field skeleton with another field.

void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.

virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Protected Attributes
std::string	d_value

unsigned char	d_tag

Protected Attributes inherited from logicalaccess::ValueDataField
std::shared_ptr< DataRepresentation >	d_dataRepresentation
	The Data Representation.

std::shared_ptr< DataType >	d_dataType
	The Data Type.

bool	d_isFixedField
	The field is a value field.

bool	d_isIdentifier
	The field is used as identifier.

Protected Attributes inherited from logicalaccess::DataField
std::string	d_name
	The field name.

unsigned int	d_length
	The field length in bits.

unsigned int	d_position
	The field position in bits.

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.

static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.

Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)

Detailed Description

A TLV data field.

Constructor & Destructor Documentation

◆ TLVDataField() [1/2]

logicalaccess::TLVDataField::TLVDataField ( )

Constructor.

◆ TLVDataField() [2/2]

logicalaccess::TLVDataField::TLVDataField ( unsigned char tag )

Constructor.

◆ ~TLVDataField()

logicalaccess::TLVDataField::~TLVDataField ( )

virtual

Destructor.

Member Function Documentation

◆ checkSkeleton()

bool logicalaccess::TLVDataField::checkSkeleton ( std::shared_ptr< DataField > field ) const

overridevirtual

Check the current field skeleton with another field.

Parameters

field The field to check.

Returns: True on success, false otherwise.

Implements logicalaccess::DataField.

◆ getDefaultXmlNodeName()

std::string logicalaccess::TLVDataField::getDefaultXmlNodeName ( ) const

overridevirtual

Get the default Xml Node name for this object.

Returns: The Xml node name.

Implements logicalaccess::XmlSerializable.

◆ getDFType()

DataFieldType logicalaccess::TLVDataField::getDFType ( ) const

inlineoverridevirtual

Get the field type.

Returns: The field type.

Implements logicalaccess::DataField.

◆ getLinearData()

BitsetStream logicalaccess::TLVDataField::getLinearData ( const BitsetStream & data ) const

overridevirtual

Get linear data.

Parameters

data	Where to put data
dataLengthBytes	Length in byte of data
pos	The first position bit. Will contain the position bit after the field.

Implements logicalaccess::DataField.

◆ getRawValue()

ByteVector logicalaccess::TLVDataField::getRawValue ( ) const

Get the field value.

Returns: The field value.

◆ getTag()

unsigned char logicalaccess::TLVDataField::getTag ( ) const

◆ getValue()

std::string logicalaccess::TLVDataField::getValue ( ) const

Get the field value.

Returns: The field value.

◆ serialize()

void logicalaccess::TLVDataField::serialize ( boost::property_tree::ptree & parentNode )

overridevirtual

Serialize the current object to XML.

Parameters

parentNode The parent node.

Reimplemented from logicalaccess::DataField.

◆ setLinearData()

void logicalaccess::TLVDataField::setLinearData ( const ByteVector & data )

overridevirtual

Set linear data.

Parameters

data	Where to get data
dataLengthBytes	Length of data in bytes
pos	The first position bit. Will contain the position bit after the field.

Implements logicalaccess::DataField.

◆ setPosition()

void logicalaccess::TLVDataField::setPosition ( unsigned int position )

overridevirtual

Set the field position in bits.

Parameters

position The field position in bits.

Reimplemented from logicalaccess::DataField.

◆ setRawValue()

void logicalaccess::TLVDataField::setRawValue ( const std::vector< unsigned char > & value )

Set the field value.

Parameters

value The field value.

◆ setTag()

void logicalaccess::TLVDataField::setTag ( unsigned char tag )

◆ setValue()

void logicalaccess::TLVDataField::setValue ( const std::string & value )

Set the field value.

Parameters

value The field value.

◆ unSerialize()

void logicalaccess::TLVDataField::unSerialize ( boost::property_tree::ptree & node )

overridevirtual

UnSerialize a XML node to the current object.

Parameters

node	The XML node.

Reimplemented from logicalaccess::DataField.

Member Data Documentation

◆ d_tag

unsigned char logicalaccess::TLVDataField::d_tag

protected

◆ d_value

std::string logicalaccess::TLVDataField::d_value

protected

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/include/logicalaccess/services/accesscontrol/formats/customformat/tlvdatafield.hpp
C:/dev/lla/liblogicalaccess/src/services/accesscontrol/formats/customformat/tlvdatafield.cpp
