A value data field base class. More...

#include <valuedatafield.hpp>

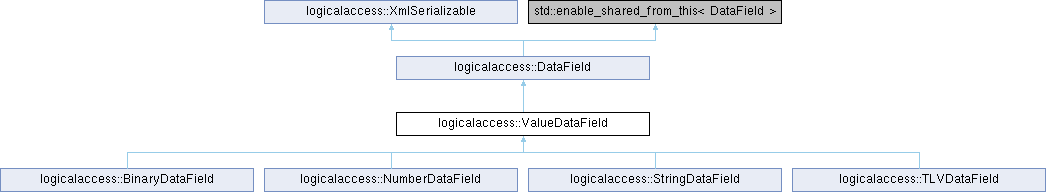

Inheritance diagram for logicalaccess::ValueDataField:

Public Member Functions
	ValueDataField ()
	Constructor.

virtual	~ValueDataField ()
	Destructor.

DataFieldType	getDFType () const override
	Get the field type.

virtual void	setDataLength (unsigned int length)
	Set data length in bits.

std::shared_ptr< DataRepresentation >	getDataRepresentation () const
	Get the Data Representation for the field.

void	setDataRepresentation (std::shared_ptr< DataRepresentation > &encoding)
	Set the Data Representation for the field.

std::shared_ptr< DataType >	getDataType () const
	Get the Data Type for the field.

void	setDataType (const std::shared_ptr< DataType > &encoding)
	Set the Data Type for the field.

void	setIsFixedField (bool isFixed)
	Set if the field is a fixed field.

bool	getIsFixedField () const
	Get if the field is a fixed field.

void	setIsIdentifier (bool isIdentifier)
	Set if the field is used as identifier.

bool	getIsIdentifier () const
	Get if the field is used as identifier.

void	convertNumericData (BitsetStream &data, unsigned long long field, unsigned int fieldlen) const
	Convert a numeric data into the configured DataRepresentation and DataType.

void	convertBinaryData (const BitsetStream &data, unsigned int fieldlen, BitsetStream &convertedData) const
	Convert a binary data into the configured DataRepresentation.

unsigned long long	revertNumericData (const BitsetStream &data, unsigned int pos, unsigned int fieldlen) const
	Revert a numeric data using the configured DataRepresentation and DataType.

BitsetStream	revertBinaryData (const BitsetStream &data, unsigned int pos, unsigned int fieldlen) const
	Revert a binary data using the configured DataRepresentation.

void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

Public Member Functions inherited from logicalaccess::DataField
	DataField ()
	Constructor.

virtual	~DataField ()
	Destructor.

virtual unsigned int	getDataLength () const
	Get data length in bits.

virtual void	setPosition (unsigned int position)
	Set the field position in bits.

unsigned int	getPosition () const
	Get the field position in bits.

virtual DataFieldType	getDFType () const =0
	Get the field type.

void	setName (const std::string &name)
	Set the field name.

std::string	getName () const
	Get the field name.

virtual BitsetStream	getLinearData (const BitsetStream &data) const =0
	Get linear data.

virtual void	setLinearData (const ByteVector &data)=0
	Set linear data.

virtual bool	checkSkeleton (std::shared_ptr< DataField > field) const =0
	Check the current field skeleton with another field.

void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.

virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Protected Attributes
std::shared_ptr< DataRepresentation >	d_dataRepresentation
	The Data Representation.

std::shared_ptr< DataType >	d_dataType
	The Data Type.

bool	d_isFixedField
	The field is a value field.

bool	d_isIdentifier
	The field is used as identifier.

Protected Attributes inherited from logicalaccess::DataField
std::string	d_name
	The field name.

unsigned int	d_length
	The field length in bits.

unsigned int	d_position
	The field position in bits.

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.

static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.

Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)

Detailed Description

A value data field base class.

Constructor & Destructor Documentation

◆ ValueDataField()

logicalaccess::ValueDataField::ValueDataField ( )

Constructor.

◆ ~ValueDataField()

logicalaccess::ValueDataField::~ValueDataField ( )

virtual

Destructor.

Member Function Documentation

◆ convertBinaryData()

void logicalaccess::ValueDataField::convertBinaryData	(	const BitsetStream &	data,
		unsigned int	fieldlen,
		BitsetStream &	convertedData
	)		const

Convert a binary data into the configured DataRepresentation.

Parameters

data	The buffer data that contains the read buffer.
dataLengthBytes	The buffer data length.
pos	The current bit position into the buffer. Will contains the new position.
fieldlen	The field length (in bits).
convertedData	The buffer data that will contains the result.
convertedDataLengthBytes	The buffer data length.

◆ convertNumericData()

void logicalaccess::ValueDataField::convertNumericData	(	BitsetStream &	data,
		unsigned long long	field,
		unsigned int	fieldlen
	)		const

Convert a numeric data into the configured DataRepresentation and DataType.

Parameters

data	The buffer data that will contains the result.
dataLengthBytes	The buffer data length.
pos	The current bit position into the buffer. Will contains the new position.
field	The numeric data value.
fieldlen	The field length (in bits).

◆ getDataRepresentation()

std::shared_ptr< DataRepresentation > logicalaccess::ValueDataField::getDataRepresentation ( ) const

Get the Data Representation for the field.

Returns: The Data Representation.

◆ getDataType()

std::shared_ptr< DataType > logicalaccess::ValueDataField::getDataType ( ) const

Get the Data Type for the field.

Returns: The Data Type.

◆ getDFType()

DataFieldType logicalaccess::ValueDataField::getDFType ( ) const

inlineoverridevirtual

Get the field type.

Returns: The field type.

Implements logicalaccess::DataField.

◆ getIsFixedField()

bool logicalaccess::ValueDataField::getIsFixedField ( ) const

Get if the field is a fixed field.

Returns: True if the field is a fixed field, false otherwise.

◆ getIsIdentifier()

bool logicalaccess::ValueDataField::getIsIdentifier ( ) const

Get if the field is used as identifier.

Returns: True if the field is used as identifier, false otherwise.

◆ revertBinaryData()

BitsetStream logicalaccess::ValueDataField::revertBinaryData	(	const BitsetStream &	data,
		unsigned int	pos,
		unsigned int	fieldlen
	)		const

Revert a binary data using the configured DataRepresentation.

Parameters

data	The buffer data that contains the encoded buffer.
dataLengthBytes	The buffer data length.
pos	The current bit position into the buffer. Will contains the new position.
fieldlen	The field length (in bits).
revertedData	The buffer data that will contains the result.
revertedDataLengthBytes	The buffer data length.

◆ revertNumericData()

unsigned long long logicalaccess::ValueDataField::revertNumericData	(	const BitsetStream &	data,
		unsigned int	pos,
		unsigned int	fieldlen
	)		const

Revert a numeric data using the configured DataRepresentation and DataType.

Parameters

data	The buffer data that contains the encoded field value.
dataLengthBytes	The buffer data length.
pos	The current bit position into the buffer. Will contains the new position.
fieldlen	The field length (in bits).

Returns: The numeric data value.

◆ serialize()

void logicalaccess::ValueDataField::serialize ( boost::property_tree::ptree & parentNode )

overridevirtual

Serialize the current object to XML.

Parameters

parentNode The parent node.

Reimplemented from logicalaccess::DataField.

◆ setDataLength()

void logicalaccess::ValueDataField::setDataLength ( unsigned int length )

virtual

Set data length in bits.

Parameters

length The data length in bits.

◆ setDataRepresentation()

void logicalaccess::ValueDataField::setDataRepresentation ( std::shared_ptr< DataRepresentation > & encoding )

Set the Data Representation for the field.

Parameters

encoding The Data Representation.

◆ setDataType()

void logicalaccess::ValueDataField::setDataType ( const std::shared_ptr< DataType > & encoding )

Set the Data Type for the field.

Parameters

encoding The Data Type.

◆ setIsFixedField()

void logicalaccess::ValueDataField::setIsFixedField ( bool isFixed )

Set if the field is a fixed field.

Returns: isFixed True if the field is a fixed field, false otherwise.

◆ setIsIdentifier()

void logicalaccess::ValueDataField::setIsIdentifier ( bool isIdentifier )

Set if the field is used as identifier.

Returns: isValue True if the field is used as identifier, false otherwise.

◆ unSerialize()

void logicalaccess::ValueDataField::unSerialize ( boost::property_tree::ptree & node )

overridevirtual

UnSerialize a XML node to the current object.

Parameters

node	The XML node.

Reimplemented from logicalaccess::DataField.

Member Data Documentation

◆ d_dataRepresentation

std::shared_ptr<DataRepresentation> logicalaccess::ValueDataField::d_dataRepresentation

protected

The Data Representation.

◆ d_dataType

std::shared_ptr<DataType> logicalaccess::ValueDataField::d_dataType

protected

The Data Type.

◆ d_isFixedField

bool logicalaccess::ValueDataField::d_isFixedField

protected

The field is a value field.

◆ d_isIdentifier

bool logicalaccess::ValueDataField::d_isIdentifier

protected

The field is used as identifier.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/include/logicalaccess/services/accesscontrol/formats/customformat/valuedatafield.hpp
C:/dev/lla/liblogicalaccess/src/services/accesscontrol/formats/customformat/valuedatafield.cpp
