logicalaccess::DataField Class Reference

A data field base class. More...

#include <datafield.hpp>

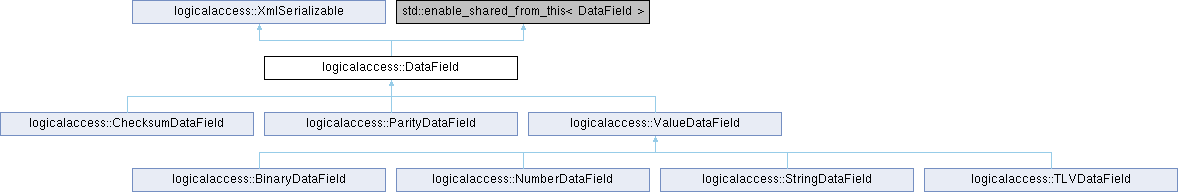

Inheritance diagram for logicalaccess::DataField:

Public Member Functions
	DataField ()
	Constructor.
virtual	~DataField ()
	Destructor.
virtual unsigned int	getDataLength () const
	Get data length in bits.
virtual void	setPosition (unsigned int position)
	Set the field position in bits.
unsigned int	getPosition () const
	Get the field position in bits.
virtual DataFieldType	getDFType () const =0
	Get the field type.
void	setName (const std::string &name)
	Set the field name.
std::string	getName () const
	Get the field name.
virtual BitsetStream	getLinearData (const BitsetStream &data) const =0
	Get linear data.
virtual void	setLinearData (const ByteVector &data)=0
	Set linear data.
virtual bool	checkSkeleton (std::shared_ptr< DataField > field) const =0
	Check the current field skeleton with another field.
void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.
void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.
Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default
virtual std::string	serialize ()
	Serialize object to Xml Node string.
virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.
virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.
virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.
virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.
virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.
virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.
virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.
virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.
virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Protected Attributes
std::string	d_name
	The field name.
unsigned int	d_length
	The field length in bits.
unsigned int	d_position
	The field position in bits.

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.
static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.
Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)

Detailed Description

A data field base class.

Constructor & Destructor Documentation

DataField()

logicalaccess::DataField::DataField

(

)

Constructor.

~DataField()

logicalaccess::DataField::~DataField ( )

virtual

Destructor.

Member Function Documentation

checkSkeleton()

virtual bool logicalaccess::DataField::checkSkeleton ( std::shared_ptr< DataField >  field ) const

pure virtual

Check the current field skeleton with another field.

Parameters

field

The field to check.

Returns

True on success, false otherwise.

Implemented in logicalaccess::BinaryDataField, logicalaccess::NumberDataField, logicalaccess::ParityDataField, logicalaccess::StringDataField, and logicalaccess::TLVDataField.

getDataLength()

unsigned int logicalaccess::DataField::getDataLength ( ) const

virtual

Get data length in bits.

Returns

The data length in bits.

getDFType()

virtual DataFieldType logicalaccess::DataField::getDFType ( ) const

pure virtual

Get the field type.

Returns

The field type.

Implemented in logicalaccess::BinaryDataField, logicalaccess::ChecksumDataField, logicalaccess::NumberDataField, logicalaccess::ParityDataField, logicalaccess::StringDataField, logicalaccess::TLVDataField, and logicalaccess::ValueDataField.

getLinearData()

virtual BitsetStream logicalaccess::DataField::getLinearData ( const BitsetStream &  data ) const

pure virtual

Get linear data.

Returns

data The linear datas in a bitsetstream

Implemented in logicalaccess::BinaryDataField, logicalaccess::ChecksumDataField, logicalaccess::NumberDataField, logicalaccess::ParityDataField, logicalaccess::StringDataField, and logicalaccess::TLVDataField.

getName()

std::string logicalaccess::DataField::getName

(

)

const

Get the field name.

Returns

The field name.

getPosition()

unsigned int logicalaccess::DataField::getPosition

(

)

const

Get the field position in bits.

Returns

The field position in bits.

serialize()

void logicalaccess::DataField::serialize ( boost::property_tree::ptree &  parentNode )

overridevirtual

Serialize the current object to XML.

Parameters

parentNode

The parent node.

Implements logicalaccess::XmlSerializable.

Reimplemented in logicalaccess::NumberDataField, logicalaccess::ParityDataField, logicalaccess::StringDataField, logicalaccess::TLVDataField, and logicalaccess::ValueDataField.

setLinearData()

virtual void logicalaccess::DataField::setLinearData ( const ByteVector &  data )

pure virtual

Set linear data.

Parameters

data	Where to get data

Implemented in logicalaccess::ChecksumDataField, logicalaccess::BinaryDataField, logicalaccess::NumberDataField, logicalaccess::ParityDataField, logicalaccess::StringDataField, and logicalaccess::TLVDataField.

setName()

void logicalaccess::DataField::setName

(

const std::string &

name

)

Set the field name.

Parameters

name	The field name.

setPosition()

void logicalaccess::DataField::setPosition ( unsigned int  position )

virtual

Set the field position in bits.

Parameters

position

The field position in bits.

Reimplemented in logicalaccess::ParityDataField, and logicalaccess::TLVDataField.

unSerialize()

void logicalaccess::DataField::unSerialize ( boost::property_tree::ptree &  node )

overridevirtual

UnSerialize a XML node to the current object.

Parameters

node	The XML node.

Implements logicalaccess::XmlSerializable.

Reimplemented in logicalaccess::NumberDataField, logicalaccess::ParityDataField, logicalaccess::StringDataField, logicalaccess::TLVDataField, and logicalaccess::ValueDataField.

Member Data Documentation

d_length

unsigned int logicalaccess::DataField::d_length

protected

The field length in bits.

d_name

std::string logicalaccess::DataField::d_name

protected

The field name.

d_position

unsigned int logicalaccess::DataField::d_position

protected

The field position in bits.

---

The documentation for this class was generated from the following files:

• C:/dev/lla/liblogicalaccess/include/logicalaccess/services/accesscontrol/formats/customformat/datafield.hpp
• C:/dev/lla/liblogicalaccess/src/services/accesscontrol/formats/customformat/datafield.cpp
