A parity data field. More...

#include <paritydatafield.hpp>

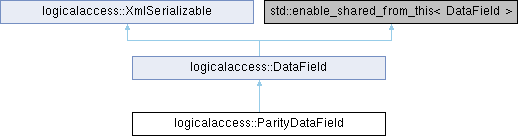

Inheritance diagram for logicalaccess::ParityDataField:

Public Member Functions
	ParityDataField ()
	Constructor.

virtual	~ParityDataField ()
	Destructor.

DataFieldType	getDFType () const override
	Get the field type.

void	setPosition (unsigned int position) override
	Set the field position in bits.

void	setParityType (ParityType type)
	Set the parity type.

ParityType	getParityType () const
	Get the parity type.

void	setBitsUsePositions (std::vector< unsigned int > positions)
	Set the bits to use positions to calculate parity.

std::vector< unsigned int >	getBitsUsePositions () const
	Get the bits to use positions to calculate parity.

bool	checkFieldDependecy (std::shared_ptr< DataField > field)
	Check the field dependecy with another one.

BitsetStream	getLinearData (const BitsetStream &data) const override
	Get linear data.

void	setLinearData (const ByteVector &data) override
	Set linear data.

bool	checkSkeleton (std::shared_ptr< DataField > field) const override
	Check the current field skeleton with another field.

void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

std::string	getDefaultXmlNodeName () const override
	Get the default Xml Node name for this object.

Public Member Functions inherited from logicalaccess::DataField
	DataField ()
	Constructor.

virtual	~DataField ()
	Destructor.

virtual unsigned int	getDataLength () const
	Get data length in bits.

virtual void	setPosition (unsigned int position)
	Set the field position in bits.

unsigned int	getPosition () const
	Get the field position in bits.

virtual DataFieldType	getDFType () const =0
	Get the field type.

void	setName (const std::string &name)
	Set the field name.

std::string	getName () const
	Get the field name.

virtual BitsetStream	getLinearData (const BitsetStream &data) const =0
	Get linear data.

virtual void	setLinearData (const ByteVector &data)=0
	Set linear data.

virtual bool	checkSkeleton (std::shared_ptr< DataField > field) const =0
	Check the current field skeleton with another field.

void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.

virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Protected Attributes
ParityType	d_parityType

std::vector< unsigned int >	d_bitsUsePositions

Protected Attributes inherited from logicalaccess::DataField
std::string	d_name
	The field name.

unsigned int	d_length
	The field length in bits.

unsigned int	d_position
	The field position in bits.

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.

static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.

Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)

Detailed Description

A parity data field.

Constructor & Destructor Documentation

◆ ParityDataField()

logicalaccess::ParityDataField::ParityDataField ( )

Constructor.

◆ ~ParityDataField()

logicalaccess::ParityDataField::~ParityDataField ( )

virtual

Destructor.

Member Function Documentation

◆ checkFieldDependecy()

bool logicalaccess::ParityDataField::checkFieldDependecy ( std::shared_ptr< DataField > field )

Check the field dependecy with another one.

Parameters

field The field to check with.

Returns: True if the field is dependent, false otherwise.

◆ checkSkeleton()

bool logicalaccess::ParityDataField::checkSkeleton ( std::shared_ptr< DataField > field ) const

overridevirtual

Check the current field skeleton with another field.

Parameters

field The field to check.

Returns: True on success, false otherwise.

Implements logicalaccess::DataField.

◆ getBitsUsePositions()

std::vector< unsigned int > logicalaccess::ParityDataField::getBitsUsePositions ( ) const

Get the bits to use positions to calculate parity.

Returns: The bits positions.

◆ getDefaultXmlNodeName()

std::string logicalaccess::ParityDataField::getDefaultXmlNodeName ( ) const

overridevirtual

Get the default Xml Node name for this object.

Returns: The Xml node name.

Implements logicalaccess::XmlSerializable.

◆ getDFType()

DataFieldType logicalaccess::ParityDataField::getDFType ( ) const

inlineoverridevirtual

Get the field type.

Returns: The field type.

Implements logicalaccess::DataField.

◆ getLinearData()

BitsetStream logicalaccess::ParityDataField::getLinearData ( const BitsetStream & data ) const

overridevirtual

Get linear data.

Parameters

data	Where to put data
dataLengthBytes	Length in byte of data
pos	The first position bit. Will contain the position bit after the field.

Implements logicalaccess::DataField.

◆ getParityType()

ParityType logicalaccess::ParityDataField::getParityType ( ) const

Get the parity type.

Returns: The parity type.

◆ serialize()

void logicalaccess::ParityDataField::serialize ( boost::property_tree::ptree & parentNode )

overridevirtual

Serialize the current object to XML.

Parameters

parentNode The parent node.

Reimplemented from logicalaccess::DataField.

◆ setBitsUsePositions()

void logicalaccess::ParityDataField::setBitsUsePositions ( std::vector< unsigned int > positions )

Set the bits to use positions to calculate parity.

Parameters

positions The bits positions.

◆ setLinearData()

void logicalaccess::ParityDataField::setLinearData ( const ByteVector & data )

overridevirtual

Set linear data.

Parameters

data	Where to get data
dataLengthBytes	Length of data in bytes
pos	The first position bit. Will contain the position bit after the field.

Implements logicalaccess::DataField.

◆ setParityType()

void logicalaccess::ParityDataField::setParityType ( ParityType type )

Set the parity type.

Parameters

type	The parity type.

◆ setPosition()

void logicalaccess::ParityDataField::setPosition ( unsigned int position )

overridevirtual

Set the field position in bits.

Parameters

position The field position in bits.

Reimplemented from logicalaccess::DataField.

◆ unSerialize()

void logicalaccess::ParityDataField::unSerialize ( boost::property_tree::ptree & node )

overridevirtual

UnSerialize a XML node to the current object.

Parameters

node	The XML node.

Reimplemented from logicalaccess::DataField.

Member Data Documentation

◆ d_bitsUsePositions

std::vector<unsigned int> logicalaccess::ParityDataField::d_bitsUsePositions

protected

◆ d_parityType

ParityType logicalaccess::ParityDataField::d_parityType

protected

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/include/logicalaccess/services/accesscontrol/formats/customformat/paritydatafield.hpp
C:/dev/lla/liblogicalaccess/src/services/accesscontrol/formats/customformat/paritydatafield.cpp
