logicalaccess::DataRepresentation Class Reference

A data representation. More...

#include <datarepresentation.hpp>

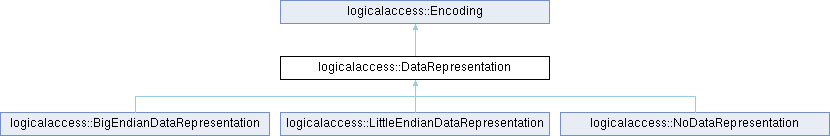

Inheritance diagram for logicalaccess::DataRepresentation:

Public Member Functions
virtual	~DataRepresentation ()
	Virtual Destructor.
virtual BitsetStream	convertNumeric (const BitsetStream &datam)=0
	Convert data to the encoding type.
virtual BitsetStream	convertBinary (const BitsetStream &data)=0
	Convert binary data to the encoding type.
virtual unsigned int	convertLength (unsigned int lengthBits)=0
	Get the length after conversation for a given base length in bits.
virtual BitsetStream	revertNumeric (const BitsetStream &data)=0
	Revert data.
virtual BitsetStream	revertBinary (const BitsetStream &data)=0
	Revert binary data.
Public Member Functions inherited from logicalaccess::Encoding
virtual	~Encoding ()=default
virtual std::string	getName () const =0
	Get the encoder name.
virtual EncodingType	getType () const =0
	Get the encoder type.

Static Public Member Functions
static DataRepresentation *	getByEncodingType (EncodingType type)
	Create a new Data Representation instance by the encoding type.

Detailed Description

A data representation.

Constructor & Destructor Documentation

~DataRepresentation()

virtual logicalaccess::DataRepresentation::~DataRepresentation ( )

inlinevirtual

Virtual Destructor.

Member Function Documentation

convertBinary()

virtual BitsetStream logicalaccess::DataRepresentation::convertBinary ( const BitsetStream &  data )

pure virtual

Convert binary data to the encoding type.

Parameters

data	Data to convert
dataLengthBytes	Length of data to convert in bytes
dataLengthBits	Length of data to convert in bits
convertedData	Data after conversion
convertedLengthBytes	Length of "convertedData" in bytes

Returns

Length after conversion in bits

Implemented in logicalaccess::BigEndianDataRepresentation, logicalaccess::LittleEndianDataRepresentation, and logicalaccess::NoDataRepresentation.

convertLength()

virtual unsigned int logicalaccess::DataRepresentation::convertLength ( unsigned int  lengthBits )

pure virtual

Get the length after conversation for a given base length in bits.

Parameters

lengthBits

The unconverted length in bits

Returns

The converted length in bits

Implemented in logicalaccess::BigEndianDataRepresentation, logicalaccess::LittleEndianDataRepresentation, and logicalaccess::NoDataRepresentation.

convertNumeric()

virtual BitsetStream logicalaccess::DataRepresentation::convertNumeric ( const BitsetStream &  datam )

pure virtual

Convert data to the encoding type.

Parameters

data	Data to convert
dataLengthBytes	Length of data to convert in bytes
dataLengthBits	Length of data to convert in bits
convertedData	Data after conversion
convertedLengthBytes	Length of "convertedData" in bytes

Returns

Length after conversion in bits

Implemented in logicalaccess::BigEndianDataRepresentation, logicalaccess::LittleEndianDataRepresentation, and logicalaccess::NoDataRepresentation.

getByEncodingType()

DataRepresentation * logicalaccess::DataRepresentation::getByEncodingType ( EncodingType  type )

static

Create a new Data Representation instance by the encoding type.

Parameters

type	The encoding type

Returns

The new Data Representation instance, or null if the type is unknown.

revertBinary()

virtual BitsetStream logicalaccess::DataRepresentation::revertBinary ( const BitsetStream &  data )

pure virtual

Revert binary data.

Parameters

data	Data to revert
dataLengthBytes	Length of data to convert in bytes
dataLengthBits	Length of data to convert in bits
convertedData	Data after reversion
convertedLengthBytes	Length of "convertedData"

Returns

Length after reversion in bits

Implemented in logicalaccess::BigEndianDataRepresentation, logicalaccess::LittleEndianDataRepresentation, and logicalaccess::NoDataRepresentation.

revertNumeric()

virtual BitsetStream logicalaccess::DataRepresentation::revertNumeric ( const BitsetStream &  data )

pure virtual

Revert data.

Parameters

data	Data to revert
dataLengthBytes	Length of data to convert in bytes
dataLengthBits	Length of data to convert in bits
convertedData	Data after reversion
convertedLengthBytes	Length of "convertedData"

Returns

Length after reversion in bits

Implemented in logicalaccess::BigEndianDataRepresentation, logicalaccess::LittleEndianDataRepresentation, and logicalaccess::NoDataRepresentation.

---

The documentation for this class was generated from the following files:

• C:/dev/lla/liblogicalaccess/include/logicalaccess/services/accesscontrol/encodings/datarepresentation.hpp
• C:/dev/lla/liblogicalaccess/src/services/accesscontrol/encodings/datarepresentation.cpp
