#include <dummyreaderunit.hpp>

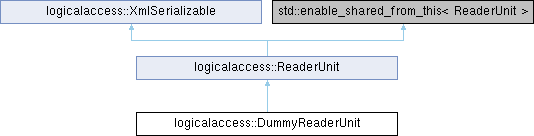

Inheritance diagram for logicalaccess::DummyReaderUnit:

Public Member Functions
	DummyReaderUnit (std::string name)

bool	waitInsertion (unsigned int maxwait) override
	Wait for a card insertion.

bool	waitRemoval (unsigned int maxwait) override
	Wait for a card removal.

bool	isConnected () override
	Check if the card is connected.

void	setCardType (std::string cardType) override
	Set the forced card type.

std::shared_ptr< Chip >	getSingleChip () override
	Get the first and/or most accurate chip found.

std::vector< std::shared_ptr< Chip > >	getChipList () override
	Get chip available in the RFID rang.

bool	connect () override
	Connect to the card.

void	disconnect () override
	Disconnect from the card.

bool	connectToReader () override
	Connect to the reader. Implicit connection on first command sent.

void	disconnectFromReader () override
	Disconnect from reader.

std::string	getName () const override
	Get the reader unit name.

std::string	getReaderSerialNumber () override
	Get a string hexadecimal representation of the reader serial number.

Public Member Functions inherited from logicalaccess::ReaderUnit
	ReaderUnit (std::string rpt)
	Constructor.

virtual	~ReaderUnit ()
	Destructor.

std::string	getRPType () const
	Get the reader provider type.

virtual ByteVector	getPingCommand () const
	Get the reader ping command.

virtual bool	waitInsertion (unsigned int maxwait)=0
	Wait for a card insertion.

virtual bool	waitInsertion (const ByteVector &identifier, unsigned int maxwait)
	Wait for a specific card insertion.

virtual bool	waitRemoval (unsigned int maxwait)=0
	Wait for a card removal.

virtual bool	isConnected ()=0
	Check if the card is connected.

std::string	getCardType () const
	Get the forced card type.

virtual void	setCardType (std::string cardType)=0
	Set the forced card type.

virtual std::shared_ptr< Chip >	createChip (std::string type)
	Create the chip object from card type.

virtual std::shared_ptr< Chip >	createChip (std::string type, const ByteVector &identifier)
	Create the chip object from card type with identifier.

virtual ByteVector	getNumber (std::shared_ptr< Chip > chip)
	Get the number from the embedded licensing configuration.

virtual std::shared_ptr< Chip >	getSingleChip ()=0
	Get the first and/or most accurate chip found.

virtual std::vector< std::shared_ptr< Chip > >	getChipList ()=0
	Get chip available in the RFID rang.

virtual ByteVector	getNumber (std::shared_ptr< Chip > chip, std::shared_ptr< CardsFormatComposite > composite)
	Get the number from the reader format composite.

virtual bool	connect ()=0
	Connect to the card.

virtual bool	reconnect (int action=0)
	Reconnect to the card with the currently active share mode on the same reader.

virtual void	disconnect ()=0
	Disconnect from the card.

virtual bool	connectToReader ()=0
	Connect to the reader. Implicit connection on first command sent.

virtual void	disconnectFromReader ()=0
	Disconnect from reader.

virtual std::string	getName () const =0
	Get the reader unit name.

virtual std::string	getConnectedName ()
	Get the connected reader unit name.

virtual std::shared_ptr< ReaderUnitConfiguration >	getConfiguration ()
	Get the reader unit configuration.

virtual void	setConfiguration (std::shared_ptr< ReaderUnitConfiguration > config)
	Set the reader unit configuration.

virtual std::shared_ptr< ReaderCardAdapter >	getDefaultReaderCardAdapter ()
	Get the default reader/card adapter.

virtual void	setDefaultReaderCardAdapter (std::shared_ptr< ReaderCardAdapter > defaultRca)
	Set the default reader/card adapter.

virtual std::shared_ptr< DataTransport >	getDataTransport () const
	Get the data transport layer.

virtual void	setDataTransport (std::shared_ptr< DataTransport > dataTransport)
	Set the data transport layer.

virtual std::string	getReaderSerialNumber ()=0
	Get a string hexadecimal representation of the reader serial number.

std::string	getDefaultXmlNodeName () const override
	Get the default Xml Node name for this object.

void	serialize (boost::property_tree::ptree &node) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode) override
	UnSerialize object from a Xml node.

std::shared_ptr< ReaderProvider >	getReaderProvider () const
	Get the associated reader provider.

void	setReaderProvider (std::weak_ptr< ReaderProvider > provider)
	Set the associated reader provider.

virtual std::shared_ptr< LCDDisplay >	getLCDDisplay ()
	Get the LCD Display for this reader unit.

virtual void	setLCDDisplay (std::shared_ptr< LCDDisplay > d)
	Get the LCD Display for this reader unit.

virtual std::shared_ptr< LEDBuzzerDisplay >	getLEDBuzzerDisplay ()
	Get the LED/Buzzer Display for this reader unit.

virtual void	setLEDBuzzerDisplay (std::shared_ptr< LEDBuzzerDisplay > lbd)
	Get the LCD Display for this reader unit.

virtual void	setCardTechnologies (const TechnoBitset &bitset)

virtual TechnoBitset	getCardTechnologies ()

virtual TechnoBitset	getPossibleCardTechnologies ()

virtual ReaderServicePtr	getService (const ReaderServiceType &type)

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.

virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Protected Member Functions
std::shared_ptr< CardProbe >	createCardProbe () override

std::shared_ptr< ResultChecker >	createDefaultResultChecker () const override

virtual std::shared_ptr< ResultChecker >	createDefaultResultChecker () const

virtual std::shared_ptr< CardProbe >	createCardProbe ()

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::ReaderUnit
static uint64_t	getFormatedNumber (const ByteVector &number, int padding)
	Get the number as decimal a number.

static std::string	getFormatedNumber (const ByteVector &number)
	Get a string hexadecimal representation of the number.

Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.

static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.

Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)

Protected Attributes inherited from logicalaccess::ReaderUnit
std::string	d_readerProviderType
	The associated reader provider type for the reader unit configuration.

std::string	d_card_type
	The forced card type.

std::weak_ptr< ReaderProvider >	d_readerProvider
	The associated reader provider for the reader unit.

std::shared_ptr< ReaderUnitConfiguration >	d_readerUnitConfig
	The reader unit configuration.

std::shared_ptr< Chip >	d_insertedChip
	The inserted chip.

std::shared_ptr< LCDDisplay >	d_lcdDisplay
	The inserted chip.

std::shared_ptr< LEDBuzzerDisplay >	d_ledBuzzerDisplay
	The inserted chip.

Detailed Description

A dummy reader unit whose whole point is to allow extension from C#.

Extending from C# is possible only against non abstract class (C# code need to instantiate some C++ backing object) so this class simply provide implementations for all pure virtual method declared by ReaderUnit.

Constructor & Destructor Documentation

◆ DummyReaderUnit()

logicalaccess::DummyReaderUnit::DummyReaderUnit ( std::string name )

explicit

Member Function Documentation

◆ connect()

bool logicalaccess::DummyReaderUnit::connect ( )

overridevirtual

Connect to the card.

Returns: True if the card was connected without error, false otherwise.

If the card handle was already connected, connect() first call disconnect(). If you intend to do a reconnection, call reconnect() instead.

Implements logicalaccess::ReaderUnit.

◆ connectToReader()

bool logicalaccess::DummyReaderUnit::connectToReader ( )

overridevirtual

Connect to the reader. Implicit connection on first command sent.

Returns: True if the connection successed.

Implements logicalaccess::ReaderUnit.

◆ createCardProbe()

std::shared_ptr< CardProbe > logicalaccess::DummyReaderUnit::createCardProbe ( )

overrideprotectedvirtual

Despite being non-pure virtual methods, createCardProbe() and createDefaultResultChecker() have been overloaded to work around an issue / misuse of SWIG.

Indeed, SWIG code gen didn't work properly for us in the presence of Director and non-public virtual method. Similarly, adding final to prevent overloading does not work properly with directors. Either generated C# or generated C++ failed to compile.

However, a simple overload is enough for generated code to build.

Reimplemented from logicalaccess::ReaderUnit.

◆ createDefaultResultChecker()

std::shared_ptr< ResultChecker > logicalaccess::DummyReaderUnit::createDefaultResultChecker ( ) const

overrideprotectedvirtual

Create a new ResultChecker object that make sense for the current reader.

It's possible that this ResultChecker won't be used, as more fine-grained check regarding reader/card-type combination happen.

The default implementation returns nullptr.

Reimplemented from logicalaccess::ReaderUnit.

◆ disconnect()

void logicalaccess::DummyReaderUnit::disconnect ( )

overridevirtual

Disconnect from the card.

Implements logicalaccess::ReaderUnit.

◆ disconnectFromReader()

void logicalaccess::DummyReaderUnit::disconnectFromReader ( )

overridevirtual

Disconnect from reader.

Implements logicalaccess::ReaderUnit.

◆ getChipList()

std::vector< std::shared_ptr< Chip > > logicalaccess::DummyReaderUnit::getChipList ( )

overridevirtual

Get chip available in the RFID rang.

Returns: The chip list.

Implements logicalaccess::ReaderUnit.

◆ getName()

std::string logicalaccess::DummyReaderUnit::getName ( ) const

overridevirtual

Get the reader unit name.

Returns: The reader unit name.

Implements logicalaccess::ReaderUnit.

◆ getReaderSerialNumber()

std::string logicalaccess::DummyReaderUnit::getReaderSerialNumber ( )

overridevirtual

Get a string hexadecimal representation of the reader serial number.

Returns: The reader serial number or an empty string on error.

Implements logicalaccess::ReaderUnit.

◆ getSingleChip()

std::shared_ptr< Chip > logicalaccess::DummyReaderUnit::getSingleChip ( )

overridevirtual

Get the first and/or most accurate chip found.

Returns: The single chip.

Implements logicalaccess::ReaderUnit.

◆ isConnected()

bool logicalaccess::DummyReaderUnit::isConnected ( )

overridevirtual

Check if the card is connected.

Returns: True if the card is connected, false otherwise.

Implements logicalaccess::ReaderUnit.

◆ setCardType()

void logicalaccess::DummyReaderUnit::setCardType ( std::string cardType )

overridevirtual

Set the forced card type.

Parameters

cardType The forced card type.

Implements logicalaccess::ReaderUnit.

◆ waitInsertion()

bool logicalaccess::DummyReaderUnit::waitInsertion ( unsigned int maxwait )

overridevirtual

Wait for a card insertion.

Parameters

maxwait The maximum time to wait for, in milliseconds. If maxwait is zero, then the call never times out.

Returns: True if a card was inserted, false otherwise. If a card was inserted, the name of the reader on which the insertion was detected is accessible with getReader().

Warning: If the card is already connected, then the method always fail.

Implements logicalaccess::ReaderUnit.

◆ waitRemoval()

bool logicalaccess::DummyReaderUnit::waitRemoval ( unsigned int maxwait )

overridevirtual

Wait for a card removal.

Parameters

maxwait The maximum time to wait for, in milliseconds. If maxwait is zero, then the call never times out.

Returns: True if a card was removed, false otherwise. If a card was removed, the name of the reader on which the removal was detected is accessible with getReader().

Implements logicalaccess::ReaderUnit.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/include/logicalaccess/readerproviders/dummyreaderunit.hpp
C:/dev/lla/liblogicalaccess/src/readerproviders/dummyreaderunit.cpp

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DummyReaderUnit()

Member Function Documentation

◆ connect()

◆ connectToReader()

◆ createCardProbe()

◆ createDefaultResultChecker()

◆ disconnect()

◆ disconnectFromReader()

◆ getChipList()

◆ getName()

◆ getReaderSerialNumber()

◆ getSingleChip()

◆ isConnected()

◆ setCardType()

◆ waitInsertion()

◆ waitRemoval()
