The DESFire EV1 base commands class for STidSTR reader. More...

#include <desfireev1stidstrcommands.hpp>

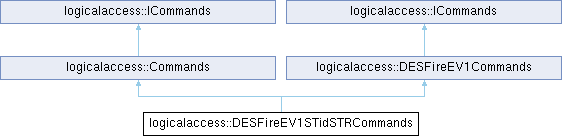

Inheritance diagram for logicalaccess::DESFireEV1STidSTRCommands:

Public Member Functions
	DESFireEV1STidSTRCommands ()
	Constructor.

	DESFireEV1STidSTRCommands (std::string)

virtual	~DESFireEV1STidSTRCommands ()
	Destructor.

ByteVector	scanDESFire () const
	Scan the RFID field for DESFire tag.

void	releaseRFIDField () const
	Release the RFID field.

void	changePPS (STidDESFireBaudrate readerToChipKbps, STidDESFireBaudrate chipToReaderKbps) const
	Change the communication speed between the reader and the chip.

unsigned int	getFreeMem () override
	Get the value of available bytes.

std::vector< DFName >	getDFNames () override
	Get the ISO DF-Names of all active application.

std::vector< unsigned short >	getISOFileIDs () override
	Get the ISO FID of all active files within the currently selected application.

virtual void	erase ()
	Erase the card.

virtual void	createApplication (unsigned int aid, DESFireKeySettings settings, unsigned char maxNbKeys)
	Create a new application.

void	createApplication (unsigned int aid, DESFireKeySettings settings, unsigned char maxNbKeys, DESFireKeyType cryptoMethod, FidSupport fidSupported=FIDS_NO_ISO_FID, unsigned short isoFID=0x00, ByteVector isoDFName=ByteVector()) override
	Create a new application.

virtual void	deleteApplication (unsigned int aid)
	Delete an application.

void	selectApplication (unsigned int aid) override
	Select an application.

virtual void	getKeySettings (DESFireKeySettings &settings, unsigned char &maxNbKeys)
	Get key settings on the current application.

void	getKeySettings (DESFireKeySettings &settings, unsigned char &maxNbKeys, DESFireKeyType &keyType) override
	Get key settings on the current application.

ByteVector	getCardUID () override
	Get a random card UID.

virtual void	createStdDataFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, unsigned int fileSize)
	Create a new data file in the current application.

void	createStdDataFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, unsigned int fileSize, unsigned short isoFID) override
	Create a new data file in the current application.

virtual void	commitTransaction ()
	Commit the transaction.

virtual void	abortTransaction ()
	Abort the transaction.

virtual void	createBackupFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, unsigned int fileSize)
	Create a new backup file in the current application.

void	createBackupFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, unsigned int fileSize, unsigned short isoFID) override
	Create a new backup file in the current application.

virtual void	createValueFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, int32_t lowerLimit, int32_t upperLimit, int32_t value, bool limitedCreditEnabled)
	Create a new value file in the current application.

virtual void	createLinearRecordFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, unsigned int fileSize, unsigned int maxNumberOfRecords)
	Create a new linear record file in the current application.

void	createLinearRecordFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, unsigned int fileSize, unsigned int maxNumberOfRecords, unsigned short isoFID) override
	Create a new linear record file in the current application.

virtual void	createCyclicRecordFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, unsigned int fileSize, unsigned int maxNumberOfRecords)
	Create a new cyclic record file in the current application.

void	createCyclicRecordFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, unsigned int fileSize, unsigned int maxNumberOfRecords, unsigned short isoFID) override
	Create a new cyclic record file in the current application.

virtual void	loadKey (std::shared_ptr< DESFireKey > key)
	Load a key in the reader memory.

virtual void	loadKey (ByteVector key, bool diversify, bool isVolatile)
	Load a key in the reader memory.

virtual void	authenticate (STidKeyLocationType keylocation, unsigned char keyno, DESFireKeyType cryptoMethod, unsigned char keyindex)
	Authenticate DESFire according to the key location.

virtual void	authenticate (unsigned char keyno)
	Authenticate, given a key number.

virtual void	authenticate (unsigned char keyno, std::shared_ptr< DESFireKey > key)
	Authenticate a block, given a key number.

void	authenticateISO (unsigned char keyno, DESFireISOAlgorithm algorithm=DF_ALG_2K3DES) override
	AuthenticateISO command.

void	authenticateAES (unsigned char keyno) override
	AuthenticateAES command.

virtual ByteVector	readData (unsigned char fileno, unsigned int offset, unsigned int length, EncryptionMode mode)
	Read data from a specific file.

virtual void	writeData (unsigned char fileno, unsigned int offset, const ByteVector &data, EncryptionMode mode)
	Write data into a specific file.

virtual void	credit (unsigned char fileno, unsigned int value, EncryptionMode mode)
	Credit a specific value file.

virtual void	debit (unsigned char fileno, unsigned int value, EncryptionMode mode)
	Debit a specific value file.

virtual void	limitedCredit (unsigned char fileno, unsigned int value, EncryptionMode mode)
	Limit credit on a specific value file.

virtual void	writeRecord (unsigned char fileno, unsigned int offset, const ByteVector &data, EncryptionMode mode)
	Write record into a specific record file.

virtual ByteVector	readRecords (unsigned char fileno, unsigned int offset, unsigned int length, EncryptionMode mode)
	Read record from a specific record file.

virtual void	clearRecordFile (unsigned char fileno)
	Clear a specific record file.

virtual void	changeFileSettings (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, bool plain)
	Change file settings of a specific file in the current application.

virtual void	deleteFile (unsigned char fileno)
	Delete a file in the current application.

virtual void	changeKeySettings (DESFireKeySettings settings)
	Change key settings for the current application.

virtual void	changeKey (unsigned char keyno, std::shared_ptr< DESFireKey > key)
	Change a key in the current application.

void	changeKeyIndex (unsigned char keyno, DESFireKeyType cryptoMethod, unsigned char keyversion, unsigned char newkeyindex, unsigned char oldkeyindex) const
	Change the key indexed keyno by a new index or crypto method.

unsigned char	getKeyVersion (unsigned char keyno) const
	Get the key version.

virtual void	getVersion (DESFireCommands::DESFireCardVersion &dataVersion)
	Get the card version information.

virtual std::vector< unsigned int >	getApplicationIDs ()
	Get the current application list.

virtual ByteVector	getFileIDs ()
	Get the File IDentifiers of all active files within the currently selected application.

virtual void	getFileSettings (unsigned char fileno, DESFireCommands::FileSetting &fileSetting)
	Get settings of a specific file in the current application.

virtual void	getValue (unsigned char fileno, EncryptionMode mode, unsigned int &value)
	Get value from a specific value file.

void	setConfiguration (bool formatCardEnabled, bool randomIdEnabled) override
	Set the card configuration.

void	setConfiguration (std::shared_ptr< DESFireKey > defaultKey) override
	Set the card configuration default key. param defaultKey The new default key.

void	setConfiguration (const ByteVector &ats) override
	Set a custom card ATS.

std::shared_ptr< Chip >	getChip () const override
	Get the chip.

std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const override
	Get the reader/card adapter.

std::shared_ptr< STidSTRReaderCardAdapter >	getSTidSTRReaderCardAdapter () const
	Get the STidSTR reader/card adapter.

virtual void	createApplication (std::shared_ptr< DESFireEV1Location > location, DESFireKeySettings settings, unsigned char maxNbKeys)
	Create a new application.

virtual void	createApplication (unsigned int aid, DESFireKeySettings settings, unsigned char maxNbKeys, DESFireKeyType cryptoMethod, FidSupport fidSupported=FIDS_NO_ISO_FID, unsigned short isoFID=0x00, ByteVector isoDFName=ByteVector())=0
	Create a new application.

virtual void	createStdDataFile (std::shared_ptr< DESFireEV1Location > location, const DESFireAccessRights &accessRights, unsigned int fileSize)
	Create a new data file in the current application.

virtual void	createStdDataFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, unsigned int fileSize, unsigned short isoFID=0x00)=0
	Create a new data file in the current application.

Public Member Functions inherited from logicalaccess::Commands
	Commands ()=delete
	Constructor.

virtual	~Commands ()

std::shared_ptr< Chip >	getChip () const override
	Get the chip.

virtual void	setChip (std::shared_ptr< Chip > chip)
	Set the chip.

std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const override
	Get the reader/card adapter.

virtual void	setReaderCardAdapter (std::shared_ptr< ReaderCardAdapter > adapter)
	Set the reader/card adapter.

virtual const std::string &	getCmdType () const
	Get the cmd name.

virtual void	setCmdType (const std::string &command_type)
	Set the cmd name.

Public Member Functions inherited from logicalaccess::ICommands
virtual	~ICommands ()=default

virtual std::shared_ptr< Chip >	getChip () const =0
	Get the chip.

virtual std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const =0
	Get the reader/card adapter.

Public Member Functions inherited from logicalaccess::DESFireEV1Commands
	DESFireEV1Commands ()=default

virtual void	selectApplication (std::shared_ptr< DESFireEV1Location > location)
	Select an application.

virtual void	createApplication (std::shared_ptr< DESFireEV1Location > location, DESFireKeySettings settings, unsigned char maxNbKeys)
	Create a new application.

virtual void	createStdDataFile (std::shared_ptr< DESFireEV1Location > location, const DESFireAccessRights &accessRights, unsigned int fileSize)
	Create a new data file in the current application.

virtual unsigned int	getFreeMem ()=0
	Get the value of available bytes.

virtual std::vector< DFName >	getDFNames ()=0
	Get the ISO DF-Names of all active application.

virtual std::vector< unsigned short >	getISOFileIDs ()=0
	Get the ISO FID of all active files within the currently selected application.

virtual void	selectApplication (unsigned int aid)=0
	Select an application.

virtual void	createApplication (unsigned int aid, DESFireKeySettings settings, unsigned char maxNbKeys, DESFireKeyType cryptoMethod, FidSupport fidSupported=FIDS_NO_ISO_FID, unsigned short isoFID=0x00, ByteVector isoDFName=ByteVector())=0
	Create a new application.

virtual void	getKeySettings (DESFireKeySettings &settings, unsigned char &maxNbKeys, DESFireKeyType &keyType)=0
	Get key settings on the current application.

virtual ByteVector	getCardUID ()=0
	Get a random card UID.

virtual void	createStdDataFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, unsigned int fileSize, unsigned short isoFID=0x00)=0
	Create a new data file in the current application.

virtual void	createBackupFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, unsigned int fileSize, unsigned short isoFID=0x00)=0
	Create a new backup file in the current application.

virtual void	createLinearRecordFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, unsigned int fileSize, unsigned int maxNumberOfRecords, unsigned short isoFID=0x00)=0
	Create a new linear record file in the current application.

virtual void	createCyclicRecordFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, unsigned int fileSize, unsigned int maxNumberOfRecords, unsigned short isoFID=0x00)=0
	Create a new cyclic record file in the current application.

virtual void	authenticateISO (unsigned char keyno, DESFireISOAlgorithm algorithm=DF_ALG_2K3DES)=0
	AuthenticateISO command.

virtual void	authenticateAES (unsigned char keyno)=0
	AuthenticateAES command.

virtual void	setConfiguration (bool formatCardEnabled, bool randomIdEnabled)=0
	Read data from a specific file.

virtual void	setConfiguration (std::shared_ptr< DESFireKey > defaultKey)=0
	Set the card configuration default key. param defaultKey The new default key.

virtual void	setConfiguration (const ByteVector &ats)=0
	Set a custom card ATS.

virtual std::shared_ptr< ISO7816Commands >	getISO7816Commands () const

Static Public Member Functions
static std::string	STidKeyLocationTypeStr (STidKeyLocationType t)
	Get the STid Key Location Type in string format.

Protected Attributes
unsigned int	d_currentAid

Protected Attributes inherited from logicalaccess::Commands
std::shared_ptr< ReaderCardAdapter >	d_readerCardAdapter
	The reader/card adapter.

std::weak_ptr< Chip >	d_chip
	The chip.

std::string	d_commandtype
	The command type.

Additional Inherited Members
Protected Member Functions inherited from logicalaccess::Commands
	Commands (std::string commandtype)
	Constructor.

Protected Member Functions inherited from logicalaccess::DESFireEV1Commands
std::shared_ptr< DESFireEV1Chip >	getDESFireEV1Chip () const

Detailed Description

The DESFire EV1 base commands class for STidSTR reader.

Constructor & Destructor Documentation

◆ DESFireEV1STidSTRCommands() [1/2]

logicalaccess::DESFireEV1STidSTRCommands::DESFireEV1STidSTRCommands ( )

Constructor.

◆ DESFireEV1STidSTRCommands() [2/2]

logicalaccess::DESFireEV1STidSTRCommands::DESFireEV1STidSTRCommands ( std::string ct )

explicit

◆ ~DESFireEV1STidSTRCommands()

logicalaccess::DESFireEV1STidSTRCommands::~DESFireEV1STidSTRCommands ( )

virtual

Destructor.

Member Function Documentation

◆ abortTransaction()

void logicalaccess::DESFireEV1STidSTRCommands::abortTransaction ( )

virtual

Abort the transaction.

◆ authenticate() [1/3]

void logicalaccess::DESFireEV1STidSTRCommands::authenticate	(	STidKeyLocationType	keylocation,
		unsigned char	keyno,
		DESFireKeyType	cryptoMethod,
		unsigned char	keyindex
	)

virtual

Authenticate DESFire according to the key location.

Parameters

keylocation	The key location on reader.
keyno	The key number, previously loaded.
cryptoMethod	The cryptographic method.
keyindex	The key index (if key location is indexed).

◆ authenticate() [2/3]

void logicalaccess::DESFireEV1STidSTRCommands::authenticate ( unsigned char keyno )

virtual

Authenticate, given a key number.

Parameters

keyno The key number.

◆ authenticate() [3/3]

void logicalaccess::DESFireEV1STidSTRCommands::authenticate	(	unsigned char	keyno,
		std::shared_ptr< DESFireKey >	key
	)

virtual

Authenticate a block, given a key number.

Parameters

keyno	The key number.
key	The key.

◆ authenticateAES()

void logicalaccess::DESFireEV1STidSTRCommands::authenticateAES ( unsigned char keyno )

overridevirtual

AuthenticateAES command.

Parameters

keyno The key number.

Implements logicalaccess::DESFireEV1Commands.

◆ authenticateISO()

void logicalaccess::DESFireEV1STidSTRCommands::authenticateISO	(	unsigned char	keyno,
		DESFireISOAlgorithm	algorithm = `DF_ALG_2K3DES`
	)

overridevirtual

AuthenticateISO command.

Parameters

keyno	The key number.
algorithm	The ISO algorithm to use for authentication.

Implements logicalaccess::DESFireEV1Commands.

◆ changeFileSettings()

void logicalaccess::DESFireEV1STidSTRCommands::changeFileSettings	(	unsigned char	fileno,
		EncryptionMode	comSettings,
		const DESFireAccessRights &	accessRights,
		bool	plain
	)

virtual

Change file settings of a specific file in the current application.

Parameters

fileno	The file number
comSettings	The file communication setting
accessRights	The file access rights
plain	Communication is currently in plain data.

◆ changeKey()

void logicalaccess::DESFireEV1STidSTRCommands::changeKey	(	unsigned char	keyno,
		std::shared_ptr< DESFireKey >	key
	)

virtual

Change a key in the current application.

Parameters

keyno	The key number to change
key	The new key

◆ changeKeyIndex()

void logicalaccess::DESFireEV1STidSTRCommands::changeKeyIndex	(	unsigned char	keyno,
		DESFireKeyType	cryptoMethod,
		unsigned char	keyversion,
		unsigned char	newkeyindex,
		unsigned char	oldkeyindex
	)		const

Change the key indexed keyno by a new index or crypto method.

Parameters

keyno	The key number into the application.
cryptoMethod	The cryptographic method.
keyversion	The key version (AES only).
newkeyindex	The new key index.
oldkeyindex	The old key index.

◆ changeKeySettings()

void logicalaccess::DESFireEV1STidSTRCommands::changeKeySettings ( DESFireKeySettings settings )

virtual

Change key settings for the current application.

Parameters

settings The new key settings

◆ changePPS()

void logicalaccess::DESFireEV1STidSTRCommands::changePPS	(	STidDESFireBaudrate	readerToChipKbps,
		STidDESFireBaudrate	chipToReaderKbps
	)		const

Change the communication speed between the reader and the chip.

Parameters

readerToChipKbps	The reader to chip kbps to use.
chipToReaderKbps	The chip to reader kbps to use.

◆ clearRecordFile()

void logicalaccess::DESFireEV1STidSTRCommands::clearRecordFile ( unsigned char fileno )

virtual

Clear a specific record file.

Parameters

fileno The file number.

◆ commitTransaction()

void logicalaccess::DESFireEV1STidSTRCommands::commitTransaction ( )

virtual

Commit the transaction.

◆ createApplication() [1/4]

void logicalaccess::DESFireEV1Commands::createApplication	(	std::shared_ptr< DESFireEV1Location >	location,
		DESFireKeySettings	settings,
		unsigned char	maxNbKeys
	)

virtual

Create a new application.

Parameters

location	The DESFire location
settings	Key settings
maxNbKeys	Maximum number of keys

Reimplemented from logicalaccess::DESFireEV1Commands.

◆ createApplication() [2/4]

void logicalaccess::DESFireEV1STidSTRCommands::createApplication	(	unsigned int	aid,
		DESFireKeySettings	settings,
		unsigned char	maxNbKeys
	)

virtual

Create a new application.

Parameters

aid	The Application ID to create
settings	Key settings
maxNbKeys	Maximum number of keys

◆ createApplication() [3/4]

void logicalaccess::DESFireEV1STidSTRCommands::createApplication	(	unsigned int	aid,
		DESFireKeySettings	settings,
		unsigned char	maxNbKeys,
		DESFireKeyType	cryptoMethod,
		FidSupport	fidSupported = `FIDS_NO_ISO_FID`,
		unsigned short	isoFID = `0x00`,
		ByteVector	isoDFName = `ByteVector()`
	)

overridevirtual

Create a new application.

Parameters

aid	The Application ID to create
settings	Key settings
maxNbKeys	Maximum number of keys

Implements logicalaccess::DESFireEV1Commands.

◆ createApplication() [4/4]

virtual void logicalaccess::DESFireEV1Commands::createApplication	(	unsigned int	aid,
		DESFireKeySettings	settings,
		unsigned char	maxNbKeys,
		DESFireKeyType	cryptoMethod,
		FidSupport	fidSupported = `FIDS_NO_ISO_FID`,
		unsigned short	isoFID = `0x00`,
		ByteVector	isoDFName = `ByteVector()`
	)

virtual

Create a new application.

Parameters

aid	The Application ID to create
settings	Key settings
maxNbKeys	Maximum number of keys

Implements logicalaccess::DESFireEV1Commands.

◆ createBackupFile() [1/2]

void logicalaccess::DESFireEV1STidSTRCommands::createBackupFile	(	unsigned char	fileno,
		EncryptionMode	comSettings,
		const DESFireAccessRights &	accessRights,
		unsigned int	fileSize
	)

virtual

Create a new backup file in the current application.

Parameters

fileno	The new file number
comSettings	The file communication setting
accessRights	The file access rights
fileSize	The file size.

◆ createBackupFile() [2/2]

void logicalaccess::DESFireEV1STidSTRCommands::createBackupFile	(	unsigned char	fileno,
		EncryptionMode	comSettings,
		const DESFireAccessRights &	accessRights,
		unsigned int	fileSize,
		unsigned short	isoFID
	)

overridevirtual

Create a new backup file in the current application.

Parameters

fileno	The new file number
comSettings	The file communication setting
accessRights	The file access rights
fileSize	The file size (in bytes).

Implements logicalaccess::DESFireEV1Commands.

◆ createCyclicRecordFile() [1/2]

void logicalaccess::DESFireEV1STidSTRCommands::createCyclicRecordFile	(	unsigned char	fileno,
		EncryptionMode	comSettings,
		const DESFireAccessRights &	accessRights,
		unsigned int	fileSize,
		unsigned int	maxNumberOfRecords
	)

virtual

Create a new cyclic record file in the current application.

Parameters

fileno	The new file number
comSettings	The file communication setting
accessRights	The file access rights
fileSize	The file size.
maxNumberOfRecords	Max number of records in the file.

◆ createCyclicRecordFile() [2/2]

void logicalaccess::DESFireEV1STidSTRCommands::createCyclicRecordFile	(	unsigned char	fileno,
		EncryptionMode	comSettings,
		const DESFireAccessRights &	accessRights,
		unsigned int	fileSize,
		unsigned int	maxNumberOfRecords,
		unsigned short	isoFID
	)

overridevirtual

Create a new cyclic record file in the current application.

Parameters

fileno	The new file number
comSettings	The file communication setting
accessRights	The file access rights
fileSize	The file size (in bytes).
maxNumberOfRecords	Max number of records in the file.

Implements logicalaccess::DESFireEV1Commands.

◆ createLinearRecordFile() [1/2]

void logicalaccess::DESFireEV1STidSTRCommands::createLinearRecordFile	(	unsigned char	fileno,
		EncryptionMode	comSettings,
		const DESFireAccessRights &	accessRights,
		unsigned int	fileSize,
		unsigned int	maxNumberOfRecords
	)

virtual

Create a new linear record file in the current application.

Parameters

fileno	The new file number
comSettings	The file communication setting
accessRights	The file access rights
fileSize	The file size.
maxNumberOfRecords	Max number of records in the file.

◆ createLinearRecordFile() [2/2]

void logicalaccess::DESFireEV1STidSTRCommands::createLinearRecordFile	(	unsigned char	fileno,
		EncryptionMode	comSettings,
		const DESFireAccessRights &	accessRights,
		unsigned int	fileSize,
		unsigned int	maxNumberOfRecords,
		unsigned short	isoFID
	)

overridevirtual

Create a new linear record file in the current application.

Parameters

fileno	The new file number
comSettings	The file communication setting
accessRights	The file access rights
fileSize	The file size (in bytes).
maxNumberOfRecords	Max number of records in the file.

Returns: True on success, false otherwise.

Implements logicalaccess::DESFireEV1Commands.

◆ createStdDataFile() [1/4]

void logicalaccess::DESFireEV1Commands::createStdDataFile	(	std::shared_ptr< DESFireEV1Location >	location,
		const DESFireAccessRights &	accessRights,
		unsigned int	fileSize
	)

virtual

Create a new data file in the current application.

Parameters

location	The DESFire location
accessRights	The file access rights
fileSize	The file size.

Reimplemented from logicalaccess::DESFireEV1Commands.

◆ createStdDataFile() [2/4]

void logicalaccess::DESFireEV1STidSTRCommands::createStdDataFile	(	unsigned char	fileno,
		EncryptionMode	comSettings,
		const DESFireAccessRights &	accessRights,
		unsigned int	fileSize
	)

virtual

Create a new data file in the current application.

Parameters

fileno	The new file number
comSettings	The file communication setting
accessRights	The file access rights
fileSize	The file size.

◆ createStdDataFile() [3/4]

void logicalaccess::DESFireEV1STidSTRCommands::createStdDataFile	(	unsigned char	fileno,
		EncryptionMode	comSettings,
		const DESFireAccessRights &	accessRights,
		unsigned int	fileSize,
		unsigned short	isoFID
	)

overridevirtual

Create a new data file in the current application.

Parameters

fileno	The new file number
comSettings	The file communication setting
accessRights	The file access rights
fileSize	The file size (in bytes).

Implements logicalaccess::DESFireEV1Commands.

◆ createStdDataFile() [4/4]

virtual void logicalaccess::DESFireEV1Commands::createStdDataFile	(	unsigned char	fileno,
		EncryptionMode	comSettings,
		const DESFireAccessRights &	accessRights,
		unsigned int	fileSize,
		unsigned short	isoFID = `0x00`
	)

virtual

Create a new data file in the current application.

Parameters

fileno	The new file number
comSettings	The file communication setting
accessRights	The file access rights
fileSize	The file size (in bytes).

Implements logicalaccess::DESFireEV1Commands.

◆ createValueFile()

void logicalaccess::DESFireEV1STidSTRCommands::createValueFile	(	unsigned char	fileno,
		EncryptionMode	comSettings,
		const DESFireAccessRights &	accessRights,
		int32_t	lowerLimit,
		int32_t	upperLimit,
		int32_t	value,
		bool	limitedCreditEnabled
	)

virtual

Create a new value file in the current application.

Parameters

fileno	The new file number
comSettings	The file communication setting
accessRights	The file access rights
lowerLimit	The file size (in bytes)
upperLimit	The file size (in bytes)
value	The default value
limitedCreditEnabled	Set if the limited credit is enabled

◆ credit()

void logicalaccess::DESFireEV1STidSTRCommands::credit	(	unsigned char	fileno,
		unsigned int	value,
		EncryptionMode	mode
	)

virtual

Credit a specific value file.

Parameters

fileno	The file number
value	The value to credit
mode	The communication mode

◆ debit()

void logicalaccess::DESFireEV1STidSTRCommands::debit	(	unsigned char	fileno,
		unsigned int	value,
		EncryptionMode	mode
	)

virtual

Debit a specific value file.

Parameters

fileno	The file number
value	The value to debit
mode	The communication mode

◆ deleteApplication()

void logicalaccess::DESFireEV1STidSTRCommands::deleteApplication ( unsigned int aid )

virtual

Delete an application.

Parameters

aid	The Application ID to delete

◆ deleteFile()

void logicalaccess::DESFireEV1STidSTRCommands::deleteFile ( unsigned char fileno )

virtual

Delete a file in the current application.

Parameters

fileno The file number to delete

◆ erase()

void logicalaccess::DESFireEV1STidSTRCommands::erase ( )

virtual

Erase the card.

◆ getApplicationIDs()

std::vector< unsigned int > logicalaccess::DESFireEV1STidSTRCommands::getApplicationIDs ( )

virtual

Get the current application list.

Returns: The application list.

◆ getCardUID()

ByteVector logicalaccess::DESFireEV1STidSTRCommands::getCardUID ( )

overridevirtual

Get a random card UID.

Returns: The card UID.

Implements logicalaccess::DESFireEV1Commands.

◆ getChip()

std::shared_ptr< Chip > logicalaccess::DESFireEV1STidSTRCommands::getChip ( ) const

inlineoverridevirtual

Get the chip.

Returns: The chip.

Reimplemented from logicalaccess::Commands.

◆ getDFNames()

std::vector< DFName > logicalaccess::DESFireEV1STidSTRCommands::getDFNames ( )

overridevirtual

Get the ISO DF-Names of all active application.

Returns: The DF-Names list.

Implements logicalaccess::DESFireEV1Commands.

◆ getFileIDs()

ByteVector logicalaccess::DESFireEV1STidSTRCommands::getFileIDs ( )

virtual

Get the File IDentifiers of all active files within the currently selected application.

Returns: The file ID list.

◆ getFileSettings()

void logicalaccess::DESFireEV1STidSTRCommands::getFileSettings	(	unsigned char	fileno,
		DESFireCommands::FileSetting &	fileSetting
	)

virtual

Get settings of a specific file in the current application.

Parameters

fileno	The file number
fileSetting	The file setting

◆ getFreeMem()

unsigned int logicalaccess::DESFireEV1STidSTRCommands::getFreeMem ( )

overridevirtual

Get the value of available bytes.

Returns: The available memory in bytes.

Implements logicalaccess::DESFireEV1Commands.

◆ getISOFileIDs()

std::vector< unsigned short > logicalaccess::DESFireEV1STidSTRCommands::getISOFileIDs ( )

overridevirtual

Get the ISO FID of all active files within the currently selected application.

Returns: The ISO FID list.

Implements logicalaccess::DESFireEV1Commands.

◆ getKeySettings() [1/2]

void logicalaccess::DESFireEV1STidSTRCommands::getKeySettings	(	DESFireKeySettings &	settings,
		unsigned char &	maxNbKeys
	)

virtual

Get key settings on the current application.

Parameters

settings	Key settings
maxNbKeys	Maximum number of keys

◆ getKeySettings() [2/2]

void logicalaccess::DESFireEV1STidSTRCommands::getKeySettings	(	DESFireKeySettings &	settings,
		unsigned char &	maxNbKeys,
		DESFireKeyType &	keyType
	)

overridevirtual

Get key settings on the current application.

Parameters

settings	Key settings
maxNbKeys	Maximum number of keys
keyType	The key type

Implements logicalaccess::DESFireEV1Commands.

◆ getKeyVersion()

unsigned char logicalaccess::DESFireEV1STidSTRCommands::getKeyVersion ( unsigned char keyno ) const

Get the key version.

Parameters

keyno The key number on the application.

Returns: The key version.

◆ getReaderCardAdapter()

std::shared_ptr< ReaderCardAdapter > logicalaccess::DESFireEV1STidSTRCommands::getReaderCardAdapter ( ) const

inlineoverridevirtual

Get the reader/card adapter.

Returns: The reader/card adapter.

Reimplemented from logicalaccess::Commands.

◆ getSTidSTRReaderCardAdapter()

std::shared_ptr< STidSTRReaderCardAdapter > logicalaccess::DESFireEV1STidSTRCommands::getSTidSTRReaderCardAdapter ( ) const

inline

Get the STidSTR reader/card adapter.

Returns: The STidSTR reader/card adapter.

◆ getValue()

void logicalaccess::DESFireEV1STidSTRCommands::getValue	(	unsigned char	fileno,
		EncryptionMode	mode,
		unsigned int &	value
	)

virtual

Get value from a specific value file.

Parameters

fileno	The file number
mode	The communication mode
value	The value stored in the card

◆ getVersion()

void logicalaccess::DESFireEV1STidSTRCommands::getVersion ( DESFireCommands::DESFireCardVersion & dataVersion )

virtual

Get the card version information.

Parameters

dataVersion The card version information structure that will be filled

◆ limitedCredit()

void logicalaccess::DESFireEV1STidSTRCommands::limitedCredit	(	unsigned char	fileno,
		unsigned int	value,
		EncryptionMode	mode
	)

virtual

Limit credit on a specific value file.

Parameters

handle	The SCardHandle
fileno	The file number
value	The value to limit credit
mode	The communication mode

Returns: True on success, false otherwise.

◆ loadKey() [1/2]

void logicalaccess::DESFireEV1STidSTRCommands::loadKey	(	ByteVector	key,
		bool	diversify,
		bool	isVolatile
	)

virtual

Load a key in the reader memory.

Parameters

key	The key buffer to load.
diversify	True to diversify the key, false otherwise.
isVolatile	True to store it in RAM, false to store it in EEPROM.

◆ loadKey() [2/2]

void logicalaccess::DESFireEV1STidSTRCommands::loadKey ( std::shared_ptr< DESFireKey > key )

virtual

Load a key in the reader memory.

Parameters

key	The key object to load.

◆ readData()

ByteVector logicalaccess::DESFireEV1STidSTRCommands::readData	(	unsigned char	fileno,
		unsigned int	offset,
		unsigned int	length,
		EncryptionMode	mode
	)

virtual

Read data from a specific file.

Parameters

fileno	The file number
offset	The byte offset
length	The data length to read
mode	The communication mode

Returns: The bytes readed.

◆ readRecords()

ByteVector logicalaccess::DESFireEV1STidSTRCommands::readRecords	(	unsigned char	fileno,
		unsigned int	offset,
		unsigned int	length,
		EncryptionMode	mode
	)

virtual

Read record from a specific record file.

Parameters

fileno	The file number
offset	The byte offset
length	The length to read
data	The data buffer
mode	The communication mode

Returns: The number of bytes read.

◆ releaseRFIDField()

void logicalaccess::DESFireEV1STidSTRCommands::releaseRFIDField ( ) const

Release the RFID field.

◆ scanDESFire()

ByteVector logicalaccess::DESFireEV1STidSTRCommands::scanDESFire ( ) const

Scan the RFID field for DESFire tag.

Returns: The tag uid if present.

◆ selectApplication()

void logicalaccess::DESFireEV1STidSTRCommands::selectApplication ( unsigned int aid )

overridevirtual

Select an application.

Parameters

aid	The Application ID

Implements logicalaccess::DESFireEV1Commands.

◆ setConfiguration() [1/3]

void logicalaccess::DESFireEV1STidSTRCommands::setConfiguration	(	bool	formatCardEnabled,
		bool	randomIdEnabled
	)

overridevirtual

Set the card configuration.

Parameters

formatCardEnabled	If true, the format card command is enabled.
randomIdEnabled	If true, the CSN is random.

Implements logicalaccess::DESFireEV1Commands.

◆ setConfiguration() [2/3]

void logicalaccess::DESFireEV1STidSTRCommands::setConfiguration ( const ByteVector & ats )

overridevirtual

Set a custom card ATS.

Parameters

ats	The new card ATS.

Implements logicalaccess::DESFireEV1Commands.

◆ setConfiguration() [3/3]

void logicalaccess::DESFireEV1STidSTRCommands::setConfiguration ( std::shared_ptr< DESFireKey > defaultKey )

overridevirtual

Set the card configuration default key. param defaultKey The new default key.

Implements logicalaccess::DESFireEV1Commands.

◆ STidKeyLocationTypeStr()

std::string logicalaccess::DESFireEV1STidSTRCommands::STidKeyLocationTypeStr ( STidKeyLocationType t )

static

Get the STid Key Location Type in string format.

Returns: The key location type in string.

◆ writeData()

void logicalaccess::DESFireEV1STidSTRCommands::writeData	(	unsigned char	fileno,
		unsigned int	offset,
		const ByteVector &	data,
		EncryptionMode	mode
	)

virtual

Write data into a specific file.

Parameters

fileno	The file number
offset	The byte offset
data	The data buffer
mode	The communication mode

◆ writeRecord()

void logicalaccess::DESFireEV1STidSTRCommands::writeRecord	(	unsigned char	fileno,
		unsigned int	offset,
		const ByteVector &	data,
		EncryptionMode	mode
	)

virtual

Write record into a specific record file.

Parameters

fileno	The file number
offset	The byte offset
length	The length to write
data	The data buffer
mode	The communication mode

Member Data Documentation

◆ d_currentAid

unsigned int logicalaccess::DESFireEV1STidSTRCommands::d_currentAid

protected

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/stidstr/commands/desfireev1stidstrcommands.hpp
C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/stidstr/commands/desfireev1stidstrcommands.cpp

Public Member Functions

Static Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DESFireEV1STidSTRCommands() [1/2]

◆ DESFireEV1STidSTRCommands() [2/2]

◆ ~DESFireEV1STidSTRCommands()

Member Function Documentation

◆ abortTransaction()

◆ authenticate() [1/3]

◆ authenticate() [2/3]

◆ authenticate() [3/3]

◆ authenticateAES()

◆ authenticateISO()

◆ changeFileSettings()

◆ changeKey()

◆ changeKeyIndex()

◆ changeKeySettings()

◆ changePPS()

◆ clearRecordFile()

◆ commitTransaction()

◆ createApplication() [1/4]

◆ createApplication() [2/4]

◆ createApplication() [3/4]

◆ createApplication() [4/4]

◆ createBackupFile() [1/2]

◆ createBackupFile() [2/2]

◆ createCyclicRecordFile() [1/2]

◆ createCyclicRecordFile() [2/2]

◆ createLinearRecordFile() [1/2]

◆ createLinearRecordFile() [2/2]

◆ createStdDataFile() [1/4]

◆ createStdDataFile() [2/4]

◆ createStdDataFile() [3/4]

◆ createStdDataFile() [4/4]

◆ createValueFile()

◆ credit()

◆ debit()

◆ deleteApplication()

◆ deleteFile()

◆ erase()

◆ getApplicationIDs()

◆ getCardUID()

◆ getChip()

◆ getDFNames()

◆ getFileIDs()

◆ getFileSettings()

◆ getFreeMem()

◆ getISOFileIDs()

◆ getKeySettings() [1/2]

◆ getKeySettings() [2/2]

◆ getKeyVersion()

◆ getReaderCardAdapter()

◆ getSTidSTRReaderCardAdapter()

◆ getValue()

◆ getVersion()

◆ limitedCredit()

◆ loadKey() [1/2]

◆ loadKey() [2/2]

◆ readData()

◆ readRecords()

◆ releaseRFIDField()

◆ scanDESFire()

◆ selectApplication()

◆ setConfiguration() [1/3]

◆ setConfiguration() [2/3]

◆ setConfiguration() [3/3]

◆ STidKeyLocationTypeStr()

◆ writeData()

◆ writeRecord()

Member Data Documentation

◆ d_currentAid
