The DESFire EV1 base commands class. More...

#include <desfireev1commands.hpp>

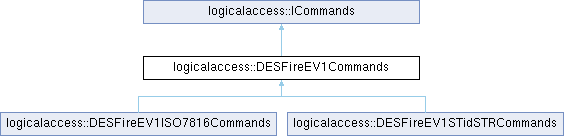

Inheritance diagram for logicalaccess::DESFireEV1Commands:

Public Member Functions
	DESFireEV1Commands ()=default

virtual void	selectApplication (std::shared_ptr< DESFireEV1Location > location)
	Select an application.

virtual void	createApplication (std::shared_ptr< DESFireEV1Location > location, DESFireKeySettings settings, unsigned char maxNbKeys)
	Create a new application.

virtual void	createStdDataFile (std::shared_ptr< DESFireEV1Location > location, const DESFireAccessRights &accessRights, unsigned int fileSize)
	Create a new data file in the current application.

virtual unsigned int	getFreeMem ()=0
	Get the value of available bytes.

virtual std::vector< DFName >	getDFNames ()=0
	Get the ISO DF-Names of all active application.

virtual std::vector< unsigned short >	getISOFileIDs ()=0
	Get the ISO FID of all active files within the currently selected application.

virtual void	selectApplication (unsigned int aid)=0
	Select an application.

virtual void	createApplication (unsigned int aid, DESFireKeySettings settings, unsigned char maxNbKeys, DESFireKeyType cryptoMethod, FidSupport fidSupported=FIDS_NO_ISO_FID, unsigned short isoFID=0x00, ByteVector isoDFName=ByteVector())=0
	Create a new application.

virtual void	getKeySettings (DESFireKeySettings &settings, unsigned char &maxNbKeys, DESFireKeyType &keyType)=0
	Get key settings on the current application.

virtual ByteVector	getCardUID ()=0
	Get a random card UID.

virtual void	createStdDataFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, unsigned int fileSize, unsigned short isoFID=0x00)=0
	Create a new data file in the current application.

virtual void	createBackupFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, unsigned int fileSize, unsigned short isoFID=0x00)=0
	Create a new backup file in the current application.

virtual void	createLinearRecordFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, unsigned int fileSize, unsigned int maxNumberOfRecords, unsigned short isoFID=0x00)=0
	Create a new linear record file in the current application.

virtual void	createCyclicRecordFile (unsigned char fileno, EncryptionMode comSettings, const DESFireAccessRights &accessRights, unsigned int fileSize, unsigned int maxNumberOfRecords, unsigned short isoFID=0x00)=0
	Create a new cyclic record file in the current application.

virtual void	authenticateISO (unsigned char keyno, DESFireISOAlgorithm algorithm=DF_ALG_2K3DES)=0
	AuthenticateISO command.

virtual void	authenticateAES (unsigned char keyno)=0
	AuthenticateAES command.

virtual void	setConfiguration (bool formatCardEnabled, bool randomIdEnabled)=0
	Read data from a specific file.

virtual void	setConfiguration (std::shared_ptr< DESFireKey > defaultKey)=0
	Set the card configuration default key. param defaultKey The new default key.

virtual void	setConfiguration (const ByteVector &ats)=0
	Set a custom card ATS.

virtual std::shared_ptr< ISO7816Commands >	getISO7816Commands () const

Public Member Functions inherited from logicalaccess::ICommands
virtual	~ICommands ()=default

virtual std::shared_ptr< Chip >	getChip () const =0
	Get the chip.

virtual std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const =0
	Get the reader/card adapter.

Protected Member Functions
std::shared_ptr< DESFireEV1Chip >	getDESFireEV1Chip () const

Detailed Description

The DESFire EV1 base commands class.

Constructor & Destructor Documentation

◆ DESFireEV1Commands()

logicalaccess::DESFireEV1Commands::DESFireEV1Commands ( )

default

Member Function Documentation

◆ authenticateAES()

virtual void logicalaccess::DESFireEV1Commands::authenticateAES ( unsigned char keyno )

pure virtual

AuthenticateAES command.

Parameters

keyno The key number.

Implemented in logicalaccess::DESFireEV1ISO7816Commands, and logicalaccess::DESFireEV1STidSTRCommands.

◆ authenticateISO()

virtual void logicalaccess::DESFireEV1Commands::authenticateISO	(	unsigned char	keyno,
		DESFireISOAlgorithm	algorithm = `DF_ALG_2K3DES`
	)

pure virtual

AuthenticateISO command.

Parameters

keyno	The key number.
algorithm	The ISO algorithm to use for authentication.

Implemented in logicalaccess::DESFireEV1ISO7816Commands, and logicalaccess::DESFireEV1STidSTRCommands.

◆ createApplication() [1/2]

void logicalaccess::DESFireEV1Commands::createApplication	(	std::shared_ptr< DESFireEV1Location >	location,
		DESFireKeySettings	settings,
		unsigned char	maxNbKeys
	)

virtual

Create a new application.

Parameters

location	The DESFire location
settings	Key settings
maxNbKeys	Maximum number of keys

Reimplemented in logicalaccess::DESFireEV1STidSTRCommands.

◆ createApplication() [2/2]

virtual void logicalaccess::DESFireEV1Commands::createApplication	(	unsigned int	aid,
		DESFireKeySettings	settings,
		unsigned char	maxNbKeys,
		DESFireKeyType	cryptoMethod,
		FidSupport	fidSupported = `FIDS_NO_ISO_FID`,
		unsigned short	isoFID = `0x00`,
		ByteVector	isoDFName = `ByteVector()`
	)

pure virtual

Create a new application.

Parameters

aid	The Application ID to create
settings	Key settings
maxNbKeys	Maximum number of keys

Implemented in logicalaccess::DESFireEV1ISO7816Commands, logicalaccess::DESFireEV1STidSTRCommands, and logicalaccess::DESFireEV1STidSTRCommands.

◆ createBackupFile()

virtual void logicalaccess::DESFireEV1Commands::createBackupFile	(	unsigned char	fileno,
		EncryptionMode	comSettings,
		const DESFireAccessRights &	accessRights,
		unsigned int	fileSize,
		unsigned short	isoFID = `0x00`
	)

pure virtual

Create a new backup file in the current application.

Parameters

fileno	The new file number
comSettings	The file communication setting
accessRights	The file access rights
fileSize	The file size (in bytes).

Implemented in logicalaccess::DESFireEV1ISO7816Commands, and logicalaccess::DESFireEV1STidSTRCommands.

◆ createCyclicRecordFile()

virtual void logicalaccess::DESFireEV1Commands::createCyclicRecordFile	(	unsigned char	fileno,
		EncryptionMode	comSettings,
		const DESFireAccessRights &	accessRights,
		unsigned int	fileSize,
		unsigned int	maxNumberOfRecords,
		unsigned short	isoFID = `0x00`
	)

pure virtual

Create a new cyclic record file in the current application.

Parameters

fileno	The new file number
comSettings	The file communication setting
accessRights	The file access rights
fileSize	The file size (in bytes).
maxNumberOfRecords	Max number of records in the file.

Implemented in logicalaccess::DESFireEV1ISO7816Commands, and logicalaccess::DESFireEV1STidSTRCommands.

◆ createLinearRecordFile()

virtual void logicalaccess::DESFireEV1Commands::createLinearRecordFile	(	unsigned char	fileno,
		EncryptionMode	comSettings,
		const DESFireAccessRights &	accessRights,
		unsigned int	fileSize,
		unsigned int	maxNumberOfRecords,
		unsigned short	isoFID = `0x00`
	)

pure virtual

Create a new linear record file in the current application.

Parameters

fileno	The new file number
comSettings	The file communication setting
accessRights	The file access rights
fileSize	The file size (in bytes).
maxNumberOfRecords	Max number of records in the file.

Implemented in logicalaccess::DESFireEV1ISO7816Commands, and logicalaccess::DESFireEV1STidSTRCommands.

◆ createStdDataFile() [1/2]

void logicalaccess::DESFireEV1Commands::createStdDataFile	(	std::shared_ptr< DESFireEV1Location >	location,
		const DESFireAccessRights &	accessRights,
		unsigned int	fileSize
	)

virtual

Create a new data file in the current application.

Parameters

location	The DESFire location
accessRights	The file access rights
fileSize	The file size.

Reimplemented in logicalaccess::DESFireEV1STidSTRCommands.

◆ createStdDataFile() [2/2]

virtual void logicalaccess::DESFireEV1Commands::createStdDataFile	(	unsigned char	fileno,
		EncryptionMode	comSettings,
		const DESFireAccessRights &	accessRights,
		unsigned int	fileSize,
		unsigned short	isoFID = `0x00`
	)

pure virtual

Create a new data file in the current application.

Parameters

fileno	The new file number
comSettings	The file communication setting
accessRights	The file access rights
fileSize	The file size (in bytes).

Implemented in logicalaccess::DESFireEV1ISO7816Commands, logicalaccess::DESFireEV1STidSTRCommands, and logicalaccess::DESFireEV1STidSTRCommands.

◆ getCardUID()

virtual ByteVector logicalaccess::DESFireEV1Commands::getCardUID ( )

pure virtual

Get a random card UID.

Returns: The card UID.

Implemented in logicalaccess::DESFireEV1ISO7816Commands, and logicalaccess::DESFireEV1STidSTRCommands.

◆ getDESFireEV1Chip()

std::shared_ptr< DESFireEV1Chip > logicalaccess::DESFireEV1Commands::getDESFireEV1Chip ( ) const

protected

◆ getDFNames()

virtual std::vector< DFName > logicalaccess::DESFireEV1Commands::getDFNames ( )

pure virtual

Get the ISO DF-Names of all active application.

Returns: The DF-Names list.

Implemented in logicalaccess::DESFireEV1ISO7816Commands, and logicalaccess::DESFireEV1STidSTRCommands.

◆ getFreeMem()

virtual unsigned int logicalaccess::DESFireEV1Commands::getFreeMem ( )

pure virtual

Get the value of available bytes.

Returns: The available memory in bytes.

Implemented in logicalaccess::DESFireEV1ISO7816Commands, and logicalaccess::DESFireEV1STidSTRCommands.

◆ getISO7816Commands()

virtual std::shared_ptr< ISO7816Commands > logicalaccess::DESFireEV1Commands::getISO7816Commands ( ) const

inlinevirtual

Reimplemented in logicalaccess::DESFireEV1ISO7816Commands.

◆ getISOFileIDs()

virtual std::vector< unsigned short > logicalaccess::DESFireEV1Commands::getISOFileIDs ( )

pure virtual

Get the ISO FID of all active files within the currently selected application.

Returns: The ISO FID list.

Implemented in logicalaccess::DESFireEV1ISO7816Commands, and logicalaccess::DESFireEV1STidSTRCommands.

◆ getKeySettings()

virtual void logicalaccess::DESFireEV1Commands::getKeySettings	(	DESFireKeySettings &	settings,
		unsigned char &	maxNbKeys,
		DESFireKeyType &	keyType
	)

pure virtual

Get key settings on the current application.

Parameters

settings	Key settings
maxNbKeys	Maximum number of keys
keyType	The key type

Implemented in logicalaccess::DESFireEV1ISO7816Commands, and logicalaccess::DESFireEV1STidSTRCommands.

◆ selectApplication() [1/2]

void logicalaccess::DESFireEV1Commands::selectApplication ( std::shared_ptr< DESFireEV1Location > location )

virtual

Select an application.

Parameters

location The DESFire location

◆ selectApplication() [2/2]

virtual void logicalaccess::DESFireEV1Commands::selectApplication ( unsigned int aid )

pure virtual

Select an application.

Parameters

aid	The Application ID

Implemented in logicalaccess::DESFireEV1ISO7816Commands, and logicalaccess::DESFireEV1STidSTRCommands.

◆ setConfiguration() [1/3]

virtual void logicalaccess::DESFireEV1Commands::setConfiguration	(	bool	formatCardEnabled,
		bool	randomIdEnabled
	)

pure virtual

Read data from a specific file.

Parameters

fileno	The file number
offset	The byte offset
length	The data length to read
data	The data buffer
mode	The communication mode

Returns: The number of bytes read.

Read record from a specific record file.

Parameters

fileno	The file number
offset	The byte offset
length	The length to read
data	The data buffer
mode	The communication mode

Returns: The number of bytes read.

Change file settings of a specific file in the current application.

Parameters

fileno	The file number
comSettings	The file communication setting
accessRights	The file access rights
plain	Communication is currently in plain data.

Returns: True on success, false otherwise.

Change key settings for the current application.

Parameters

settings The new key settings

Returns: True on success, false otherwise.

Change a key in the current application.

Parameters

keyno	The key number to change
key	The new key

Returns: True on success, false otherwise.

Get the card version information.

Parameters

dataVersion The card version information structure that will be filled

Returns: True on success, false otherwise.

Get the current application list.

Returns: The application list.

Get the File IDentifiers of all active files within the currently selected application

Returns: The file ID list.

Get value from a specific value file.

Parameters

fileno	The file number
mode	The communication mode
value	The value stored in the card

Returns: True on success, false otherwise.

Set the card configuration.

Parameters

formatCardEnabled	If true, the format card command is enabled.
randomIdEnabled	If true, the CSN is random (can't be changed once activated).

Implemented in logicalaccess::DESFireEV1ISO7816Commands, and logicalaccess::DESFireEV1STidSTRCommands.

◆ setConfiguration() [2/3]

virtual void logicalaccess::DESFireEV1Commands::setConfiguration ( const ByteVector & ats )

pure virtual

Set a custom card ATS.

Parameters

ats	The new card ATS.

Implemented in logicalaccess::DESFireEV1ISO7816Commands, and logicalaccess::DESFireEV1STidSTRCommands.

◆ setConfiguration() [3/3]

virtual void logicalaccess::DESFireEV1Commands::setConfiguration ( std::shared_ptr< DESFireKey > defaultKey )

pure virtual

Set the card configuration default key. param defaultKey The new default key.

Implemented in logicalaccess::DESFireEV1ISO7816Commands, and logicalaccess::DESFireEV1STidSTRCommands.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/desfire/desfireev1commands.hpp
C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/desfire/desfireev1commands.cpp

Public Member Functions

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ DESFireEV1Commands()

Member Function Documentation

◆ authenticateAES()

◆ authenticateISO()

◆ createApplication() [1/2]

◆ createApplication() [2/2]

◆ createBackupFile()

◆ createCyclicRecordFile()

◆ createLinearRecordFile()

◆ createStdDataFile() [1/2]

◆ createStdDataFile() [2/2]

◆ getCardUID()

◆ getDESFireEV1Chip()

◆ getDFNames()

◆ getFreeMem()

◆ getISO7816Commands()

◆ getISOFileIDs()

◆ getKeySettings()

◆ selectApplication() [1/2]

◆ selectApplication() [2/2]

◆ setConfiguration() [1/3]

◆ setConfiguration() [2/3]

◆ setConfiguration() [3/3]
