A Wiegand 34 with Facility format class. More...

#include <wiegand34withfacilityformat.hpp>

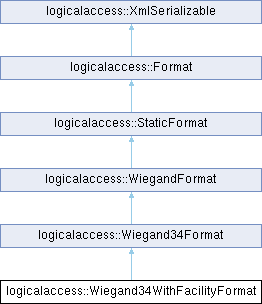

Inheritance diagram for logicalaccess::Wiegand34WithFacilityFormat:

Public Member Functions
	Wiegand34WithFacilityFormat ()
	Constructor.

virtual	~Wiegand34WithFacilityFormat ()
	Destructor.

std::string	getName () const override
	Get the format name.

unsigned short int	getFacilityCode () const
	Get facility code.

void	setFacilityCode (unsigned short int facilityCode)
	Set facility code.

BitsetStream	getLinearDataWithoutParity () const override
	Get linear data without parity.

void	setLinearDataWithoutParity (const ByteVector &data) override
	Write linear data without parity into data buffer.

size_t	getFormatLinearData (ByteVector &data) const override
	Get the format linear data in bytes.

void	setFormatLinearData (const ByteVector &data, size_t *indexByte) override
	Set the format linear data in bytes.

FormatType	getType () const override
	Get the format type.

void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

std::string	getDefaultXmlNodeName () const override
	Get the default Xml Node name for this object.

bool	checkSkeleton (std::shared_ptr< Format > format) const override
	Check the current format skeleton with another format.

Public Member Functions inherited from logicalaccess::Wiegand34Format
	Wiegand34Format ()
	Constructor.

virtual	~Wiegand34Format ()
	Destructor.

unsigned int	getDataLength () const override
	Get the format length in bits.

std::string	getName () const override
	Get the format name.

BitsetStream	getLinearDataWithoutParity () const override
	Get linear data without parity.

void	setLinearDataWithoutParity (const ByteVector &data) override
	Write linear data without parity into data buffer.

size_t	getFormatLinearData (ByteVector &data) const override
	Get the format linear data in bytes.

void	setFormatLinearData (const ByteVector &data, size_t *indexByte) override
	Set the format linear data in bytes.

FormatType	getType () const override
	Get the format type.

void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize the current object to XML.

void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize a XML node to the current object.

std::string	getDefaultXmlNodeName () const override
	Get the default Xml Node name for this object.

bool	checkSkeleton (std::shared_ptr< Format > format) const override
	Check the current format skeleton with another format.

Public Member Functions inherited from logicalaccess::WiegandFormat
	WiegandFormat ()
	Constructor.

virtual	~WiegandFormat ()
	Destructor.

unsigned char	getLeftParity () const
	Get left parity byte.

unsigned char	getRightParity () const
	Get right parity byte.

ByteVector	getLinearData () const override
	Get linear data.

virtual BitsetStream	getLinearDataWithoutParity () const =0
	Get linear data without parity.

void	setLinearData (const ByteVector &data) override
	Set linear data.

virtual void	setLinearDataWithoutParity (const ByteVector &data)=0
	Write linear data without parity into data buffer.

Public Member Functions inherited from logicalaccess::StaticFormat
	StaticFormat ()
	Constructor.

virtual	~StaticFormat ()=default

std::shared_ptr< DataRepresentation >	getDataRepresentation () const
	Get the Data Representation for the format.

void	setDataRepresentation (std::shared_ptr< DataRepresentation > &encoding)
	Set the Data Representation for the format.

std::shared_ptr< DataType >	getDataType () const
	Get the Data Type for the format.

void	setDataType (std::shared_ptr< DataType > &encoding)
	Set the Data Type for the format.

unsigned long long	getUid () const
	Get the UID number.

void	setUid (unsigned long long uid)
	Set the UID number.

virtual bool	needUserConfigurationToBeUse () const
	The format need user configuration to be use.

virtual void	convertField (BitsetStream &data, unsigned long long field, unsigned int fieldlen) const
	Convert a field into the configured DataRepresentation and DataType.

unsigned long long	revertField (BitsetStream &data, unsigned int *pos, unsigned int fieldlen) const
	Revert a field using the configured DataRepresentation and DataType.

size_t	getSkeletonLinearData (ByteVector &data) const override
	Get skeleton linear data.

void	setSkeletonLinearData (const ByteVector &data) override
	Set skeleton linear data.

Public Member Functions inherited from logicalaccess::Format
	Format ()
	Constructor.

	Format (const Format &other)=delete
	Remove copy.

Format &	operator= (const Format &)=delete

virtual	~Format ()=default

virtual unsigned int	getDataLength () const =0
	Get data length in bits.

virtual std::string	getName () const =0
	Get the format name.

virtual ByteVector	getLinearData () const =0
	Get linear data.

virtual void	setLinearData (const ByteVector &data)=0
	Set linear data.

virtual size_t	getSkeletonLinearData (ByteVector &data) const =0
	Get skeleton linear data.

virtual void	setSkeletonLinearData (const ByteVector &data)=0
	Set skeleton linear data.

virtual FormatType	getType () const =0
	Get the format type.

virtual std::vector< std::string >	getValuesFieldList () const
	Get values field list.

virtual unsigned int	getFieldLength (const std::string &field) const
	Get the field length.

virtual bool	checkSkeleton (std::shared_ptr< Format > format) const =0
	Check the current format skeleton with another format.

virtual ByteVector	getIdentifier ()
	Get the identifier.

virtual std::vector< std::shared_ptr< DataField > >	getFieldList ()
	Get the format field list.

virtual void	setFieldList (std::vector< std::shared_ptr< DataField > > fields)
	Get the format field list.

std::shared_ptr< DataField >	getFieldFromName (std::string field) const
	Get the field object from name.

bool	isRepeatable () const

void	setRepeatable (bool v)

Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default

virtual std::string	serialize ()
	Serialize object to Xml Node string.

virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.

virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.

virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.

virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.

virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.

virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.

virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.

virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Protected Attributes
struct {
unsigned short int d_facilityCode
	The facility code. More...

}	d_formatLinear

Protected Attributes inherited from logicalaccess::WiegandFormat
unsigned int	d_leftParityLength
	The left parity length.

ParityType	d_leftParityType
	The left parity type.

unsigned int	d_rightParityLength
	The right parity length.

ParityType	d_rightParityType
	The right parity type.

Protected Attributes inherited from logicalaccess::StaticFormat
std::shared_ptr< DataRepresentation >	d_dataRepresentation
	The Data Representation.

std::shared_ptr< DataType >	d_dataType
	The Data Type.

unsigned long long	d_uid
	The UID number.

Protected Attributes inherited from logicalaccess::Format
std::list< std::shared_ptr< DataField > >	d_fieldList
	The field list.

bool	is_repeatable_

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::StaticFormat
static unsigned char	calculateParity (const BitsetStream &data, ParityType parityType, size_t start, size_t parityLengthBits)
	Calculate parity for a block of data.

Static Public Member Functions inherited from logicalaccess::Format
static std::shared_ptr< Format >	getByFormatType (FormatType type)
	Get a new format instance from a format type.

static unsigned char	calculateParity (const BitsetStream &data, ParityType parityType, std::vector< unsigned int > positions)
	Calculate parity for a block of data.

Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.

static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.

Protected Member Functions inherited from logicalaccess::StaticFormat
virtual size_t	getFormatLinearData (ByteVector &data) const =0
	Get the format linear data in bytes.

virtual size_t	getEncodingLinearData (ByteVector &data) const
	Get the encoding linear data in bytes (Data Representation and Data Type).

virtual void	setFormatLinearData (const ByteVector &data, size_t *indexByte)=0
	Set the format linear data in bytes.

virtual void	setEncodingLinearData (const ByteVector &data, size_t *indexByte)
	Set the encoding linear data in bytes (Data Representation and Data Type).

Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)

Detailed Description

A Wiegand 34 with Facility format class.

Constructor & Destructor Documentation

◆ Wiegand34WithFacilityFormat()

logicalaccess::Wiegand34WithFacilityFormat::Wiegand34WithFacilityFormat ( )

Constructor.

Create a Wiegand 34 With Facility Format.

◆ ~Wiegand34WithFacilityFormat()

logicalaccess::Wiegand34WithFacilityFormat::~Wiegand34WithFacilityFormat ( )

virtual

Destructor.

Release the Wiegand 34 With Facility Format.

Member Function Documentation

◆ checkSkeleton()

bool logicalaccess::Wiegand34WithFacilityFormat::checkSkeleton ( std::shared_ptr< Format > format ) const

overridevirtual

Check the current format skeleton with another format.

Parameters

format The format to check.

Returns: True on success, false otherwise.

Reimplemented from logicalaccess::Wiegand34Format.

◆ getDefaultXmlNodeName()

std::string logicalaccess::Wiegand34WithFacilityFormat::getDefaultXmlNodeName ( ) const

overridevirtual

Get the default Xml Node name for this object.

Returns: The Xml node name.

Reimplemented from logicalaccess::Wiegand34Format.

◆ getFacilityCode()

unsigned short int logicalaccess::Wiegand34WithFacilityFormat::getFacilityCode ( ) const

Get facility code.

◆ getFormatLinearData()

size_t logicalaccess::Wiegand34WithFacilityFormat::getFormatLinearData ( ByteVector & data ) const

overridevirtual

Get the format linear data in bytes.

Parameters

data	The data buffer
dataLengthBytes	The data buffer length

Returns: The format linear data length.

Reimplemented from logicalaccess::Wiegand34Format.

◆ getLinearDataWithoutParity()

BitsetStream logicalaccess::Wiegand34WithFacilityFormat::getLinearDataWithoutParity ( ) const

overridevirtual

Get linear data without parity.

Parameters

data	Buffer to be modified. Should be allocated.
dataLengthBytes	Length in byte of data

Reimplemented from logicalaccess::Wiegand34Format.

◆ getName()

std::string logicalaccess::Wiegand34WithFacilityFormat::getName ( ) const

overridevirtual

Get the format name.

Returns: The format name

Reimplemented from logicalaccess::Wiegand34Format.

◆ getType()

FormatType logicalaccess::Wiegand34WithFacilityFormat::getType ( ) const

overridevirtual

Get the format type.

Returns: The format type.

Reimplemented from logicalaccess::Wiegand34Format.

◆ serialize()

void logicalaccess::Wiegand34WithFacilityFormat::serialize ( boost::property_tree::ptree & parentNode )

overridevirtual

Serialize the current object to XML.

Parameters

parentNode The parent node.

Reimplemented from logicalaccess::Wiegand34Format.

◆ setFacilityCode()

void logicalaccess::Wiegand34WithFacilityFormat::setFacilityCode ( unsigned short int facilityCode )

Set facility code.

Parameters

facilityCode The facility code.

◆ setFormatLinearData()

void logicalaccess::Wiegand34WithFacilityFormat::setFormatLinearData	(	const ByteVector &	data,
		size_t *	indexByte
	)

overridevirtual

Set the format linear data in bytes.

Parameters

data	The data buffer
indexByte	The data offset

Reimplemented from logicalaccess::Wiegand34Format.

◆ setLinearDataWithoutParity()

void logicalaccess::Wiegand34WithFacilityFormat::setLinearDataWithoutParity ( const ByteVector & data )

overridevirtual

Write linear data without parity into data buffer.

Parameters

data	Buffer where data will be written.
dataLengthBytes	Length of data in bytes

Reimplemented from logicalaccess::Wiegand34Format.

◆ unSerialize()

void logicalaccess::Wiegand34WithFacilityFormat::unSerialize ( boost::property_tree::ptree & node )

overridevirtual

UnSerialize a XML node to the current object.

Parameters

node	The XML node.

Reimplemented from logicalaccess::Wiegand34Format.

Member Data Documentation

◆ d_facilityCode

unsigned short int logicalaccess::Wiegand34WithFacilityFormat::d_facilityCode

The facility code.

◆

struct { ... } logicalaccess::Wiegand34WithFacilityFormat::d_formatLinear

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/include/logicalaccess/services/accesscontrol/formats/wiegand34withfacilityformat.hpp
C:/dev/lla/liblogicalaccess/src/services/accesscontrol/formats/wiegand34withfacilityformat.cpp

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Wiegand34WithFacilityFormat()

◆ ~Wiegand34WithFacilityFormat()

Member Function Documentation

◆ checkSkeleton()

◆ getDefaultXmlNodeName()

◆ getFacilityCode()

◆ getFormatLinearData()

◆ getLinearDataWithoutParity()

◆ getName()

◆ getType()

◆ serialize()

◆ setFacilityCode()

◆ setFormatLinearData()

◆ setLinearDataWithoutParity()

◆ unSerialize()

Member Data Documentation

◆ d_facilityCode

◆
