The SAMAV1ISO7816 commands class. More...

#include <samav1iso7816commands.hpp>

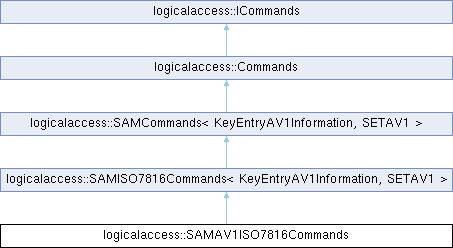

Inheritance diagram for logicalaccess::SAMAV1ISO7816Commands:

Public Member Functions
	SAMAV1ISO7816Commands ()
	Constructor.

	SAMAV1ISO7816Commands (std::string)

virtual	~SAMAV1ISO7816Commands ()
	Destructor.

std::shared_ptr< SAMKeyEntry< KeyEntryAV1Information, SETAV1 > >	getKeyEntry (unsigned char keyno) override

std::shared_ptr< SAMKucEntry >	getKUCEntry (unsigned char kucno) override

void	changeKUCEntry (unsigned char kucno, std::shared_ptr< SAMKucEntry > keyentry, std::shared_ptr< DESFireKey > key) override

void	changeKeyEntry (unsigned char keyno, std::shared_ptr< SAMKeyEntry< KeyEntryAV1Information, SETAV1 > > keyentry, std::shared_ptr< DESFireKey > key) override

void	authenticateHost (std::shared_ptr< DESFireKey > key, unsigned char keyno) override

void	authenticateHost_AES_3K3DES (std::shared_ptr< DESFireKey > key, unsigned char keyno)

void	authenticateHostDES (std::shared_ptr< DESFireKey > key, unsigned char keyno)

Public Member Functions inherited from logicalaccess::SAMISO7816Commands< KeyEntryAV1Information, SETAV1 >
	SAMISO7816Commands ()
	Constructor.

	SAMISO7816Commands (std::string ct)

virtual	~SAMISO7816Commands ()
	Destructor.

std::shared_ptr< ISO7816ReaderCardAdapter >	getISO7816ReaderCardAdapter ()

ByteVector	transmit (ByteVector cmd, bool=true, bool=true) override

SAMVersion	getVersion () override

ByteVector	decipherData (ByteVector data, bool islastdata) override

ByteVector	encipherData (ByteVector data, bool islastdata) override

void	disableKeyEntry (unsigned char keyno) override

ByteVector	dumpSessionKey () override

void	loadInitVector (ByteVector iv) override

std::string	getSAMTypeFromSAM () override

virtual std::shared_ptr< SAMDESfireCrypto >	getCrypto ()

virtual void	setCrypto (std::shared_ptr< SAMDESfireCrypto > t)

void	lockUnlock (std::shared_ptr< DESFireKey > masterKey, SAMLockUnlock state, unsigned char keyno, unsigned char unlockkeyno, unsigned char unlockkeyversion) override

void	selectApplication (ByteVector aid) override

ByteVector	changeKeyPICC (const ChangeKeyInfo &info, const ChangeKeyDiversification &diversifycation) override

Public Member Functions inherited from logicalaccess::SAMCommands< T, S >
	SAMCommands ()

	SAMCommands (std::string ct)

virtual SAMVersion	getVersion ()=0

virtual std::shared_ptr< SAMKeyEntry< T, S > >	getKeyEntry (unsigned char keyno)=0

virtual std::shared_ptr< SAMKucEntry >	getKUCEntry (unsigned char keyno)=0

virtual void	changeKeyEntry (unsigned char keyno, std::shared_ptr< SAMKeyEntry< T, S > > keyentry, std::shared_ptr< DESFireKey > key)=0

virtual void	changeKUCEntry (unsigned char keyno, std::shared_ptr< SAMKucEntry > keyentry, std::shared_ptr< DESFireKey > key)=0

virtual void	authenticateHost (std::shared_ptr< DESFireKey > key, unsigned char keyno)=0

virtual std::string	getSAMTypeFromSAM ()=0

virtual void	disableKeyEntry (unsigned char keyno)=0

virtual void	selectApplication (ByteVector aid)=0

virtual ByteVector	dumpSessionKey ()=0

virtual void	loadInitVector (ByteVector iv)=0

virtual ByteVector	decipherData (ByteVector data, bool islastdata)=0

virtual ByteVector	encipherData (ByteVector data, bool islastdata)=0

virtual ByteVector	changeKeyPICC (const ChangeKeyInfo &info, const ChangeKeyDiversification &diversifycation)=0

virtual void	lockUnlock (std::shared_ptr< DESFireKey > masterKey, SAMLockUnlock state, unsigned char keyno, unsigned char unlockkeyno, unsigned char unlockkeyversion)=0

virtual ByteVector	transmit (ByteVector cmd, bool first=true, bool last=true)=0

Public Member Functions inherited from logicalaccess::Commands
	Commands ()=delete
	Constructor.

virtual	~Commands ()

std::shared_ptr< Chip >	getChip () const override
	Get the chip.

virtual void	setChip (std::shared_ptr< Chip > chip)
	Set the chip.

std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const override
	Get the reader/card adapter.

virtual void	setReaderCardAdapter (std::shared_ptr< ReaderCardAdapter > adapter)
	Set the reader/card adapter.

virtual const std::string &	getCmdType () const
	Get the cmd name.

virtual void	setCmdType (const std::string &command_type)
	Set the cmd name.

Public Member Functions inherited from logicalaccess::ICommands
virtual	~ICommands ()=default

virtual std::shared_ptr< Chip >	getChip () const =0
	Get the chip.

virtual std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const =0
	Get the reader/card adapter.

Additional Inherited Members
Protected Member Functions inherited from logicalaccess::SAMISO7816Commands< KeyEntryAV1Information, SETAV1 >
void	generateAuthEncKey (ByteVector keycipher, ByteVector rnd1, ByteVector rnd2)

Protected Member Functions inherited from logicalaccess::Commands
	Commands (std::string commandtype)
	Constructor.

Static Protected Member Functions inherited from logicalaccess::SAMISO7816Commands< KeyEntryAV1Information, SETAV1 >
static void	truncateMacBuffer (ByteVector &data)

Protected Attributes inherited from logicalaccess::SAMISO7816Commands< KeyEntryAV1Information, SETAV1 >
std::shared_ptr< SAMDESfireCrypto >	d_crypto

unsigned char	d_cla

ByteVector	d_authKey

ByteVector	d_sessionKey

ByteVector	d_LastSessionIV

Protected Attributes inherited from logicalaccess::Commands
std::shared_ptr< ReaderCardAdapter >	d_readerCardAdapter
	The reader/card adapter.

std::weak_ptr< Chip >	d_chip
	The chip.

std::string	d_commandtype
	The command type.

Detailed Description

The SAMAV1ISO7816 commands class.

Constructor & Destructor Documentation

◆ SAMAV1ISO7816Commands() [1/2]

logicalaccess::SAMAV1ISO7816Commands::SAMAV1ISO7816Commands ( )

Constructor.

◆ SAMAV1ISO7816Commands() [2/2]

logicalaccess::SAMAV1ISO7816Commands::SAMAV1ISO7816Commands ( std::string ct )

explicit

◆ ~SAMAV1ISO7816Commands()

logicalaccess::SAMAV1ISO7816Commands::~SAMAV1ISO7816Commands ( )

virtual

Destructor.

Member Function Documentation

◆ authenticateHost()

void logicalaccess::SAMAV1ISO7816Commands::authenticateHost	(	std::shared_ptr< DESFireKey >	key,
		unsigned char	keyno
	)

overridevirtual

Implements logicalaccess::SAMCommands< T, S >.

◆ authenticateHost_AES_3K3DES()

void logicalaccess::SAMAV1ISO7816Commands::authenticateHost_AES_3K3DES	(	std::shared_ptr< DESFireKey >	key,
		unsigned char	keyno
	)

◆ authenticateHostDES()

void logicalaccess::SAMAV1ISO7816Commands::authenticateHostDES	(	std::shared_ptr< DESFireKey >	key,
		unsigned char	keyno
	)

◆ changeKeyEntry()

void logicalaccess::SAMAV1ISO7816Commands::changeKeyEntry	(	unsigned char	keyno,
		std::shared_ptr< SAMKeyEntry< KeyEntryAV1Information, SETAV1 > >	keyentry,
		std::shared_ptr< DESFireKey >	key
	)

override

◆ changeKUCEntry()

void logicalaccess::SAMAV1ISO7816Commands::changeKUCEntry	(	unsigned char	kucno,
		std::shared_ptr< SAMKucEntry >	keyentry,
		std::shared_ptr< DESFireKey >	key
	)

overridevirtual

Implements logicalaccess::SAMCommands< T, S >.

◆ getKeyEntry()

std::shared_ptr< SAMKeyEntry< KeyEntryAV1Information, SETAV1 > > logicalaccess::SAMAV1ISO7816Commands::getKeyEntry ( unsigned char keyno )

overridevirtual

Implements logicalaccess::SAMCommands< T, S >.

◆ getKUCEntry()

std::shared_ptr< SAMKucEntry > logicalaccess::SAMAV1ISO7816Commands::getKUCEntry ( unsigned char kucno )

overridevirtual

Implements logicalaccess::SAMCommands< T, S >.

The documentation for this class was generated from the following files:

C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/iso7816/commands/samav1iso7816commands.hpp
C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/readers/iso7816/commands/samav1iso7816commands.cpp
