logicalaccess::NXPKeyDiversification Class Reference

#include <nxpkeydiversification.hpp>

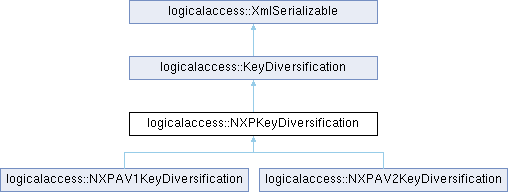

Inheritance diagram for logicalaccess::NXPKeyDiversification:

Public Member Functions
void	initDiversification (ByteVector identifier, unsigned int AID, std::shared_ptr< Key > key, unsigned char keyno, ByteVector &diversify) override=0
ByteVector	getDiversifiedKey (std::shared_ptr< Key > key, ByteVector diversify) override=0
	NXPKeyDiversification ()
virtual	~NXPKeyDiversification ()=default
std::string	getKeyDiversificationType () override
void	serialize (boost::property_tree::ptree &) override
	Serialize object to Xml Node.
void	unSerialize (boost::property_tree::ptree &) override
	UnSerialize object from a Xml Node.
std::string	getDefaultXmlNodeName () const override
	Get the default Xml Node name for this object.
Public Member Functions inherited from logicalaccess::KeyDiversification
virtual	~KeyDiversification ()=default
virtual void	initDiversification (ByteVector d_identifier, unsigned int AID, std::shared_ptr< Key > key, unsigned char keyno, ByteVector &diversify)=0
virtual ByteVector	getDiversifiedKey (std::shared_ptr< Key > key, ByteVector diversify)=0
virtual std::string	getKeyDiversificationType ()=0
Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default
virtual std::string	serialize ()
	Serialize object to Xml Node string.
virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.
virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.
virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.
virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.
virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.
virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.
virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.
virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.
virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::KeyDiversification
static std::shared_ptr< KeyDiversification >	getKeyDiversificationFromType (std::string kdiv)
Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.
static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.
Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)

Constructor & Destructor Documentation

NXPKeyDiversification()

logicalaccess::NXPKeyDiversification::NXPKeyDiversification ( )

inline

~NXPKeyDiversification()

virtual logicalaccess::NXPKeyDiversification::~NXPKeyDiversification ( )

virtualdefault

Member Function Documentation

getDefaultXmlNodeName()

std::string logicalaccess::NXPKeyDiversification::getDefaultXmlNodeName ( ) const

inlineoverridevirtual

Get the default Xml Node name for this object.

Returns

The Xml node name.

Implements logicalaccess::XmlSerializable.

getDiversifiedKey()

ByteVector logicalaccess::NXPKeyDiversification::getDiversifiedKey ( std::shared_ptr< Key >  key, ByteVector  diversify  )

overridepure virtual

Implements logicalaccess::KeyDiversification.

Implemented in logicalaccess::NXPAV1KeyDiversification, and logicalaccess::NXPAV2KeyDiversification.

getKeyDiversificationType()

std::string logicalaccess::NXPKeyDiversification::getKeyDiversificationType ( )

inlineoverridevirtual

Implements logicalaccess::KeyDiversification.

initDiversification()

void logicalaccess::NXPKeyDiversification::initDiversification ( ByteVector  identifier, unsigned int  AID, std::shared_ptr< Key >  key, unsigned char  keyno, ByteVector &  diversify  )

overridepure virtual

Implements logicalaccess::KeyDiversification.

Implemented in logicalaccess::NXPAV1KeyDiversification, and logicalaccess::NXPAV2KeyDiversification.

serialize()

void logicalaccess::NXPKeyDiversification::serialize ( boost::property_tree::ptree &  parentNode )

inlineoverridevirtual

Serialize object to Xml Node.

Parameters

os	The XML stream.

Implements logicalaccess::XmlSerializable.

unSerialize()

void logicalaccess::NXPKeyDiversification::unSerialize ( boost::property_tree::ptree &  node )

inlineoverridevirtual

UnSerialize object from a Xml Node.

Parameters

node	The Xml node.

Implements logicalaccess::XmlSerializable.

---

The documentation for this class was generated from the following file:

• C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/desfire/nxpkeydiversification.hpp
