logicalaccess::FeliCaCommands Class Reference

The FeliCa commands class. More...

#include <felicacommands.hpp>

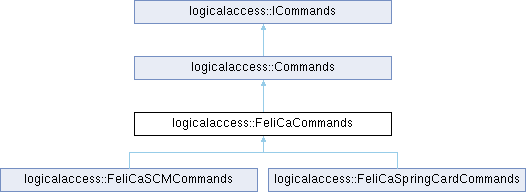

Inheritance diagram for logicalaccess::FeliCaCommands:

Public Member Functions
	FeliCaCommands ()
	FeliCaCommands (std::string ct)
virtual std::vector< unsigned short >	getSystemCodes ()=0
	Get system codes.
virtual unsigned short	requestService (unsigned short code)
virtual std::vector< unsigned short >	requestServices (const std::vector< unsigned short > &codes)=0
	Request Services / Area versions.
virtual unsigned char	requestResponse ()=0
	Request Response, current FeliCa mode.
virtual ByteVector	read (unsigned short code, unsigned short block)
virtual ByteVector	read (unsigned short code, const std::vector< unsigned short > &blocks)
virtual ByteVector	read (const std::vector< unsigned short > &codes, const std::vector< unsigned short > &blocks)=0
	Read data from the chip.
virtual void	write (unsigned short code, const std::vector< unsigned short > &blocks, const ByteVector &data)
virtual void	write (unsigned short code, unsigned short block, const ByteVector &data)
virtual void	write (const std::vector< unsigned short > &codes, const std::vector< unsigned short > &blocks, const ByteVector &data)=0
	Write data to the chip.
Public Member Functions inherited from logicalaccess::Commands
	Commands ()=delete
	Constructor.
virtual	~Commands ()
std::shared_ptr< Chip >	getChip () const override
	Get the chip.
virtual void	setChip (std::shared_ptr< Chip > chip)
	Set the chip.
std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const override
	Get the reader/card adapter.
virtual void	setReaderCardAdapter (std::shared_ptr< ReaderCardAdapter > adapter)
	Set the reader/card adapter.
virtual const std::string &	getCmdType () const
	Get the cmd name.
virtual void	setCmdType (const std::string &command_type)
	Set the cmd name.
Public Member Functions inherited from logicalaccess::ICommands
virtual	~ICommands ()=default
virtual std::shared_ptr< Chip >	getChip () const =0
	Get the chip.
virtual std::shared_ptr< ReaderCardAdapter >	getReaderCardAdapter () const =0
	Get the reader/card adapter.

Additional Inherited Members
Protected Member Functions inherited from logicalaccess::Commands
	Commands (std::string commandtype)
	Constructor.
Protected Attributes inherited from logicalaccess::Commands
std::shared_ptr< ReaderCardAdapter >	d_readerCardAdapter
	The reader/card adapter.
std::weak_ptr< Chip >	d_chip
	The chip.
std::string	d_commandtype
	The command type.

Detailed Description

The FeliCa commands class.

Constructor & Destructor Documentation

FeliCaCommands() [1/2]

logicalaccess::FeliCaCommands::FeliCaCommands ( )

inline

FeliCaCommands() [2/2]

logicalaccess::FeliCaCommands::FeliCaCommands ( std::string  ct )

inlineexplicit

Member Function Documentation

getSystemCodes()

virtual std::vector< unsigned short > logicalaccess::FeliCaCommands::getSystemCodes ( )

pure virtual

Get system codes.

Returns

System codes list.

Implemented in logicalaccess::FeliCaSCMCommands, and logicalaccess::FeliCaSpringCardCommands.

read() [1/3]

virtual ByteVector logicalaccess::FeliCaCommands::read ( const std::vector< unsigned short > &  codes, const std::vector< unsigned short > &  blocks  )

pure virtual

Read data from the chip.

Parameters

codes	Service / Area codes list.
blocks	Blocks list.

Returns

Data read.

Implemented in logicalaccess::FeliCaSCMCommands, and logicalaccess::FeliCaSpringCardCommands.

read() [2/3]

ByteVector logicalaccess::FeliCaCommands::read ( unsigned short  code, const std::vector< unsigned short > &  blocks  )

virtual

read() [3/3]

ByteVector logicalaccess::FeliCaCommands::read ( unsigned short  code, unsigned short  block  )

virtual

requestResponse()

virtual unsigned char logicalaccess::FeliCaCommands::requestResponse ( )

pure virtual

Request Response, current FeliCa mode.

Returns

FeliCa mode (0/1/2).

Implemented in logicalaccess::FeliCaSCMCommands, and logicalaccess::FeliCaSpringCardCommands.

requestService()

unsigned short logicalaccess::FeliCaCommands::requestService ( unsigned short  code )

virtual

requestServices()

virtual std::vector< unsigned short > logicalaccess::FeliCaCommands::requestServices ( const std::vector< unsigned short > &  codes )

pure virtual

Request Services / Area versions.

Parameters

codes

Service / Area codes list.

Returns

Service / Area versions.

Implemented in logicalaccess::FeliCaSCMCommands, and logicalaccess::FeliCaSpringCardCommands.

write() [1/3]

virtual void logicalaccess::FeliCaCommands::write ( const std::vector< unsigned short > &  codes, const std::vector< unsigned short > &  blocks, const ByteVector &  data  )

pure virtual

Write data to the chip.

Parameters

codes	Service / Area codes list.
blocks	Blocks list.
data	Data to write.

Implemented in logicalaccess::FeliCaSCMCommands, and logicalaccess::FeliCaSpringCardCommands.

write() [2/3]

void logicalaccess::FeliCaCommands::write ( unsigned short  code, const std::vector< unsigned short > &  blocks, const ByteVector &  data  )

virtual

write() [3/3]

void logicalaccess::FeliCaCommands::write ( unsigned short  code, unsigned short  block, const ByteVector &  data  )

virtual

---

The documentation for this class was generated from the following files:

• C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/felica/felicacommands.hpp
• C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/felica/felicacommands.cpp
