logicalaccess::openssl::OpenSSLSymmetricCipher Class Reference

A OpenSSL symmetric cipher base class. More...

#include <openssl_symmetric_cipher.hpp>

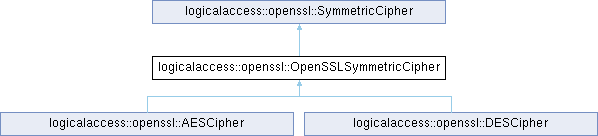

Inheritance diagram for logicalaccess::openssl::OpenSSLSymmetricCipher:

Public Types
enum	EncMode {   ENC_MODE_CBC , ENC_MODE_CFB , ENC_MODE_CFB1 , ENC_MODE_CFB8 ,   ENC_MODE_ECB , ENC_MODE_OFB }
	Encryption mode. More...
enum	Method { M_ENCRYPT , M_DECRYPT }
	A method. More...

Public Member Functions
	OpenSSLSymmetricCipher (EncMode mode)
	Constructor.
virtual	~OpenSSLSymmetricCipher ()
OpenSSLSymmetricCipherContext	start (Method method, const SymmetricKey &key, const InitializationVector &iv, bool padding) const
	Initialize a new encryption/decryption session.
void	cipher (const ByteVector &src, ByteVector &dest, const SymmetricKey &key, const InitializationVector &iv, bool padding) override
	Cipher a buffer.
void	decipher (const ByteVector &src, ByteVector &dest, const SymmetricKey &key, const InitializationVector &iv, bool padding) override
	Decipher a buffer.
Public Member Functions inherited from logicalaccess::openssl::SymmetricCipher
virtual	~SymmetricCipher ()
	Destructor.
virtual void	cipher (const ByteVector &src, ByteVector &dest, const SymmetricKey &key, const InitializationVector &iv, bool padding)=0
	Cipher a buffer.
void	cipher (const ByteVector &src, ByteVector &dest, const SymmetricKey &key)
void	cipher (const ByteVector &src, ByteVector &dest, const ByteVector &key, const ByteVector &iv={})
virtual void	decipher (const ByteVector &src, ByteVector &dest, const SymmetricKey &key, const InitializationVector &iv, bool padding)=0
	Decipher a buffer.
void	decipher (const ByteVector &src, ByteVector &dest, const SymmetricKey &key)
void	decipher (const ByteVector &src, ByteVector &dest, const ByteVector &key, const ByteVector &iv={})
virtual unsigned char	getBlockSize () const =0

Static Public Member Functions
static void	update (OpenSSLSymmetricCipherContext &context, const ByteVector &src)
	Add data to encrypt/decrypt.
static ByteVector	stop (OpenSSLSymmetricCipherContext &context)
	Finalize an encryption/decryption session.

Protected Member Functions
virtual const EVP_CIPHER *	getEVPCipher (const SymmetricKey &key) const =0
	Get the openssl EVP cipher.
EncMode	mode () const
	Get the encryption mode.

Private Attributes
EncMode	d_mode
	The encryption mode.

Detailed Description

A OpenSSL symmetric cipher base class.

This class serves as a base for all OpenSSL based symmetric cipher classes.

To cipher or decipher a buffer, you can use the start() method to get a context, use update() to fill-in a data block and stop() to get the ciphered/deciphered resulting data.

OpenSSLSymmetricCipher also provides helper methods cipher() and decipher() to quickly cipher or decipher a buffer.

Member Enumeration Documentation

EncMode

enum logicalaccess::openssl::OpenSSLSymmetricCipher::EncMode

Encryption mode.

Enumerator
ENC_MODE_CBC	CBC.
ENC_MODE_CFB	CFB.
ENC_MODE_CFB1	CFB1.
ENC_MODE_CFB8	CFB8.
ENC_MODE_ECB	ECB.
ENC_MODE_OFB	OFB.

Method

enum logicalaccess::openssl::OpenSSLSymmetricCipher::Method

A method.

Enumerator
M_ENCRYPT
M_DECRYPT

Constructor & Destructor Documentation

OpenSSLSymmetricCipher()

logicalaccess::openssl::OpenSSLSymmetricCipher::OpenSSLSymmetricCipher ( EncMode  mode )

explicit

Constructor.

Parameters

mode	The encryption mode.

~OpenSSLSymmetricCipher()

logicalaccess::openssl::OpenSSLSymmetricCipher::~OpenSSLSymmetricCipher ( )

virtual

Member Function Documentation

cipher()

void logicalaccess::openssl::OpenSSLSymmetricCipher::cipher ( const ByteVector &  src, ByteVector &  dest, const SymmetricKey &  key, const InitializationVector &  iv, bool  padding  )

overridevirtual

Cipher a buffer.

Parameters

src	The buffer to cipher.
dest	The ciphered buffer.
key	The key to use.
iv	The initialisation vector.
padding	Whether to use padding. In case of a failure, the call an InvalidCallException.

Implements logicalaccess::openssl::SymmetricCipher.

decipher()

void logicalaccess::openssl::OpenSSLSymmetricCipher::decipher ( const ByteVector &  src, ByteVector &  dest, const SymmetricKey &  key, const InitializationVector &  iv, bool  padding  )

overridevirtual

Decipher a buffer.

Parameters

src	The buffer to decipher.
dest	The deciphered buffer.
key	The key to use.
iv	The initialisation vector.
padding	Whether to use padding. In case of a failure, the call a InvalidCallException.

Implements logicalaccess::openssl::SymmetricCipher.

getEVPCipher()

virtual const EVP_CIPHER * logicalaccess::openssl::OpenSSLSymmetricCipher::getEVPCipher ( const SymmetricKey &  key ) const

protectedpure virtual

Get the openssl EVP cipher.

Parameters

key

The key.

Returns

The EVP cipher.

Implemented in logicalaccess::openssl::AESCipher, and logicalaccess::openssl::DESCipher.

mode()

EncMode logicalaccess::openssl::OpenSSLSymmetricCipher::mode ( ) const

inlineprotected

Get the encryption mode.

Returns

The encryption mode.

start()

OpenSSLSymmetricCipherContext logicalaccess::openssl::OpenSSLSymmetricCipher::start	(	Method	method,
		const SymmetricKey &	key,
		const InitializationVector &	iv,
		bool	padding
	)		const

Initialize a new encryption/decryption session.

Parameters

method	The method.
key	The key to use.
iv	The initialisation vector.
padding	Whether to use padding.

Returns

A context that must be passed to stop() when cipherement is done.

stop()

ByteVector logicalaccess::openssl::OpenSSLSymmetricCipher::stop ( OpenSSLSymmetricCipherContext &  context )

static

Finalize an encryption/decryption session.

Parameters

context

The context.

Returns

The encrypted/decrypted data.

Warning

The value context is undefined after the call. Passing it to start(), update() or stop() will lead to undefined behavior.

update()

void logicalaccess::openssl::OpenSSLSymmetricCipher::update ( OpenSSLSymmetricCipherContext &  context, const ByteVector &  src  )

static

Add data to encrypt/decrypt.

Parameters

context	The context.
src	The data to add to the encrypt/decrypt session.

Member Data Documentation

d_mode

EncMode logicalaccess::openssl::OpenSSLSymmetricCipher::d_mode

private

The encryption mode.

---

The documentation for this class was generated from the following files:

• C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/crypto/openssl_symmetric_cipher.hpp
• C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/crypto/openssl_symmetric_cipher.cpp
