logicalaccess::PKCSKeyStorage Class Reference

#include <PKCSkeystorage.hpp>

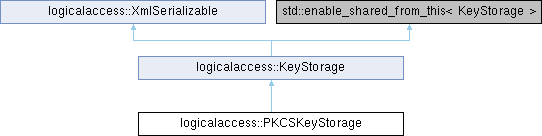

Inheritance diagram for logicalaccess::PKCSKeyStorage:

Public Member Functions
KeyStorageType	getType () const override
	Get the key storage type.
std::string	getDefaultXmlNodeName () const override
	Get the default Xml Node name for this object.
void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize object to Xml Node.
void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize object from a Xml Node.
const ByteVector &	get_key_id () const
void	set_key_id (const ByteVector &keyid)
size_t	get_slot_id () const
void	set_slot_id (size_t slot_id)
const std::string &	get_pkcs_session_password () const
void	set_pkcs_session_password (const std::string &pwd)
const std::string &	get_proteccio_conf_dir () const
void	set_proteccio_conf_dir (const std::string &d)
const std::string &	get_pkcs_shared_object_path () const
void	set_pkcs_shared_object_path (const std::string &d)
Public Member Functions inherited from logicalaccess::KeyStorage
virtual	~KeyStorage ()=default
virtual KeyStorageType	getType () const =0
	Get the key storage type.
void	serialize (boost::property_tree::ptree &parentNode) override
	Serialize object to Xml Node.
void	unSerialize (boost::property_tree::ptree &node) override
	UnSerialize object from a Xml Node.
std::string	getMetadata (const std::string &key)
bool	hasMetadata (const std::string &key) const
void	addMetadata (const std::string &key, const std::string &value)
virtual std::string	serialize ()
	Serialize object to Xml Node string.
virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.
virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.
virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.
virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.
virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.
Public Member Functions inherited from logicalaccess::XmlSerializable
virtual	~XmlSerializable ()=default
virtual std::string	serialize ()
	Serialize object to Xml Node string.
virtual std::string	serializeWithHeaders ()
	Serialize object to Xml Node string, with xml headers.
virtual void	serialize (boost::property_tree::ptree &parentNode)=0
	Serialize object to Xml Node.
virtual void	serializeToFile (const std::string &filename)
	Serialize object to a Xml file.
virtual void	unSerialize (boost::property_tree::ptree &node)=0
	UnSerialize object from a Xml Node.
virtual void	unSerialize (const std::string &xmlstring, const std::string &rootNode)
	UnSerialize object from a Xml Node string.
virtual void	unSerialize (std::istream &is, const std::string &rootNode)
	UnSerialize object from a Xml node.
virtual void	unSerialize (boost::property_tree::ptree &node, const std::string &rootNode)
	UnSerialize object from a Xml node.
virtual void	unSerializeFromFile (const std::string &filename)
	UnSerialize object from a Xml file.
virtual std::string	getDefaultXmlNodeName () const =0
	Get the default Xml Node name for this object.

Private Attributes
ByteVector	pkcs_object_id_
std::string	pkcs_session_password_
size_t	slot_id_ = 0
std::string	env_PROTECCIO_CONF_DIR_
std::string	pkcs_library_shared_object_path_

Additional Inherited Members
Static Public Member Functions inherited from logicalaccess::KeyStorage
static std::shared_ptr< KeyStorage >	getKeyStorageFromType (KeyStorageType kst)
	Get the key storage instance from a key storage type.
Static Public Member Functions inherited from logicalaccess::XmlSerializable
static std::string	removeXmlDeclaration (const std::string &xmlstring)
	Remove Xml declaration from a xml string.
static ByteVector	formatHexString (std::string hexstr)
	Format hex string to hex string with space.
Static Protected Member Functions inherited from logicalaccess::XmlSerializable
static unsigned long long	atoull (const std::string &str)
Protected Attributes inherited from logicalaccess::KeyStorage
std::map< std::string, std::string >	metadata_

Detailed Description

A storage to represent a key store in a PKCS token.

Member Function Documentation

get_key_id()

const ByteVector & logicalaccess::PKCSKeyStorage::get_key_id ( ) const

inline

get_pkcs_session_password()

const std::string & logicalaccess::PKCSKeyStorage::get_pkcs_session_password ( ) const

inline

get_pkcs_shared_object_path()

const std::string & logicalaccess::PKCSKeyStorage::get_pkcs_shared_object_path ( ) const

inline

get_proteccio_conf_dir()

const std::string & logicalaccess::PKCSKeyStorage::get_proteccio_conf_dir ( ) const

inline

get_slot_id()

size_t logicalaccess::PKCSKeyStorage::get_slot_id ( ) const

inline

getDefaultXmlNodeName()

std::string logicalaccess::PKCSKeyStorage::getDefaultXmlNodeName ( ) const

inlineoverridevirtual

Get the default Xml Node name for this object.

Returns

The Xml node name.

Implements logicalaccess::XmlSerializable.

getType()

KeyStorageType logicalaccess::PKCSKeyStorage::getType ( ) const

inlineoverridevirtual

Get the key storage type.

Returns

The key storage type.

Implements logicalaccess::KeyStorage.

serialize()

void logicalaccess::PKCSKeyStorage::serialize ( boost::property_tree::ptree &  parentNode )

overridevirtual

Serialize object to Xml Node.

Parameters

os	The XML stream.

Reimplemented from logicalaccess::KeyStorage.

set_key_id()

void logicalaccess::PKCSKeyStorage::set_key_id ( const ByteVector &  keyid )

inline

set_pkcs_session_password()

void logicalaccess::PKCSKeyStorage::set_pkcs_session_password ( const std::string &  pwd )

inline

set_pkcs_shared_object_path()

void logicalaccess::PKCSKeyStorage::set_pkcs_shared_object_path ( const std::string &  d )

inline

set_proteccio_conf_dir()

void logicalaccess::PKCSKeyStorage::set_proteccio_conf_dir ( const std::string &  d )

inline

set_slot_id()

void logicalaccess::PKCSKeyStorage::set_slot_id ( size_t  slot_id )

inline

unSerialize()

void logicalaccess::PKCSKeyStorage::unSerialize ( boost::property_tree::ptree &  node )

overridevirtual

UnSerialize object from a Xml Node.

Parameters

node	The Xml node.

Reimplemented from logicalaccess::KeyStorage.

Member Data Documentation

env_PROTECCIO_CONF_DIR_

std::string logicalaccess::PKCSKeyStorage::env_PROTECCIO_CONF_DIR_

private

pkcs_library_shared_object_path_

std::string logicalaccess::PKCSKeyStorage::pkcs_library_shared_object_path_

private

pkcs_object_id_

ByteVector logicalaccess::PKCSKeyStorage::pkcs_object_id_

private

The CKA_ID attribute value that represent the ID of the key on the PKCS token.

pkcs_session_password_

std::string logicalaccess::PKCSKeyStorage::pkcs_session_password_

private

slot_id_

size_t logicalaccess::PKCSKeyStorage::slot_id_ = 0

private

---

The documentation for this class was generated from the following files:

• C:/dev/lla/liblogicalaccess/include/logicalaccess/cards/PKCSkeystorage.hpp
• C:/dev/lla/liblogicalaccess/src/cards/PKCSkeystorage.cpp
