logicalaccess::ISO7816StorageCardService Class Reference

The ISO7816 card provider base class. More...

#include <iso7816storagecardservice.hpp>

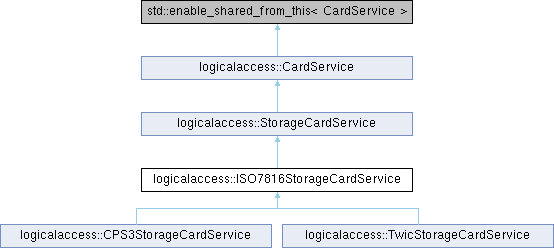

Inheritance diagram for logicalaccess::ISO7816StorageCardService:

Public Member Functions
	ISO7816StorageCardService (std::shared_ptr< Chip > chip)
	Constructor.
virtual	~ISO7816StorageCardService ()
	Destructor.
std::string	getCSType () override
void	erase (std::shared_ptr< Location > location, std::shared_ptr< AccessInfo > aiToUse) override
	Erase a specific location on the card.
void	writeData (std::shared_ptr< Location > location, std::shared_ptr< AccessInfo > aiToUse, std::shared_ptr< AccessInfo > aiToWrite, const ByteVector &data, CardBehavior behaviorFlags) override
	Write data on a specific Tag-It location, using given Tag-It keys.
ByteVector	readData (std::shared_ptr< Location > location, std::shared_ptr< AccessInfo > aiToUse, size_t Length, CardBehavior behaviorFlags) override
	Read data on a specific Tag-It location, using given Tag-It keys.
ByteVector	readDataHeader (std::shared_ptr< Location > location, std::shared_ptr< AccessInfo > aiToUse) override
	Read data header on a specific location, using given keys.
Public Member Functions inherited from logicalaccess::StorageCardService
	StorageCardService (std::shared_ptr< Chip > chip)
	Constructor.
virtual	~StorageCardService ()
virtual void	erase (std::shared_ptr< Location > location, std::shared_ptr< AccessInfo > aiToUse)=0
	Erase a specific location on the card.
virtual void	writeData (std::shared_ptr< Location > location, std::shared_ptr< AccessInfo > aiToUse, std::shared_ptr< AccessInfo > aiToWrite, const ByteVector &data, CardBehavior behaviorFlags)=0
	Write data on a specific location, using given keys.
virtual ByteVector	readData (std::shared_ptr< Location > location, std::shared_ptr< AccessInfo > aiToUse, size_t length, CardBehavior behaviorFlags)=0
	Read data on a specific location, using given keys.
virtual ByteVector	readDataHeader (std::shared_ptr< Location > location, std::shared_ptr< AccessInfo > aiToUse)=0
	Read data header on a specific location, using given keys.
SignatureResult	IKS_getLastReadSignature ()
Public Member Functions inherited from logicalaccess::CardService
virtual	~CardService ()=default
	CardService (std::shared_ptr< Chip > chip, CardServiceType serviceType)
	Constructor.
virtual std::string	getCSType ()=0
std::shared_ptr< Chip >	getChip () const
virtual CardServiceType	getServiceType () const
	Get the card service type.

Protected Member Functions
std::shared_ptr< ISO7816Chip >	getISO7816Chip () const
	Get the associated ISO7816 chip.

Additional Inherited Members
Static Public Attributes inherited from logicalaccess::StorageCardService
static constexpr const CardServiceType	service_type_ = CST_STORAGE
Protected Attributes inherited from logicalaccess::StorageCardService
SignatureResult	last_read_signature_
Protected Attributes inherited from logicalaccess::CardService
std::shared_ptr< Chip >	d_chip
	Chip object.
CardServiceType	d_serviceType
	Card service type.

Detailed Description

The ISO7816 card provider base class.

Constructor & Destructor Documentation

ISO7816StorageCardService()

logicalaccess::ISO7816StorageCardService::ISO7816StorageCardService ( std::shared_ptr< Chip >  chip )

explicit

Constructor.

~ISO7816StorageCardService()

logicalaccess::ISO7816StorageCardService::~ISO7816StorageCardService ( )

virtual

Destructor.

Member Function Documentation

erase()

void logicalaccess::ISO7816StorageCardService::erase ( std::shared_ptr< Location >  location, std::shared_ptr< AccessInfo >  aiToUse  )

overridevirtual

Erase a specific location on the card.

Parameters

location	The data location.
aiToUse	The key's informations to use to delete.

Implements logicalaccess::StorageCardService.

getCSType()

std::string logicalaccess::ISO7816StorageCardService::getCSType ( )

inlineoverridevirtual

Implements logicalaccess::CardService.

Reimplemented in logicalaccess::TwicStorageCardService.

getISO7816Chip()

std::shared_ptr< ISO7816Chip > logicalaccess::ISO7816StorageCardService::getISO7816Chip ( ) const

inlineprotected

Get the associated ISO7816 chip.

Returns

The ISO7816 chip.

readData()

ByteVector logicalaccess::ISO7816StorageCardService::readData ( std::shared_ptr< Location >  location, std::shared_ptr< AccessInfo >  aiToUse, size_t  Length, CardBehavior  behaviorFlags  )

overridevirtual

Read data on a specific Tag-It location, using given Tag-It keys.

Parameters

location	The data location.
aiToUse	The key's informations to use for write access.
length	to read.
behaviorFlags	Flags which determines the behavior.

Returns

The bytes readed.

Implements logicalaccess::StorageCardService.

Reimplemented in logicalaccess::TwicStorageCardService.

readDataHeader()

ByteVector logicalaccess::ISO7816StorageCardService::readDataHeader ( std::shared_ptr< Location >  location, std::shared_ptr< AccessInfo >  aiToUse  )

overridevirtual

Read data header on a specific location, using given keys.

Parameters

location	The data location.
aiToUse	The key's informations to use.
data	Will contain data after reading.
dataLength	Data's length to read.

Returns

Data header length.

Implements logicalaccess::StorageCardService.

writeData()

void logicalaccess::ISO7816StorageCardService::writeData ( std::shared_ptr< Location >  location, std::shared_ptr< AccessInfo >  aiToUse, std::shared_ptr< AccessInfo >  aiToWrite, const ByteVector &  data, CardBehavior  behaviorFlags  )

overridevirtual

Write data on a specific Tag-It location, using given Tag-It keys.

Parameters

location	The data location.
aiToUse	The key's informations to use for write access.
aiToWrite	The key's informations to change.
data	Data to write.
behaviorFlags	Flags which determines the behavior.

Implements logicalaccess::StorageCardService.

---

The documentation for this class was generated from the following files:

• C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/iso7816/iso7816storagecardservice.hpp
• C:/dev/lla/liblogicalaccess/plugins/logicalaccess/plugins/cards/iso7816/iso7816storagecardservice.cpp
